Model: Z890 UD WIFI6E
View More Info...
Chat Through
| Supported CPU | LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU |
| Chipset | Intel Z890 Express Chipset |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
| M.2 Socket | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
| Memory Type | DDR5 |
| Max Memory Channels | up to 256 GB (64 GB single DIMM capacity) of system memory |
| Slots | 4 x DIMM |
| Supported Memory Type | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module |
| Display Port (s) | 1 x DisplayPort |
| LAN Port (s) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x USB4® USB Type-C® port (DisplayPort (Note)) 1 x USB 3.2 Gen 2 Type-A port (red) 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Warranty | 3 Year |

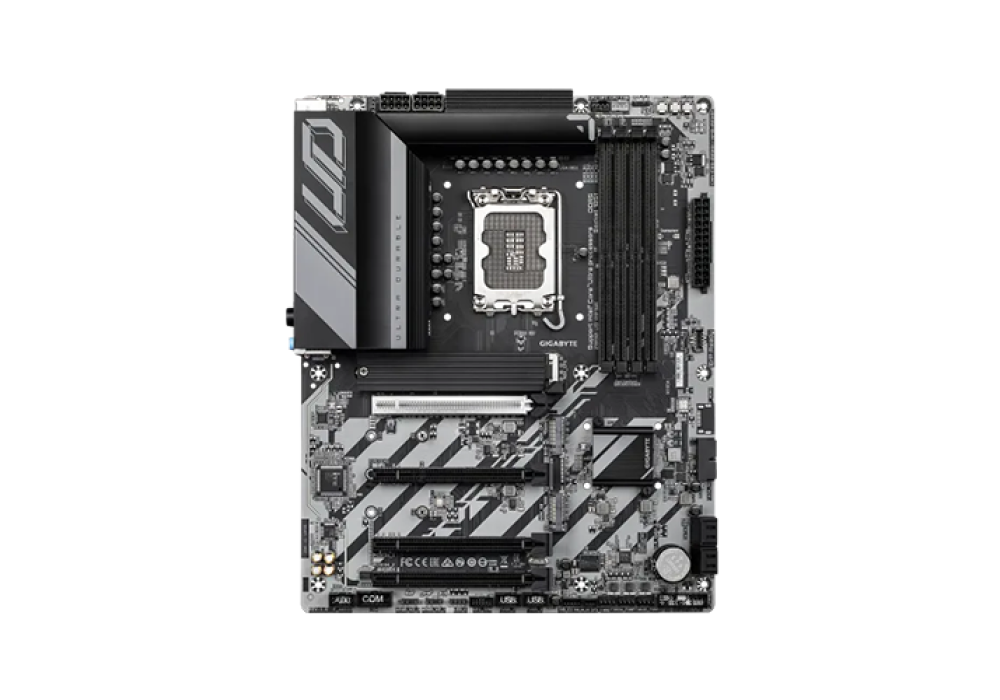

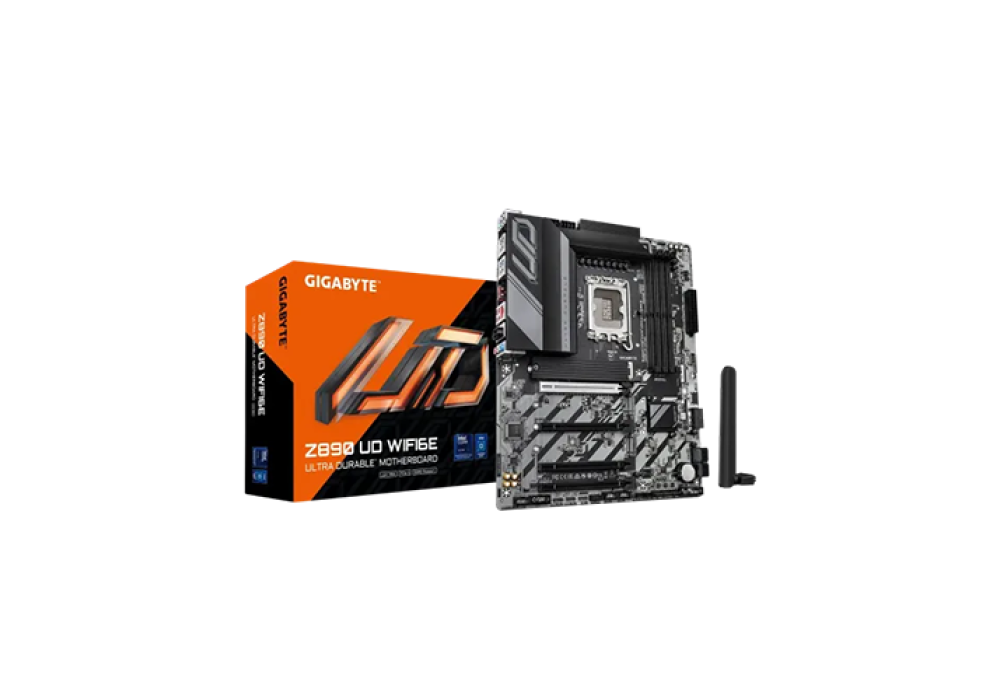

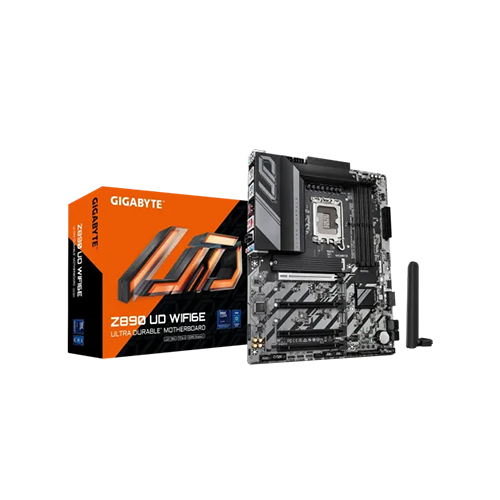

Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard Price in bd offers an advanced platform for gamers, content creators, and professionals seeking powerful performance with next-generation connectivity. Built with the Intel Z890 Express chipset and LGA1851 socket, this motherboard fully supports Intel Core Ultra processors, making it a future-ready choice for high-end computing. Featuring DDR5 memory compatibility up to 256GB, it ensures faster multitasking and stability with support for up to 9200MHz (OC). The PCIe 5.0 x16 slot delivers maximum bandwidth for the latest GPUs or NVMe SSDs, while multiple PCIe 4.0 slots provide flexible expansion options. With four M.2 connectors supporting both PCIe 5.0 and 4.0 SSDs, plus four SATA ports, users can enjoy lightning-fast storage performance with RAID 0, 1, 5, and 10 configurations. Connectivity is one of its strongest highlights—integrated Intel Wi-Fi 6E and Realtek 2.5GbE LAN ensure ultra-fast wired and wireless networking, while Bluetooth 5.3 adds seamless device pairing. The motherboard also supports USB4 Type-C and DisplayPort 2.1 outputs, delivering 4K resolution at 144Hz for high-definition visuals. Designed in an ATX form factor, it includes multiple fan headers, RGB lighting support, and compatibility with Gigabyte Control Center (GCC) for easy system monitoring and customization. Q-Flash Plus and Smart Backup features add extra convenience for updates and data protection. With premium build quality, advanced features, and a 3-year warranty, the Gigabyte Z890 UD WIFI6E ATX motherboard ensures durability, reliability, and cutting-edge performance for modern PC builds in Bangladesh.
The Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard is now available in Bangladesh through Onix Computer, ensuring easy accessibility for gamers and professionals. Its user-friendly BIOS, advanced connectivity, and compatibility with Intel Core Ultra processors make it highly usable for building powerful desktops. This motherboard guarantees long-lasting performance with reliable stability for diverse computing needs.
The Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard price in Bangladesh is competitive considering its premium specifications. Offering advanced connectivity, Wi-Fi 6E, DDR5 support, and PCIe 5.0, it is a future-proof choice for both gamers and professionals. Onix Computer ensures the best deals with official warranty and after-sales support, making it a valuable investment.
The Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard stands out as a high-performance board designed for modern PC builds. Its robust power delivery, DDR5 memory support, and PCIe 5.0 ensure superior speed for gaming and productivity tasks. The integrated Wi-Fi 6E, 2.5GbE LAN, and USB4 connectivity provide a seamless experience, while its ATX form factor guarantees expandability. With advanced cooling and RGB features, it delivers both performance and aesthetics.
Onix Computer is a trusted source in Bangladesh for authentic Gigabyte motherboards, including the Z890 UD WIFI6E. Customers benefit from competitive pricing, official warranty, reliable after-sales service, and fast nationwide delivery. With a reputation for genuine products and expert customer support, Onix Computer ensures that buyers receive the best value and peace of mind when upgrading their PC.
