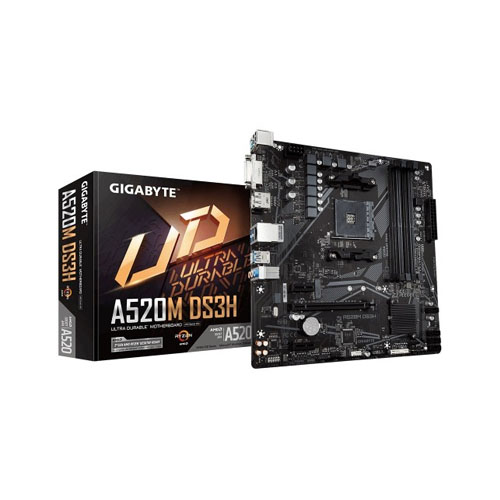

Gigabyte A520M DS3H Ultra Durable Micro-ATX AMD AM4 Motherboard

Basic Information
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD A520
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Graphics
Graphics 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for up to 3 displays at the same time
Max Shared Memory 16 GB
Memory
Type Dual-Channel Memory Architecture
Slots 4 x DDR4 DIMM
Supported Memory 3rd Gen AMD Ryzen Processors:
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 /
2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /
3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB (32 GB single DIMM capacity)
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s) CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 3 Years

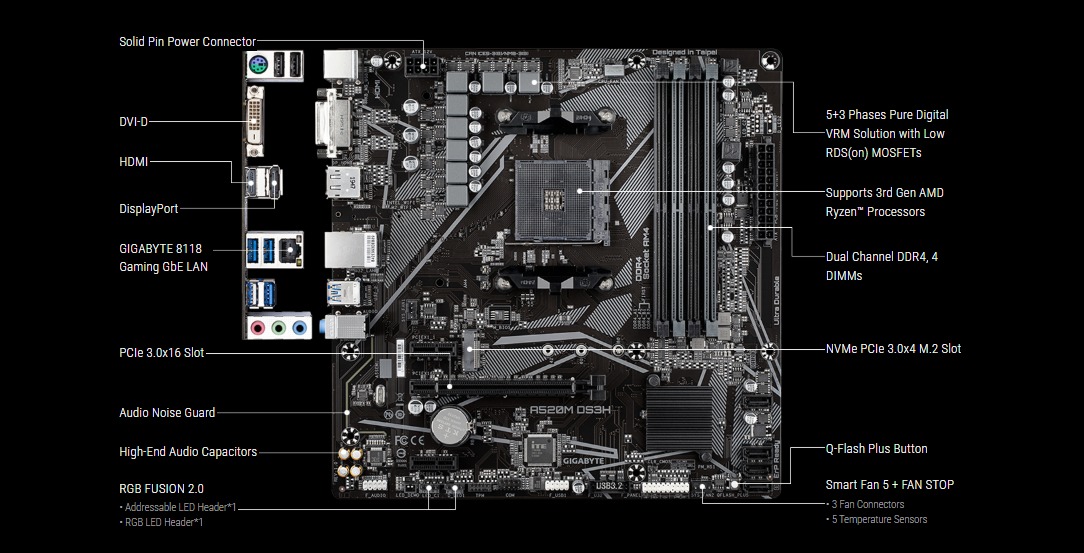

FEATURES:

  • Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ And 3rd Gen Ryzen™ With Radeon™ Graphics Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution With Low RDS(On) MOSFETs
  • Ultra-Fast NVMe PCIe 3.0 X4 M.2 Connector
  • GIGABYTE Exclusive 8118 Gaming LAN With Bandwidth Management
  • HDMI, DVI-D, Display Ports For Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers With FAN STOP
  • Q-Flash Plus Update BIOS Without Installing The CPU, Memory And Graphics Card

Gigabyte A520M DS3H Ultra Durable Micro-ATX AMD AM4 Motherboard

GIGABYTE UD Series Motherboards Use A 5+3 Phases Pure Digital PWM + Low RDS(On) MOSFETs Design To Support The 3rd Gen AMD Ryzen™ CPUs By Offering Incredible Precision In Delivering Power To The Motherboard's Most Power-Hungry And Energy-Sensitive Components As Well As Delivering Enhanced System Performance And Ultimate Hardware Scalability.

Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN With Automatic Bandwidth Allocation

Realtek 8118 LAN Is A High Performance And Friendly Network Chip For Gaming Players With Automatic Bandwidth Allocation To Ensure The Highest Network Priority Of The Game Or Application. It Can Provide Users The Most Comprehensive Features And The Fastest And Smoothest Internet Experience.

HDMI 2.1 For 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, Which Is Backward Compatible With HDMI 2.0/ 1.4 And Offers 48 Gb/S Of Bandwidth – Twice Times More Than The Previous Generation. This Unlocks The Potential For Users To Transfer Multiple Video Streams, As Well As A Native Cinematic 21:9 Ratio (Which Most Movies Are Shot In), Full HDR And HDCP 2.3 Support, To Offer The Best Visual Experience For Viewers

Smart Fan 5

With Smart Fan, 5 Users Can Ensure That Their Gaming PC Can Maintain Its Performance While Staying Cool. Smart Fan 5 Allows Users To Interchange Their Fan Headers To Reflect Different Thermal Sensors At Different Locations On The Motherboard. Not Only That, With Smart Fan, 5 More Hybrid Fan Headers That Support Both PWM And Voltage Mode Fans Have Been Introduced To Make The Motherboard More Liquid Cooling Friendly.
