GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard

GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard
GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard
GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard
-1 %
GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard
GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard
GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard
GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard
  • Stock: In Stock
  • Model: B760M D3HP DDR4
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
16,800৳
17,000৳
EMI starts at 5,891৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
  • Supported RAM: 4x DDR4, Max 128GB 5333(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
View more info...
Specification
Basic Information
Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Memory Specifications
Slots 4
Max. Memory Supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Other Features
Others Special Features:
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software:
Norton Internet Security (OEM version)
LAN bandwidth management software
Connector & Ports
HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
Audio 3 x audio jacks
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

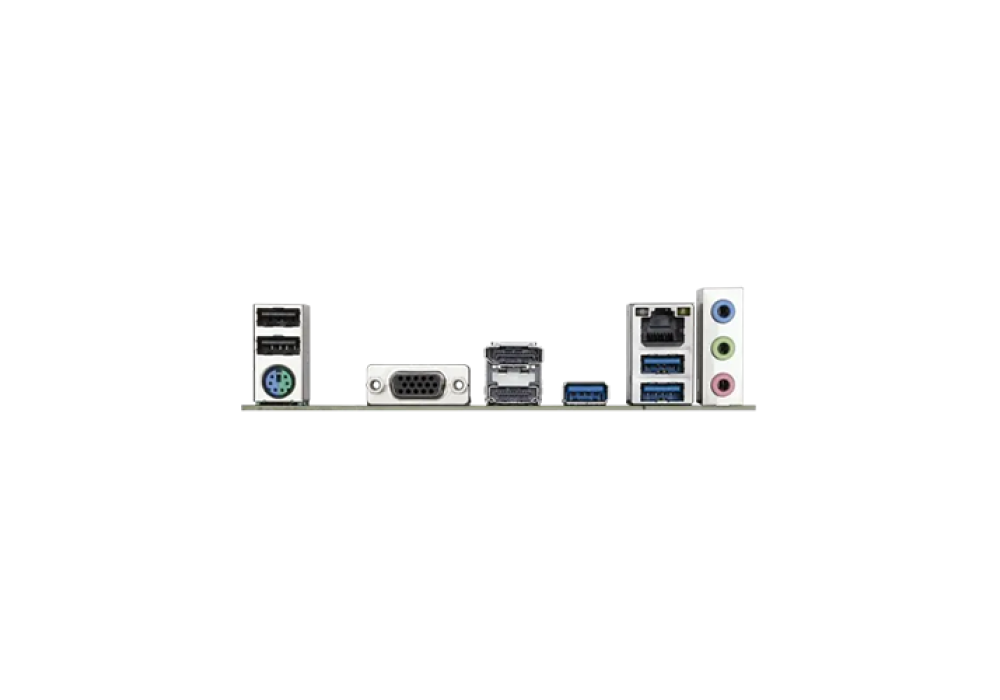

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
D-Sub (s) 1 x D-Sub port
Graphics
Graphics Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Warranty Information
Warranty 3 years Warranty
Description

GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard

GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard Price in bd is an ideal choice for tech enthusiasts and PC builders looking for high performance at an affordable cost. This Micro ATX motherboard, designed with the Intel B760 Express chipset, supports the latest 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors, offering flexibility for both gaming and productivity setups. Its LGA1700 socket ensures compatibility with a wide range of CPUs, while the licensed AMI UEFI BIOS simplifies system tuning and upgrades. Equipped with four DDR4 memory slots, the motherboard supports up to 128GB of RAM, including high-speed modules with Extreme Memory Profile (XMP) for enhanced performance. Dual-channel architecture ensures smooth multitasking, making it perfect for gamers, content creators, and professionals. For graphics, it features integrated Intel HD Graphics with HDMI 2.1, DisplayPort 1.2, and D-Sub connectivity, supporting high-resolution displays up to 4096x2160. The GIGABYTE B760M D3HP offers multiple expansion options, including PCIe 4.0 x16 for graphics cards or NVMe SSDs and two PCIe x1 slots for additional cards. Storage options include dual M.2 connectors and four SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10 for enhanced data protection. Networking is powered by Realtek GbE LAN, and audio is handled by high-definition Realtek Audio CODEC with 7.1-channel support. Additional features like Q-Flash Plus, RGB and addressable LED headers, and GIGABYTE Control Center compatibility make customization easy. With a 3-year manufacturing warranty and bundled Norton Internet Security, this motherboard provides both reliability and security for your PC.

Availability and Usability:

The GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard is widely available across major online and offline stores in Bangladesh. Its user-friendly BIOS interface and plug-and-play setup ensure easy installation for both beginners and experienced PC builders, providing a seamless computing experience for gaming, content creation, and professional work.

Features:

  • Supports 14th, 13th, and 12th Gen Intel CPUs for versatile performance.
  • Dual-channel DDR4 memory architecture with up to 128GB capacity.
  • PCIe 4.0 x16 slot for high-speed graphics or NVMe SSDs.
  • Integrated Intel HD Graphics with HDMI 2.1 and DisplayPort 1.2.
  • Multiple storage options including dual M.2 and four SATA 6Gb/s ports.
  • Realtek high-definition audio with 7.1-channel support.
  • Realtek GbE LAN for stable 1Gbps internet connectivity.
  • RGB and addressable LED headers for customizable lighting.
  • Q-Flash Plus for easy BIOS updates without CPU installation.
  • Supports RAID 0, 1, 5, and 10 for data redundancy and performance.
  • 3-year warranty ensuring reliable long-term use.
  • Bundled Norton Internet Security for enhanced system protection.

B760M D3HP DDR4 Micro ATX Motherboard Price in Bangladesh

The GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard is competitively priced in Bangladesh, offering exceptional value for a feature-rich, high-performance motherboard. tech enthusiasts can enjoy top-tier Intel CPU compatibility, extensive storage, and memory support at an affordable price point, making it a smart investment for both gaming and professional PC setups.

B760M D3HP DDR4 Micro ATX Motherboard Review

The GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard excels in performance, reliability, and versatility. Its support for the latest Intel CPUs, DDR4 memory up to 128GB, and multiple expansion slots makes it ideal for gamers and professionals. Features like HDMI 2.1, DisplayPort, RAID support, and Q-Flash Plus enhance usability. With a solid 3-year warranty, it ensures long-term durability.

Why Choose This Product from Onix Computer

Onix Computer guarantees genuine GIGABYTE motherboards with full warranty and dedicated after-sales support. Customers benefit from competitive pricing, easy delivery across Bangladesh, and expert guidance for installation and setup. Buying from Onix Computer ensures authenticity, reliability, and a hassle-free purchasing experience.
