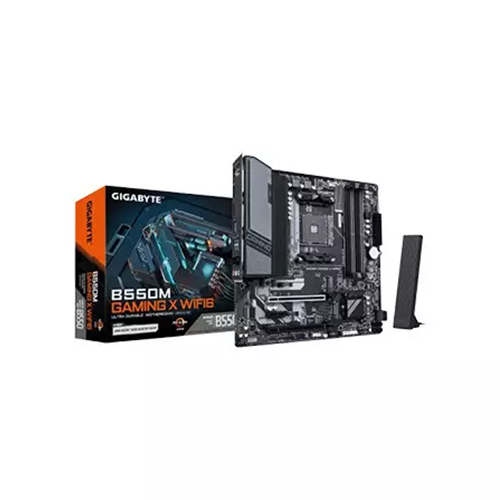

Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard

Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard
Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard
Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard
-13 %
Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard
Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard
Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard
Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard
  • Stock: In Stock
  • Model: B550M GAMING X WIFI6
17,000৳
19,500৳
EMI starts at 5,961৳/month. View all 25 banks EMI plans >
Key Features
  • LAN - Realtek GbE LAN chip
  • Chipset - AMD B550
  • Supported CPU - AMD Ryzen 5000 G-Series
  • Form Factor - Micro ATX
Specification
Basic Information
Supported CPU AMD Socket AM4, support for:
AMD Ryzen 5000 G-Series Processors/
AMD Ryzen 5000 Series Processors/
AMD Ryzen 4000 G-Series Processors/
AMD Ryzen 3000 G-Series Processors/
AMD Ryzen 3000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset AMD B550
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOSM
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Input Devices
External I/O Ports 2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x DisplayPort (Note)
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
2 x antenna connectors
3 x audio jacks
Memory Specifications
Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode
 - AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4
- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Connector & Ports
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
- AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio Realtek ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
Graphics
Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Maximum shared memory of 16 GB
Max Shared Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Others Information
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Special Features Support for APP Center
BIOS
- EasyTune
- RGB Fusion
- Smart Backup
- System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Other Features:
Voltage detection
Temperature detection
Fan speed detection

Overheating warning
Fan fail warning
Fan speed control
Network & Connectivity
LAN Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
WiFi Realtek Wi-Fi 6 RTL8851BE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
Bluetooth Support for 11ax 80MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Warranty Information
Warranty 3-Years
Description

Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard

Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard Price in BD makes it a top choice for gamers and professionals seeking powerful performance and reliable connectivity. Designed for AMD Ryzen processors, this motherboard supports Ryzen 5000, 4000, and 3000 series CPUs, ensuring smooth multitasking and gaming experiences. With the AMD B550 chipset, it delivers exceptional efficiency and advanced features to maximize PC performance. This Micro ATX motherboard comes with 4 DDR4 DIMM slots, supporting up to 128GB memory with dual-channel architecture and XMP support, allowing faster data speeds for both gaming and productivity. For storage, it features dual M.2 connectors with PCIe 4.0/3.0 compatibility and 4 SATA 6Gb/s ports, providing ultra-fast SSD and HDD performance along with RAID support. In terms of graphics, users benefit from HDMI 2.1 and DisplayPort 1.4 support, offering crystal-clear visuals up to 5K resolution with HDR. The Realtek Wi-Fi 6 and GbE LAN ensure lag-free online gaming and faster file transfers, while Bluetooth 5.1 adds wireless flexibility. Audio is enhanced with Realtek ALC1220 codec, delivering rich and immersive 7.1-channel high-definition sound. Gamers will appreciate the PCIe 4.0 x16 slot, which supports next-gen GPUs for high-end graphics performance. Additionally, RGB Fusion compatibility allows personalized lighting effects, giving your build a stylish look. With multiple USB 3.2 Gen 1, USB Type-C, and advanced thermal control, the Gigabyte B550M GAMING X WIFI6 ensures durability and stability. Backed by a 3-year warranty, it’s an excellent motherboard in Bangladesh for gaming and professional use.

Availability and Usability

The Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard is available in Bangladesh through trusted retailers like Onix Computer. With excellent usability, it supports high-speed Wi-Fi 6, stable overclocking, and multi-device connectivity. Whether for gamers, content creators, or office professionals, this motherboard ensures long-lasting performance and wide compatibility.

Features:

  • Supports latest AMD Ryzen 5000 and 3000 Series processors for optimized performance.
  • Built-in Wi-Fi 6 ensures ultra-fast, lag-free internet connectivity.
  • Dual M.2 slots with PCIe 4.0/3.0 provide blazing-fast storage expansion.
  • DDR4 memory support up to 128GB with XMP for faster multitasking.
  • HDMI 2.1 and DisplayPort 1.4 deliver high-resolution 4K/5K visuals.
  • RGB Fusion compatibility for customizable lighting setups.
  • Premium audio with Realtek ALC1220 codec for immersive gaming sound.
  • PCIe 4.0 x16 slot supports next-gen graphics cards with maximum stability.
  • Advanced thermal design prevents overheating during long gaming sessions.
  • Multiple USB 3.2 Gen 1 and USB Type-C ports for versatile connectivity.

B550M GAMING X WIFI6 Motherboard Price in Bangladesh

The Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard price in Bangladesh is competitive and offers excellent value for gamers and professionals. Available at Onix Computer, this high-performance motherboard combines durability, cutting-edge features, and reliable connectivity. Its price point makes it a great investment for anyone building a modern PC in BD.

B550M GAMING X WIFI6 Motherboard Review:

The Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard stands out with its robust design, efficient chipset, and advanced connectivity options. It offers a balance of performance and reliability with PCIe 4.0 support, high-speed RAM compatibility, and Wi-Fi 6 integration. Ideal for both gaming and productivity, this board ensures stability, customization, and long-lasting usability, making it highly recommended in Bangladesh.

Why Choose from Onix Computer

Onix Computer ensures authentic Gigabyte products at the best price in Bangladesh with official warranty support. By purchasing the Gigabyte B550M GAMING X WIFI6 from Onix, customers enjoy reliable after-sales service, genuine product assurance, and expert guidance. Onix also provides fast delivery, making it the trusted source for high-quality computer components in BD.
