Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard

Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard
Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard
Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard
Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard
Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard
Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard
Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard
Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard
Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard
  • Stock: In Stock
  • Model: TUF GAMING B550M Plus WIFI II
18,600৳
Avail EMI Offer View Plans
EMI starts at 6,522৳/month.
Key Features
    • Supported CPU: AMD Ryzen 5000/4000G/3000 Series
    • Form Factor: microATX
    • Memory Max: 128GB
    • RAM Type: DDR4
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
Basic Information
Supported CPU AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset B550
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX
24.4cm x 24.4cm
Expansion Slots
M.2 Socket Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Memory Specifications
Memory Type DDR4
Max Memory Size Supported 128GB
Slots 4 x DIMM
Connector & Ports

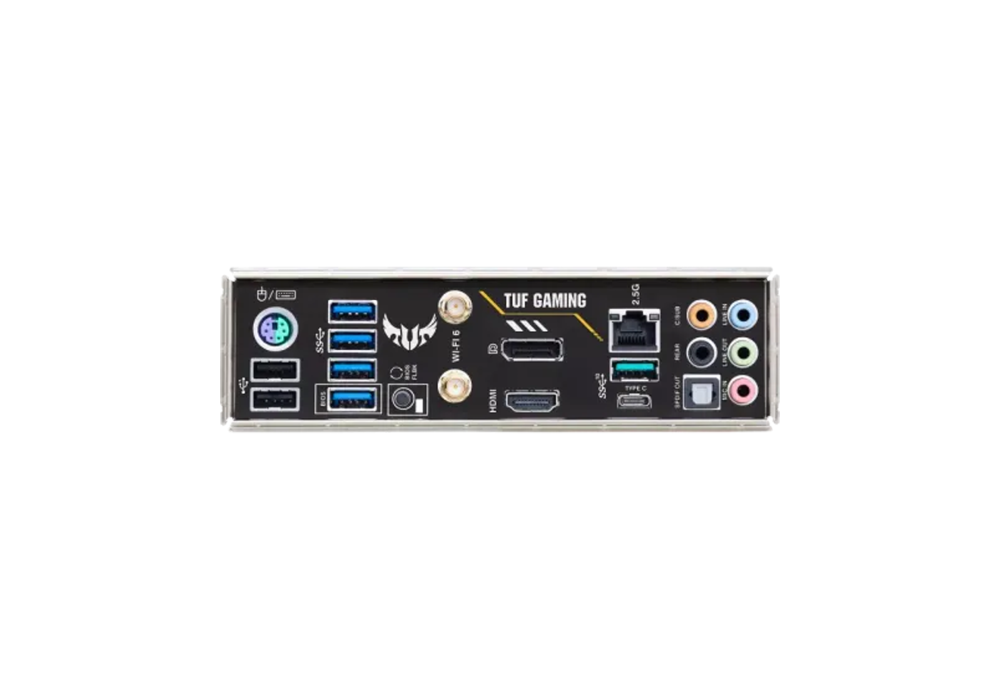

HDMI 1 x HDMI 2.1(4K@60HZ)
Display Port (s) 1 x DisplayPort 1.2
USB (s) Rear USB:Total 8 ports
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) TUF LANGuard
Wireless Communication module 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2
Supported Storage AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Graphics
Graphics 1 x DisplayPort
1 x HDMI port
Others Information
Bundled Software ASUS Exclusive Software
Armory Crate
- Aura Creator
- Aura Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
TUF GAMING CPU-Z
AI Charger
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Special Features ASUS TUF PROTECTION
- DIGI+ VRM (Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
AURA Sync
- AURA RGB headers
- Addressable Gen 2 header
Warranty Information
Warranty 3 Years
Description

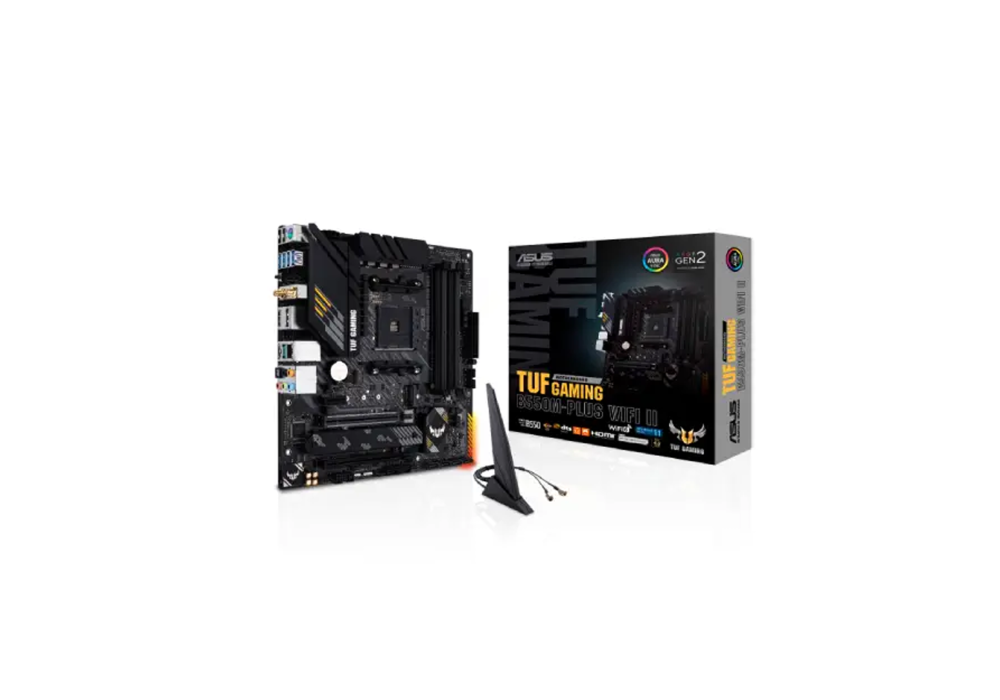

Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard

Upgrade your gaming and productivity setup with the powerful Asus TUF GAMING B550M-PLUS WIFI II, a motherboard designed to deliver exceptional durability, performance, and next-level connectivity for modern PC builders. Built for gamers, creators, and power users, this microATX motherboard combines military-grade components with advanced cooling solutions to ensure stable operation even during intense workloads and competitive gaming sessions. The TUF Gaming series is widely recognized for its reliability, and this model continues that legacy with enhanced power delivery, optimized thermal design, and robust build quality. Supporting AMD Ryzen processors on the AM4 platform, it provides outstanding compatibility and performance for both current and previous-generation CPUs. Whether you're assembling a high-FPS gaming rig or a multitasking workstation, this motherboard offers the flexibility and performance you need to stay ahead.

With integrated WiFi connectivity, high-speed LAN, PCIe 4.0 support, and multiple M.2 slots for ultra-fast SSD storage, the Asus TUF GAMING B550M-PLUS WIFI II ensures smooth data transfer and reduced latency. Advanced cooling features, including dedicated heatsinks and fan headers, keep your system running efficiently under heavy loads. Additionally, its user-friendly BIOS interface and comprehensive software controls make system tuning, monitoring, and customization simple—even for new builders. From enhanced audio performance to reinforced PCIe slots for heavy GPUs, every detail is engineered for long-term durability and consistent performance. If you're looking for a reliable, future-ready motherboard that balances performance, stability, and connectivity, the Asus TUF GAMING B550M-PLUS WIFI II AMD AM4 microATX Motherboard is a smart investment for your next PC build.

The main feature of the Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard

  • AMD AM4 Socket with B550 Chipset: Built to support 3rd Gen and select newer AMD Ryzen processors, this motherboard delivers reliable performance and strong compatibility for gaming and multitasking systems. The B550 chipset ensures stable power delivery and optimized efficiency. It is ideal for users who want to build a balanced gaming PC or productivity workstation without compromising performance. With optimized power phases and enhanced circuit design, the board maintains consistent CPU performance even under heavy workloads. This makes it suitable for gaming, streaming, editing, and everyday computing tasks.
  • Integrated WiFi & High-Speed LAN: Enjoy seamless wireless connectivity with built-in WiFi support, reducing cable clutter while maintaining stable internet performance. It also features high-speed LAN for low-latency online gaming and smooth streaming. Whether you're gaming competitively or attending online meetings, the stable connection ensures minimal lag and interruption. The combination of wired and wireless networking options gives users flexible connectivity based on their setup and environment.
  • PCIe 4.0 Support: With PCIe 4.0 compatibility, users can install next-generation GPUs and ultra-fast NVMe SSDs, ensuring faster data transfer speeds and improved overall system responsiveness. This technology provides double the bandwidth compared to PCIe 3.0, allowing your graphics card and storage devices to perform at their full potential. It also makes the system more future-ready for upcoming high-performance hardware upgrades.
  • Dual M.2 Slots for Fast Storage: Equipped with multiple M.2 slots, the motherboard supports high-speed NVMe SSDs, reducing load times and enhancing system boot speed for gaming and professional workloads. Users can install both primary and secondary SSDs for better storage management and performance. Faster storage means quicker game launches, smoother application loading, and improved overall user experience.
  • Advanced Cooling Design: Dedicated VRM heatsinks, chipset cooling, and multiple fan headers help maintain optimal temperatures during heavy gaming or demanding applications, ensuring long-term system stability. The enhanced thermal solution prevents overheating and maintains consistent performance during extended gaming sessions. With multiple fan control options, users can customize airflow and cooling efficiency based on system requirements.
  • Military-Grade TUF Components: Built with durable capacitors, reinforced PCIe slots, and high-quality components, this motherboard ensures long-lasting reliability and protection against power surges and hardware stress. The TUF-grade components are designed for extended durability and stable operation under demanding conditions. Reinforced structural design also protects heavy graphics cards from bending or slot damage, ensuring long-term hardware safety.

Build gaming PC with Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard

Looking for more upgrade options? You can also explore the powerful Asus PRIME B650M-A II AM5 mATX Motherboard for next-generation Ryzen builds. If you're browsing within the AMD Ryzen Motherboard range, this model is another strong choice for performance-focused users.

At Onix BD, we offer genuine AMD-compatible motherboards with warranty and competitive pricing. Whether you're building on AM4 or planning to switch to AM5, choosing the right motherboard ensures better performance, stability, and future upgrade flexibility. Browse related AMD Ryzen motherboard models today and build a system that delivers speed, reliability, and long-term value for gaming and productivity.

Quick Compare

Quick Compare

Comparison of TUF GAMING B550M Plus WIFI II vs B850M-X WiFi vs B650M D3HP vs B650M Gaming WIFI which are most simmiler.
Product Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard ASRock B850M-X WiFi AM5 DDR5 Micro ATX Motherboard Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard MSI B650M Gaming WIFI AMD AM5 mATX Motherboard
Image Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard ASRock B850M-X WiFi AM5 DDR5 Micro ATX Motherboard Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard MSI B650M Gaming WIFI AMD AM5 mATX Motherboard
Price 18,600৳ 20,350৳ 18,500৳ 26,470৳ 18,500৳ 20,900৳ 18,500৳
Model TUF GAMING B550M Plus WIFI II B850M-X WiFi B650M D3HP B650M Gaming WIFI
Brand Asus ASRock Gigabyte MSI
Availability In Stock In Stock In Stock In Stock
Rating
Based on 0 reviews.

Based on 1 reviews.

Based on 1 reviews.

Based on 0 reviews.
Summary Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard Upgrade your gaming and productivity setup with the powerful Asus TUF GAMING B550M-PLUS WIFI II, a motherboard designed to deliver exceptional durability, performance, and next-level connectivity for modern PC builders. Built for gamers, creators, and power users, this microATX motherboard combines military-grade components with advanced cooling solutions to ensure stable operation even during intense workloads and competitive gaming sessions. The TUF Gaming series is widely recognized for its reliability, and this model continues that legacy with enhanced power delivery, optimized thermal design, and robust build quality. Supporting AMD Ryzen processors on the AM4 platform, it provides outstanding compatibility and performance for both current and previous-generation CPUs. Whether you're assembling a high-FPS gaming rig or a multitasking workstation, this motherboard offers the flexibility and performance you need to stay ahead. With integrated WiFi connectivity, high-speed LAN, PCIe 4.0 support, and multiple M.2 slots for ultra-fast SSD storage, the Asus TUF GAMING B550M-PLUS WIFI II ensures smooth data transfer and reduced latency. Advanced cooling features, including dedicated heatsinks and fan headers, keep your system running efficiently under heavy loads. Additionally, its user-friendly BIOS interface and comprehensive software controls make system tuning, monitoring, and customization simple—even for new builders. From enhanced audio performance to reinforced PCIe slots for heavy GPUs, every detail is engineered for long-term durability and consistent performance. If you're looking for a reliable, future-ready motherboard that balances performance, stability, and connectivity, the Asus TUF GAMING B550M-PLUS WIFI II AMD AM4 microATX Motherboard is a smart investment for your next PC build. The main feature of the Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard AMD AM4 Socket with B550 Chipset: Built to support 3rd Gen and select newer AMD Ryzen processors, this motherboard delivers reliable performance and strong compatibility for gaming and multitasking systems. The B550 chipset ensures stable power delivery and optimized efficiency. It is ideal for users who want to build a balanced gaming PC or productivity workstation without compromising performance. With optimized power phases and enhanced circuit design, the board maintains consistent CPU performance even under heavy workloads. This makes it suitable for gaming, streaming, editing, and everyday computing tasks. Integrated WiFi & High-Speed LAN: Enjoy seamless wireless connectivity with built-in WiFi support, reducing cable clutter while maintaining stable internet performance. It also features high-speed LAN for low-latency online gaming and smooth streaming. Whether you're gaming competitively or attending online meetings, the stable connection ensures minimal lag and interruption. The combination of wired and wireless networking options gives users flexible connectivity based on their setup and environment. PCIe 4.0 Support: With PCIe 4.0 compatibility, users can install next-generation GPUs and ultra-fast NVMe SSDs, ensuring faster data transfer speeds and improved overall system responsiveness. This technology provides double the bandwidth compared to PCIe 3.0, allowing your graphics card and storage devices to perform at their full potential. It also makes the system more future-ready for upcoming high-performance hardware upgrades. Dual M.2 Slots for Fast Storage: Equipped with multiple M.2 slots, the motherboard supports high-speed NVMe SSDs, reducing load times and enhancing system boot speed for gaming and professional workloads. Users can install both primary and secondary SSDs for better storage management and performance. Faster storage means quicker game launches, smoother application loading, and improved overall user experience. Advanced Cooling Design: Dedicated VRM heatsinks, chipset cooling, and multiple fan headers help maintain optimal temperatures during heavy gaming or demanding applications, ensuring long-term system stability. The enhanced thermal solution prevents overheating and maintains consistent performance during extended gaming sessions. With multiple fan control options, users can customize airflow and cooling efficiency based on system requirements. Military-Grade TUF Components: Built with durable capacitors, reinforced PCIe slots, and high-quality components, this motherboard ensures long-lasting reliability and protection against power surges and hardware stress. The TUF-grade components are designed for extended durability and stable operation under demanding conditions. Reinforced structural design also protects heavy graphics cards from bending or slot damage, ensuring long-term hardware safety. Build gaming PC with Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard Looking for more upgrade options? You can also explore the powerful Asus PRIME B650M-A II AM5 mATX Motherboard for next-generation Ryzen builds. If you're browsing within the AMD Ryzen Motherboard range, this model is another strong choice for performance-focused users. At Onix BD, we offer genuine AMD-compatible motherboards with warranty and competitive pricing. Whether you're building on AM4 or planning to switch to AM5, choosing the right motherboard ensures better performance, stability, and future upgrade flexibility. Browse related AMD Ryzen motherboard models today and build a system that delivers speed, reliability, and long-term value for gaming and productivity... ASRock B850M-X WiFi AM5 DDR5 Micro ATX Motherboard – Compact and Connected Ryzen Platform The ASRock B850M-X WiFi AM5 DDR5 Micro ATX Motherboard is a versatile and efficient foundation for modern AMD Ryzen desktops. With the AM5 socket and DDR5 memory support, this board delivers smooth responsiveness and higher bandwidth for gaming, creative workloads, and everyday use. Its built-in WiFi ensures fast and reliable wireless connectivity straight out of the box, while the Micro ATX form factor keeps your system space-efficient without compromising expandability. Featuring PCIe 4.0 support for graphics and NVMe storage, ample USB connectivity, and multiple M.2 slots, the B850M-X WiFi motherboard is designed to meet the needs of mainstream builders who want performance, reliability, and convenience in a compact layout. Key Features of ASRock B850M-X WiFi AM5 DDR5 Micro ATX Motherboard AM5 socket with support for AMD Ryzen 7000 series processors DDR5 memory compatibility for enhanced speed and efficiency Integrated WiFi for seamless wireless networking PCIe 4.0 slots for graphics cards and storage Multiple M.2 NVMe SSD slots for high-speed storage USB 3.x high-speed ports for modern peripherals Micro ATX form factor for compact PC builds DDR5 Memory for Faster System Performance Supporting DDR5 RAM, this motherboard unlocks increased bandwidth and responsiveness, helping your system handle demanding applications and multitasking more efficiently. Space-Saving Micro ATX Design The Micro ATX layout allows builders to create compact systems with plenty of expansion options. It’s ideal for home, office, or gaming rigs where space is at a premium but performance is still a priority. Why Choose ASRock B850M-X WiFi AM5 DDR5 Micro ATX Motherboard? Choose this motherboard for a balanced mix of modern features, wireless connectivity, and reliable performance. It’s a solid option for users who want a capable AMD platform with future-ready technology and a space-efficient form factor. Benefits of ASRock B850M-X WiFi AM5 DDR5 Micro ATX Motherboard Supports latest AMD Ryzen CPUs with AM5 socket Fast and efficient DDR5 memory support Convenient wireless connectivity with built-in WiFi Fast graphics and storage support via PCIe 4.0 Compact and versatile Micro ATX design Frequently Asked Questions (FAQ) Q1: Does this motherboard support AMD Ryzen 7000 series processors?A1:Yes, it supports AMD Ryzen 7000 series and other AM5 compatible CPUs. Q2: Is WiFi included on this motherboard?A2:Yes, it comes with built-in WiFi for wireless connectivity. Q3: What type of memory does this motherboard support?A3:It supports high-speed DDR5 desktop memory modules... Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard represents a leap forward in performance and connectivity for modern PC builds. Built around the AMD B650 chipset, this motherboard offers unparalleled support for DDR5 memory, advanced graphics integration, high-definition audio, diverse connectivity options, and a robust set of internal interfaces, making it an ideal choice for a wide range of computing needs. The motherboard's memory support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/S memory modules ensures exceptional performance for memory-intensive applications. With 4 DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory, and dual-channel memory architecture, the motherboard is capable of meeting the demands of modern multitasking and high-performance computing. Graphics capabilities are impressive, with integrated graphics processor support for AMD Radeon Graphics. The inclusion of 2 x DisplayPorts and 1 x HDMI port allows for a maximum resolution of 3840x2160@144 Hz and 4096x2160@60 Hz, respectively, supporting up to triple-display at the same time. This makes the motherboard suitable for both gaming and professional applications where high-resolution displays are essential. The Realtek Wi-Fi 6E RTL8852CE ensures reliable wireless connectivity, supporting Wi-Fi A, B, G, N, Ac, Ax, across 2.4/5/6 GHz carrier frequency bands, and Bluetooth 5.3. The Gigabyte B650M D3HP AX price in BD typically starts from around 20,000৳ to 30,470৳, depending on availability and warranty options. This competitive pricing makes it an excellent choice for gamers, content creators, and PC builders seeking a reliable AMD AM5 motherboard with DDR5 support, PCIe 4.0, and dual M.2 storage. Onix Computer offers 100% genuine products with full warranty and fast delivery across Bangladesh, ensuring a trusted and hassle-free purchase experience for high-performance motherboard enthusiasts. Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard Features The GIGABYTE B650M D3HP AX is a high-performance AM5 motherboard designed for gamers, content creators, and PC builders who demand speed, reliability, and next-gen features. Its Micro ATX form factor makes it compact yet highly functional, supporting AMD Ryzen 7000 and 8000 series processors. Below are the important key features: DDR5 Memory Support: Equipped with 4 DDR5 DIMM slots, it supports up to 192GB system memory with speeds ranging from 4800 MT/s to 7600 MT/s (OC). AMD EXPO and XMP profiles are supported for overclocking enthusiasts. Advanced Connectivity: Includes USB Type-C, USB 3.2 Gen 1, USB 2.0 ports, HDMI, DisplayPorts, and a Realtek 2.5GbE LAN port for high-speed wired connectivity. Expansion Slots: 1 x PCIe 4.0 x16 for graphics cards and NVMe SSDs, plus 1 x PCIe x1 slot, offering flexibility for GPU and peripheral upgrades. Integrated Graphics: Supports AMD Radeon Graphics with up to triple-display output via HDMI 2.1 and DisplayPort 1.4, enabling 4K visuals at 144 Hz refresh rate. Internal I/O & Storage: 2 x M.2 slots, 4 x SATA 6Gb/s connectors, RGB/LED headers, and Q-Flash Plus for convenient BIOS updates. Audio & Multimedia: Realtek high-definition audio supports 2/4/5.1/7.1 channels, with customizable audio jacks for immersive sound experience. Durable & Secure: Includes Trusted Platform Module (TPM) header, high-quality power connectors, fan headers, and a 3-year manufacturing warranty for reliability and long-term use. This feature-rich motherboard combines high-speed memory support, advanced connectivity, powerful graphics options, and durability, making it ideal for modern AM5 PC builds. These detailed features showcase the Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard's impressive capabilities, making it an ideal choice for high-performance computing and versatile connectivity. Why Should You Buy a GIGABYTE B650M D3HP Motherboard From Onix Computer? If you are planning to purchase a GIGABYTE B650M D3HP, Onix Computer is one of the best places to buy from in Bangladesh. They offer 100% genuine GIGABYTE motherboards with reliable build quality and advanced features suitable for gaming, content creation, and professional PC builds. Every GIGABYTE B650M D3HP from Onix Computer ensures strong performance, next-gen compatibility, smooth multitasking, and upgrade-friendly hardware designed for AM5 processors. Key highlights include DDR5 RAM support, PCIe 4.0 expansion, fast NVMe M.2 storage, efficient power delivery, and enhanced connectivity options. Onix Computer provides high-quality products at competitive prices. They also offer full warranty support, fast delivery across Bangladesh, and a seamless online shopping experience. With expert guidance from their team, you can easily choose the perfect B650M D3HP motherboard for your gaming PC, workstation, or productivity setup. Whether you're looking for best motherboard price BD, Ryzen motherboard price in BD, or specifically a Gigabyte AM5 motherboard price in BD, Onix Computer ensures trusted service and attractive deals. Visit the nearest Onix Computer showroom or browse their online store to explore the latest GIGABYTE motherboards, get the best offers, and enjoy excellent customer support. Other available alternatives include GIGABYTE B650M D3HP. What is the price of Gigabyte B650M D3HP AX in Bangladesh? The Gigabyte B650M D3HP AX price in BD starts from around 20,000৳ to 30,470৳. Where can I buy the Gigabyte B650M D3HP AX in Bangladesh? You can buy it from Onix Computer with full warranty and fast delivery. Does it support DDR5 RAM? Yes, it supports DDR5 memory up to 192GB with dual-channel architecture. Which CPUs are compatible with this motherboard? Supports AMD Ryzen 7000 & 8000 Series processors on AM5 socket. How many expansion slots does it have? It has 1 PCIe x16 and 1 PCIe x1 slot for graphics cards or other devices... MSI B650M Gaming WIFI AMD AM5 mATX MotherboardMSI B650M Gaming WIFI Motherboard supports AMD's Ryzen 8000 & 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a Maximum Memory Capacity of up to 128GB and a bus speed of up to 6400+(OC) MHz. It features a Core Boost technology that combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supports multi-core CPUs, but also creates the perfect conditions for your CPU overclocking. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and a Double-sided M.2 Shield Frozr built for a high-performance system and a non-stop gaming experience. The motherboard is made of a 6-layer PCB made of 2oz thickened copper and server-grade level material. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI B650M Gaming WIFI offers Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. The MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The MSI B650M Gaming WIFI comes with 3 years of warranty...
