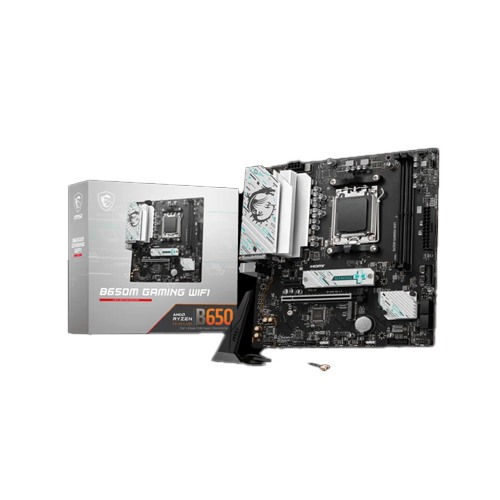

MSI B650M Gaming WIFI AMD AM5 mATX Motherboard

MSI B650M Gaming WIFI AMD AM5 mATX Motherboard
MSI B650M Gaming WIFI AMD AM5 mATX Motherboard
MSI B650M Gaming WIFI AMD AM5 mATX Motherboard
-11 %
MSI B650M Gaming WIFI AMD AM5 mATX Motherboard
MSI B650M Gaming WIFI AMD AM5 mATX Motherboard
MSI B650M Gaming WIFI AMD AM5 mATX Motherboard
MSI B650M Gaming WIFI AMD AM5 mATX Motherboard
  • Stock: In Stock
  • Model: B650M Gaming WIFI
18,500৳
20,900৳
Avail EMI Offer View Plans
EMI starts at 6,487৳/month.
Key Features
    • Ryzen 7000 Series Processors for Socket AM5
    • 2x DDR5, up to 6400+(OC) MHz
    • Graphics Output: 1x HDMI, 1x Display Port
    • Features: 2.5G LAN and Intel Wi-Fi 6E Solution
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
General
Type DDR5
Basic Information
Supported CPU Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
Chipset AMD X670
Form Factor ATX, 243.84mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Memory Specifications
Memory Size 128GB
Slots 2 DIMMs
Supported Memory Type Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort, 1x Type-C DisplayPort
USB (s) 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek RTL8125BG 2.5Gbps LAN
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
Audio 3 x audio jacks
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Graphics
Graphics 1x HDMI
Support HDMI 2.1 FRL, maximum resolution of 4K 120Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
Others Information
Bundled Software Norton Internet Security (OEM version)
Realtek Gaming LAN Bandwidth Control Utility
Warranty Information
Manufacturing Warranty 3 Years
Description

MSI B650M Gaming WIFI AMD AM5 mATX Motherboard

MSI B650M Gaming WIFI Motherboard supports AMD's Ryzen 8000 & 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a Maximum Memory Capacity of up to 128GB and a bus speed of up to 6400+(OC) MHz. It features a Core Boost technology that combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supports multi-core CPUs, but also creates the perfect conditions for your CPU overclocking. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and a Double-sided M.2 Shield Frozr built for a high-performance system and a non-stop gaming experience. The motherboard is made of a 6-layer PCB made of 2oz thickened copper and server-grade level material. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI B650M Gaming WIFI offers Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. The MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The MSI B650M Gaming WIFI comes with 3 years of warranty.
