- Stock: In Stock
- Model: PRIME B650M-A II
- Features: Realtek 2.5Gb Ethernet
- Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 192GB, 7600+(OC)
- Graphics Output: 1x HDMI, 1x Display Port, 1 x VGA
| Basic Information | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| Expansion Slots | |
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) |
| Memory Specifications | |
| Slots | 4 DIMMs |
| Supported Memory Type | 7600+ (OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II |
| Max. Memory | Max. 192GB |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| USB (s) | Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button 1 x PS/2 Keyboard/Mouse combo port |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| VGA (s) | 1 x VGA port |
| Graphics | |
| Graphics | 1 x DisplayPort** 1 x VGA port 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Features | |
| Other Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Others Information | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |

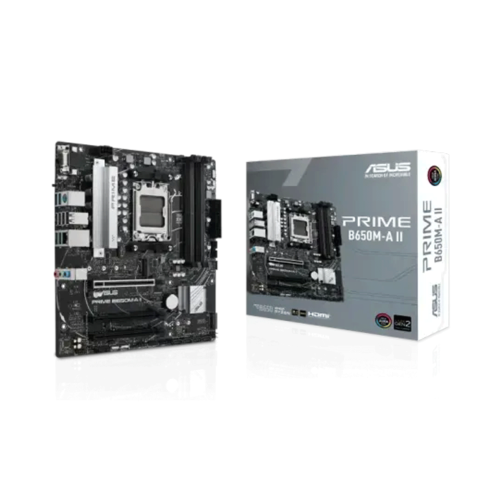

Asus PRIME B650M-A II AM5 mATX Motherboard
The Asus PRIME B650M-A II AM5 mATX Motherboard is designed to deliver powerful performance and modern features for AMD’s latest Ryzen 9000, 8000, and 7000 Series desktop processors. It utilizes the AMD B650 chipset, providing stability, high-speed connectivity, and robust overclocking capabilities. This motherboard supports AMD Socket AM5, ensuring compatibility with Ryzen processors, and offers a range of memory options, including support for DDR5 memory speeds up to 7600+ MHz (OC). With 4 DIMM slots, it can accommodate up to 192GB of memory, ideal for multitasking and demanding applications. Additionally, the motherboard supports AMD EXPO™ profiles for easier overclocking setups, allowing enthusiasts to push their memory speeds to the limit. In terms of storage, the B650M-A II features 2 x M.2 slots (one with PCIe 5.0 support for top-tier SSDs) and 4 x SATA 6Gb/s ports, providing ample space for fast storage drives. The inclusion of RAIDXpert2 technology offers support for both SATA RAID and PCIe RAID configurations, enhancing data management options. For connectivity, this motherboard has USB 3.2 Gen 2 ports for high-speed data transfer, 2.5Gb Ethernet via Realtek for fast and reliable networking, and HDMI, DisplayPort, and VGA outputs for flexible display options. It also supports Aura Sync RGB lighting through Aura RGB and Gen 2 headers, allowing users to customize their build's lighting aesthetics. With robust thermal solutions, including VRM heatsinks and ASUS 5X PROTECTION III, the motherboard ensures system longevity. Additionally, it is bundled with ASUS-exclusive software like Armoury Crate and AI Suite 3, giving users control over system performance, cooling, and power saving. Covered by a 3-year warranty, the Asus PRIME B650M-A II is a versatile, feature-rich option for gamers and PC enthusiasts looking to build a next-gen AMD system.
Asus PRIME B650M-A II AM5 mATX Motherboard Features
- AMD AM5 Socket Support: Compatible with AMD Ryzen 9000, 8000, and 7000 Series processors, offering cutting-edge performance for gaming and multitasking.
- Dual Channel DDR5 Memory Support: Equipped with 4 DIMM slots, supporting high-speed DDR5 memory up to 7600+ MHz (OC). It also supports up to 192GB of memory, making it ideal for memory-intensive applications.
- PCIe 4.0 and PCIe 5.0 Compatibility: Features 1 x PCIe 4.0 x16 slot (supports x16 mode) and 1 x PCIe 5.0 x4 M.2 slot (for ultra-fast storage drives), along with additional PCIe slots for expansion.
- Advanced Storage Options: Supports 2 x M.2 slots (PCIe 4.0 and PCIe 5.0) and 4 x SATA 6Gb/s ports. Also supports RAID configurations for both PCIe and SATA storage.
- Realtek 2.5Gb Ethernet: Ensures fast and stable network connectivity for gaming, streaming, and large file transfers.
- High-Quality Audio: Features Realtek 7.1 Surround Sound HD Audio with premium capacitors, dedicated PCB layers, and audio shielding for superior sound quality.
- Multiple Display Outputs: Includes HDMI, DisplayPort, and VGA outputs, supporting up to 8K@60Hz on DisplayPort and 4K@60Hz on HDMI.
- Aura Sync RGB Support: Integrated Aura Sync and Addressable Gen 2 headers for customizable RGB lighting.
- ASUS 5X PROTECTION III: Includes DIGI+ VRM, LANGuard, Overvoltage Protection, Safeslot Core+, and Stainless-Steel I/O backplate for enhanced durability and reliability.
- BIOS Flashback and EZ DIY: Easy system recovery and firmware updates with BIOS FlashBack button and EZ Flash features.
- Comprehensive I/O Connectivity: Features USB 3.2 Gen 2 and Gen 1 ports, USB Type-C support, PS/2 keyboard/mouse combo port, and 3 audio jacks.
- Bundled ASUS Software: Includes Armoury Crate, AI Suite 3, Fan Xpert 2+, and more for system optimization and customization.
