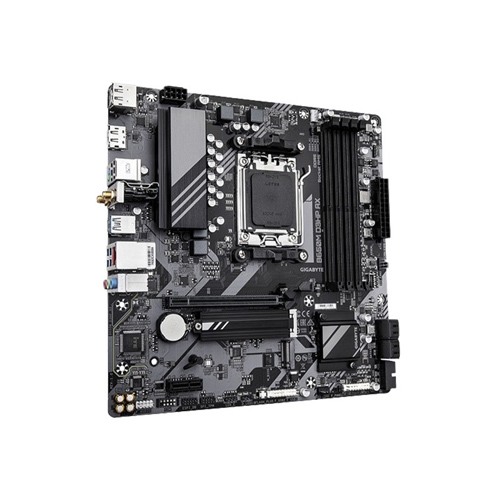

Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard

Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard
Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard
-30 %
Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard
Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard
Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard
  • Stock: In Stock
  • Model: B650M D3HP
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
18,500৳
26,470৳
EMI starts at 6,487৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
    • Chipset - AMD B650
    • Memory - 192GB DDR5
    • CPU - AMD Socket AM5
    • Form Factor - Micro ATX
View more info...
Specification
Key Features
Ports 1 X PS/2 Keyboard/Mouse Port
1 X USB Type-C Port, With USB 3.2 Gen 1 Support
3 X USB 3.2 Gen 1 Ports
2 X USB 2.0/1.1 Ports
1 X HDMI Port
2 X DisplayPorts
1 X RJ-45 Port
3 X Audio Jacks
Basic Information
Supported CPU AMD Socket AM5, Support For:
AMD Ryzen 7000 / Ryzen 8000 Series Processors
(Go To GIGABYTE's Website For The Latest CPU Support List.)
Chipset AMD B650
BIOS 1 X 256 Mbit Flash
Use Of Licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm X 24.4cm
Memory Specifications
Supported Memory Type Support For DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/
4800 MT/S Memory Modules
4 X DDR5 DIMM Sockets Supporting Up To 192 GB (48 GB Single DIMM Capacity) Of System Memory
Dual Channel Memory Architecture
Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules
Support For AMD EXtended Profiles For Overclocking (AMD EXPO)
And Extreme Memory Profile (XMP) Memory Modules
(The CPU And Memory Configuration May Affect The Supported Memory Types, Data Rate (Speed), And Number Of DRAM
Modules, Please Refer To "Memory Support List" On GIGABYTE's Website For More Information.)
Connector & Ports
USB (s) CPU:
- 1 X USB Type-C Port On The Back Panel, With USB 3.2 Gen 1 Support,
- 1 X USB 3.2 Gen 1 Port On The Back Panel
- 1 X USB 2.0/1.1 Port On The Back Panel
Chipset:
- 2 X USB 3.2 Gen 1 Ports On The Back Panel
- 1 X USB Type-C Port With USB 3.2 Gen 1 Support, Available Through The Internal USB Header
- 2 X USB 3.2 Gen 1 Ports Available Through The Internal USB Header
- 5 X USB 2.0/1.1 Ports (1 Port On The Back Panel, 4 Ports Available Through The Internal USB Headers)
LAN Port (s) Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-Channel
* You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio, Access The Audio Software For Audio Settings.
Internal I/O Ports 1 X 24-Pin ATX Main Power Connector
1 X 8-Pin ATX 12V Power Connector
1 X CPU Fan Header
2 X System Fan Headers
2 X Addressable LED Strip Headers
1 X RGB LED Strip Header
2 X M.2 Socket 3 Connectors
4 X SATA 6Gb/S Connectors
1 X Front Panel Header
1 X Front Panel Audio Header
1 X USB Type-C Header, With USB 3.2 Gen 1 Support
1 X USB 3.2 Gen 1 Header
2 X USB 2.0/1.1 Headers
1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 Module Only)
1 X Q-Flash Plus Button
1 X Reset Jumper
1 X Clear CMOS Jumper
Graphics
Graphics Integrated Graphics Processor With AMD Radeon Graphics Support
- 2 X DisplayPorts, Supporting A Maximum Resolution Of 3840x2160@144 Hz
* Support For DisplayPort 1.4 Version.
- 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz
* Support For HDMI 2.1 Version And HDCP 2.3.
** Support For Native HDMI 2.1 TMDS Compatible Ports.
Support For Up To Triple-Display At The Same Time
(Graphics Specifications May Vary Depending On CPU Support.)
Warranty Information
Manufacturing Warranty 3 YEAR
Description

Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard

Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard represents a leap forward in performance and connectivity for modern PC builds. Built around the AMD B650 chipset, this motherboard offers unparalleled support for DDR5 memory, advanced graphics integration, high-definition audio, diverse connectivity options, and a robust set of internal interfaces, making it an ideal choice for a wide range of computing needs. The motherboard's memory support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/S memory modules ensures exceptional performance for memory-intensive applications. With 4 DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory, and dual-channel memory architecture, the motherboard is capable of meeting the demands of modern multitasking and high-performance computing. Graphics capabilities are impressive, with integrated graphics processor support for AMD Radeon Graphics. The inclusion of 2 x DisplayPorts and 1 x HDMI port allows for a maximum resolution of 3840x2160@144 Hz and 4096x2160@60 Hz, respectively, supporting up to triple-display at the same time. This makes the motherboard suitable for both gaming and professional applications where high-resolution displays are essential. The Realtek Wi-Fi 6E RTL8852CE ensures reliable wireless connectivity, supporting Wi-Fi A, B, G, N, Ac, Ax, across 2.4/5/6 GHz carrier frequency bands, and Bluetooth 5.3. Furthermore, the Realtek 2.5GbE LAN chip provides a stable and high-speed wired networking experience. The motherboard features an extensive array of ports and connectors, including USB Type-C, USB 3.2 Gen 1, USB 2.0/1.1, HDMI, DisplayPorts, and audio jacks, catering to diverse connectivity requirements. Additionally, the M.2 connector and SATA 6Gb/S connectors offer comprehensive storage options, with support for RAID 0, RAID 1, and RAID 10 for both NVMe SSD and SATA storage devices. In terms of internal I/O ports, the motherboard offers a wide range of headers, connectors, and buttons, providing comprehensive customization and control. The support for GIGABYTE Control Center (GCC) and Q-Flash, along with Norton Internet Security and LAN bandwidth management software, further enhances the user experience. With support for AMD Ryzen 7000 / Ryzen 8000 Series Processors, a range of specialty features, and a compact Micro ATX form factor, the Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard is a versatile and high-performance foundation for modern PC builds, catering to a diverse range of computing needs.

Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard Features

  • The motherboard supports DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/S memory modules, with 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory. It also features dual-channel memory architecture and support for non-ECC un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.
  • The integrated graphics processor with AMD Radeon Graphics support includes 2 x DisplayPorts and 1 x HDMI port, supporting a maximum resolution of 3840x2160@144 Hz and 4096x2160@60 Hz, respectively. It also supports up to triple-display at the same time, offering versatile display configurations.
  • Equipped with Realtek Audio CODEC, the motherboard supports high-definition audio with 2/4/5.1/7.1-channel output, providing an immersive audio experience for various applications.
  • The Realtek Wi-Fi 6E RTL8852CE provides wireless connectivity, supporting Wi-Fi A, B, G, N, Ac, Ax, across 2.4/5/6 GHz carrier frequency bands, and Bluetooth 5.3. Additionally, the Realtek 2.5GbE LAN chip offers high-speed wired networking capabilities.
  • The motherboard features a comprehensive array of ports and connectors, including USB Type-C, USB 3.2 Gen 1, USB 2.0/1.1, HDMI, DisplayPorts, and audio jacks, catering to diverse connectivity requirements.
  • With 1 x M.2 connector integrated in the CPU and 1 x M.2 connector integrated in the chipset, supporting PCIe 4.0 X4/X2 SSDs, and 4 x SATA 6Gb/S connectors, the motherboard offers extensive storage options. It also supports RAID 0, RAID 1, and RAID 10 for both NVMe SSD and SATA storage devices.
  • The motherboard provides a wide range of internal I/O ports, including 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, fan headers, LED strip headers, M.2 socket connectors, and more, offering comprehensive customization and control.
  • The motherboard supports AMD Socket AM5, offering compatibility with AMD Ryzen 7000 / Ryzen 8000 Series Processors, providing a versatile platform for various computing needs.

These detailed features showcase the Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard's impressive capabilities, making it an ideal choice for high-performance computing and versatile connectivity.
