- Stock: In Stock
- Model: PRO H610M-G DDR4
- Supports 12th Gen Intel Core Pentium Gold and Celeron processors for LGA 1700 socket
- Supports DDR4 Memory up to 3200MAX MHz
- Lightning Fast Experience PCIe 4.0
- Core Boost Memory Boost Audio Boost
| Basic Information | |
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700 |
| Chipset | Intel H610 Chipset |
| Form Factor | mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm) |
| Expansion Slots | |
| PCI | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) |
| Memory Specifications | |
| Memory Type | DDR4 |
| Slots | 2x DDR4 memory slots |
| Supported Memory Type | Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Max. Memory | Support up to 64GB |
| Motherboard | |
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
| Connector & Ports | |
| HDMI | 1x HDMI 2.1 |
| Display Port (s) | 1x DisplayPort |
| USB (s) | Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| LAN Port (s) | 1x Intel I219V 1Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors |
| Internal I/O Ports | POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| Graphics | |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Warranty Information | |
| Manufacturing Warranty | 03 years warranty |

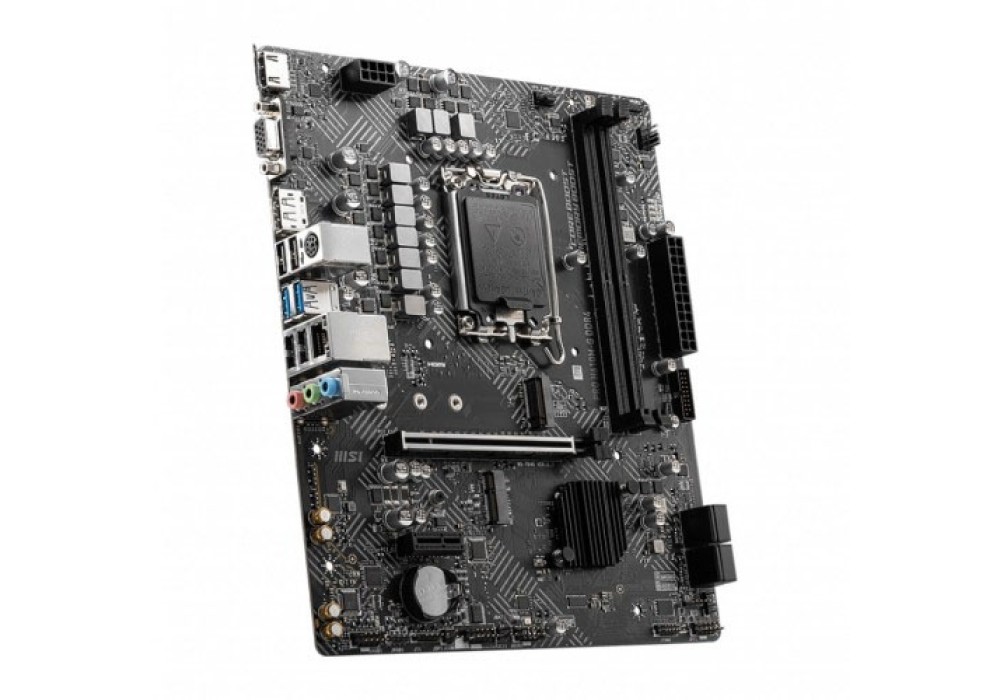

MSI PRO H610M-G DDR4 12th Gen Mirco-ATX Motherboard
The MSI PRO H610M-G DDR4 12th Gen Micro-ATX Motherboard is one of the most reliable and value-packed options available in today’s budget segment. For users looking to build a stable, efficient, and long-lasting Intel 12th Gen system without overspending, this motherboard delivers an excellent balance of quality and performance. Whether you’re assembling a desktop for office work, online classes, daily browsing, or even light-to-mid-level gaming, the MSI PRO H610M-G DDR4 ensures smooth operation backed by MSI’s strong durability.
If you’re currently checking the msi pro h610m-g ddr4 motherboard price in BD, you’ll notice that this model offers exceptional worth compared to other H610 boards. Its support for DDR4 memory makes it especially attractive in the Bangladesh market, where build cost matters and DDR4 remains the most cost-effective solution for performance builds. Paired with PCIe 4.0 GPU support, high-speed M.2 storage compatibility, and an efficient VRM layout, this board provides all the essentials needed for a modern PC setup. The Micro-ATX size also makes it ideal for compact builds, saving space while maintaining full functionality. Whether you're upgrading from an older system or building a new one, the MSI PRO H610M-G DDR4 gives you the perfect foundation for a smooth, long-term computing experience.
Top Features of the MSI PRO H610M-G DDR4 Motherboard
- Supports Intel 12th Gen Alder Lake CPUs: Runs smoothly with both Pentium, Core i3, i5, i7, and i9 12th Gen processors.This wide compatibility ensures flexibility for any type of PC build—from basic office setups to performance-oriented rigs.
- DDR4 Memory Support up to 3200MHz: Excellent for users who want speed and affordability at the same time.Higher memory frequency ensures better multitasking, faster response times, and overall smoother PC experience.
- PCIe 4.0 x16 Slot for Modern GPUs: Offers improved bandwidth for better gaming and rendering performance. This slot lets you use the latest graphics cards to unlock stronger FPS, smoother visuals, and enhanced productivity in GPU-driven applications.
- M.2 NVMe Slot for Ultra-Fast Storage: Delivers lightning-fast boot speed and rapid file access for daily tasks. This storage technology drastically reduces load times for software, games, and the operating system.
- Enhanced Thermal & Power Design: Stable VRM, thick PCB, and MSI thermal solutions ensure long-term reliability, even under continuous workload. The optimized heat dissipation system keeps temperatures controlled, which increases component lifespan.
If you're exploring alternatives to the H610 series, the MSI PRO B760M-E DDR5 m-ATX Motherboard is another excellent option to consider. It offers next-gen DDR5 performance, better connectivity, and improved power efficiency for modern gaming and productivity builds. You can also Shop MSI motherboard online to compare more models or browse through the latest options in our Gaming category for a smoother and more optimized PC-building experience.
Grab MSI PRO B760M-E DDR5 m-ATX Motherboard from Onix BD
Unlock next-level speed and stability with the MSI PRO B760M-E, designed for modern gaming and professional workloads. Onix BD brings you authentic components with reliable after-sales support, so you can build confidently without worry.
Shop now to enjoy competitive pricing, secure delivery, and a seamless shopping experience tailored for every PC enthusiast.
