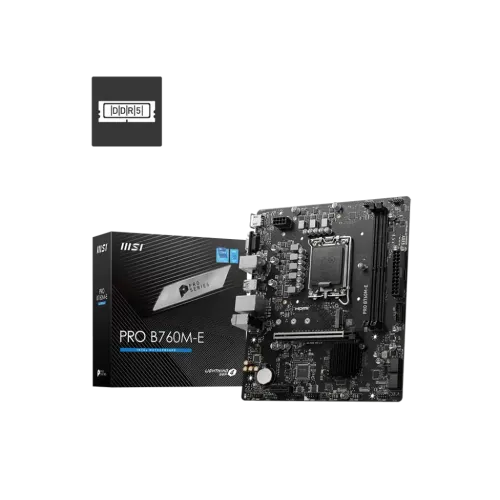

MSI PRO B760M-E DDR5 m-ATX Motherboard

MSI PRO B760M-E DDR5 m-ATX Motherboard
MSI PRO B760M-E DDR5 m-ATX Motherboard
MSI PRO B760M-E DDR5 m-ATX Motherboard
MSI PRO B760M-E DDR5 m-ATX Motherboard
-9 %
MSI PRO B760M-E DDR5 m-ATX Motherboard
MSI PRO B760M-E DDR5 m-ATX Motherboard
MSI PRO B760M-E DDR5 m-ATX Motherboard
MSI PRO B760M-E DDR5 m-ATX Motherboard
MSI PRO B760M-E DDR5 m-ATX Motherboard
  • Stock: In Stock
  • Model: PRO B760M-E DDR5
MSI MSI
Based on 0 reviews. - Write a review
13,200৳
14,430৳
EMI starts at 4,629৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
    • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
    • Supported RAM: 2x DDR5, Maximum Memory Capacity 96GB
    • Graphics Output: 1x HDMI, 1x VGA
    • Features: Realtek RTL8111H Gigabit LAN
View more info...
Specification
General
Type DDR5
Basic Information
Supported CPU Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL B760
Form Factor mATX
200mmx236.16mm
Audio Realtek ALC897 Codec
7.1-Channel High-Definition Audio
Expansion Slots
PCI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory Specifications
Memory Size 96GB
Slots 2x DIMM
Supported Memory Type Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5600+ MHz
Connector & Ports
HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Intel 2.5Gbps LAN
Supported Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Graphics
Graphics 1x HDMI
Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA
Warranty Information
Manufacturing Warranty 3 Years
Description

MSI PRO B760M-E DDR5 m-ATX Motherboard

MSI PRO B760M-E DDR5 m-ATX Motherboard will give an experience next-level computing performance. This powerful motherboard is made to handle the needs of modern computing. This motherboard is designed to accommodate Pentium Gold, Celeron, and 14th, 13th, and 12th generation Core CPUs with an LGA 1700 socket. It offers a flexible foundation for a variety of computer activities, including demanding programs and gaming. The B760M-E has enhanced memory capabilities thanks to its support for DDR5 memory, which has two DDR5 slots and a maximum memory capacity of 96GB. Because of the outstanding data transmission rates and responsiveness guaranteed by this, resource-intensive programs and multitasking are made possible. The primary characteristic of the B760M-E is connectivity. The motherboard has one HDMI connector, which allows for excellent graphics output and clear display graphics whether you're working on artistic projects or playing intense video games. Realtek RTL8111H Gigabit LAN is included to provide dependable and fast networking that can handle the demands of data transfer and online activities. The 7.1-Channel High Definition Audio offers immersive and crystal-clear sound quality, which will be appreciated by audio fans. The B760M-E's audio features improve your whole experience whether you're playing games, viewing movies, or having a video conference. With its design catering to both enthusiasts and pros, the MSI PRO B760M-E DDR5 mATX Motherboard offers a strong base for your computer setup by integrating performance, connection, and audio features. With this feature-rich motherboard that achieves the ideal balance between dependability and high-performance capabilities, you can enhance your computer experience.
