- Stock: In Stock
- Model: MEG Z890 ACE
| Key Features | |
| Ports | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) • PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4 • PCI_E2 support manual BIOS adjustment to X4+X4 |
| Basic Information | |
| Supported CPU | Supports Intel® Core™ Ultra Processors (Series 2) |
| Chipset | INTEL Z890 |
| BIOS | |
| Form Factor | ATX |
| Audio | Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on the front panel |
| Expansion Slots | |
| PCI | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| M.2 Socket | |
| Memory Specifications | |
| Memory Type | |
| Slots | |
| Supported Memory Type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| Max. Memory | |
| Connector & Ports | |
| HDMI | 1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* |

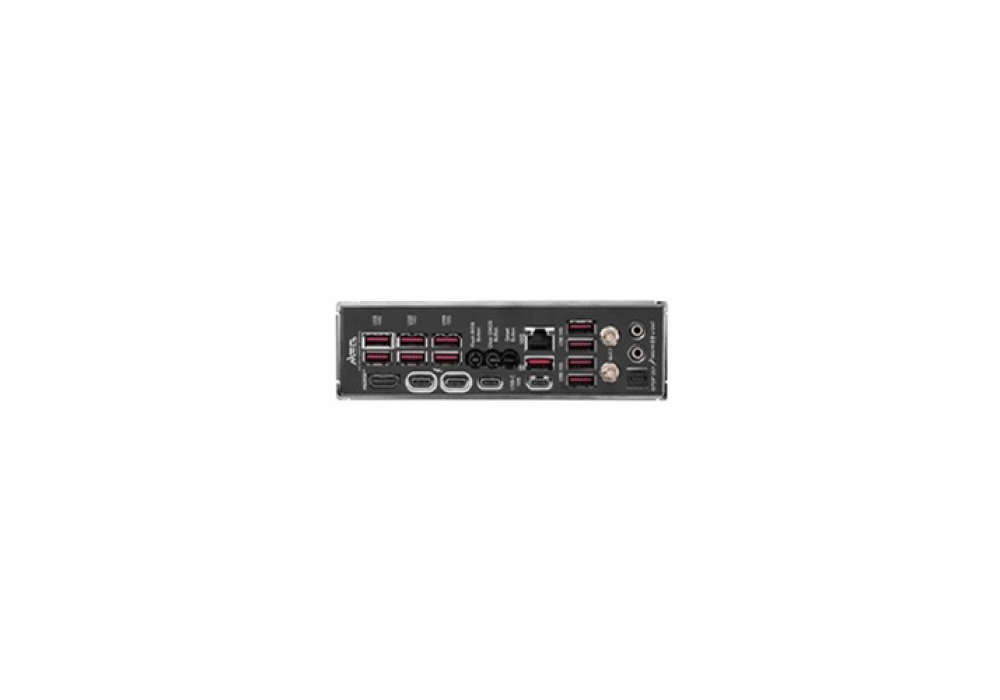

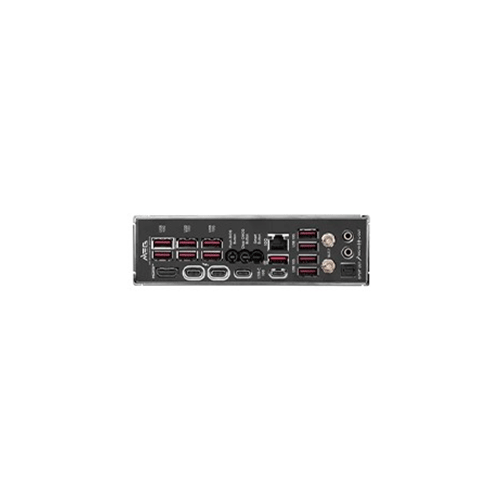

| USB (s) | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 11x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
| LAN Port (s) | Marvell® AQC113CS 10Gbps LAN |
| Supported Storage | |
| Audio | |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| TPM (Trusted Platform Module ) | |
| D-Sub (s) | |
| Network & Wireless Connectivity | |
| Bluetooth | Supports Bluetooth 5.4**, MLO, 4KQAM |
| Graphics | |
| Graphics | |
| Max Shared Memory | |
| Network & Connectivity | |
| WiFi | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Warranty Information | |
| Warranty | 3 Years |
| Manufacturing Warranty | |

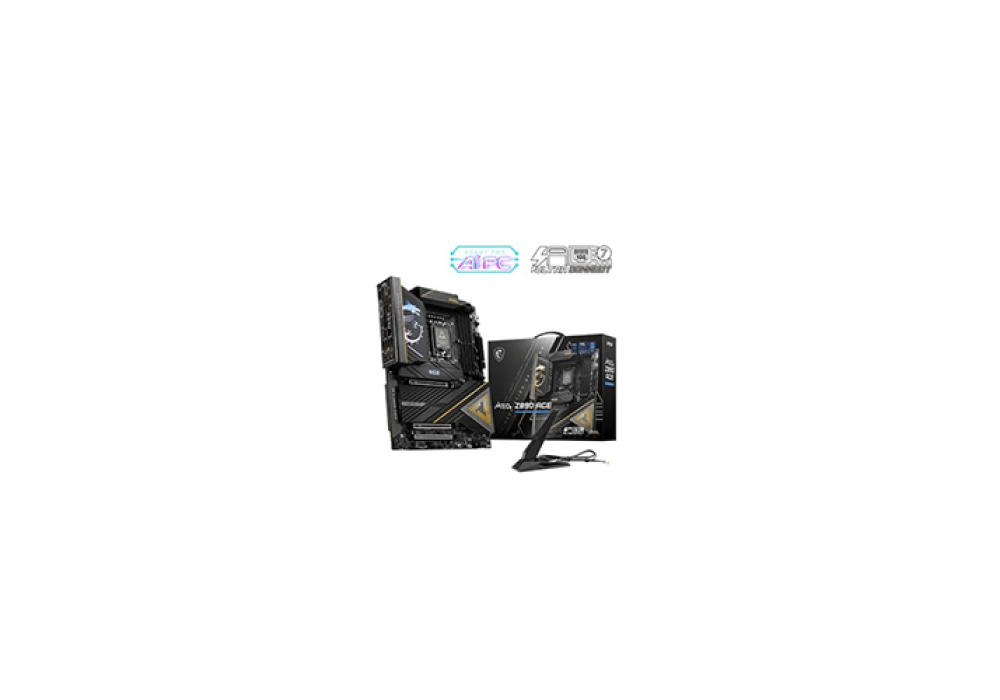

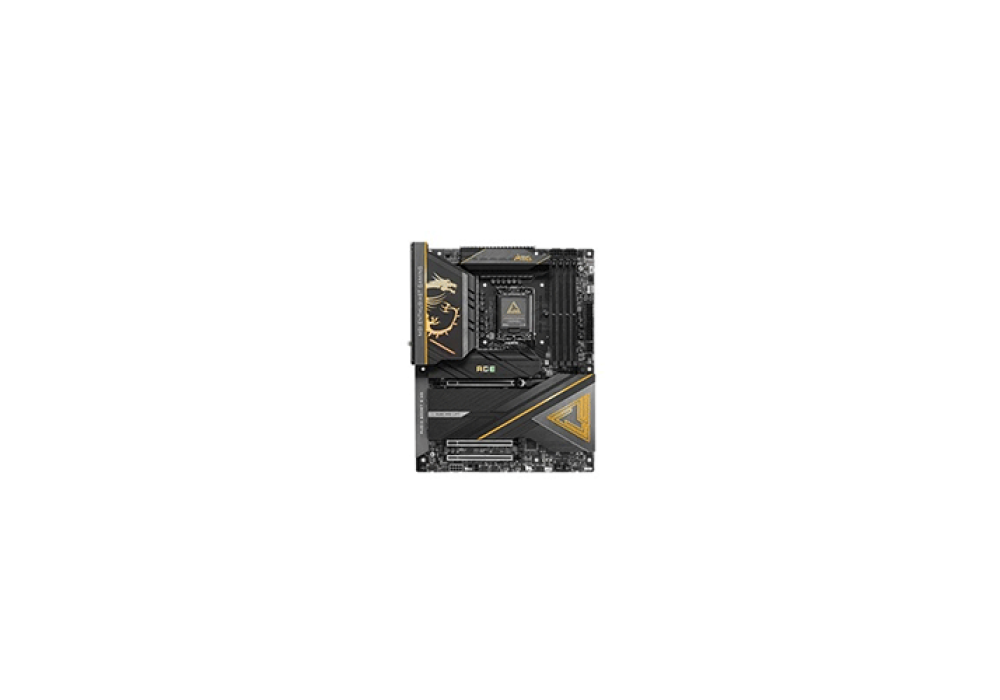

MSI MEG Z890 ACE LGA 1851 ATX Intel Motherboard
If you’re searching for a high-performance board and want to know the MSI MEG Z890 ACE LGA ATX motherboard price in BD, this premium model is one of the strongest choices available in the Bangladesh market. Built for next-generation Intel processors, the MSI MEG Z890 ACE LGA 1851 ATX Motherboard delivers exceptional stability, lightning-fast performance, and advanced tuning options. Designed for power users, gamers, and professional creators, this flagship board combines cutting-edge engineering with a stylish premium build—unlocking the full capability of your PC setup.
Whether you’re building a high-end gaming rig, a workstation for editing, rendering, or a long-term upgrade-ready PC, this Z890 motherboard provides unmatched speed, reliability, and customization. With support for Intel LGA 1851 CPUs, PCIe 5.0 expansion, next-gen DDR5 RAM, and advanced thermal engineering, the MSI MEG Z890 ACE ensures smooth performance across gaming, productivity, and intensive multitasking. AI-enhanced cooling, robust VRM power delivery, and ultra-fast connectivity—including Wi-Fi 7, dual LAN, and high-speed USB—make it a complete package. If you want premium performance with durability and aesthetics, this motherboard delivers tremendous value, especially considering the MSI MEG Z890 ACE LGA ATX motherboard price in BD.
Enhanced Key of MSI MEG Z890 ACE LGA ATX Motherboard
- Next-Gen Intel LGA 1851 CPU Powerhouse: Supports the newest Intel processors with exceptional stability and high-end performance tuning. Perfect for users who want long-term upgrade flexibility and maximum processing strength.
- PCIe 5.0 Ultra-Speed Graphics & Storage Support:Experience next-level GPU performance and super-fast M.2 storage powered by PCIe 5.0 lanes. This ensures smoother gameplay, quicker application launches, and reduced bottlenecks.
- High-Performance DDR5 Memory Overclocking Capability: Designed to handle high-frequency DDR5 RAM with improved stability and efficiency. Great for multitasking, heavy workloads, and future-proof memory optimization.
- Robust 24+2 Phase Premium VRM Architecture: Delivers clean and stable power to the CPU, enabling safer and more efficient overclocking. Ideal for enthusiasts who push their system to peak performance levels.
- Advanced Thermal Engineering & Smart Cooling: Equipped with extended heatsinks, dedicated heat pipes, M.2 Shield Frozr, and AI-driven cooling controls.
This keeps temperatures low even during long gaming sessions or heavy workloads. - Next-Level Connectivity with Wi-Fi 7 & 2.5G LAN: Enjoy superior wireless speeds, low latency, and reliable wired networking for online gaming or streaming. Multiple USB ports ensure your high-speed peripherals perform at their best.
- High-Bandwidth Gen5/Gen4 M.2 Storage Compatibility: Supports multiple M.2 SSDs with lightning-fast read/write performance for demanding applications. Perfect for creators, gamers, and professionals needing rapid data access.
- Premium Design with Customizable Mystic Light RGB: Features a sleek metallic finish and vibrant RGB accents synced through Mystic Light. Adds a premium look to your build while allowing full lighting customization.
If you’re exploring alternatives, the MSI PRO H610M-E DDR4 mATX Motherboard is a great budget-friendly option with reliable performance for everyday builds. For more choices, check out our Updated Motherboard List and Affordable MSI Motherboard Selection, where you’ll find models suited for gaming, productivity, and entry-level PC setups—all organized for easy comparison.
Premium Experience of MSI MEG Z890 ACE from Onix BD
Choosing the MSI MEG Z890 ACE LGA 1851 ATX Motherboard from Onix BD means guaranteed authenticity, official warranty, and premium customer service. With competitive pricing, fast delivery, and trusted after-sales support, Onix BD is the best place to secure this high-end motherboard. If you want elite performance and a reliable shopping experience, Onix BD ensures you get the best value for the MSI MEG Z890 ACE LGA ATX motherboard price in BD.
