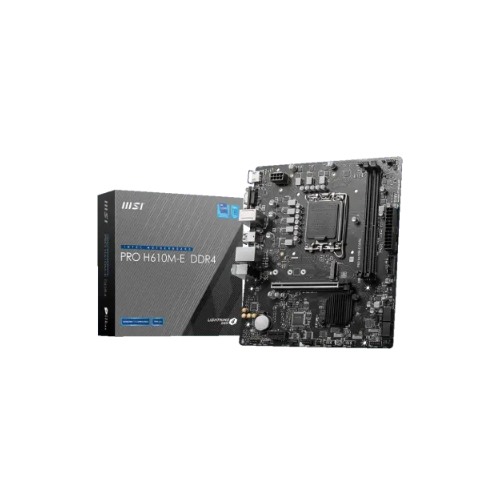

MSI PRO H610M-E DDR4 mATX Motherboard

MSI PRO H610M-E DDR4 mATX Motherboard
MSI PRO H610M-E DDR4 mATX Motherboard
MSI PRO H610M-E DDR4 mATX Motherboard
-9 %
MSI PRO H610M-E DDR4 mATX Motherboard
MSI PRO H610M-E DDR4 mATX Motherboard
MSI PRO H610M-E DDR4 mATX Motherboard
MSI PRO H610M-E DDR4 mATX Motherboard
  • Stock: In Stock
  • Model: PRO H610M-E DDR4
MSI MSI
Based on 0 reviews. - Write a review
9,799৳
10,780৳
EMI starts at 3,436৳/month. View all 25 banks EMI plans >

Available Options

Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Graphics Output: 1x HDMI, 1x VGA
  • Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN
  • Supported RAM: 2x DDR4, Max 64GB
View more info...
Specification
Basic Information
Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset Intel H610 Chipset
Form Factor mATX
9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Audio Realtek ALC897 Codec
7.1-Channel High-Definition Audio
Expansion Slots
PCI 1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From H610 chipset)
Supports PCIe 3.0 x1
Memory Specifications
Memory Type DDR4
Slots 2
Supported Memory Type Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Max. Memory 64GB
Connector & Ports
HDMI 1x HDMI 1.4 with HDR port
USB (s) 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub-GL850G)
Supports additional 4 USB 2.0 ports
LAN Port (s) 1x Realtek RTL8111H 1Gbps LAN controller
Supported Storage 1x M.2 slot (Key M) (from CPU)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices
Audio Realtek ALC897 Codec
7.1-Channel High-Definition Audio
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin +12V power connector
1x 4-pin CPU fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Serial port connector
1x Clear CMOS jumper
TPM (Trusted Platform Module ) 1x TPM module connector
Graphics
Graphics supporting a maximum resolution of 4K 30Hz
supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.
Others Information
Special Features 1x 4-pin RGB LED connector
4x EZ Debug LED
Warranty Information
Manufacturing Warranty 3 years
Description

MSI PRO H610M-E DDR4 mATX Motherboard

The MSI PRO H610M-E DDR4 mATX Motherboard is a versatile and feature-packed motherboard designed to support 14th, 13th, and 12th Gen Intel Core processors, as well as Pentium Gold and Celeron processors, making it suitable for a wide range of computing needs. With its Intel H610 chipset, this motherboard ensures stable and efficient performance, providing users with a reliable computing experience.Featuring a compact mATX form factor of 9.3 inches x 7.9 inches (23.6 cm x 20 cm), the MSI PRO H610M-E motherboard is designed to fit into smaller PC cases while still offering plenty of connectivity options and expansion capabilities.Equipped with the Realtek ALC897 Codec, the motherboard delivers 7.1-Channel High-Definition Audio, ensuring immersive sound quality for an enhanced multimedia experience. Whether you're gaming, watching movies, or listening to music, this motherboard provides exceptional audio output.In terms of expansion slots, the MSI PRO H610M-E motherboard features 1x PCIe x16 slot supporting up to PCIe 4.0 x16, and 1x PCIe x1 slot supporting PCIe 3.0 x1, offering flexibility for adding expansion cards such as graphics cards or network adapters to enhance your PC's capabilities.With support for DDR4 memory, this motherboard accommodates up to 64GB of RAM across two memory slots. It supports memory speeds of up to 3200 MHz (by JEDEC & POR) and supports dual-channel mode for improved performance.For graphics output, the motherboard provides 1x HDMI 1.4 port with HDR support and 1x VGA port, supporting a maximum resolution of 4K 30Hz and various resolutions up to 2048x1536 50Hz or 2048x1280 60Hz, depending on the CPU installed.In terms of connectivity, the MSI PRO H610M-E motherboard offers various ports including USB 3.2 Gen 1, USB 2.0, and a Realtek RTL8111H 1Gbps LAN controller for fast and reliable network connections.Other features include multiple internal I/O ports for connecting components such as fans and front panel connectors, as well as special features like a 4-pin RGB LED connector and 4x EZ Debug LED for easy troubleshooting.Backed by a 3-year manufacturing warranty, the MSI PRO H610M-E DDR4 mATX Motherboard offers reliability, performance, and versatility for building a high-quality PC system.

Features:

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 3200(MAX) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
