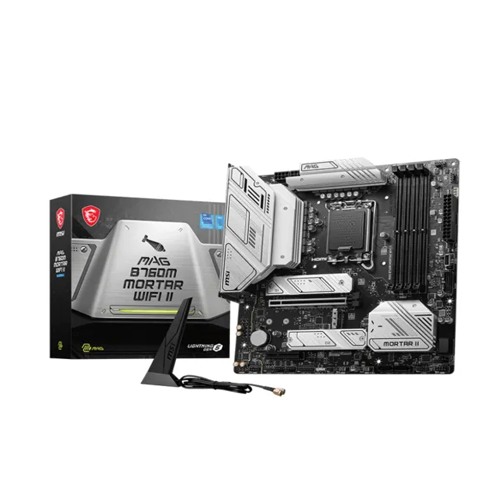

MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard

MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
-10 %
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
  • Stock: In Stock
  • Model: MAG B760M MORTAR WIFI II
MSI MSI
Based on 0 reviews. - Write a review
25,500৳
28,490৳
EMI starts at 8,942৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
    • Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
    • Supported RAM: 4x DDR5, 7800+MHz (OC), Max 192GB
    • Graphics Output: 1x HDMI, 1x DisplayPort
    • Features: Realtek 2.5Gbps LAN, Wi-Fi 6E
View more info...
Specification
General
Type DDR5
Basic Information
Supported CPU Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL B760
Form Factor mATX
243.84mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High-Definition Audio
Expansion Slots
PCI 1x PCI-E x16 slot
Supports x16/x4
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
Memory Specifications
Memory Size 192GB
Slots 4 x DIMM
Supported Memory Type Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile
Connector & Ports
HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
3x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Intel 2.5Gbps LAN
Wireless Communication module Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 3x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G port
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector (JTBT_U4_1, supports RTD3)
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Graphics
Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
Warranty Information
Manufacturing Warranty 3 Years
Description

MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard

MSI MAG B760M MORTAR WIFI II Motherboard is a top-tier solution for gaming and content production aficionados, supporting Intel Core 14th, 13th, and 12th Gen Processors, as well as Intel Pentium Gold and Celeron Processors built for the LGA 1700 socket. With DDR5 compatibility, this motherboard embraces memory technology's future, allowing for remarkable memory rates of up to 7800+(OC) MHz, assuring a fluid multitasking experience and improved system responsiveness. The improved 12+1+1 Duet Rail Power System, two 8-pin CPU power connections, Core Boost, and Memory Boost all work together to create a stable and overclocking-friendly environment. The motherboard also has a PCIe 5.0 slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2 x2 for customers who want high data transfer speeds and compatibility with the newest gaming accessories. The premium thermal solution with the expanded heatsink design and M.2 Shield Frozr offers top performance and dependability when it comes to maintaining appropriate temperatures during strenuous gaming sessions or resource-intensive work. The addition of Audio Boost technology improves the user experience even further by offering studio-grade sound quality for gaming, music, and multimedia applications. The motherboard's high-quality construction is obvious in its 6-layer PCB, which is manufactured from 2oz thicker copper and server-grade level material. This improves not only the system's resilience and stability but also its overall lifetime. In conclusion, the MSI MAG B760M MORTAR WIFI II Motherboard smoothly integrates cutting-edge technology with an emphasis on performance, dependability, and user-friendly features, making it an excellent choice for individuals looking for a high-performance motherboard for their gaming or video production system.
