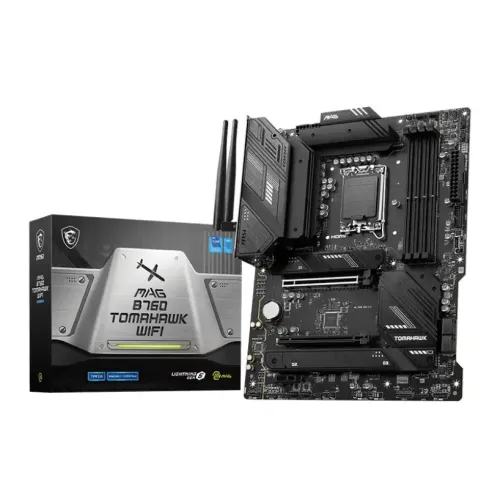

MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard

MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard
MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard
MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard
MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard
MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard
-7 %
MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard
MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard
MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard
MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard
MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard
MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard
  • Stock: In Stock
  • Model: MAG B760 TOMAHAWK WIFI
MSI MSI
Based on 0 reviews. - Write a review
26,100৳
28,210৳
EMI starts at 9,152৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
    • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
    • Supported RAM: 4x DDR5, Max 128GB 7000+(OC)
    • Graphics Output: 1x HDMI, 1x DisplayPort
    • Features: 3x M.2 slot, Intel Wi-Fi 6E, Bluetooth 5.3
View more info...
Specification
General
Type DDR5
Basic Information
Supported CPU Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL B760
Form Factor ATX
243.84mmx304.8mm
Audio Realtek ALC897 Codec 7.1-Channel High-Definition Audio
Expansion Slots
PCI 2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x4 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
Memory Specifications
Memory Size 128GB
Slots 4 x DIMM
Supported Memory Type Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile
Connector & Ports
HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Intel 2.5Gbps LAN
Wireless Communication module Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 3x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G port
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Graphics
Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
Warranty Information
Manufacturing Warranty 3 Years
Description

MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard

MSI MAG B760 TOMAHAWK WIFI Motherboard supports 14th/13th/ 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket. It comes with four dual-channel RAM slots, and three M.2 slots allowing you to take advantage of the full power of 13th & 12th generation Intel processors. The Six SATA III ports allow users to create large storage drive arrays for large file libraries. Two PCIe x16 and one PCIe x1 slot allow you to install high-end graphics cards and other expansion cards. Connect to a wireless network with Wi-Fi 6 (802.11ax) technology, or make a wired connection with the integrated 2.5 Gigabit Ethernet port. Resource-demanding peripherals such as storage drives can be connected to the USB 3.2 Gen 2 and Gen 2x2 ports to quickly transfer data with enhanced speeds. USB 2.0 ports are also available for lower-powered devices such as mice and keyboards. Wireless peripherals such as headphones and controllers can be connected thanks to integrated Bluetooth 5.3 technology. This motherboard is compatible with both Windows 10 and Windows 11 (64-Bit).
