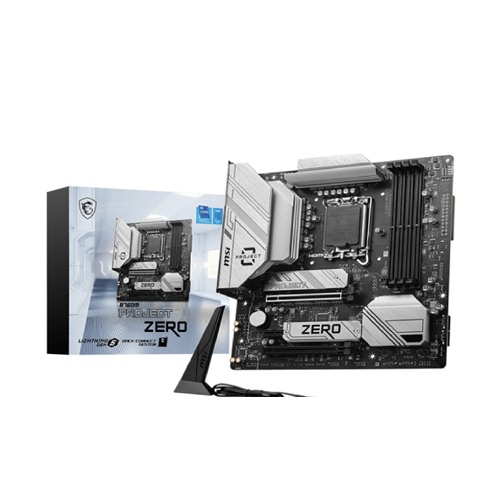

MSI B760M PROJECT ZERO m-ATX Motherboard

MSI B760M PROJECT ZERO m-ATX Motherboard
MSI B760M PROJECT ZERO m-ATX Motherboard
MSI B760M PROJECT ZERO m-ATX Motherboard
MSI B760M PROJECT ZERO m-ATX Motherboard
-11 %
MSI B760M PROJECT ZERO m-ATX Motherboard
MSI B760M PROJECT ZERO m-ATX Motherboard
MSI B760M PROJECT ZERO m-ATX Motherboard
MSI B760M PROJECT ZERO m-ATX Motherboard
MSI B760M PROJECT ZERO m-ATX Motherboard
  • Stock: In Stock
  • Model: B760M PROJECT ZERO
MSI MSI
Based on 0 reviews. - Write a review
24,500৳
27,500৳
EMI starts at 8,591৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
    • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
    • Supported RAM: 4x DDR5, Max 192GB
    • Graphics Output: 1x HDMI, 1x DisplayPort
    • Features: Realtek 2.5Gbps LAN, Intel Wi-Fi 6E
View more info...
Specification
General
Type DDR5
Basic Information
Supported CPU Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL B760
Form Factor mATX
243.84mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Expansion Slots
PCI 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory Specifications
Memory Size 192GB
Slots 4 x DIMM
Supported Memory Type Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile
Connector & Ports
HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
3x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Intel 2.5Gbps LAN
Wireless Communication module Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G port
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector (JTBT_U4_1, supports RTD3)
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Graphics
Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
Warranty Information
Manufacturing Warranty 3 Years
Description

MSI B760M PROJECT ZERO m-ATX Motherboard

MSI B760M PROJECT ZERO m-ATX Motherboard is a powerhouse built to improve your computing experience. This motherboard is designed to handle a broad range of processors, including Intel Core 14th, 13th, and 12th Generation CPUs, as well as Intel Pentium Gold and Celeron processors, all of which fit perfectly into the LGA 1700 socket. The B760M PROJECT ZERO is equipped with cutting-edge technology and supports DDR5 Memory, which can achieve speeds of up to 7800+(OC) MHz. Its Enhanced Power Design has a 12+1+1 Duet Rail Power System, two 8-pin CPU power connections, Core Boost, and Memory Boost to provide peak performance for demanding jobs and applications. Immerse yourself in a lightning-fast gaming experience thanks to features such as the PCIe 5.0 slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2. The Premium Thermal Solution, which includes the Extended Heatsink Design and M.2 Shield Frozr, is designed for high-performance systems, allowing for continuous, efficient workloads without compromising temperature management. Audio fans will like the Audio Boost function, which provides a studio-grade sound experience while improving the overall audio quality of your system. The motherboard also has a high-quality PCB with a 6-layer design made of 2oz thicker copper and server-grade components, assuring longevity and dependability over time. The MSI B760M PROJECT ZERO m-ATX Motherboard offers a seamless balance of performance, power efficiency, and dependability, making it an excellent choice for gamers, content creators, and professionals alike.
