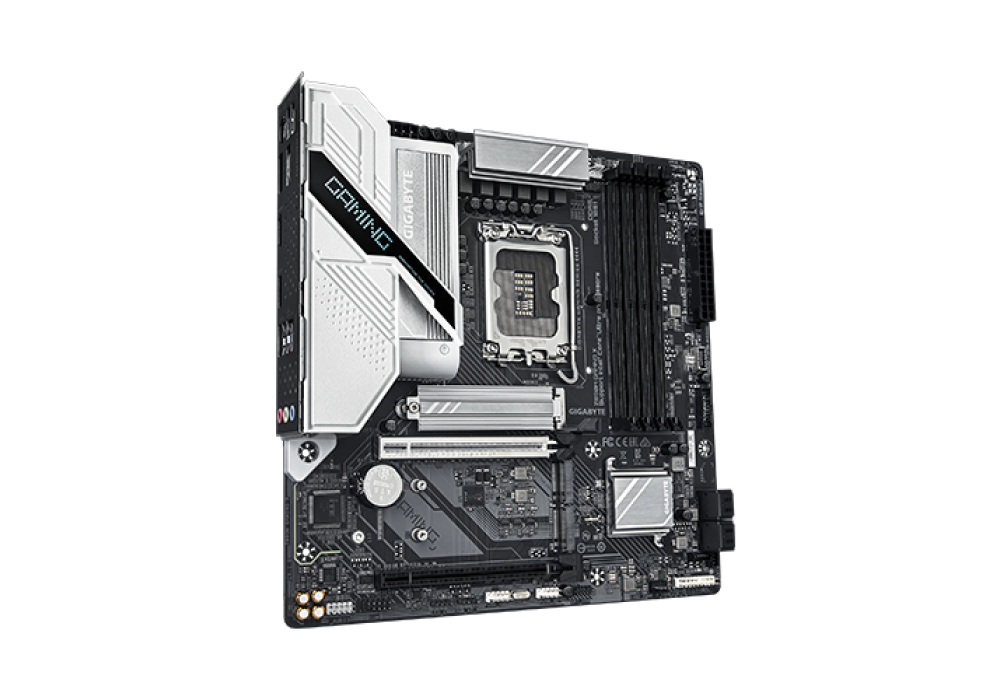

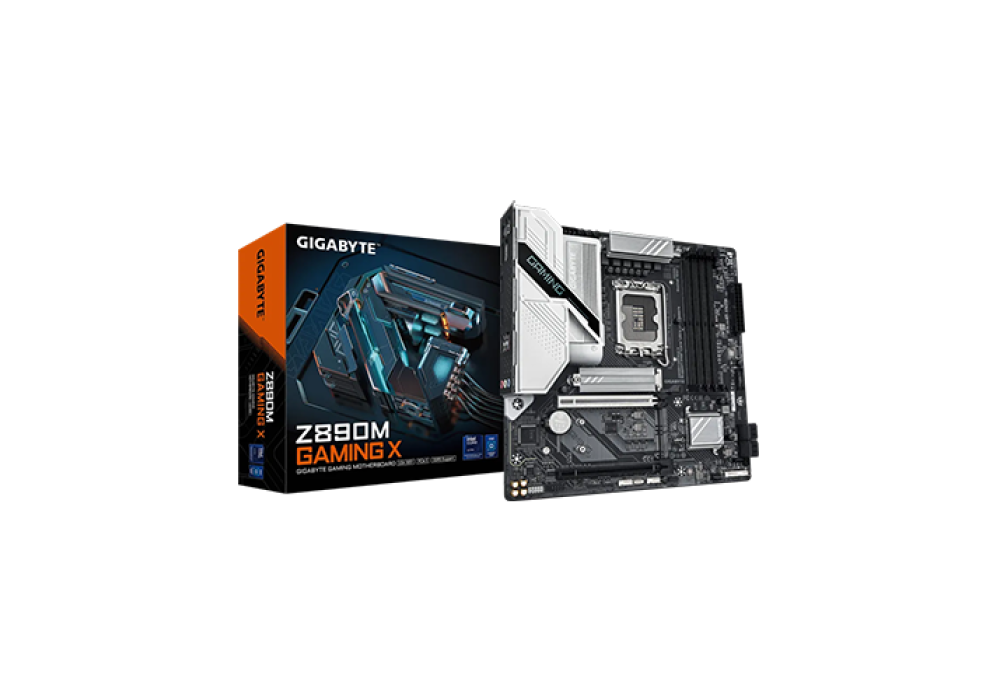

- Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard
- Stock: In Stock
- Model: Z890M GAMING X
- Supported CPU: Intel® Core™ Ultra Processors (LGA1851 Socket)
- Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
- Memory Max.: Up to 256GB
- RAM Type: DDR5
| Basic Information | |
| Supported CPU | Intel Core Ultra Processors(Series 2) |
| Chipset | Intel Z890 Chipset |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Audio | 2 x audio jacks |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Expansion Slots | |
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
| M.2 Socket | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) |
| Memory Specifications | |
| Memory Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory Type | Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) / 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module |
| Other Features | |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Connector & Ports | |
| HDMI | 1 x HDMI |
| USB (s) | CPU: - 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel *Support up to 40Gbps with Thunderbolt devices *Support up to 20Gbps with USB4 devices *Support up to 10Gbps with USB 3.2 devices Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+3 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard |
| Supported Storage | - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors |

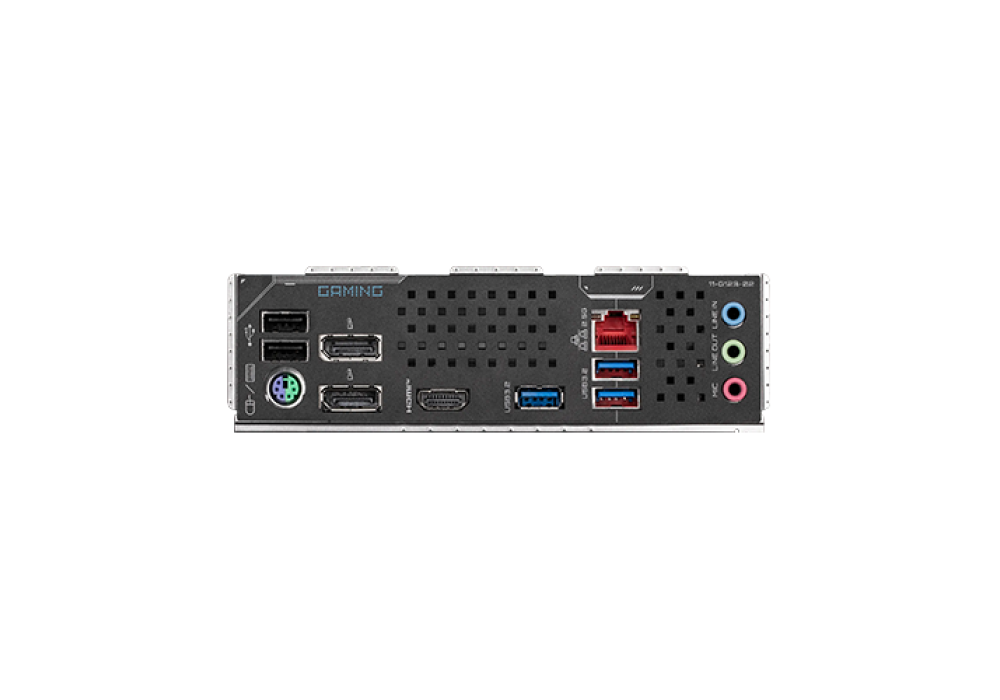

| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x HDMI port (Note) 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x noise detection header 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Back Panel Connectors 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 1 x Intel® Thunderbolt™ 4 (Note) connectors (USB Type-C® ports) 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port),supporting DisplayPort and Thunderbolt™ video outputs (Please use a processor with integrated graphics support to ensure full Thunderbolt™ functionality.) When a Thunderbolt monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840x2160@240 Hz |
| Warranty Information | |
| Warranty | 3 Year Warranty |
Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard
Experience unmatched performance and reliability with the Gigabyte Z890M GAMING X motherboard, designed for gamers and PC enthusiasts who demand high efficiency and stability. Built on the LGA1851 socket, this Micro ATX motherboard supports the latest Intel processors, ensuring lightning-fast processing for gaming, content creation, and multitasking. Its robust power delivery system guarantees stable performance even during heavy workloads, while advanced cooling solutions keep your system running optimally under extended sessions.
Featuring high-speed DDR5 memory support, multiple PCIe expansion slots, and M.2 storage options, the Z890M GAMING X provides flexibility for upgrading your gaming rig. Its RGB Fusion 2.0 lighting adds a touch of style, fully customizable to match your setup. With integrated USB 3.2 Gen 2 ports, high-definition audio, and reliable Ethernet connectivity, this motherboard delivers seamless connectivity and immersive gaming experiences.
Upgrade your build with the Gigabyte Z890M GAMING X, where performance meets innovation and style.
Benefits of Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard
- LGA1851 Socket Support: Compatible with the latest Intel processors for top-tier performance. This ensures your system can handle demanding games, multitasking, and professional workloads effortlessly.
- Micro ATX Form Factor: Compact design suitable for mid-sized gaming builds without compromising on expandability. Perfect for gamers who want a powerful rig in a smaller chassis.
- High-Speed DDR5 Memory: Supports fast memory for smooth multitasking and gaming performance. Experience quicker load times, faster application response, and seamless gaming sessions.
- Advanced Cooling Solutions: Includes multiple fan headers and thermal guards to keep your system cool under heavy load. Efficient heat dissipation prolongs component lifespan and maintains stable performance.
- Multiple PCIe & M.2 Slots: Flexible options for graphics cards, NVMe SSDs, and other expansion devices. Upgrade your system easily and enjoy enhanced graphics and storage speed.
- RGB Fusion 2.0 Lighting: Customizable RGB lighting to personalize your gaming setup. Sync colors and effects with other compatible components to create a visually stunning rig.
- High-Speed Connectivity: USB 3.2 Gen 2, high-definition audio, and reliable Ethernet for seamless data transfer and gaming experience. Enjoy lag-free online gaming, fast file transfers, and crystal-clear audio.
Upgrade PC with Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard
Looking for a reliable Intel Motherboard for your 13th or 12th Gen processor? The GIGABYTE Z790 UD AX ATX Motherboard delivers top-tier performance, advanced connectivity, and robust cooling solutions. Perfect for gamers and professionals, it supports high-speed RAM and multiple PCIe slots for ultimate flexibility. Shop this premium Motherboard now at Onix BD and elevate your PC build to the next level. With seamless installation and durable design, this motherboard ensures smooth multitasking and gaming experiences.
Quick Compare
Comparison of Z890M GAMING X vs Z790 GAMING PLUS Wi-Fi 6E vs TUF GAMING B860M-PLUS WIFI vs Z890 UD WIFI6E which are most simmiler.
| Product | Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard | MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard | ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming Motherboard | Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard |
| Image | |
|
|
|
| Price | |
|
|
|
| Model | Z890M GAMING X | Z790 GAMING PLUS Wi-Fi 6E | TUF GAMING B860M-PLUS WIFI | Z890 UD WIFI6E |
| Brand | Gigabyte | MSI | Asus | Gigabyte |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard Experience unmatched performance and reliability with the Gigabyte Z890M GAMING X motherboard, designed for gamers and PC enthusiasts who demand high efficiency and stability. Built on the LGA1851 socket, this Micro ATX motherboard supports the latest Intel processors, ensuring lightning-fast processing for gaming, content creation, and multitasking. Its robust power delivery system guarantees stable performance even during heavy workloads, while advanced cooling solutions keep your system running optimally under extended sessions. Featuring high-speed DDR5 memory support, multiple PCIe expansion slots, and M.2 storage options, the Z890M GAMING X provides flexibility for upgrading your gaming rig. Its RGB Fusion 2.0 lighting adds a touch of style, fully customizable to match your setup. With integrated USB 3.2 Gen 2 ports, high-definition audio, and reliable Ethernet connectivity, this motherboard delivers seamless connectivity and immersive gaming experiences. Upgrade your build with the Gigabyte Z890M GAMING X, where performance meets innovation and style. Benefits of Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard LGA1851 Socket Support: Compatible with the latest Intel processors for top-tier performance. This ensures your system can handle demanding games, multitasking, and professional workloads effortlessly. Micro ATX Form Factor: Compact design suitable for mid-sized gaming builds without compromising on expandability. Perfect for gamers who want a powerful rig in a smaller chassis. High-Speed DDR5 Memory: Supports fast memory for smooth multitasking and gaming performance. Experience quicker load times, faster application response, and seamless gaming sessions. Advanced Cooling Solutions: Includes multiple fan headers and thermal guards to keep your system cool under heavy load. Efficient heat dissipation prolongs component lifespan and maintains stable performance. Multiple PCIe & M.2 Slots: Flexible options for graphics cards, NVMe SSDs, and other expansion devices. Upgrade your system easily and enjoy enhanced graphics and storage speed. RGB Fusion 2.0 Lighting: Customizable RGB lighting to personalize your gaming setup. Sync colors and effects with other compatible components to create a visually stunning rig. High-Speed Connectivity: USB 3.2 Gen 2, high-definition audio, and reliable Ethernet for seamless data transfer and gaming experience. Enjoy lag-free online gaming, fast file transfers, and crystal-clear audio. Upgrade PC with Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard Looking for a reliable Intel Motherboard for your 13th or 12th Gen processor? The GIGABYTE Z790 UD AX ATX Motherboard delivers top-tier performance, advanced connectivity, and robust cooling solutions. Perfect for gamers and professionals, it supports high-speed RAM and multiple PCIe slots for ultimate flexibility. Shop this premium Motherboard now at Onix BD and elevate your PC build to the next level. With seamless installation and durable design, this motherboard ensures smooth multitasking and gaming experiences... | MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard – Premium Platform for Next-Gen Intel Builds The MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard is engineered for gamers, creators, and power users who demand high performance, cutting-edge connectivity, and future-ready features. Built on the Intel Z790 chipset and compatible with 13th & 14th Gen Intel Core processors, this ATX motherboard offers robust power delivery, support for DDR5 memory, and next-level connectivity with Wi-Fi 6E and USB 3.2 Gen 2×2. Whether you’re building a high-end gaming rig or a professional content-creation workstation, the Z790 GAMING PLUS provides the reliability, expandability, and speed your system needs. With reinforced PCIe slots, M.2 Shield Frozr cooling for storage, and dynamic performance tuning via MSI’s software suite, this board delivers a balanced blend of performance and durability from a trusted brand. Features of MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard Supports Intel 13th & 14th Gen Core CPUs for powerful processing DDR5 memory support for faster speeds and better efficiency Wi-Fi 6E & 2.5G LAN for ultra-fast wireless and wired networking PCIe 5.0 readiness and reinforced PCIe slots for future GPUs Advanced M.2 Shield Frozr for high-speed SSD cooling USB 3.2 Gen 2×2 & multiple high-speed ports for connectivity Next-Gen Performance & Connectivity With DDR5 support and robust power design, the Z790 GAMING PLUS unleashes the full potential of 13th/14th Gen Intel CPUs. The onboard Wi-Fi 6E offers ultra-fast, low-latency wireless networking — ideal for online gaming and large file transfers. Optimized for Expandability and Cooling MSI’s engineered M.2 Shield Frozr helps keep high-speed NVMe SSDs cool under heavy workloads, while reinforced PCIe slots ensure safe installation of powerful GPUs and expansion cards. Why Choose MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard? Choose the MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard for a powerful and future-proof platform with top-tier features for gaming and productivity. Its combination of high-speed memory support, next-gen connectivity, and durable design makes it perfect for advanced Intel PC builds that demand reliability and performance. Benefits of MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard Supports the latest Intel CPUs with powerful performance headroom Faster, more efficient DDR5 memory compatibility High-speed wireless & wired networking (Wi-Fi 6E & 2.5G LAN) Enhanced cooling solutions for storage and expansion cards Versatile connectivity with USB 3.2 Gen 2×2 and more Frequently Asked Questions (FAQ) Q1: Does this motherboard support Intel 14th Gen processors?A1:Yes, it supports both Intel 13th and 14th Gen Core CPUs. Q2: What type of memory does it support?A2:It supports DDR5 memory modules for peak performance. Q3: Does it include built-in Wi-Fi?A3:Yes, it features Wi-Fi 6E for ultra-fast wireless connectivity... | ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming MotherboardThe ASUS TUF GAMING B860M-PLUS WIFI is a high-performance micro-ATX motherboard designed to deliver powerful, stable, and feature-rich gaming experiences. Built around the Intel B860 chipset, it supports the latest Intel Core Ultra Processors (Series 2) with the LGA1851 socket, offering robust performance and future-ready connectivity for gamers, content creators, and power users alike. This motherboard comes equipped with four DDR5 DIMM slots, supporting up to 256GB of memory at speeds of 8800+ MT/s (OC). Enhanced by ASUS’ AEMP III and XMP support, memory overclocking and tuning is streamlined and efficient. Storage is flexible and fast, with three M.2 slots (including a PCIe 5.0 x4 slot) and four SATA 6Gb/s ports, allowing for blazing-fast boot times and data transfer rates. For connectivity, the board includes Wi-Fi 7 and Bluetooth 5.4, ensuring ultra-fast wireless speeds and seamless device pairing. Networking is further enhanced by Realtek 2.5Gb Ethernet with TUF LANGuard protection for stable and secure online gaming. The rear I/O includes a rich selection of ports: USB 20Gbps Type-C, USB 10Gbps, DisplayPort, HDMI, and more. Gamers will appreciate TUF-grade durability features such as DIGI+ VRM, SafeSlot, Stainless Steel I/O, and ESD guards, which protect the board under demanding conditions. The inclusion of M.2 heatsinks, VRM cooling, and Q-design features like PCIe Q-Release and M.2 Q-Latch make building and upgrading a breeze. Packed with ASUS-exclusive software like Armoury Crate, Fan Xpert 2+, and DTS Audio Processing, the TUF GAMING B860M-PLUS WIFI is more than just a motherboard—it’s a complete platform for next-gen gaming and productivity. Backed by a 3-year replacement warranty, it ensures lasting reliability and performance... | Gigabyte Z890 UD WIFI6E LGA 1851 ATX MotherboardGigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard Price in bd offers an advanced platform for gamers, content creators, and professionals seeking powerful performance with next-generation connectivity. Built with the Intel Z890 Express chipset and LGA1851 socket, this motherboard fully supports Intel Core Ultra processors, making it a future-ready choice for high-end computing. Featuring DDR5 memory compatibility up to 256GB, it ensures faster multitasking and stability with support for up to 9200MHz (OC). The PCIe 5.0 x16 slot delivers maximum bandwidth for the latest GPUs or NVMe SSDs, while multiple PCIe 4.0 slots provide flexible expansion options. With four M.2 connectors supporting both PCIe 5.0 and 4.0 SSDs, plus four SATA ports, users can enjoy lightning-fast storage performance with RAID 0, 1, 5, and 10 configurations. Connectivity is one of its strongest highlights—integrated Intel Wi-Fi 6E and Realtek 2.5GbE LAN ensure ultra-fast wired and wireless networking, while Bluetooth 5.3 adds seamless device pairing. The motherboard also supports USB4 Type-C and DisplayPort 2.1 outputs, delivering 4K resolution at 144Hz for high-definition visuals. Designed in an ATX form factor, it includes multiple fan headers, RGB lighting support, and compatibility with Gigabyte Control Center (GCC) for easy system monitoring and customization. Q-Flash Plus and Smart Backup features add extra convenience for updates and data protection. With premium build quality, advanced features, and a 3-year warranty, the Gigabyte Z890 UD WIFI6E ATX motherboard ensures durability, reliability, and cutting-edge performance for modern PC builds in Bangladesh.Availability and UsabilityThe Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard is now available in Bangladesh through Onix Computer, ensuring easy accessibility for gamers and professionals. Its user-friendly BIOS, advanced connectivity, and compatibility with Intel Core Ultra processors make it highly usable for building powerful desktops. This motherboard guarantees long-lasting performance with reliable stability for diverse computing needs.Features:Enhanced thermal design with multiple hybrid fan headers and water pump support ensures stable performance during heavy gaming and multitasking.RGB Fusion lighting with customizable effects provides vibrant personalization for gaming builds.Advanced power phase design improves CPU stability and efficiency under high workloads.High-quality capacitors and durable PCB material deliver long-lasting reliability and performance.Q-Flash Plus feature allows BIOS updates without installing CPU, RAM, or GPU.Integrated Smart Backup utility ensures secure data recovery and protection.Multiple USB 3.2 and USB4 connectivity options support faster file transfers and modern devices.Premium audio capacitors with noise guard deliver crystal-clear HD sound for gaming and entertainment.Strong compatibility with high-end GPUs and storage devices makes it ideal for gaming and creative professionals.Optimized for energy efficiency and lower power consumption while maintaining top-tier performance.Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard Price in BangladeshThe Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard price in Bangladesh is competitive considering its premium specifications. Offering advanced connectivity, Wi-Fi 6E, DDR5 support, and PCIe 5.0, it is a future-proof choice for both gamers and professionals. Onix Computer ensures the best deals with official warranty and after-sales support, making it a valuable investment.Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard Review:The Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard stands out as a high-performance board designed for modern PC builds. Its robust power delivery, DDR5 memory support, and PCIe 5.0 ensure superior speed for gaming and productivity tasks. The integrated Wi-Fi 6E, 2.5GbE LAN, and USB4 connectivity provide a seamless experience, while its ATX form factor guarantees expandability. With advanced cooling and RGB features, it delivers both performance and aesthetics.Why Choose from Onix ComputerOnix Computer is a trusted source in Bangladesh for authentic Gigabyte motherboards, including the Z890 UD WIFI6E. Customers benefit from competitive pricing, official warranty, reliable after-sales service, and fast nationwide delivery. With a reputation for genuine products and expert customer support, Onix Computer ensures that buyers receive the best value and peace of mind when upgrading their PC... |
Questions
Have question about this product? Get specific details about this product from expert.No questions have been asked about this product.
