Specification

General
Type	DDR5
Basic Information
Supported CPU	Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL Z790
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory Specifications
Memory Size	192GB
Slots	4 x DIMM
Supported Memory Type	Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Connector & Ports
HDMI	1x HDMI 2.1
Display Port (s)	1x DisplayPort 1.4

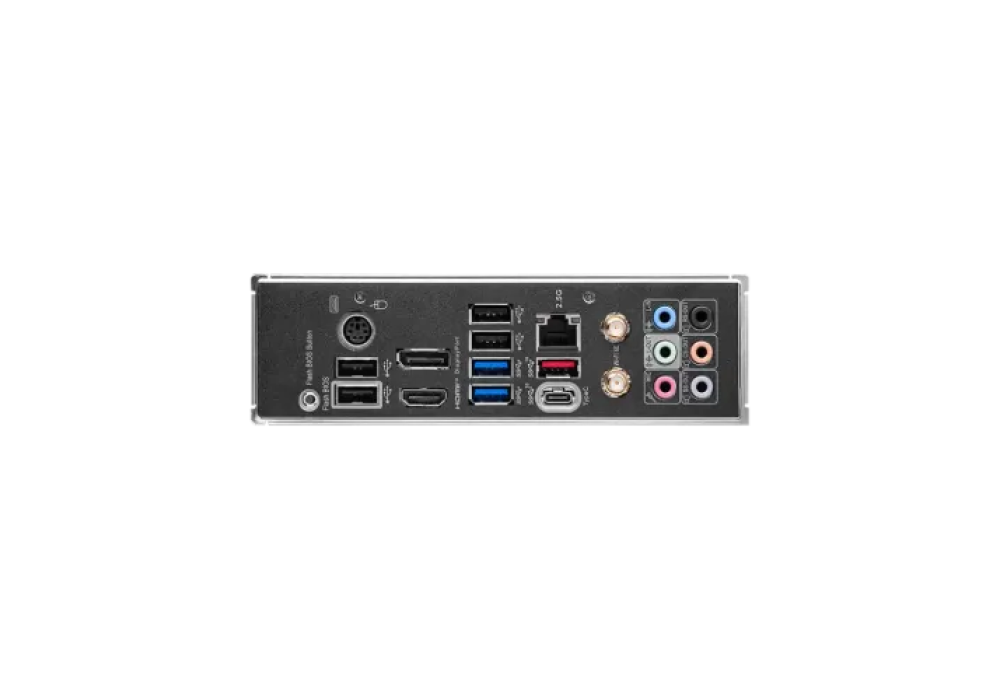

USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Intel 2.5Gbps LAN
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 6x SATA 6G
Audio	Audio Connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Graphics
Graphics	1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz*
Warranty Information
Manufacturing Warranty	3 Years

Description

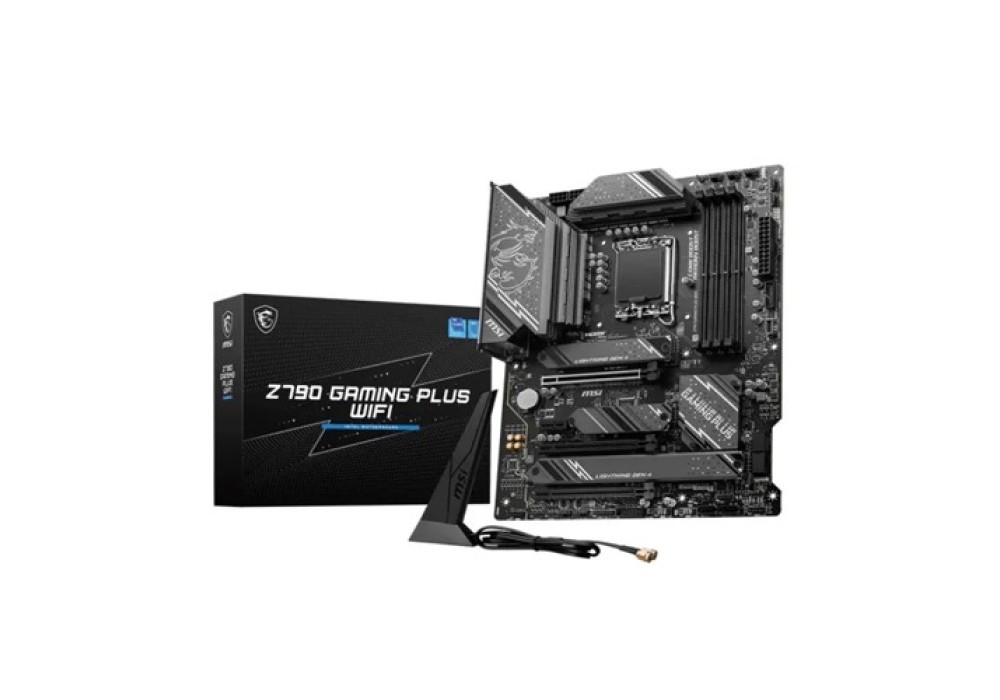

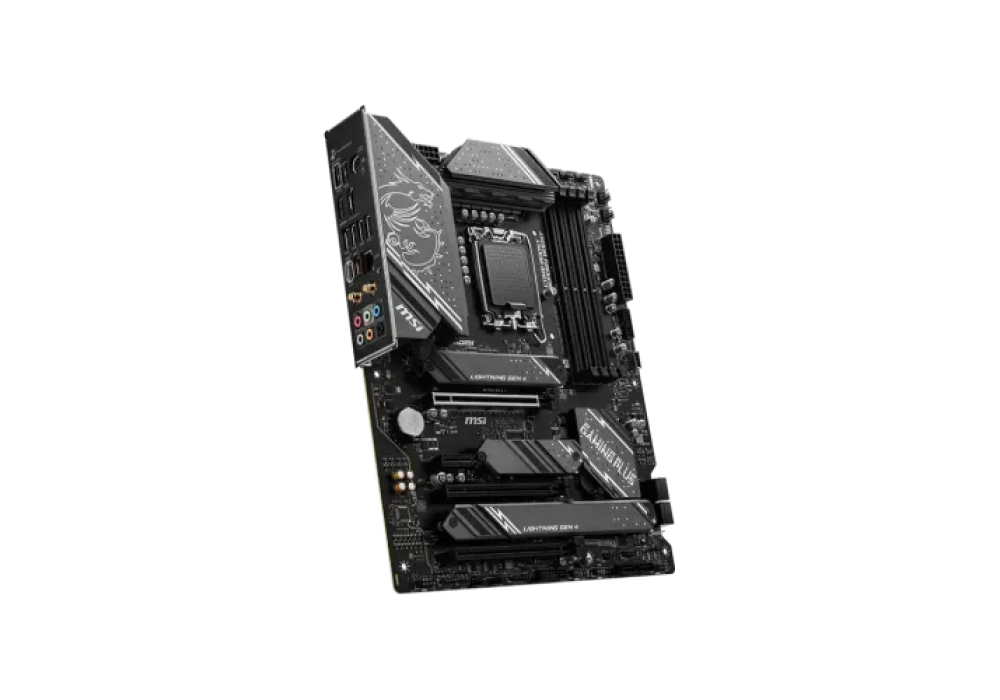

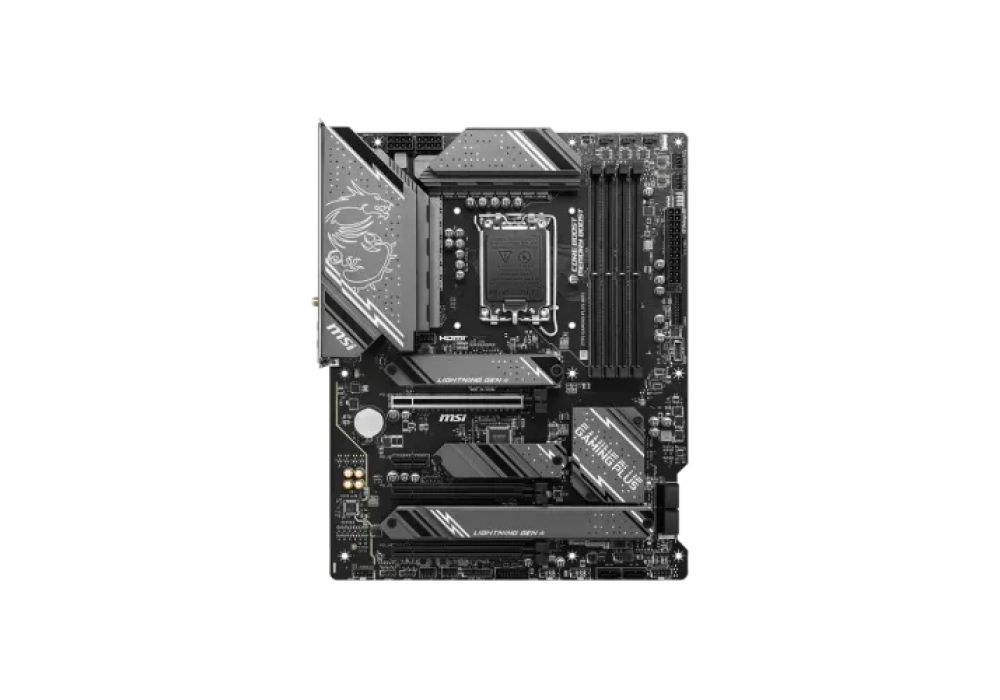

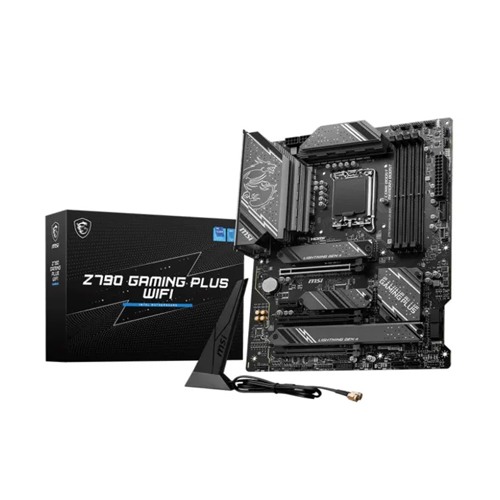

MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard – Premium Platform for Next-Gen Intel Builds

The MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard is engineered for gamers, creators, and power users who demand high performance, cutting-edge connectivity, and future-ready features. Built on the Intel Z790 chipset and compatible with 13th & 14th Gen Intel Core processors, this ATX motherboard offers robust power delivery, support for DDR5 memory, and next-level connectivity with Wi-Fi 6E and USB 3.2 Gen 2×2. Whether you’re building a high-end gaming rig or a professional content-creation workstation, the Z790 GAMING PLUS provides the reliability, expandability, and speed your system needs. With reinforced PCIe slots, M.2 Shield Frozr cooling for storage, and dynamic performance tuning via MSI’s software suite, this board delivers a balanced blend of performance and durability from a trusted brand.

Features of MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard

Supports Intel 13th & 14th Gen Core CPUs for powerful processing
DDR5 memory support for faster speeds and better efficiency
Wi-Fi 6E & 2.5G LAN for ultra-fast wireless and wired networking
PCIe 5.0 readiness and reinforced PCIe slots for future GPUs
Advanced M.2 Shield Frozr for high-speed SSD cooling
USB 3.2 Gen 2×2 & multiple high-speed ports for connectivity

Next-Gen Performance & Connectivity

With DDR5 support and robust power design, the Z790 GAMING PLUS unleashes the full potential of 13th/14th Gen Intel CPUs. The onboard Wi-Fi 6E offers ultra-fast, low-latency wireless networking — ideal for online gaming and large file transfers.

Optimized for Expandability and Cooling

MSI’s engineered M.2 Shield Frozr helps keep high-speed NVMe SSDs cool under heavy workloads, while reinforced PCIe slots ensure safe installation of powerful GPUs and expansion cards.

Why Choose MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard?

Choose the MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard for a powerful and future-proof platform with top-tier features for gaming and productivity. Its combination of high-speed memory support, next-gen connectivity, and durable design makes it perfect for advanced Intel PC builds that demand reliability and performance.

Benefits of MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard

Supports the latest Intel CPUs with powerful performance headroom
Faster, more efficient DDR5 memory compatibility
High-speed wireless & wired networking (Wi-Fi 6E & 2.5G LAN)
Enhanced cooling solutions for storage and expansion cards
Versatile connectivity with USB 3.2 Gen 2×2 and more

Frequently Asked Questions (FAQ)

Q1: Does this motherboard support Intel 14th Gen processors?

A1:Yes, it supports both Intel 13th and 14th Gen Core CPUs.

Q2: What type of memory does it support?

A2:It supports DDR5 memory modules for peak performance.

Q3: Does it include built-in Wi-Fi?

A3:Yes, it features Wi-Fi 6E for ultra-fast wireless connectivity.

Quick Compare

Comparison of Z790 GAMING PLUS Wi-Fi 6E vs Z890M GAMING X vs B860M EAGLE PLUS WIFI6E vs B860 EAGLE WIFI6E which are most simmiler.

Product	MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard	Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard	Gigabyte B860M EAGLE PLUS WIFI6E DDR5 Micro ATX Intel Motherboard	GIGABYTE B860 EAGLE WIFI6E DDR5 INTEL GAMING MOTHERBOARD
Price	~~34,290৳~~ 31,600৳	~~33,500৳~~ 32,500৳	~~35,500৳~~ 30,500৳	~~35,500৳~~ 33,500৳
Model	Z790 GAMING PLUS Wi-Fi 6E	Z890M GAMING X	B860M EAGLE PLUS WIFI6E	B860 EAGLE WIFI6E
Brand	MSI	Gigabyte	Gigabyte	Gigabyte
Availability	In Stock	In Stock	In Stock	In Stock
Rating	Based on 0 reviews.	Based on 0 reviews.	Based on 0 reviews.	Based on 0 reviews.
Summary	MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard – Premium Platform for Next-Gen Intel Builds The MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard is engineered for gamers, creators, and power users who demand high performance, cutting-edge connectivity, and future-ready features. Built on the Intel Z790 chipset and compatible with 13th & 14th Gen Intel Core processors, this ATX motherboard offers robust power delivery, support for DDR5 memory, and next-level connectivity with Wi-Fi 6E and USB 3.2 Gen 2×2. Whether you’re building a high-end gaming rig or a professional content-creation workstation, the Z790 GAMING PLUS provides the reliability, expandability, and speed your system needs. With reinforced PCIe slots, M.2 Shield Frozr cooling for storage, and dynamic performance tuning via MSI’s software suite, this board delivers a balanced blend of performance and durability from a trusted brand. Features of MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard Supports Intel 13th & 14th Gen Core CPUs for powerful processing DDR5 memory support for faster speeds and better efficiency Wi-Fi 6E & 2.5G LAN for ultra-fast wireless and wired networking PCIe 5.0 readiness and reinforced PCIe slots for future GPUs Advanced M.2 Shield Frozr for high-speed SSD cooling USB 3.2 Gen 2×2 & multiple high-speed ports for connectivity Next-Gen Performance & Connectivity With DDR5 support and robust power design, the Z790 GAMING PLUS unleashes the full potential of 13th/14th Gen Intel CPUs. The onboard Wi-Fi 6E offers ultra-fast, low-latency wireless networking — ideal for online gaming and large file transfers. Optimized for Expandability and Cooling MSI’s engineered M.2 Shield Frozr helps keep high-speed NVMe SSDs cool under heavy workloads, while reinforced PCIe slots ensure safe installation of powerful GPUs and expansion cards. Why Choose MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard? Choose the MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard for a powerful and future-proof platform with top-tier features for gaming and productivity. Its combination of high-speed memory support, next-gen connectivity, and durable design makes it perfect for advanced Intel PC builds that demand reliability and performance. Benefits of MSI Z790 GAMING PLUS (Wi-Fi 6E) DDR5 ATX Motherboard Supports the latest Intel CPUs with powerful performance headroom Faster, more efficient DDR5 memory compatibility High-speed wireless & wired networking (Wi-Fi 6E & 2.5G LAN) Enhanced cooling solutions for storage and expansion cards Versatile connectivity with USB 3.2 Gen 2×2 and more Frequently Asked Questions (FAQ) Q1: Does this motherboard support Intel 14th Gen processors?A1:Yes, it supports both Intel 13th and 14th Gen Core CPUs. Q2: What type of memory does it support?A2:It supports DDR5 memory modules for peak performance. Q3: Does it include built-in Wi-Fi?A3:Yes, it features Wi-Fi 6E for ultra-fast wireless connectivity...	Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard Experience unmatched performance and reliability with the Gigabyte Z890M GAMING X motherboard, designed for gamers and PC enthusiasts who demand high efficiency and stability. Built on the LGA1851 socket, this Micro ATX motherboard supports the latest Intel processors, ensuring lightning-fast processing for gaming, content creation, and multitasking. Its robust power delivery system guarantees stable performance even during heavy workloads, while advanced cooling solutions keep your system running optimally under extended sessions. Featuring high-speed DDR5 memory support, multiple PCIe expansion slots, and M.2 storage options, the Z890M GAMING X provides flexibility for upgrading your gaming rig. Its RGB Fusion 2.0 lighting adds a touch of style, fully customizable to match your setup. With integrated USB 3.2 Gen 2 ports, high-definition audio, and reliable Ethernet connectivity, this motherboard delivers seamless connectivity and immersive gaming experiences. Upgrade your build with the Gigabyte Z890M GAMING X, where performance meets innovation and style. Benefits of Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard LGA1851 Socket Support: Compatible with the latest Intel processors for top-tier performance. This ensures your system can handle demanding games, multitasking, and professional workloads effortlessly. Micro ATX Form Factor: Compact design suitable for mid-sized gaming builds without compromising on expandability. Perfect for gamers who want a powerful rig in a smaller chassis. High-Speed DDR5 Memory: Supports fast memory for smooth multitasking and gaming performance. Experience quicker load times, faster application response, and seamless gaming sessions. Advanced Cooling Solutions: Includes multiple fan headers and thermal guards to keep your system cool under heavy load. Efficient heat dissipation prolongs component lifespan and maintains stable performance. Multiple PCIe & M.2 Slots: Flexible options for graphics cards, NVMe SSDs, and other expansion devices. Upgrade your system easily and enjoy enhanced graphics and storage speed. RGB Fusion 2.0 Lighting: Customizable RGB lighting to personalize your gaming setup. Sync colors and effects with other compatible components to create a visually stunning rig. High-Speed Connectivity: USB 3.2 Gen 2, high-definition audio, and reliable Ethernet for seamless data transfer and gaming experience. Enjoy lag-free online gaming, fast file transfers, and crystal-clear audio. Upgrade PC with Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard Looking for a reliable Intel Motherboard for your 13th or 12th Gen processor? The GIGABYTE Z790 UD AX ATX Motherboard delivers top-tier performance, advanced connectivity, and robust cooling solutions. Perfect for gamers and professionals, it supports high-speed RAM and multiple PCIe slots for ultimate flexibility. Shop this premium Motherboard now at Onix BD and elevate your PC build to the next level. With seamless installation and durable design, this motherboard ensures smooth multitasking and gaming experiences...	Gigabyte B860M EAGLE PLUS WIFI6E DDR5 Micro ATX Intel Motherboard Step into the future of computing with the Gigabyte B860M EAGLE PLUS WIFI6E DDR5 Micro ATX Intel Motherboard, engineered for enthusiasts and professionals who demand high performance and cutting-edge features. This motherboard seamlessly combines next-generation DDR5 memory support, ultra-fast WiFi 6E connectivity, and robust Micro ATX design, offering a powerful foundation for gaming rigs, content creation systems, or high-speed office setups. Designed with precision, it ensures stable power delivery, advanced thermal solutions, and durable components for long-lasting reliability. Whether you are pushing your CPU to its limits, building a sleek compact PC, or need high-speed data transfer for intensive workloads, the B860M EAGLE PLUS adapts effortlessly. Its user-friendly BIOS, multiple expansion slots, and enhanced audio capabilities make installation and customization intuitive. Experience unmatched efficiency, speed, and versatility in a single motherboard that transforms your PC into a high-performance powerhouse. Specifications of Gigabyte B860M EAGLE PLUS WIFI6E DDR5 Motherboard Processor Support: Compatible with 12th & 13th Gen Intel Core processors for powerful and stable performance. Perfect for gaming, content creation, and heavy multitasking without any bottlenecks. Memory Support: Supports DDR5 RAM up to 6400MHz, enabling faster multitasking and data processing. Experience smooth performance even when running demanding applications or multiple programs simultaneously. Connectivity: Integrated WiFi 6E and 2.5Gb Ethernet, delivering ultra-fast and reliable internet connections. Enjoy seamless online gaming, streaming, and file transfers with minimal latency. Expansion Slots: Features PCIe 5.0 x16 and multiple M.2 slots, ideal for high-speed SSDs and future-proof upgrades. Easily expand your system with additional GPUs, storage, or other high-performance components. Audio & Video: Advanced High Definition Audio and HDMI/DisplayPort outputs for crystal-clear sound and visuals. Perfect for immersive gaming, video editing, or watching 4K content with superior clarity. Durability & Cooling: Enhanced thermal design with reinforced components ensures long-term stability and efficient heat management. Built to handle intensive workloads while maintaining optimal temperatures and reliability. Buy Gigabyte B860M EAGLE PLUS WIFI6E Motherboard from Onix BD Take your system to the next level with the Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard, now available at Onix BD. This high-performance Intel motherboard supports the latest processors and offers ultra-fast WiFi 6E connectivity for seamless online experiences. With multiple PCIe slots and M.2 support, expansion and storage upgrades are effortless. Designed for reliability and speed, it’s perfect for gamers, creators, and professionals. Explore the GIGABYTE Motherboard range and find top-notch performance for your PC today. ..	GIGABYTE B860 EAGLE WIFI6E DDR5 INTEL GAMING MOTHERBOARDGIGABYTE B860 EAGLE WIFI6E DDR5 INTEL GAMING MOTHERBOARD Price in bd is designed for gamers and PC enthusiasts who want next-level performance, speed, and stability. Built with the latest Intel® B860 chipset and LGA1851 socket, it supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, ensuring smooth multitasking and future-ready power. With DDR5 memory support up to 192GB and speeds up to 7600MHz (OC), it delivers faster load times and improved responsiveness for gaming and productivity. This gaming motherboard stands out with PCIe 5.0 x16 slot support, offering ultra-fast bandwidth for modern GPUs. It also includes dual PCIe 4.0 M.2 connectors and 4 SATA 6Gb/s ports for lightning-fast storage solutions. For connectivity, users benefit from Intel® 2.5GbE LAN, integrated Intel Wi-Fi 6E, and Bluetooth 5.3, ensuring stable internet and lag-free wireless performance. Gamers will love the HDMI 2.1 and DisplayPort 1.4 outputs for high-resolution displays up to 4K. The board also features multiple USB options, including USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2, Gen 1, and legacy USB 2.0 for flexible device compatibility. Enhanced audio with Realtek HD codec and multi-channel support ensures immersive sound quality. For added convenience, GIGABYTE includes Smart Fan 6 technology, RGB Fusion lighting headers, and Q-Flash Plus for easy BIOS updates. With durability, performance, and advanced features, the GIGABYTE B860 EAGLE WIFI6E DDR5 Gaming Motherboard is a top choice for building a powerful and reliable gaming PC in Bangladesh.Availability and Usability:The GIGABYTE B860 EAGLE WIFI6E DDR5 Intel Gaming Motherboard is widely available in Bangladesh through trusted online shops and computer retailers. Its usability shines with Wi-Fi 6E, 2.5GbE LAN, and advanced PCIe 5.0 support, making it an excellent choice for gamers, content creators, and professionals looking for high-speed connectivity and versatile performance.Features:Supports Intel 14th, 13th, and 12th Gen processors with LGA1851 socket for long-term compatibility.DDR5 memory support up to 192GB with blazing speeds for faster gaming and multitasking.PCIe 5.0 x16 slot ensures next-gen GPU performance and superior bandwidth.Intel Wi-Fi 6E and Bluetooth 5.3 provide seamless wireless gaming and streaming.Dual PCIe 4.0 M.2 slots and SATA 6Gb/s deliver high-speed storage flexibility.Realtek HD audio codec with 7.1-channel support ensures crystal-clear immersive sound.GIGABYTE Control Center, Q-Flash Plus, and Smart Fan 6 enhance system stability and customization.GIGABYTE B860 EAGLE WIFI6E MOTHERBOARD Price in Bangladesh The GIGABYTE B860 EAGLE WIFI6E DDR5 Intel Gaming Motherboard Price in Bangladesh is competitive, offering premium features at great value. It delivers advanced PCIe 5.0 support, DDR5 memory compatibility, and Wi-Fi 6E connectivity, making it ideal for gamers and creators. Available at Onix Computer, this motherboard balances performance, durability, and affordability for modern PC builds.Gaming Performance OF GIGABYTE B860 EAGLE WIFI6E MOTHERBOARDWhen it comes to gaming, the GIGABYTE B860 EAGLE WIFI6E DDR5 Intel Gaming Motherboard delivers exceptional performance. Its PCIe 5.0 slot ensures top-tier GPU support, while DDR5 memory with high overclocking capabilities enhances speed and responsiveness. Gamers benefit from ultra-fast storage with PCIe 4.0 M.2 slots and smooth online play via Intel 2.5GbE LAN and Wi-Fi 6E. Combined with immersive Realtek HD audio, this motherboard creates a reliable, lag-free gaming experience ideal for competitive esports and AAA titles.User Experience OF GIGABYTE B860 EAGLE WIFI6E MOTHERBOARDThe GIGABYTE B860 EAGLE WIFI6E DDR5 motherboard offers a seamless user experience with easy installation, intuitive BIOS updates via Q-Flash Plus, and customizable RGB lighting. Its Smart Fan 6 keeps systems cool under heavy workloads, while high-speed connectivity ensures smooth multitasking. Ideal for gamers, professionals, and creators, it guarantees stability, efficiency, and long-lasting durability in every build.Why Choose from Onix ComputerChoosing the GIGABYTE B860 EAGLE WIFI6E DDR5 Intel Gaming Motherboard from Onix Computer ensures you get authentic products with official warranty. Onix offers competitive pricing, expert after-sales service, and fast delivery across Bangladesh. With trusted customer support and easy purchase options, Onix Computer is the reliable destination for building high-performance gaming PCs with genuine GIGABYTE hardware.Frequently Asked Questions (FAQ)Q1. Does this motherboard support Intel 14th Gen processors?Ans: Yes, it fully supports Intel 14th, 13th, and 12th Gen CPUs with LGA1851 socket.Q2. Can I use DDR4 RAM with this motherboard?Ans: No, it only supports DDR5 memory modules up to 192GB.Q3. Does it include Wi-Fi and Bluetooth?Ans: Yes, it features Intel Wi-Fi 6E and Bluetooth 5.3 for fast wireless connectivity...
