Model: H610M H V2 DDR4
View More Info...
Chat Through
| Supported CPU | LGA1700 socket: Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Chipset | Intel H610 Express Chipset |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Memory Type | DDR4 |
| Slots | 2 x DDR DIMM sockets |
| Supported Memory Type | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Max. Memory | Up to 64 GB (32 GB single DIMM capacity) of system memory |
| HDMI | 1 x HDMI 2.0 port |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Intel GbE LAN chip (1 Gbps/100 Mbps) |
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| D-Sub (s) | 1 x D-Sub port |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Special Features | Support for APP Center * * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Manufacturing Warranty | 3 years |

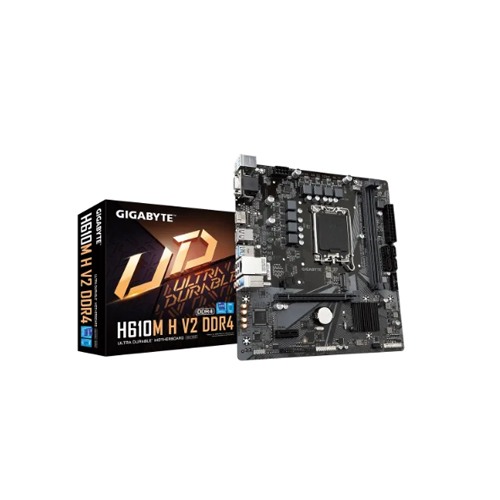

The GIGABYTE H610M H V2 DDR4 Micro ATX Motherboard is a powerful and versatile foundation for your PC build, offering support for a wide range of processors and high-speed memory modules. Designed with reliability and performance in mind, this motherboard is equipped with an Intel H610 Express Chipset and features a user-friendly BIOS interface powered by licensed AMI UEFI BIOS technology. With its LGA1700 socket, the motherboard supports 14th, 13th, and 12th Generation Intel Core processors, Pentium Gold, and Celeron processors, ensuring compatibility with a variety of CPU options to suit your computing needs. The integrated Realtek Audio CODEC delivers high-definition audio with support for 2/4/5.1/7.1-channel setups, providing immersive sound for gaming, multimedia, and entertainment. For graphics capabilities, the motherboard features integrated Intel HD Graphics support with HDMI and D-Sub ports, allowing for seamless connectivity to displays with stunning visual clarity and resolutions of up to 4096x2160@60Hz. Additionally, the motherboard offers expansion slots including a PCI Express x16 slot for high-speed graphics cards and a PCI Express x1 slot for additional peripherals. In terms of memory, the motherboard supports up to 64GB of DDR4 memory with dual-channel architecture and compatibility with ECC Un-buffered DIMM modules for enhanced data integrity. The inclusion of Extreme Memory Profile (XMP) support enables easy overclocking for enthusiasts seeking maximum performance. Connectivity options abound with multiple USB ports, including USB 3.2 Gen 1 and USB 2.0/1.1 ports, as well as Intel GbE LAN for high-speed networking capabilities. Storage options are equally robust with M.2 and SATA connectors for SSDs and traditional hard drives. Internally, the motherboard offers a comprehensive array of I/O ports and headers for easy component installation and customization, including RGB LED strip headers for personalizing your build's aesthetics.
The GIGABYTE H610M H V2 DDR4 motherboard is powered by the Intel H610 Express Chipset, ensuring smooth operation and compatibility with a wide range of hardware components. With support for 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors, you have the flexibility to choose the CPU that best suits your needs.
Equipped with DDR4 memory technology, this motherboard delivers impressive speed and efficiency for multitasking, gaming, and content creation tasks. With support for up to 64GB of system memory and dual-channel memory architecture, you can experience seamless performance even under heavy workloads.
The Micro ATX form factor of the GIGABYTE H610M H V2 DDR4 motherboard makes it ideal for compact PC builds without compromising on features or expandability. Its dimensions of 23.0cm x 21.5cm ensure compatibility with a wide range of PC cases, allowing you to create a sleek and stylish setup.
With a comprehensive array of connectivity options, including HDMI, USB 3.2 Gen 1, USB 2.0/1.1, and Intel GbE LAN, this motherboard provides everything you need to connect your peripherals and accessories with ease. Whether you're gaming online or transferring large files, you can count on reliable and high-speed connectivity.
The GIGABYTE H610M H V2 DDR4 motherboard features a Realtek Audio CODEC, delivering high-definition audio output for immersive gaming and multimedia experiences. Additionally, the built-in Intel GbE LAN chip ensures fast and stable network connectivity for online gaming and content streaming.
With support for LGA1700 socket processors, including 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors, this motherboard offers compatibility with a wide range of CPU options. Whether you're aiming for maximum performance or value, you can find the perfect CPU for your needs.
Q: Is the GIGABYTE H610M H V2 DDR4 motherboard suitable for gaming?
A: Yes, this motherboard is suitable for gaming, offering support for high-performance processors and graphics cards.
Q: What memory modules are compatible with this motherboard?
A: This motherboard supports DDR4 memory modules running at speeds up to 3200MHz, including ECC and non-ECC configurations.
Q: Does this motherboard support overclocking?
A: While this motherboard offers some overclocking capabilities, it's primarily designed for stable and reliable performance under standard configurations.
Q: Can I use this motherboard for multimedia production tasks?
A: Yes, the GIGABYTE H610M H V2 DDR4 motherboard is suitable for multimedia production tasks, offering robust connectivity options and high-definition audio support.
Q: What is the warranty coverage for this motherboard?
A: The warranty coverage for the GIGABYTE H610M H V2 DDR4 motherboard may vary depending on the retailer and region. Be sure to check the warranty terms and conditions before making a purchase.
