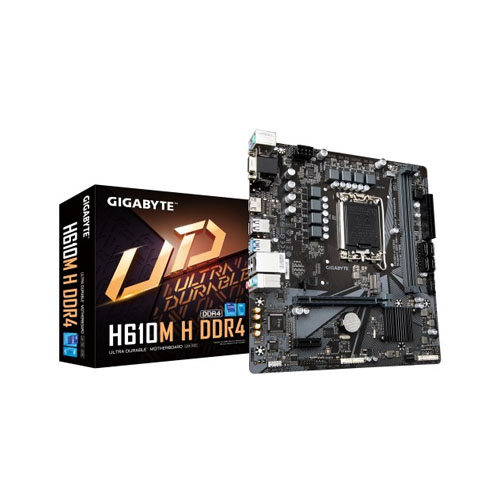

Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard

Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard
Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard
Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard
Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard
Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard
-9 %
Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard
Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard
Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard
Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard
Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard
Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard
  • Stock: In Stock
  • Model: H610M H DDR4
  • SKU: 91000
11,300৳
12,430৳
EMI starts at 3,963৳/month. View all 25 banks EMI plans >
Key Features
    • LGA1700 socket: Supports 12th Gen Intel Core Series Processors
    • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
    • Intel GbE LAN with cFosSpeed Internet Accelerator Software
    • NVMe PCIe 3.0 x4 M.2
Specification
Basic Information
Supported CPU LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset Intel H610 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to
install it in the PCIEX16 slot.
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
Memory Specifications
Memory Type DDR4
Slots 2 x DDR DIMM sockets
Supported Memory Type 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Max. Memory Up to 64 GB (32 GB single DIMM capacity) of system memory
Connector & Ports
HDMI 1 x HDMI 2.0 port
USB (s) Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Intel GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
D-Sub (s) 1 x D-Sub port
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports
Others Information
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions
of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 3 years
Description

Next-Gen Computing: The Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard

The Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard is designed to deliver reliable performance for 12th Generation Intel Core, Pentium Gold, and Celeron processors with its LGA1700 socket. Equipped with an Intel H610 Express Chipset, this motherboard ensures efficient data management and connectivity. Its BIOS features a 256 Mbit flash with licensed AMI UEFI BIOS, supporting various standards including PnP 1.0a, DMI 2.7, and ACPI 5.0. With a Micro ATX form factor, this motherboard offers a compact yet versatile solution for building systems with a footprint of 23.0cm x 21.5cm. It boasts Realtek Audio CODEC for high-definition audio output, supporting configurations from 2 to 7.1 channels. It offers one PCI Express x16 slot (PCI Express 4.0 compliant, perfect for graphics cards) and one PCI Express x1 slot (PCI Express 4.0 compliant, perfect for other devices). The DDR4 memory slots have dual-channel architecture, enable ECC and non-ECC modules, and can accommodate up to 64GB of RAM at speeds of up to 3200MHz. Connectivity options include HDMI 2.0 and D-Sub ports for video output, Intel GbE LAN for high-speed networking, and a variety of USB ports for peripherals. Additionally, it offers M.2 and SATA connectors for storage expansion, along with multiple internal headers for further customization. With support for features like XMP memory modules and APP Center applications, the Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard caters to both casual users and enthusiasts seeking a reliable foundation for their system builds.

Performance

The Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard boasts impressive performance capabilities, tailored to meet the demands of modern computing tasks. With its support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors, it ensures seamless operation, whether you're engaging in intensive gaming sessions or tackling resource-heavy applications.

Memory Support

When it comes to memory support, the H610M H Micro ATX Motherboard stands out with its DDR4 compatibility. With two DDR DIMM sockets and support for various memory modules ranging from 2133 MHz to 3200 MHz, users have the flexibility to optimize their system's memory configuration based on their specific requirements.

Form Factor

The compact Micro ATX form factor of the Gigabyte H610M H makes it an ideal choice for users looking to build smaller, yet powerful systems. Measuring at 23.0cm x 21.5cm, this motherboard strikes a perfect balance between space-saving design and robust functionality.

Expansion Slots

Equipped with expansion slots to accommodate additional components, the H610M H motherboard offers versatility in system customization. It features a PCI Express x16 slot running at x16 for graphics card installation, along with a PCI Express x1 slot, providing users with options for enhancing their system's capabilities.

Seamless Compatibility

With its Intel H610 Express Chipset and support for LGA1700 socket processors, the Gigabyte H610M H ensures seamless compatibility with a wide range of hardware components. Whether you're upgrading your existing system or building a new one from scratch, this motherboard provides the foundation for a reliable and efficient setup.

Audio Quality

The Gigabyte H610M H comes equipped with a Realtek Audio CODEC, delivering high-definition audio for an immersive listening experience. Whether you're gaming, watching movies, or listening to music, you'll enjoy crystal-clear sound with minimal distortion. Additionally, its support for multi-channel audio ensures accurate spatial positioning for a truly immersive audio experience.

Supported Processor

The H610M H motherboard supports a variety of processors, including 12th Generation Intel Core, Pentium Gold, and Celeron CPUs. Its compatibility with the latest processor technology ensures that users can harness the full potential of their system for both everyday computing tasks and demanding applications.

FAQs

Q: Is the Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard compatible with Intel 12th Generation processors?
A: Yes, the motherboard is specifically designed to support 12th Generation Intel Core processors, providing users with access to the latest CPU technology.

Q: What is the maximum memory capacity supported by the H610M H motherboard?
A: The motherboard supports up to 64 GB of system memory, with a maximum capacity of 32 GB per single DIMM module.

Q: Does the Gigabyte H610M H motherboard support overclocking?
A: While the motherboard does support Extreme Memory Profile (XMP) memory modules, overclocking capabilities may vary depending on the specific CPU and memory configuration.

Q: Are there any expansion slots available for additional components?
A: Yes, the motherboard features a PCI Express x16 slot for graphics card installation, along with a PCI Express x1 slot for other expansion cards.

Q: What type of audio codec does the H610M H motherboard utilize?
A: The motherboard utilizes a Realtek Audio CODEC, delivering high-definition audio output with support for various speaker configurations.
