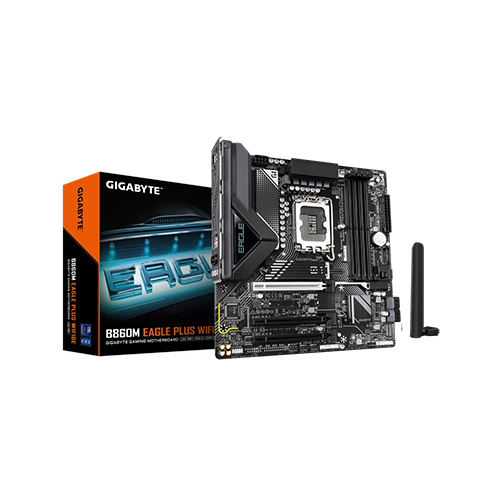

Model: B860M EAGLE PLUS WIFI6E
View More Info...
Chat Through
| Supported CPU | LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel® Core, Pentium Gold, and Celeron Processors L3 cache varies with CPU |
| Chipset | Intel B860 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| PCI | 1 x PCIe 5.0 x16 slot (for graphics cards/NVMe SSD) 2 x PCIe x1 slots (PCIe 3.0) |
| Memory Type | DDR5 |
| Supported Memory Type | DDR5 6800(O.C.)/6600(O.C.)/6400(O.C.)/6200(O.C.)/6000(O.C.)/5800(O.C.)/5600(O.C.)/5400(O.C.)/5200(O.C.)/5000(O.C.)/4800/4600/4400/4266/4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| USB (s) | Chipset: 1 x USB Type-C (USB 3.2 Gen 1, internal header) 5 x USB 3.2 Gen 1 (3 rear, 2 internal) 2 x USB 2.0/1.1 rear ports Internal Headers: 4 x USB 2.0/1.1 1 x USB 3.2 Gen 1 1 x USB Type-C (USB 3.2 Gen 1) |
| LAN Port (s) | Realtek 2.5GbE LAN Intel Wi-Fi 6E AX210, 2.4/5/6 GHz Bluetooth 5.3 |
| Audio | Realtek ALC897 Audio Codec High Definition Audio, 2/4/5.1/7.1-channel 3 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power 1 x 8-pin CPU power 1 x CPU fan header, 3 x system fan headers 1 x addressable LED, 1 x RGB LED header 2 x M.2 Socket 3 4 x SATA 6Gb/s Front panel audio/header/USB headers Q-Flash Plus button, Clear CMOS, Reset jumper Serial and parallel headers, S/PDIF Out Back Panel Connectors: 2 x USB 2.0/1.1 1 x PS/2 keyboard/mouse 2 x SMA antenna connectors 1 x HDMI 2.1, 1 x DisplayPort 1.4 3 x USB 3.2 Gen 1 1 x RJ-45 LAN port 3 x audio jacks |
| TPM (Trusted Platform Module ) | 1 x TPM header (supports GC-TPM2.0 SPI module) |
| Graphics | Onboard Graphics: Intel UHD Graphics support 1 x HDMI 2.1 port, max resolution 4096x2160@60Hz 1 x DisplayPort 1.4, max resolution 4096x2304@60Hz |
| Bundled Software | Norton Internet Security (OEM) LAN bandwidth management software |
| Special Features | GIGABYTE Control Center (GCC) support Q-Flash, Q-Flash Plus |
| Warranty | 3 years |
Step into the future of computing with the Gigabyte B860M EAGLE PLUS WIFI6E DDR5 Micro ATX Intel Motherboard, engineered for enthusiasts and professionals who demand high performance and cutting-edge features. This motherboard seamlessly combines next-generation DDR5 memory support, ultra-fast WiFi 6E connectivity, and robust Micro ATX design, offering a powerful foundation for gaming rigs, content creation systems, or high-speed office setups. Designed with precision, it ensures stable power delivery, advanced thermal solutions, and durable components for long-lasting reliability. Whether you are pushing your CPU to its limits, building a sleek compact PC, or need high-speed data transfer for intensive workloads, the B860M EAGLE PLUS adapts effortlessly. Its user-friendly BIOS, multiple expansion slots, and enhanced audio capabilities make installation and customization intuitive. Experience unmatched efficiency, speed, and versatility in a single motherboard that transforms your PC into a high-performance powerhouse.
Take your system to the next level with the Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard, now available at Onix BD. This high-performance Intel motherboard supports the latest processors and offers ultra-fast WiFi 6E connectivity for seamless online experiences. With multiple PCIe slots and M.2 support, expansion and storage upgrades are effortless. Designed for reliability and speed, it’s perfect for gamers, creators, and professionals. Explore the GIGABYTE Motherboard range and find top-notch performance for your PC today.
