- Stock: In Stock
- Model: B650M D3HP
- Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 192GB, 7600(OC)
- Graphics Output: 2x Display Port, 1 x HDMI
- Features: Realtek 2.5GbE LAN chip
| General | |
| Type | DDR5 |
| Basic Information | |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors |
| Chipset | AMD B650 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Memory Specifications | |
| Memory Size | supporting up to 192 GB (48 GB single DIMM capacity) of system memory |
| Slots | 4 DIMMs |
| Supported Memory Type | 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1 x DisplayPorts |
| USB (s) | CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Graphics | |
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. Support for up to triple-display at the same time (Graphics specifications may vary depending on CPU support.) |
| Others Information | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
GIGABYTE B650M D3HP Price in BD | Onix Computer

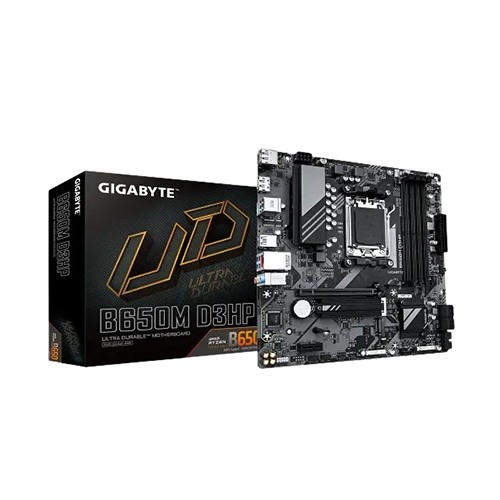

GIGABYTE B650M D3HP motherboard is a high-performance component designed to support the latest AMD Ryzen 7000 Series processors with its AMD Socket AM5. This motherboard features a robust 5+2+2 phases digital VRM solution, ensuring stable power delivery for enhanced performance, especially under heavy loads and overclocking conditions. It supports dual-channel DDR5 memory with four SMD DIMMs, accommodating both AMD EXPO and Intel XMP memory modules for flexible configurations and higher bandwidth. The GIGABYTE B650M D3HP includes a PCIe 4.0 x4 M.2 connector, allowing for ultra-fast data access and reduced load times in applications and games. The motherboard also features an EZ-Latch quick-release design on the PCIe x16 slot, simplifying the installation and removal of graphics cards. Networking capabilities are bolstered by a 2.5 Gigabit Ethernet LAN port, providing faster and more reliable connections for gaming, streaming, and downloading. Extended connectivity options include two DisplayPort outputs and one HDMI port, offering versatile display connections for multi-monitor setups.
GIGABYTE B650M D3HP price in Bangladesh typically starts from around 15,000৳-25,200৳, depending on stock availability and warranty support. This competitive pricing makes the motherboard an excellent choice for gamers, professionals, and PC builders seeking a future-ready AM5 platform without exceeding their budget. Its strong performance, DDR5 support, PCIe 4.0 expansion, and M.2 Gen4 slots provide a smooth and reliable experience for modern computing needs. Onix Computer offers genuine products, full warranty service, and fast delivery across Bangladesh, making it one of the most trusted places to purchase the GIGABYTE B650M D3HP.
Key Features of GIGABYTE B650M D3HP Motherboard
The GIGABYTE B650M D3HP is a powerful micro-ATX motherboard designed for AMD AM5 processors, offering excellent performance, durability, and future-ready connectivity. Built with the AMD B650 chipset, it supports the latest Ryzen 7000 and 8000 Series processors, making it ideal for gaming, productivity, and high-end PC builds. This motherboard brings advanced features like DDR5 memory support, PCIe 4.0 expansion, fast M.2 storage options, and enhanced network performance. With its solid build quality and user-friendly BIOS, the GIGABYTE B650M D3HP ensures a smooth and stable PC-building experience for beginners and professionals alike.
- AM5 CPU Support: Compatible with AMD Ryzen 7000 & 8000 Series processors, delivering next-gen performance for gaming and multitasking.
- DDR5 Memory Support: Offers up to 192GB DDR5 RAM across 4 DIMM slots with speeds up to 7600+ MHz (OC).
- PCIe 4.0 Expansion: Includes a full-speed PCIe 4.0 x16 slot, ideal for modern GPUs and high-performance components.
- Dual M.2 PCIe 4.0 Slots: Supports ultra-fast NVMe SSDs with two M.2 connectors plus 4 SATA ports.
- High-Resolution Display Output: Comes with 2 DisplayPorts (144Hz) and 1 HDMI 2.1, supporting triple-display setups.
- 2.5GbE LAN: Equipped with Realtek 2.5GbE for faster, more stable networking.
- Advanced Cooling & RGB Support: Features multiple fan headers, ARGB/RGB headers, and support for GIGABYTE Control Center, Q-Flash & Q-Flash Plus.
Why Should You Buy a GIGABYTE B650M D3HP Motherboard From Onix Computer?
If you are planning to purchase a GIGABYTE B650M D3HP, Onix Computer is one of the best places to buy from in Bangladesh. They offer 100% genuine GIGABYTE motherboards with reliable build quality and advanced features suitable for gaming, content creation, and professional PC builds. Every GIGABYTE B650M D3HP from Onix Computer ensures strong performance, next-gen compatibility, smooth multitasking, and upgrade-friendly hardware designed for AM5 processors. Key highlights include DDR5 RAM support, PCIe 4.0 expansion, fast NVMe M.2 storage, efficient power delivery, and enhanced connectivity options.
Onix Computer provides high-quality products at competitive prices. They also offer full warranty support, fast delivery across Bangladesh, and a seamless online shopping experience. With expert guidance from their team, you can easily choose the perfect B650M D3HP motherboard for your gaming PC, workstation, or productivity setup. Whether you're looking for motherboard price in Bangladesh, AMD motherboard price in Bangladesh, or specifically a Gigabyte AMD motherboard price in Bangladesh, Onix Computer ensures trusted service and attractive deals. Visit the nearest Onix Computer showroom or browse their online store to explore the latest GIGABYTE motherboards, get the best offers, and enjoy excellent customer support. Other available alternatives include Gigabyte B840M DS3H.
What is the price of the GIGABYTE B650M D3HP in Bangladesh?
The GIGABYTE B650M D3HP price in Bangladesh typically starts from around 15,000৳-25,200৳, depending on stock availability and warranty support.
Where can I buy the GIGABYTE B650M D3HP in Bangladesh?
You can buy the GIGABYTE B650M D3HP from Onix Computer with full warranty and fast delivery.
Does the GIGABYTE B650M D3HP support RAM upgrades?
Yes, the B650M D3HP supports DDR5 RAM, allowing higher speeds and better multitasking.
Is the GIGABYTE B650M D3HP good for gaming and productivity?
Yes, it is excellent for gaming PCs, editing workstations, business tasks, and high-performance desktop builds.
What ports are available on the GIGABYTE B650M D3HP?
It includes USB Type-A ports, USB Type-C, HDMI, DisplayPort, LAN, and multiple fan/RGB headers for easy connectivity and expansion.
