- Stock: In Stock
- Model: B450M K
Available Options
- Supported CPU Ryzen 5000 5000 G 3rd 2nd 1st Gen Processors for Socket AM5
- Supported RAM 2 x DDR4 up to 64GB 3600 OC
- Graphics Output 1 x HDMI port
- Features 1 x M.2 Slot Realtek GbE LAN
| Key Features | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm |
| Model | B450M K |
| General | |
| Type | Dual Channel DDR4 Memory Technology |
| Basic Information | |
| Supported CPU | AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
| Chipset | |
| Chipset | AMD B450 |
| Memory Specifications | |
| Supported Memory Type | Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Motherboard | |
| Audio | 3 x audio jacks |
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| Slots | 2 x DIMM |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ processor. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| USB Port | 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports |
| Warranty Information | |
| Warranty | 03 years |

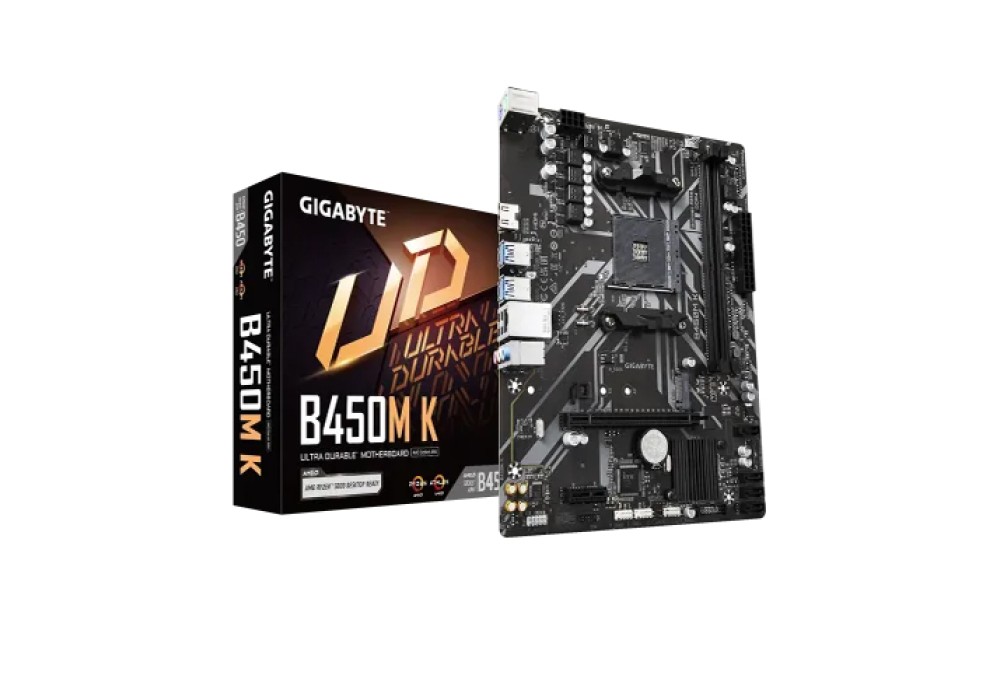

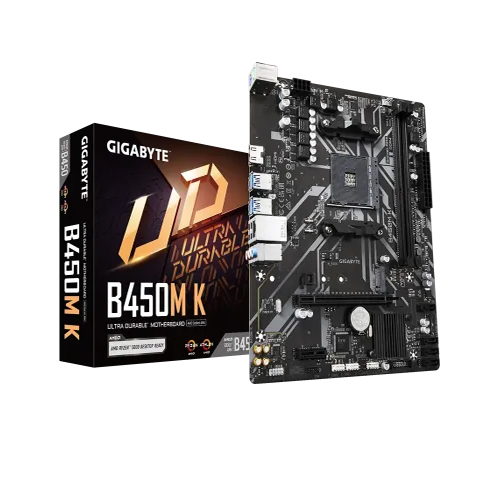

Gigabyte AMD B450M Gaming Motherboard
The GIGABYTE B450M K AMD AM4 Micro ATX Motherboard is a high-performance motherboard designed for gamers and computer enthusiasts. It is compatible with both AMD Ryzen 1st and 2nd generation processors, making it an ideal choice for those who want to build a powerful gaming PC. One of the key features of this motherboard is its support for dual-channel DDR4 memory, which allows for faster data transfer speeds and improved system performance. It also has four DIMM slots that can accommodate up to 64GB of RAM, giving users plenty of room for upgrades. In terms of connectivity options, the GIGABYTE B450M K AMD AM4 Micro ATX Motherboard has a range of ports and connectors to choose from. These include two USB 3.1 Gen1 ports, six USB 2.0 ports, an HDMI port, a DVI-D port, and a VGA port. There are also several audio jacks for connecting speakers and headphones. This motherboard also comes with advanced features like RGB Fusion, which allows users to customize the lighting on their system using a variety of different colors and effects. It also has Smart Fan 5 technology, which helps to keep the system cool by adjusting fan speeds based on temperature readings. Overall, the GIGABYTE B450M K AMD AM4 Micro ATX Motherboard is a fantastic option for anyone looking to build a powerful gaming PC. Its compatibility with AMD Ryzen processors, support for high-speed DDR4 memory, and range of connectivity options make it a versatile choice that will meet the needs of even the most demanding users.
Gigabyte B450M K Price in BD
As of 2024, the Gigabyte B450M K price in BD typically ranges from BDT 5,000 to BDT 7,000, depending on the retailer and stock availability. This makes it a very affordable motherboard for users looking to build a budget-friendly PC without compromising too much on performance. Prices may vary depending on location and ongoing promotions, so it’s always a good idea to check different stores for the best deal.
Performance
In the realm of gaming and computing, performance reigns supreme. The GIGABYTE B450M K AMD AM4 Micro ATX motherboard is a powerhouse in terms of performance. Designed to accommodate the latest AMD Ryzen™ processors, it ensures smooth and efficient operation even during the most demanding tasks. Whether you're gaming, streaming, or multitasking, this motherboard delivers the performance you need.
Chipset
At the heart of the GIGABYTE B450M K motherboard lies the AMD B450 chipset. This chipset provides a solid foundation for your system, offering excellent compatibility and reliability. With features such as PCIe 3.0 support and advanced overclocking capabilities, the B450 chipset ensures that your system runs optimally under any workload.
Form Factor
The B450M K motherboard boasts a Micro ATX form factor, measuring 24.4cm x 20.5cm. This compact size makes it ideal for building smaller systems without compromising on performance. Whether you're building a gaming rig or a home theater PC, the Micro ATX form factor of the B450M K provides the versatility you need.
DDR4 Memory Support
Memory is essential for ensuring smooth and responsive system performance. The GIGABYTE B450M K motherboard supports Dual Channel DDR4 Memory Technology, allowing you to maximize the potential of your system memory. With support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules, you can customize your system to meet your specific needs.
Gigabyte B450M K
The Gigabyte B450M K is a compact and powerful motherboard that offers excellent performance and value. It's a great choice for budget-conscious builders who want to build a high-performance PC.
Connectivity
Connectivity is key in today's interconnected world, and the B450M K motherboard offers ample connectivity options to suit your needs. With features such as USB 3.1 Gen 1 ports, USB 2.0/1.1 ports, and SATA 6Gb/s connectors, you can easily connect all your peripherals and storage devices. Whether you're transferring files, gaming online, or streaming media, the B450M K motherboard ensures a seamless experience.
Why Choose the Gigabyte B450M K?
Affordable Price
One of the biggest advantages of the Gigabyte B450M K is its affordable price point. It offers great value for users who want to build a powerful system without spending too much on their motherboard. For gamers and PC enthusiasts on a budget, this is an excellent option.
Good Upgrade Path
With support for Ryzen 3000-series processors and future BIOS updates, the B450M K offers a solid foundation for a system that can be easily upgraded over time. This ensures that you don’t have to replace the motherboard every time you want to upgrade your CPU.
Gigabyte B450M K for Gaming
The Gigabyte B450M K is an excellent choice for building a budget gaming PC. It pairs well with AMD Ryzen 3 or Ryzen 5 processors, providing enough power for gaming at 1080p resolution. For more demanding games or higher resolutions, users can easily pair it with a dedicated GPU to achieve better frame rates and graphical performance.
FAQs
Q: Is the Gigabyte A520M S2H motherboard compatible with AMD Ryzen processors?
A: Yes, the A520M S2H motherboard is compatible with a wide range of AMD Ryzen processors, including the Ryzen 5000/4000G Series and Ryzen 3rd Generation Processors.
Q: What is the maximum memory supported by the A520M S2H motherboard?
A: The A520M S2H motherboard supports up to 64GB of DDR4 memory, ensuring that you have plenty of memory for all your computing needs.
Q: Does the A520M S2H motherboard support PCIe SSDs?
A: Yes, the A520M S2H motherboard supports both SATA and PCIe SSDs, allowing you to build a fast and reliable storage system.
Q: What audio codec does the A520M S2H motherboard use?
A: The A520M S2H motherboard features the Realtek ALC887 codec, which delivers high-definition audio for an immersive gaming and multimedia experience.
Q: What is the form factor of the A520M S2H motherboard?
A: The A520M S2H motherboard features an ATX form factor, making it compatible with a wide range of PC cases and configurations.
The GIGABYTE B450M K AMD AM4 Micro ATX Motherboard is a versatile and reliable option for various PC builds. With support for AMD Ryzen processors, advanced connectivity, and robust durability, it caters to gamers, professionals, and home users alike. Its compact size, excellent cooling, and competitive pricing make it a standout choice. Visit Onix Computer today to find the best deals on the Gigabyte B450M K price in BD and enjoy building your ideal PC with confidence.
