- Stock: In Stock
- Model: A520M K V2
- Supported CPU: Ryzen 5000/ 5000G/4000G/ 3000/3000G Series CPU for AM4 Socket
- Supported RAM: 2 x DDR4, up to 64GB, 5100(O.C.)
- Graphics Output: 1 x HDMI, 1x D-Sub
- Features: 1 x M.2 Slot, Realtek GbE LAN
| Basic Information | |
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors |
| Chipset | AMD A520 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.3cm x 19.8cm |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Expansion Slots | |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| M.2 Socket | 1 x M.2 connector |
| Memory Specifications | |
| Memory Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory Type | Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Max. Memory | 64 GB (32 GB single DIMM capacity) |
| Other Features | |
| Others Information | Special Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) LAN bandwidth management software |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| USB (s) | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/ 100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| Graphics | |
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version and HDCP 2.2. |
| Max Shared Memory | 16 GB |
| Warranty Information | |
| Warranty | 03-Year Warranty |

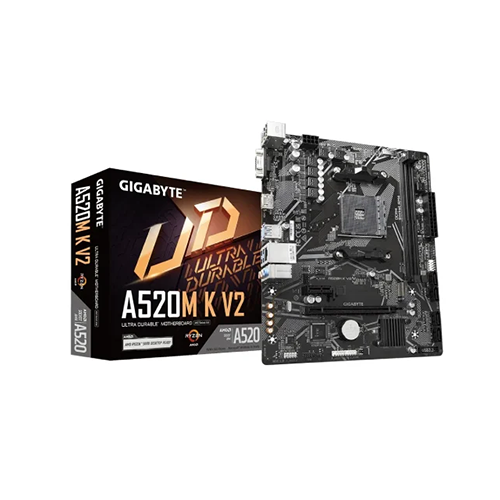

GIGABYTE A520M K V2 AM4 Micro ATX Motherboard
GIGABYTE A520M K V2 AM4 Micro ATX Motherboard Price in BD makes it a perfect choice for budget-conscious gamers, content creators, and professionals who want reliability and performance in a compact design. Built with the AMD A520 chipset, this motherboard supports a wide range of processors, including AMD Ryzen™ 5000, 4000, and 3000 series CPUs, delivering excellent versatility for modern computing needs. The board comes with dual-channel DDR4 memory slots, supporting up to 64GB RAM with overclocking capabilities up to DDR4 5100(O.C.), ensuring fast and smooth multitasking. Its integrated HDMI 2.0 port supports 4K resolution at 60Hz, making it ideal for high-definition visuals and immersive multimedia experiences. The PCIe 3.0 x16 slot allows compatibility with modern graphics cards, while the M.2 connector and SATA 6Gb/s ports offer flexible storage options with RAID 0, 1, and 10 support. For connectivity, the motherboard is equipped with multiple USB 3.2 Gen 1 and USB 2.0 ports, along with a Realtek GbE LAN chip for stable internet performance. It also includes high-quality Realtek Audio Codec for 7.1-channel HD audio, enhancing both gaming and entertainment experiences. GIGABYTE has also included several advanced features like Q-Flash, EasyTune, APP Center, and Smart Backup, ensuring better control, easy updates, and secure data management. With its Micro ATX form factor, solid build quality, and a 3-year warranty, the GIGABYTE A520M K V2 is an excellent motherboard for building a powerful yet compact desktop PC in Bangladesh.
Availability and Usability:
The GIGABYTE A520M K V2 AM4 Micro ATX Motherboard is readily available in Bangladesh for budget gaming, office work, and home PCs. Its compact design, wide CPU support, and modern connectivity make it highly usable for versatile desktop builds. Perfect for gamers, students, and professionals who need reliable performance at an affordable price.
Features:
- Supports AMD Ryzen 5000, 4000, and 3000 Series processors for versatile performance
- Dual-channel DDR4 memory slots with 64GB max capacity and XMP support
- HDMI 2.0 port with 4K resolution at 60Hz for smooth visuals
- PCIe 3.0 x16 slot for modern GPUs and gaming upgrades
- M.2 slot + 4x SATA ports with RAID support for flexible storage options
- High-quality 7.1-channel audio for immersive sound experience
- Realtek GbE LAN ensuring stable and fast internet connection
- Smart utilities like Q-Flash, EasyTune, and APP Center for easier control
- Durable Micro ATX form factor for compact builds
- 3-year warranty ensuring long-term reliability
A520M K V2 AM4 Micro ATX Motherboard Price in Bangladesh:
The GIGABYTE A520M K V2 AM4 Micro ATX Motherboard price in Bangladesh is affordable, making it a great option for budget PC builders. It delivers reliable gaming and multitasking support at a competitive cost. Offering features like DDR4 5100(O.C.) support, HDMI 2.0, and M.2 storage, this motherboard is a high-value choice for modern systems in BD.
Why Choose this product from Onix Computer:
Onix Computer ensures 100% genuine GIGABYTE A520M K V2 AM4 Motherboard at the best price in BD. Customers benefit from official warranty, expert guidance, and reliable after-sales support. With trusted service, fast delivery, and competitive pricing, Onix Computer is the best place to buy your PC components with confidence.
Frequently Asked Questions (FAQ):
Q1: What processors are supported by the GIGABYTE A520M K V2?
It supports AMD Ryzen 5000, 4000, and 3000 Series processors, including G-Series APUs.
Q2: How much RAM can this motherboard handle?
It supports up to 64GB DDR4 RAM with overclocking speeds up to 5100(O.C.).
Q3: Does it support M.2 SSDs?
Yes, it has an M.2 slot supporting both SATA and PCIe 3.0 x4/x2 SSDs.
Q4: Is this motherboard good for gaming?
Yes, with Ryzen CPU support, PCIe 3.0 x16 slot, and DDR4 overclocking, it’s excellent for budget and mid-range gaming builds.
