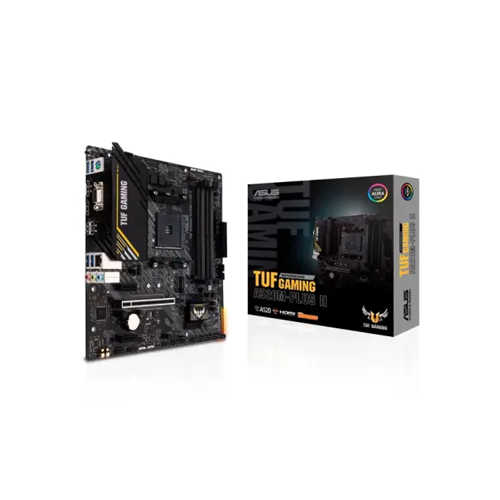

Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard

Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
-9 %
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
  • Stock: In Stock
  • Model: TUF GAMING A520M-PLUS II
Asus Asus
Based on 0 reviews. - Write a review
12,000৳
13,240৳
EMI starts at 4,208৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
    • Supported CPU: Ryzen 5000/ 4000 G/ 3000 Series
    • Supported RAM: 4 x DIMM, Max. 128GB, DDR4
    • Graphics Output: 1 x DisplayPort 1.2, 1 x HDMI 2.1, 1 x D-Sub
    • Features: Onboard RGB headers
View more info...
Specification
General
Type DDR4
Basic Information
Supported CPU AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset A520
Form Factor microATX
24.4cm x 24.4cm
Expansion Slots
PCI AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots
Memory Specifications
Memory Size Max. 128GB
Slots 4 x DIMM
Supported Memory Type 866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory
Dual Channel Memory Architecture
Connector & Ports
HDMI 1 x HDMI port
USB (s) 4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)r> Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet
TUF LANGuard
Supported Storage AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD A520 Chipset:
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10
Audio 3 x Audio jack(s)
Internal I/O Ports Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
2 x AURA Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
D-Sub (s) 1 x DVI-D
Graphics
Graphics 1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60Hz)
1 x D-Sub
Warranty Information
Manufacturing Warranty 3 Years
Description

Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard

Asus TUF GAMING A520M-PLUS II Motherboard distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, the Asus TUF GAMING A520M-PLUS II Motherboard is the perfect foundation for your next high-core-count battle rig. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want even for first-time builders. The TUF Gaming Alliance eco-system makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. Asus TUF GAMING A520M-PLUS II Motherboard provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface and reduces network lag. The Asus TUF GAMING A520M-PLUS II Motherboard comes with 3 years of warranty.
