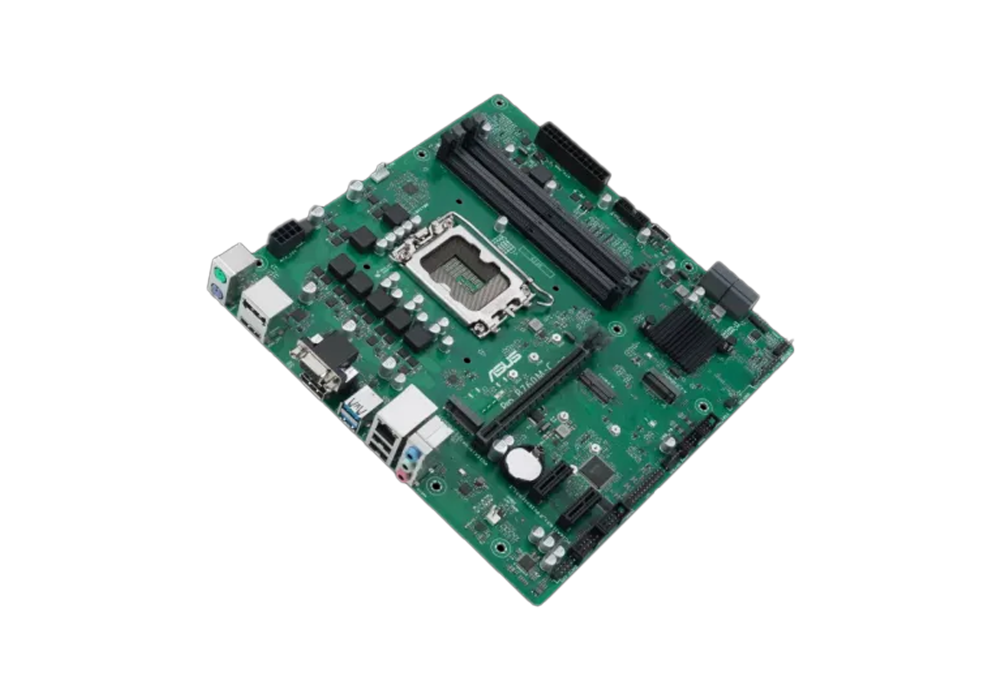

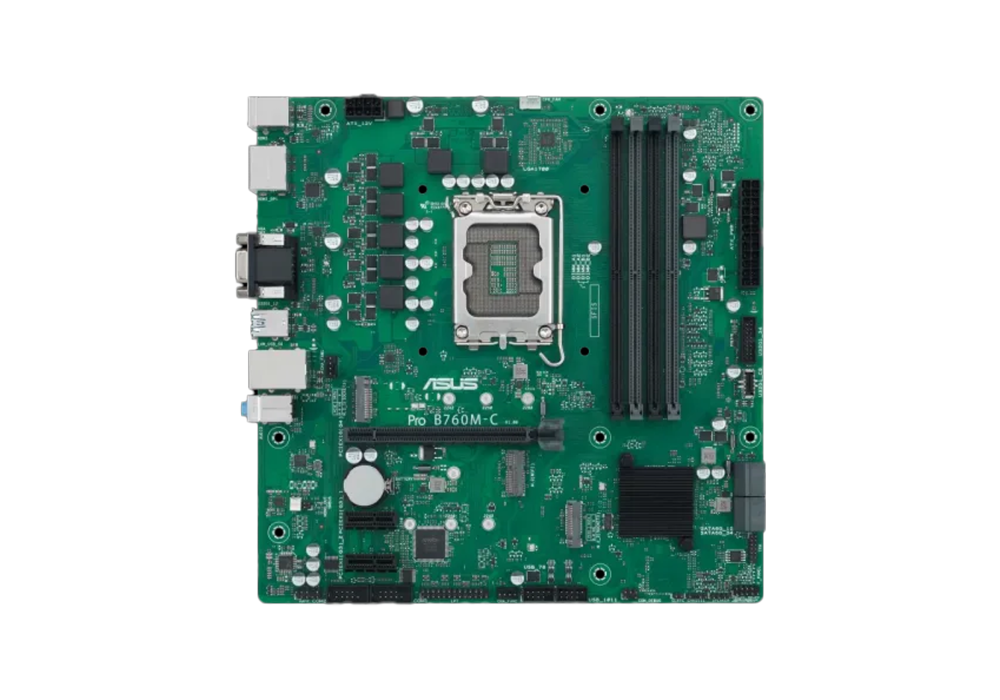

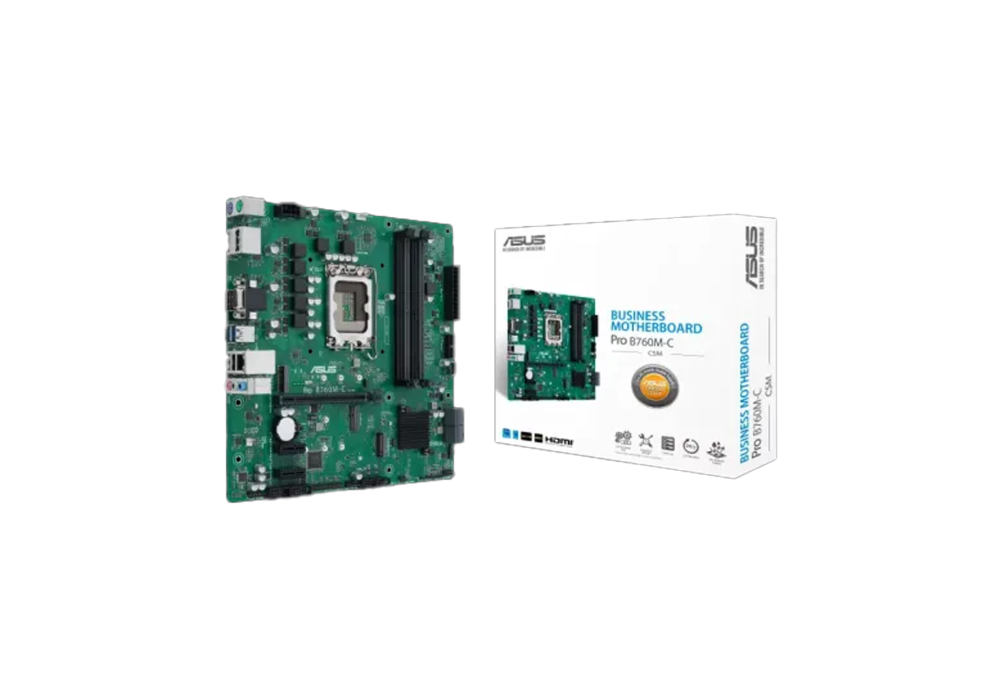

ASUS PRO B760M-C-CSM Micro-ATX Motherboard

ASUS PRO B760M-C-CSM Micro-ATX Motherboard
ASUS PRO B760M-C-CSM Micro-ATX Motherboard
ASUS PRO B760M-C-CSM Micro-ATX Motherboard
-10 %
ASUS PRO B760M-C-CSM Micro-ATX Motherboard
ASUS PRO B760M-C-CSM Micro-ATX Motherboard
ASUS PRO B760M-C-CSM Micro-ATX Motherboard
ASUS PRO B760M-C-CSM Micro-ATX Motherboard
  • Stock: In Stock
  • Model: PRO B760M-C-CSM
16,800৳
18,660৳
Key Features
  • Graphics Output: 2 x DisplayPort, 1 x VGA, 1 x HDMI
  • Supported Memory: 4 x DIMM, Max. 192GB, DDR5 6200(OC)
  • Supported CPU: 14th 13th Gen & 12th Gen Processors (LGA1700)
  • Features: 1 x Intel 1Gb Ethernet
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
Basic Information
Supported CPU Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B760 Chipset
BIOS 128Mb Flash ROM
Form Factor mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Expansion Slots
PCI Intel 13th & 12th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
Intel B760 Chipset
2 x PCIe 3.0 x1 slots
Memory
Type DDR5
Supported Memory DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Optimem II
Memory Specifications
Slots 4 x DIMM
Max. Memory Max. 192GB
Other Features
Special Features ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design & Business Focused Features
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit*
- Anti-Moisture Coating
- 24/7 Reliability
- Overcurrent Protection
Connector & Ports
HDMI 1 x HDMI
Display Port (s) 2 x DisplayPort
USB (s) Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Intel 1Gb Ethernet
ASUS LANGuard
Wireless Communication module M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x Mono-out header (with Amp IC)
1 x M.2 slot (Key E)
1 x SMBUS header
1 x Speaker header
1 x 10-1 pin System Panel header
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
VGA (s) 1 x VGA port
Graphics
Graphics 2 x DisplayPort**
1 x VGA port
1 x HDMI port***
** Support max. 4K 60Hz as specified in DisplayPort 1.4.
*** Supports 4K 60Hz as specified in HDMI 2.1.
Others Information
Bundled Software ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express (ACCE)
Warranty Information
Warranty 3 years
Description

ASUS PRO B760M-C-CSM Micro-ATX Motherboard

The ASUS PRO B760M-C-CSM Micro-ATX Motherboard is designed for business, productivity, and professional-grade reliability. Powered by the Intel B760 chipset, it supports 12th, 13th, and 14th Gen Intel Core processors for enhanced computing performance. With dual-channel DDR5 support, multiple PCIe expansion slots, M.2 storage compatibility, and comprehensive connectivity, it ensures a stable and efficient workflow. The motherboard features advanced cooling solutions, ASUS 5X Protection III for long-term durability, and enterprise-level manageability suitable for office environments, system builders, and commercial deployments. With its compact Micro-ATX form factor and strong dependability, the ASUS PRO B760M-C-CSM is a perfect choice for professional workloads, business PCs, and long-term operational reliability.

Features

  • Supports 12th, 13th, and 14th Gen Intel Core processors with DDR5 memory
  • Multiple PCIe and M.2 slots for high-speed expansion and storage
  • ASUS 5X Protection III ensures long-term stability and hardware safety
  • Comprehensive connectivity including USB, HDMI, DisplayPort, and LAN

Why Choose ASUS PRO B760M-C-CSM Micro-ATX Motherboard?

Choosing the ASUS PRO B760M-C-CSM means investing in durability, stability, and business-grade performance. Engineered for professional environments, it delivers excellent reliability with ASUS 5X Protection III safeguards, ensuring consistent operation under heavy workloads. Its support for DDR5 memory and high-speed M.2 storage boosts productivity, while the Micro-ATX form factor allows flexible deployment in compact or standard office systems. With enterprise-level manageability, strong connectivity options, and efficient cooling, this motherboard is built for long-term use in offices, educational institutions, and business applications.

FAQ

Q1: Does it support DDR4 memory?

No, this motherboard supports DDR5 memory only.

Q2: Is it suitable for gaming?

Yes, it can run games with a supported processor and GPU, though it is primarily designed for professional use.

Q3: Does it have Wi-Fi built-in?

No, but you can add a Wi-Fi card using the PCIe slot.
