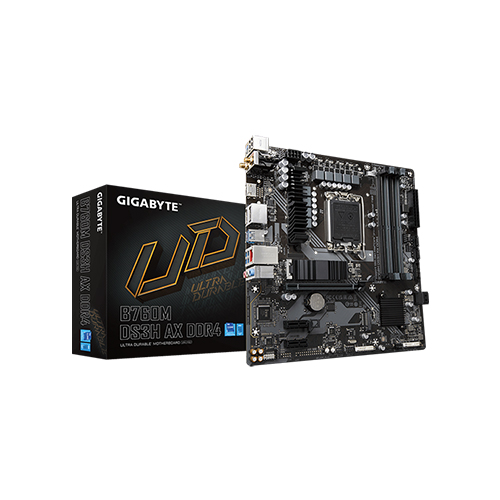

Model: B760M DS3H AX DDR4
View More Info...
Chat Through
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Others | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| Supported CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU |
| Chipset | Intel® B760 Express Chipset |
| Expansion Slot | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Memory Type | DDR4 |
| Slots | 4 x DDR DIMM |
| Supported Memory Type | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Max. Memory | up to 128 GB (32 GB single DIMM capacity) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
| USB (s) | Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Wireless Communication module | AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands LUETOOTH 5.2 Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX211 (For PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.3) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Graphics | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
The Gigabyte B760M DS3H AX is a Micro ATX form factor motherboard designed for use with Intel processors and LGA 1200 socket. It supports the 10th and 11th Gen Intel Core processors with up to 65W TDP. The motherboard has a matte black PCB with white accents and provides reliable performance for both gaming and productivity tasks.
The B760M DS3H AX has two DDR4 DIMM slots, supporting up to 64GB of memory with speeds up to 4,800 MHz. It also features a single M.2 slot for NVMe solid-state drives, providing high-speed storage options. The motherboard has a Realtek ALC887 audio codec, providing high-quality audio output, and it also features a Gigabit Ethernet port for fast and reliable network connectivity.
The B760M DS3H AX has multiple USB 3.2 ports, including Type-A and Type-C connectors, as well as several 4-pin RGB headers for RGB lighting customization. The motherboard supports RGB Fusion 2.0, which allows users to customize the RGB lighting to match their build’s aesthetics. Additionally, the B760M DS3H AX supports Smart Fan 5, which provides real-time fan speed control and temperature monitoring.
The Gigabyte B760M DS3H AX also supports Q-Flash Plus, which allows users to update the motherboard’s BIOS without the need for a CPU or memory. The motherboard has a durable and high-quality build, and it comes with a 3-year warranty for peace of mind.
In conclusion, the Gigabyte B760M DS3H AX is a budget-friendly Micro ATX motherboard that provides reliable performance for both gaming and productivity tasks. With its support for high-speed memory, fast network connectivity, and customizable RGB lighting, this motherboard provides a great foundation for a cost-effective yet powerful PC build. more information to learn visit official website.
