- Stock: In Stock
- Model: H61M-K
- Supported CPU: Core i7, Core i5, Core i3, Pentium, and Celeron processors
- Form Factor: 8.9 in x 6.9 in (22.6 cm x 17.5 cm)
- Memory Max.: 16GB
- Socket: LGA1155
| Basic Information | |
| Storage | Intel H61 Express Chipset: - 4 x Serial ATA 3 Gb/s connectors |
| Supported CPU | LGA1155 socket for Intel 3rd/2nd Generation CoreTM i7, CoreTM i5, CoreTM i3, Pentium, and Celeron processors Supports Intel 22nm/32nm CPU Supports Intel Turbo Boost Technology 2.0 Up to 77W Thermal Design Power support. The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel H61 Express Chipset |
| BIOS | 64 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM 2.0, ACPI v2.0a, SM BIOS v2.7, SLP 3.0, EUP-ready, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen function, F3 Shortcut function, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Form Factor | 8.9 in x 6.9 in (22.6 cm x 17.5 cm) |
| External Features | |
| Expansion Slots | 1 x PCI Express 3.0*/2.0 x16 slot 2x PCI Express 2.0 x1 slots • PCIe 3.0 speed is supported by Intel 3rd generation Core processors. |
| Memory | |
| Memory Type | 2 x DIMMs, max. 16GB, DDR3 1600/1333/1066 MHz, non-ECC, un- buffered memory Dual-channel memory architecture Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List). When you install a total memory of 4GB capacity or more, Windows 32-bit operating system may only recognize less than 3GB. We recommend a maximum of 3GB system memory if you are using a Windows 32-bit operating system. |
| Support | |
| Software | ASUS Anti-Surge Protection ASUS UEFI BIOS (EZ Mode) ASUS MyLogo2 ASUS EZ-Flash 2 ASUS Fan Xpert ASUS AI Charger ASUS Crash Free BIOS3 ASUS AI Suite II ASUS Network iControl* ASUS Webstorage The Network iControl feature does not support Windows XP/Vista operating systems. |
| Connector & Ports | |
| USB (s) | Intel H61 Express Chipset: - 8 x USB 2.0/1.1 ports (4 ports at the mid-board, 4 ports at the back panel) |
| LAN Port (s) | Realtek 8111F PCIe Gigabit LAN controller |
| Audio | Realtek ALC887 8-channel High Definition Audio CODEC Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
| Internal I/O Ports | 2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports 4 x SATA 3 Gb/s connectors 1 x 4-pin CPU fan connector 1 x 4-pin chassis fan connector 1 x Front panel audio connector 1 x System panel connector 1 x Speaker connector 1 x 24-pin ATX power connector 1 x 4-pin ATX 12V power connector 1 x Clear CMOS jumper |
| Back Panel I/O Ports | 1 x PS/2 keyboard port (purple) 1 x PS/2 mouse port (green) 1 x DVI-D 1 x D-Sub 4 x USB 2.0/1.1 ports 1 x LAN (RJ-45) port 3 x Audio jacks |
| Graphics | |
| Graphics | DVI-D with Max. Resolution: 1920x1200@60Hz D-SUB with Max. Resolution: 2048x1536@75Hz Max. UMA Memory: 1024MB |
| Warranty Information | |
| Warranty | 2 Year Warranty |

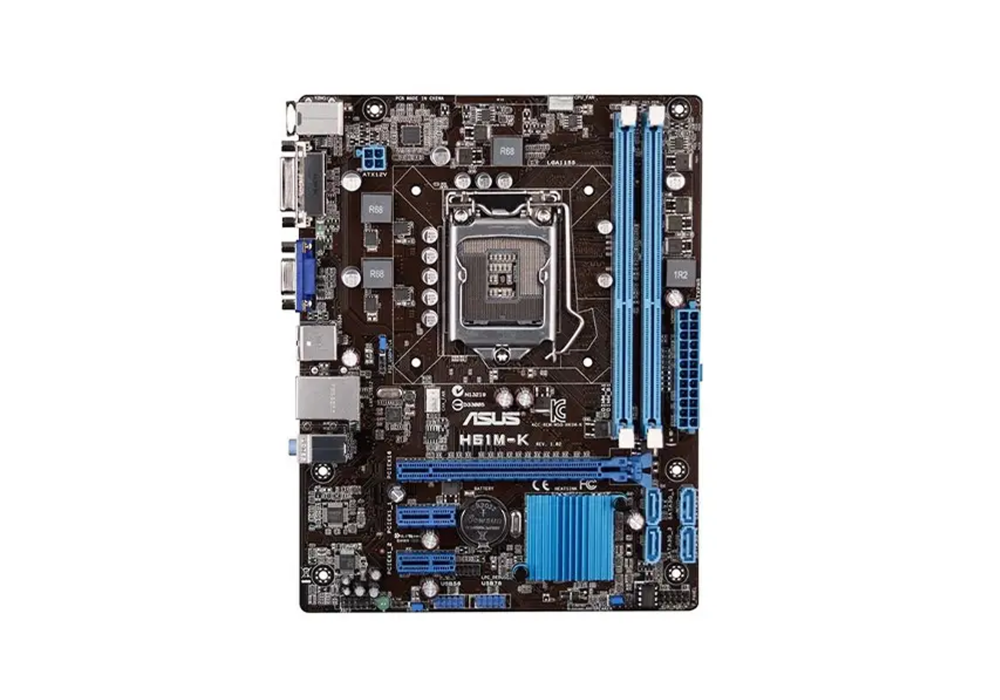

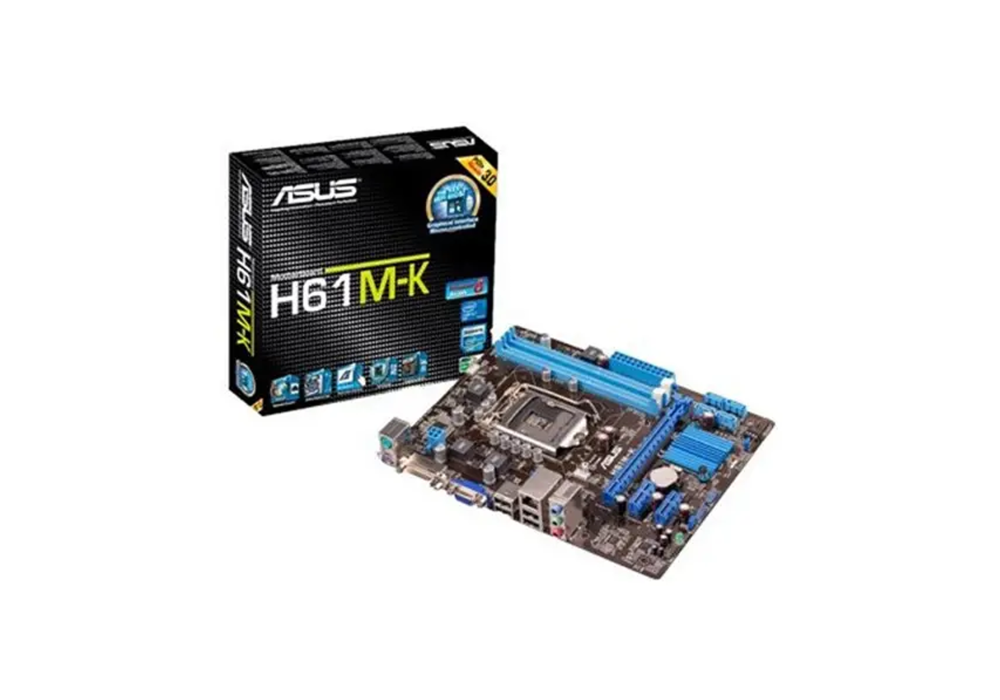

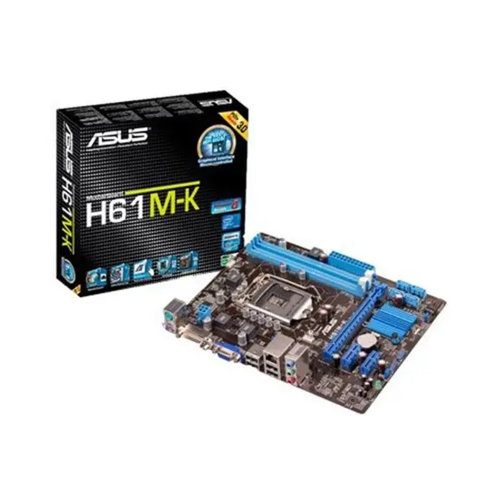

ASUS H61M-K 2nd/3rd Gen Motherboard
Looking for a reliable and budget-friendly motherboard for your PC build? The ASUS H61M-K 2nd/3rd Gen Motherboard is an excellent choice for gamers, students, and professionals alike who want stable performance without breaking the bank. Designed to support both Intel 2nd and 3rd generation processors, this motherboard ensures smooth multitasking, faster boot times, and stable operation for everyday computing needs. Whether you’re upgrading your existing system or building a new desktop, the ASUS H61M-K offers robust features including DDR3 memory support, SATA 3Gb/s ports, and high-quality audio outputs that enhance your overall computing experience.
In Bangladesh, finding the ASUS H61M-K 2nd/3rd Gen Motherboard price in BD can be tricky due to fluctuating market rates. But investing in this motherboard guarantees durability, excellent compatibility with a wide range of Intel processors, and solid performance for both work and light gaming. Its compact Micro-ATX form factor fits most standard PC cases, making it ideal for budget-conscious users. Moreover, ASUS’s reputation for quality and reliability ensures that you get a motherboard that lasts. Read on to discover more about its features, benefits, and how to choose the best deal in Bangladesh for your next PC upgrade.
Why Choose ASUS H61M-K motherboard
- Reliable performance for everyday tasks and light gamingThe motherboard handles multitasking smoothly, allowing you to browse, stream, and run productivity software without lags. Light gaming sessions are also supported with stable frame rates for older or less demanding games.
- Affordable and widely available in BangladeshYou don’t need to spend a fortune for a quality motherboard. The ASUS H61M-K is priced competitively and can be easily found in local stores and online marketplaces across Bangladesh.
- Durable and backed by ASUS quality assuranceBuilt with high-quality components, this motherboard ensures long-term reliability. ASUS’s reputation for durability gives you peace of mind with consistent performance over the years.
- Easy to install in most PC casesIts compact Micro-ATX form factor fits standard PC cases easily. Even if you’re a beginner, installing this motherboard is straightforward thanks to its user-friendly layout and clear labeling.
If you are exploring other options, the MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard is another solid choice for your build. It belongs to the Budget-Friendly Motherboards category and is ideal for cost-conscious users who want performance and reliability. Check out our Component section to compare features, pricing, and compatibility, helping you make an informed decision when upgrading or building a new PC system.
Latest Price of ASUS H61M-K 2nd/3rd Gen Motherboard on Onix BD
Looking for the best deal in Bangladesh? Visit Onix BD to get the ASUS H61M-K 2nd/3rd Gen Motherboard at competitive prices. Find the latest ASUS H61M-K 2nd/3rd Gen Motherboard price in BD, enjoy fast delivery, genuine products, and easy returns—all in one place. Don’t miss out on upgrading your PC with a reliable motherboard today!
Quick Compare
Comparison of H61M-K vs ASRock B450M-HDV R4.0 vs A520M K V2 which are most simmiler.
| Product | ASUS H61M-K 2nd/3rd Gen Motherboard | ASRock B450M-HDV R4.0 AMD Motherboard | GIGABYTE A520M K V2 AM4 Micro ATX Motherboard |
| Image | |
|
|
| Price | |
|
|
| Model | H61M-K | ASRock B450M-HDV R4.0 | A520M K V2 |
| Brand | Asus | ASRock | Gigabyte |
| Availability | In Stock | In Stock | In Stock |
| Rating | Based on 2 reviews. |
Based on 0 reviews. |
Based on 1 reviews. |
| Summary | ASUS H61M-K 2nd/3rd Gen Motherboard Looking for a reliable and budget-friendly motherboard for your PC build? The ASUS H61M-K 2nd/3rd Gen Motherboard is an excellent choice for gamers, students, and professionals alike who want stable performance without breaking the bank. Designed to support both Intel 2nd and 3rd generation processors, this motherboard ensures smooth multitasking, faster boot times, and stable operation for everyday computing needs. Whether you’re upgrading your existing system or building a new desktop, the ASUS H61M-K offers robust features including DDR3 memory support, SATA 3Gb/s ports, and high-quality audio outputs that enhance your overall computing experience. In Bangladesh, finding the ASUS H61M-K 2nd/3rd Gen Motherboard price in BD can be tricky due to fluctuating market rates. But investing in this motherboard guarantees durability, excellent compatibility with a wide range of Intel processors, and solid performance for both work and light gaming. Its compact Micro-ATX form factor fits most standard PC cases, making it ideal for budget-conscious users. Moreover, ASUS’s reputation for quality and reliability ensures that you get a motherboard that lasts. Read on to discover more about its features, benefits, and how to choose the best deal in Bangladesh for your next PC upgrade. Why Choose ASUS H61M-K motherboard Reliable performance for everyday tasks and light gamingThe motherboard handles multitasking smoothly, allowing you to browse, stream, and run productivity software without lags. Light gaming sessions are also supported with stable frame rates for older or less demanding games. Affordable and widely available in BangladeshYou don’t need to spend a fortune for a quality motherboard. The ASUS H61M-K is priced competitively and can be easily found in local stores and online marketplaces across Bangladesh. Durable and backed by ASUS quality assuranceBuilt with high-quality components, this motherboard ensures long-term reliability. ASUS’s reputation for durability gives you peace of mind with consistent performance over the years. Easy to install in most PC casesIts compact Micro-ATX form factor fits standard PC cases easily. Even if you’re a beginner, installing this motherboard is straightforward thanks to its user-friendly layout and clear labeling. If you are exploring other options, the MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard is another solid choice for your build. It belongs to the Budget-Friendly Motherboards category and is ideal for cost-conscious users who want performance and reliability. Check out our Component section to compare features, pricing, and compatibility, helping you make an informed decision when upgrading or building a new PC system. Latest Price of ASUS H61M-K 2nd/3rd Gen Motherboard on Onix BD Looking for the best deal in Bangladesh? Visit Onix BD to get the ASUS H61M-K 2nd/3rd Gen Motherboard at competitive prices. Find the latest ASUS H61M-K 2nd/3rd Gen Motherboard price in BD, enjoy fast delivery, genuine products, and easy returns—all in one place. Don’t miss out on upgrading your PC with a reliable motherboard today!.. | ASRock B450M-HDV R4.0 AMD MotherboardASRock A320M-HDV R4.0 AMD Motherboard built in AMD AM4 Socket with AMD Promontory B450 chipset.This Motherboard supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.The main component of the MotherboardThis Motherboard Supports CPU up to 105W with Vega Series Graphics in Ryzen Series APU.It has Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 1 x Screw for M.2 Socket.For graphical support ,It has DirectX 12, Pixel Shader 5.0, Three graphics output options: D-Sub, DVI-D and HDMI. That Motherboard can supports triple Monitor, HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz, DVI-D with max. resolution up to 1920x1200 @ 60Hz, D-Sub with max. resolution up to 2048x1536 @ 60Hz, Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required), HDCP 1.4 with DVI-D and HDMI Ports and 4K Ultra HD (UHD) playback with HDMI Port.In this amazing ASRock Motherboard the ASRock APP Charger, ASRock XFast LAN is used. Moreover, In this exclusive Motherboard used in different types of memory storage ; these are - Dual Channel DDR4 Memory Technology, 2 x DDR4 DIMM Slots, AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory, AMD 7th Gen A-Series APUs support DDR4 2400/2133 non-ECC, un-buffered memory, Max. capacity of system memory is 32GB, 15μ Gold Contact in DIMM Slot. In this Motherboard, 128Mb AMI UEFI Legal BIOS with GUI support, Plug and Play", ACPI 5.1 compliance wake up events, jumperfree, SMBIOS 2.3 support, DRAM Voltage multi-adjustment are support. They have include PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H and Supports Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az and PXE in this exclusive grapics card. Special Features of this Motherboard That must be consideredHave a look on the special features of this board that might firm your buying decision.This Motherboard supports PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.PCB appearance represents rock-solid quality and gives the motherboard a more mysterious touch. In this Motherboard High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the Motherboard against electrical shorts caused by humidity and also the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.You can easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.For gaming or entertainment these are the features one should consider of purchasing it... | GIGABYTE A520M K V2 AM4 Micro ATX Motherboard Looking for a reliable and high-performance motherboard for your AMD build? The GIGABYTE A520M K V2 AM4 Micro ATX Motherboard is one of the best options available in Bangladesh for gamers, students, and productivity enthusiasts alike. Designed to support AMD Ryzen 3000 and 5000 series processors, this motherboard offers a perfect balance of performance, durability, and affordability. With its compact Micro ATX design, it fits perfectly in smaller cases without compromising on essential features. Featuring high-quality components, enhanced power design, and support for DDR4 memory up to 4600 MHz (OC), this motherboard ensures stable and efficient performance for both gaming and professional workloads. Whether you’re into competitive gaming, content creation, or just looking to build a budget-friendly PC, the GIGABYTE A520M K V2 delivers reliability and functionality. Moreover, its user-friendly BIOS interface makes system setup and overclocking simpler, even for beginners. If you are searching for the gigabyte a520m k v2 motherboard price in bangladesh, this guide will help you understand the key features, benefits, and why it’s a preferred choice for PC builders in Bangladesh. With a combination of quality, affordability, and advanced features, this motherboard is a smart investment for anyone looking to build or upgrade their AMD system. Why Choose GIGABYTE A520M K V2 AM4 Micro ATX Motherboard Affordable Price: Offers premium features without burning your budget. This motherboard provides high-end performance at a fraction of the cost compared to other full-sized motherboards, making it ideal for budget-conscious PC builders in Bangladesh. Reliable Performance: Stable power delivery ensures smooth operation during long gaming or work sessions. Even under heavy loads, the GIGABYTE A520M K V2 maintains consistent performance, reducing crashes or system instability. Compact Design: Fits small cases, ideal for budget and mini builds. Its Micro ATX form factor allows you to build a powerful system without requiring a large, expensive case, perfect for home or office setups. Future-proof Features: Supports the latest AMD processors and fast memory, giving you room to upgrade your system in the future. It also includes M.2 NVMe SSD support and modern connectivity options to keep your build relevant for years. Easy Setup: Beginner-friendly BIOS and clear documentation make installation and configuration simple. Even first-time builders can easily optimize memory, storage, and system settings without frustration. Looking for a reliable alternative to enhance your AMD build? The MSI B450-A PRO MAX AMD AM4 Motherboard offers excellent stability and performance for gaming and productivity tasks. It’s also one of the Top-Rated Motherboard in the market, providing robust features and future-proof options. Perfect for any Desktop setup, this motherboard ensures smooth operation, easy installation, and an affordable upgrade path for your PC. Upgrade with GIGABYTE A520M K V2 Micro ATX Motherboard at Onix BD! Looking to enhance your PC performance? Grab the GIGABYTE A520M K V2 AM4 Micro ATX Motherboard from Onix BD and experience smooth gaming, faster multitasking, and reliable performance. Don’t wait—secure your high-quality motherboard now and take your desktop setup to the next level with confidence. Check the updated gigabyte a520m k v2 motherboard price in bangladesh today.. |
Questions
Have question about this product? Get specific details about this product from expert.No questions have been asked about this product.
