| Basic Information | |
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
| Chipset | AMD B520 |
| Form Factor | Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
| Expansion Slots | |
| PCI | 1x PCIe 3.0 x1 slot 1x PCIe x16 slot |
| M.2 Socket | 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| Memory Specifications | |
| Memory Type | Dual-channel memory architecture |
| Slots | 2x DDR4 memory slots |
| Supported Memory Type | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Max. Memory | 64GB |
| Connector & Ports | |
| HDMI | 1x HDMI 2.1 port, maximum resolution of 4096x2160 @60Hz |
| USB (s) | AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| LAN Port (s) | 1x Realtek RTL8111H Gigabit LAN controller |
| Supported Storage | AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper |
| DVI-D (s) | 1x DVI-D port, maximum resolution of 1920x1200@60Hz |
| Graphics | |
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz |
| Max Shared Memory | 16GB |
| Others Information | |
| Special Features | RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Warranty Information | |
| Manufacturing Warranty | 03 Years Warranty |

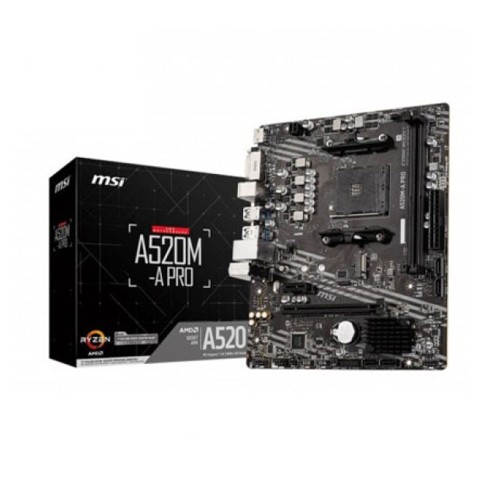

If you are looking for a reliable and budget-friendly motherboard for your AMD processor, the MSI A520M-A Pro AM4 Micro-ATX Motherboard is one of the best choices in Bangladesh. With its compact Micro-ATX form factor and excellent connectivity options, this motherboard perfectly balances performance and affordability. Designed for both gaming enthusiasts and productivity users, it supports modern AMD processors and provides advanced features like PCIe 3.0 support, high-quality audio capacitors, and fast DDR4 memory compatibility.
When planning your PC build, knowing the msi a520m-a pro micro-atx motherboard price in bangladesh is essential for budgeting. Onix BD offers competitive pricing, ensuring you get a high-performance motherboard without compromising on features or reliability. The MSI A520M-A Pro also includes multiple USB ports, SATA connectors, and M.2 slots, providing flexibility for storage expansion and peripheral connectivity. Its durable design and user-friendly BIOS interface make setup and optimization simple for beginners and advanced users alike.
If you are exploring options beyond the Gigabyte A520M K V2 DDR4 AM4 Socket AMD Motherboard is another reliable choice for budget-friendly builds. For enthusiasts looking to push their systems further, check out our Overclocking Motherboards category for high-performance options. Additionally, users interested in Intel setups can explore our wide range of Intel Motherboard models, offering stability and features for every build.
Looking for the MSI A520M-A Pro Micro-ATX Motherboard? Onix BD offers the latest models at competitive msi a520m-a pro micro-atx motherboard price in bangladesh. Grab yours today and enjoy high performance, durability, and reliable support—all in one place!
