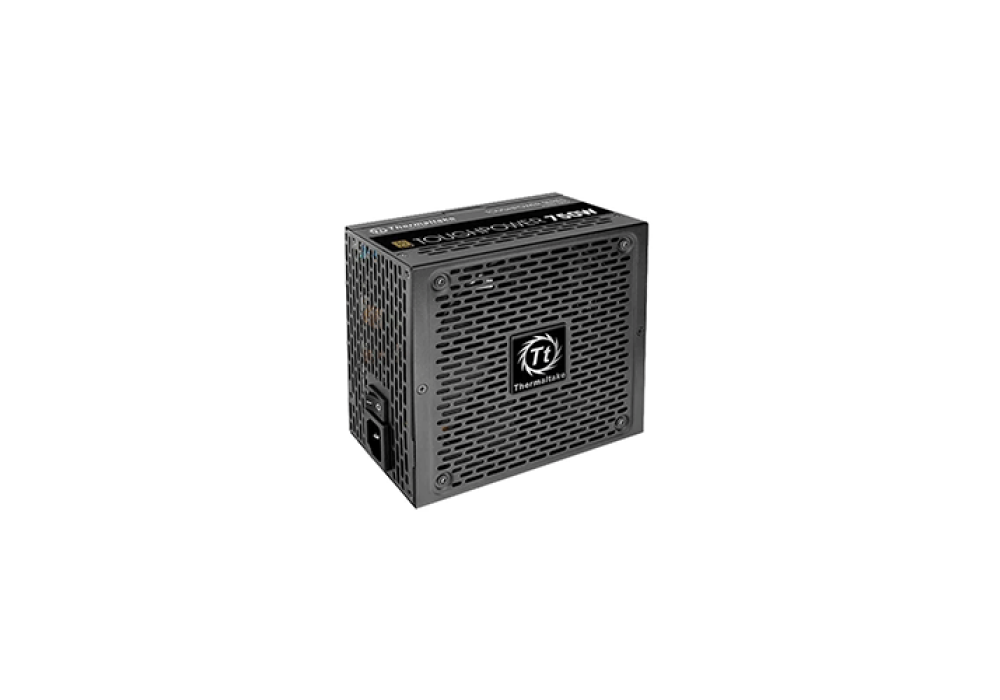

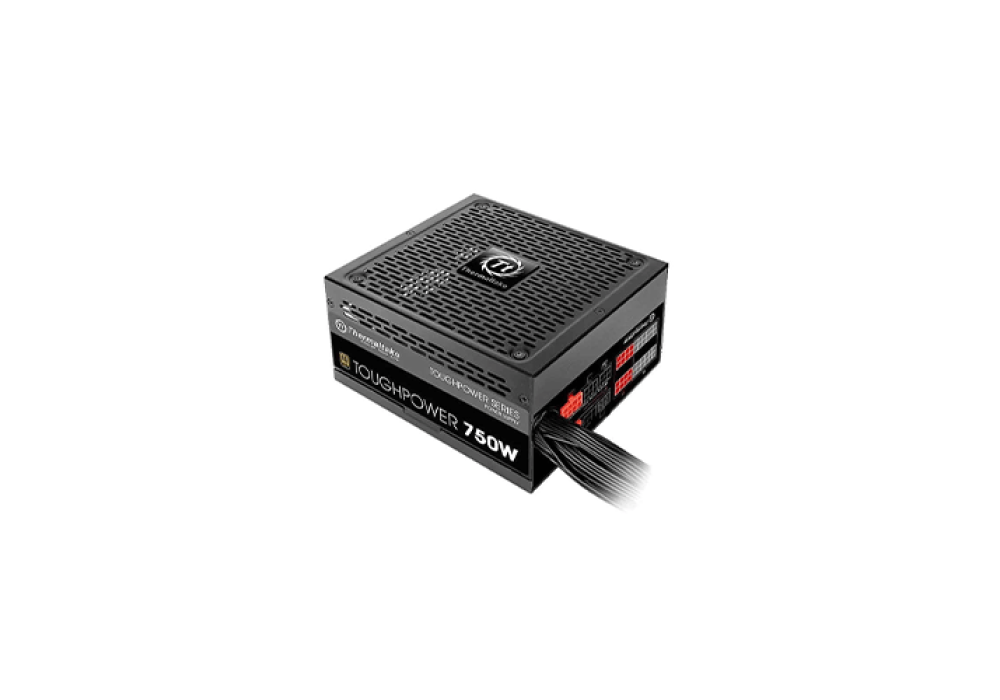

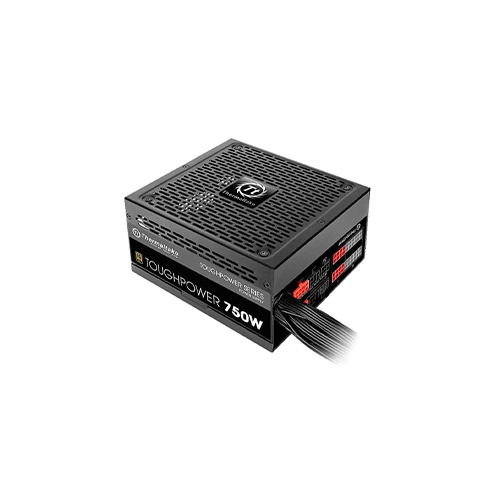

- Thermaltake Toughpower GF3 750W 80 Plus Gold Fully Modular Power Supply
- Stock: In Stock
- Model: Thermaltake Toughpower GF3 750W
- SKU: PS-TPD-0750FNFAGE-4
- Maximum Power - 750 WattEfficiency - 80% Efficiency
- Type - ATX
- PSU Category - Full Modular
- Efficiency - 80% Efficiency
| Key Features | |
| Input Current | 10.0A / 5.0A |
| MTBF | 100,000 Hours |
| Efficiency | 80% Efficiency |
| Input Voltage | 100V - 240V |
| Fan Size | 135mm |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Humidity | 5% to 95%, non-condensing |
| General | |
| Color | Black |
| Type | ATX |
| Weight | 1.63 Kg |
| Power Supply | |
| INPUT FREQUENCY RANGE | 50 - 60Hz |
| PEAK OUTPUT CAPACITY | 750W |
| Generel information | |
| Dimensions (H x W x D) | 150 x 86 x 160mm |
| Additional Info | |
| PSU | Full Modular |
| Other Features | |
| Specialty | PCIe Gen 5.0 Ready! Designed with a native PCIe 12+4pin modular connector, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 750W includes all the critical features such as < 30mV low ripple noise design, extremely strict voltage regulation < ±2%, hold up time> 17 milliseconds, and comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable powe |
| Connector | |
| PCI-E | 1 |
| SATA | 4 |
| Temperature | |
| Operating Temperature | 0 degree C to + 40 degree C |
| Storage Temperature | -20 degree C to + 70 degree C |
| Others Information | |
| Others | Zero RPM Fan Mode: Yes Fan Bearing: Fluid Dynamic Bearing Noise Level: Low Ripple Noise Efficiency Rating: 80 Plus Gold PFC (Power Factor Correction): Active Power Good Signal: 100-150 msec Hold Up Time: > 17msec Protection: OCP, OVP, UVP, OPP, SCP, OTP Over Voltage Protection (OVP): Yes Over Power Protection (OPP): Yes Over Current Protection (OCP): Yes Over Temperature Protection (OTP): Yes Short Circuit Protection (SCP): Yes Under Voltage Protection (UVP): Yes ATX Main Connectors: 1 4-Pin Peripheral Connectors: 4 Floppy Connectors: 1 Min. Power (Approx.): 600W Maximum Power: 750 Watt Input AC: 100V - 240 VAC Cable Type: Flat Cable Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion. Country Of Origin: Taiwan Made in/ Assemble: China |
| Physical Specification | |
| Form Factor | ATX |
| Warranty Information | |
| Warranty | 10 year |
Thermaltake Toughpower GF3 750W 80 Plus Gold Fully Modular Power Supply
The Thermaltake Toughpower GF3 750W 80 Plus Gold Fully Modular Power Supply is designed to meet the needs of high-performance gaming systems and workstations, delivering reliable power with 80 Plus Gold efficiency. This ensures up to 80% energy efficiency, minimizing power waste and reducing heat generation. Its fully modular design allows users to connect only the necessary cables, enhancing airflow and reducing clutter inside the PC case. This PSU is PCIe Gen 5.0 ready, equipped with a native 12+4pin modular connector, making it compatible with next-gen graphics cards. It is also fully compliant with Intel ATX 3.0 standards, supporting up to 200% power excursion and capable of handling intense GPU power spikes, making it ideal for gaming and overclocking setups. The 135mm Fluid Dynamic Bearing (FDB) fan provides efficient and silent cooling, with a Zero RPM Fan Mode that keeps the fan off during low loads for silent operation. The power supply also boasts a low ripple noise of under 30mV, ensuring stable and clean power delivery to all connected components. The voltage regulation is kept within an extremely strict range of ±2%, providing consistent and stable power output even under heavy loads. Safety is a priority with built-in protections like Over Voltage (OVP), Over Current (OCP), Over Power (OPP), Short Circuit (SCP), Under Voltage (UVP), and Over Temperature Protection (OTP), ensuring your system remains safe from unexpected power fluctuations. The Thermaltake Toughpower GF3 750W is built with 100% Japanese capacitors, ensuring long-term reliability and performance. Backed by a 10-year warranty, this PSU is an excellent choice for users seeking durability, efficiency, and future-proof compatibility in their power supply.
Thermaltake Toughpower GF3 750W 80 Plus Gold Fully Modular Power Supply Features
- 80 Plus Gold Efficiency: Delivers 80% energy efficiency, reducing heat and minimizing power wastage during operation.
- Fully Modular Design: Offers flexibility with detachable cables, allowing for better cable management and improved airflow inside the case.
- PCIe Gen 5.0 Ready: Equipped with a native 12+4 pin modular connector, making it compatible with next-generation PCIe 5.0 graphics cards.
- Intel ATX 3.0 Compliance: Supports up to 200% power excursion and is designed for handling heavy GPU and system power loads.
- Low Ripple Noise: Maintains <30mV ripple noise, ensuring stable and clean power delivery for better system performance.
- Fluid Dynamic Bearing Fan: Features a 135mm FDB fan with a Zero RPM Mode, ensuring quiet operation by turning off the fan at low loads.
- Comprehensive Protection: Includes OVP (Over Voltage Protection), OCP (Over Current Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection) for maximum system safety.
- High-Quality Components: Built with 100% Japanese capacitors, ensuring reliability and long-lasting performance.
- Compact Form Factor: Measures 150 x 86 x 160 mm, fitting most standard PC builds.
- 10-Year Warranty: Offers extended peace of mind with a 10-year warranty.
