- Stock: In Stock
- Model: Thermaltake Toughpower GF3 1000W
- SKU: PS-TPD-1000FNFAGE-4 / PS-TPD-1000FNFAGK-4
- Efficiency - 80% Efficiency
- Maximum Power - 1000 Watt
- PSU Category - Full Modular
- Efficiency Rating - 80 Plus Gold
| Key Features | |
| Input Current | 13.0A / 6.5A |
| MTBF | 100,000 Hours |
| Efficiency | 80% Efficiency |
| Input Voltage | 100V - 240V |
| Fan Size | 135mm |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Humidity | 5% to 95%, non-condensing |
| General | |
| Color | Black |
| Type | ATX |
| Weight | 1.72 Kg |
| Power Supply | |
| INPUT FREQUENCY RANGE | 50 - 60Hz |
| PEAK OUTPUT CAPACITY | 1000W |
| Generel information | |
| Dimensions (H x W x D) | 150 x 86 x 160mm |
| Additional Info | |
| PSU | Full Modular |
| Temperature | |
| Operating Temperature | 0 degree C to + 40 degreeC |
| Storage Temperature | -20 degree C to + 70 degree C |
| Others Information | |
| Others | Fan Bearing: Fluid Bearing Efficiency Rating: 80 Plus Gold Power Good Signal: 100-150 msec Hold Up Time: > 17msec Protection: OCP, OVP, UVP, OPP, SCP, OTP Over Voltage Protection (OVP): Yes Over Power Protection (OPP): Yes Over Current Protection (OCP): Yes Over Temperature Protection (OTP): Yes Short Circuit Protection (SCP): Yes Under Voltage Protection (UVP): Yes PCIe Connectors: 1 Min. Power (Approx.): 800W Maximum Power: 1000 Watt oughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion. |
| Physical Specification | |
| Form Factor | ATX |
| Warranty Information | |
| Warranty | 10 year |

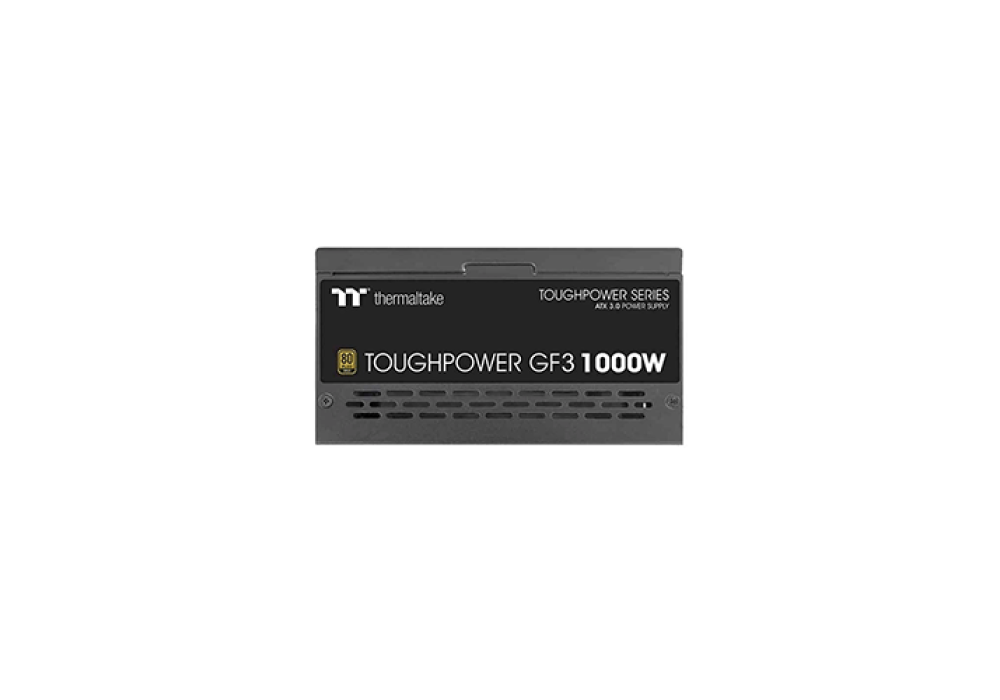

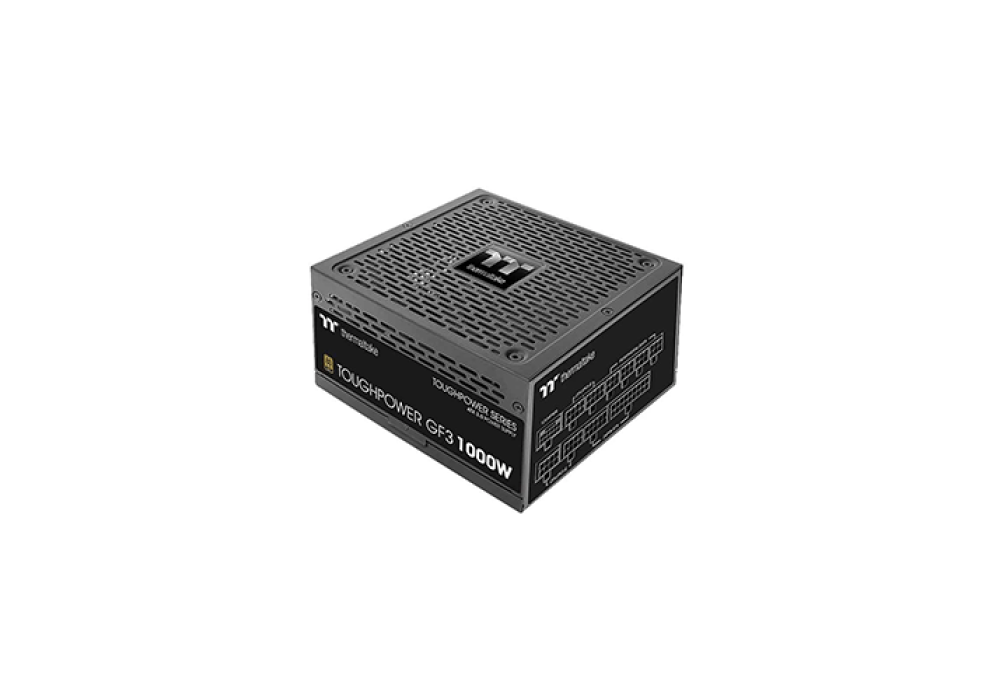

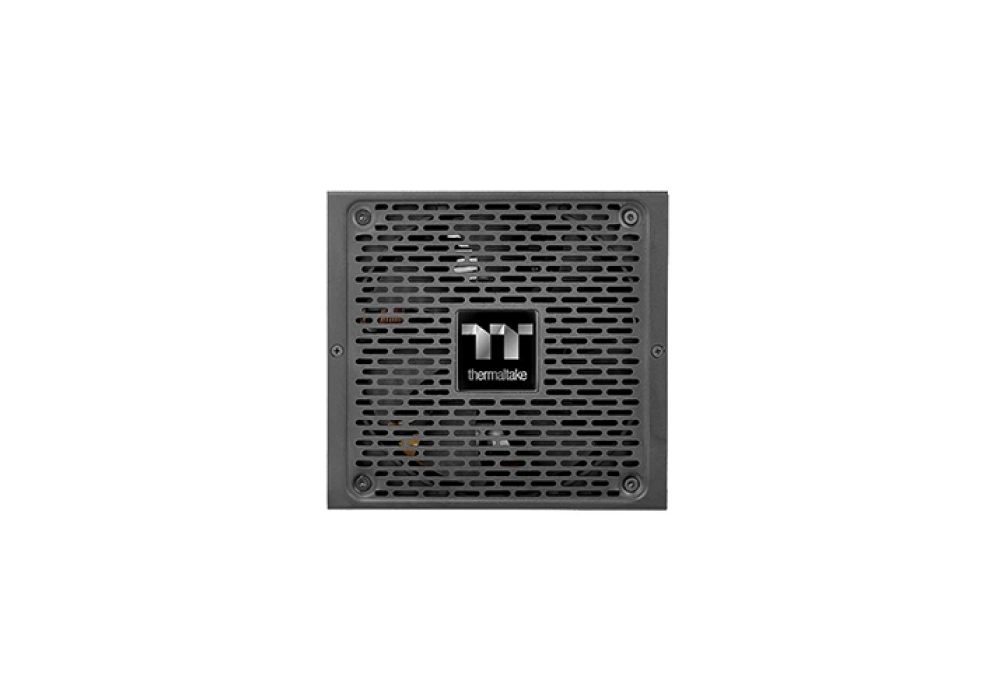

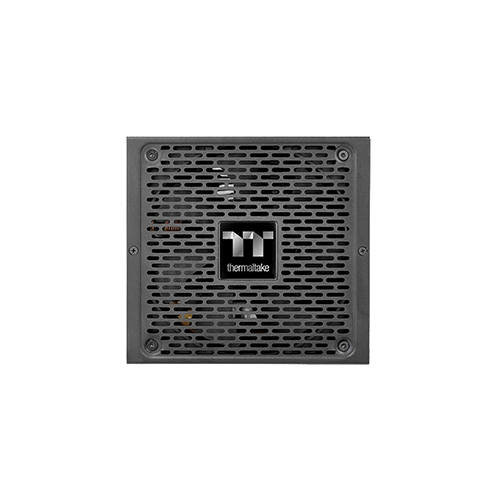

Thermaltake Toughpower GF3 1000W Fully Modular Power Supply
The Thermaltake Toughpower GF3 1000W Fully Modular Power Supply is designed to deliver reliable, high-efficiency power for demanding gaming rigs and workstations. With an 80 Plus Gold efficiency rating, it ensures that up to 80% of the energy drawn is effectively used, reducing energy waste and lowering electricity costs. The fully modular design allows users to connect only the cables they need, ensuring a clutter-free build and optimized airflow inside the case. This PSU is built to meet Intel ATX 3.0 specifications, supporting up to 200% power excursion and up to 3x GPU power excursion, making it ideal for handling the latest high-performance GPUs and processors. It is also equipped with a 135mm fluid dynamic bearing fan, which operates quietly and efficiently. The fan uses a zero-RPM mode, meaning it only spins when the load is high enough to require cooling, ensuring silent operation at lower loads. The Toughpower GF3 1000W also offers comprehensive safety features, including Over Voltage Protection (OVP), Over Power Protection (OPP), Over Current Protection (OCP), Over Temperature Protection (OTP), Short Circuit Protection (SCP), and Under Voltage Protection (UVP). These features provide peace of mind by safeguarding the system from unexpected power fluctuations and overheating. Built for durability, this power supply boasts an MTBF (Mean Time Between Failures) of 100,000 hours, ensuring long-term reliability. Its compact ATX form factor and sleek black design make it a versatile option for any build. Additionally, it comes with a 10-year warranty, reflecting Thermaltake’s confidence in the product’s quality and longevity. The Thermaltake Toughpower GF3 1000W is a powerful, efficient, and reliable power supply designed for modern, high-performance PC builds.
Thermaltake Toughpower GF3 1000W Fully Modular Power Supply Features
- 80 Plus Gold Efficiency: With an 80 Plus Gold rating, it offers 80% efficiency, ensuring optimal power delivery while minimizing energy waste.
- Fully Modular Design: The modular cabling system allows you to use only the cables you need, improving airflow and reducing clutter inside the case.
- Intel ATX 3.0 Compatible: Supports Intel's ATX 3.0 specifications, allowing up to 200% power excursion and sustaining 3x GPU power excursion and 2x total power excursion.
- 135mm Fluid Bearing Fan: Equipped with a large, quiet 135mm fluid bearing fan that ensures efficient cooling and silent operation.
- Comprehensive Protections: Includes multiple safety features like Over Voltage Protection (OVP), Over Power Protection (OPP), Over Current Protection (OCP), Over Temperature Protection (OTP), Short Circuit Protection (SCP), and Under Voltage Protection (UVP).
- High Power Output: Delivers a peak output of 1000W, making it suitable for high-performance gaming PCs and workstations.
- Long Lifespan: Boasts a Mean Time Between Failures (MTBF) of 100,000 hours, providing long-term reliability and durability.
- Compact ATX Form Factor: Its compact size (150 x 86 x 160mm) ensures compatibility with various cases.
- 10-Year Warranty: Comes with a 10-year warranty, reflecting its quality and long-term dependability.
- Supports High-Performance GPUs: Designed to handle modern, power-hungry GPUs with ease, thanks to its advanced power delivery features.
