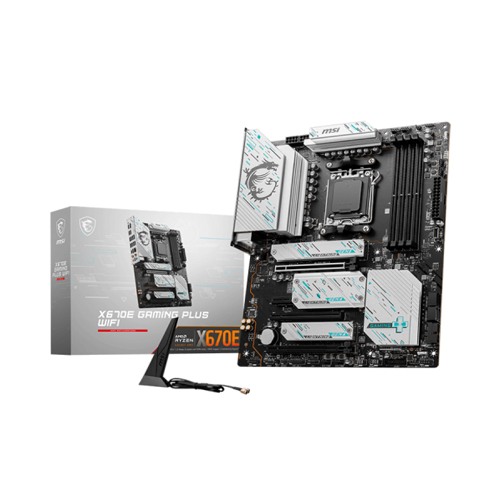

Model: X670E GAMING PLUS WIFI
View More Info...
Chat Through
| Type | DDR5 |
| Supported CPU | Supports AMD Ryzen 8000 & 7000 Series Desktop Processors
Socket AM5 |
| Chipset | AMD X670 |
| Form Factor | ATX, 243.84mmx304.8mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| PCI | 3x PCI-E x16 slot Supports x16/x1/x4 • Supports x16/x1/x4 (For Ryzen™ 7000 Series processors) • Supports x8/x1/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4/x1/x4 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Memory Size | 192GB |
| Slots | 4 DIMMs |
| Supported Memory Type | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort, 1x Type-C DisplayPort |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN Port (s) | Realtek RTL8125BG 2.5Gbps LAN |
| Supported Storage | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 6x SATA 6G port |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Graphics | 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 4K 120Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* |
| Bundled Software | Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility |
| Manufacturing Warranty | 3 Years |
MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard is a strong addition to the gaming and computing arenas, designed specifically to support the newest AMD Ryzen 8000 and 7000 Series Desktop Processors. It supports DDR5 Memory at rates of up to 7800+ (OC) MHz, providing a high bandwidth for smooth multitasking and better system responsiveness. The motherboard has an upgraded power architecture that includes a 14+2+1 Duet Rail Power System, twin 8-pin CPU power connections, and Core Boost and Memory Boost technologies, which ensure a consistent power supply for overclocking and optimal system performance. This motherboard has a PCIe 5.0 slot, Lightning Gen5 M.2, and USB 3.2 Gen 2x2, which enable high-speed data transfer. The lengthy Heatsink Design and M.2 Shield Frozr provide a premium thermal solution for high-performance computers, effectively dispersing heat and guaranteeing constant performance throughout lengthy gaming sessions or heavy workloads. The presence of a high-quality PCB with a 6-layer design using 2oz thicker copper and server-grade components ensures longevity, stability, and effective signal transfer for consistent performance. The AUDIO BOOST promises studio-level sound quality that immerses customers in their gaming experiences. Crystal-clear audio improves the whole gaming and entertainment experience. In conclusion, the MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard is a top-tier pick, with support for the newest AMD CPUs, DDR5 memory, an improved power design, rapid data transfer capabilities, premium cooling solutions, a high-quality PCB, and immersive audio. It is designed to meet the demands of gamers and power users who want a high-performance motherboard for their computer projects.
