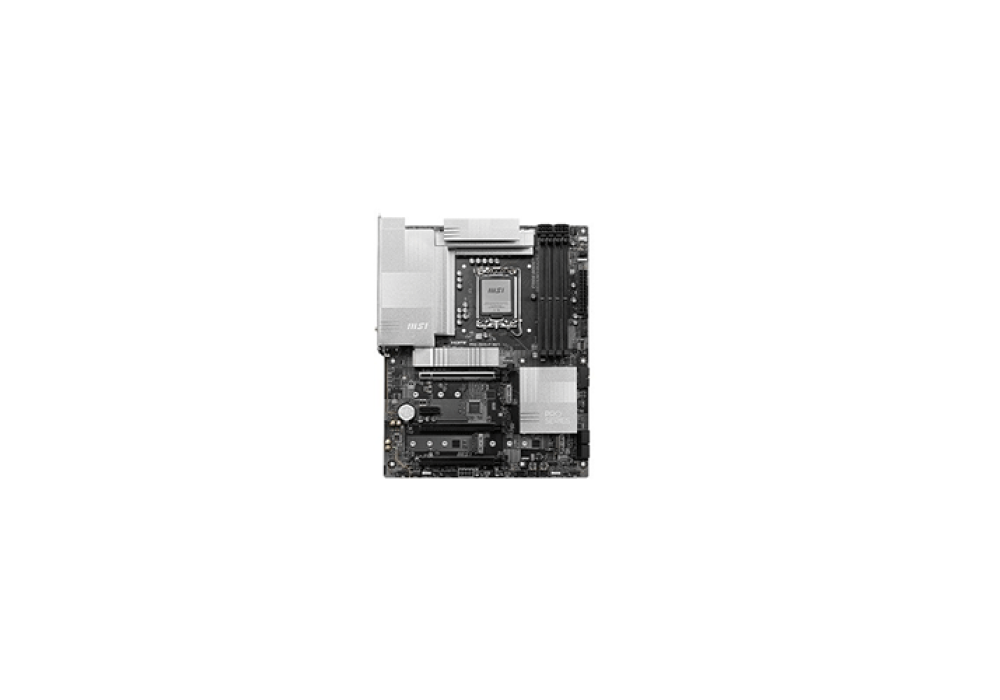

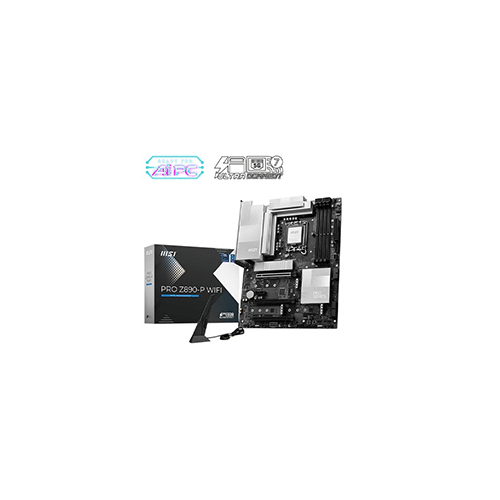

MSI PRO Z890-P WIFI LGA 1851 ATX DDR5 Motherboard

MSI PRO Z890-P WIFI LGA 1851 ATX DDR5 Motherboard

The MSI PRO Z890-P WIFI LGA 1851 ATX DDR5 Motherboard is engineered for power users seeking high performance and exceptional connectivity. Supporting Intel Core Ultra Processors (Series 2) through its LGA 1851 socket, this motherboard is designed to handle the latest in computing technology. With four DDR5 UDIMM slots, it offers a maximum memory capacity of 256GB, supporting speeds ranging from 6400 MT/s to an impressive 9200 MT/s (OC). This capability is enhanced by Intel's XMP 3.0 and dual-channel architecture, ensuring optimal memory performance for demanding applications. For graphics, the PRO Z890-P provides multiple output options, including HDMI 2.1, DisplayPort 1.4, and a Thunderbolt™ 4 port, supporting high-resolution displays with 4K at 120Hz or even 8K at 60Hz. The Realtek ALC897 codec ensures high-definition 7.1 audio, creating an immersive sound experience for gaming and multimedia applications. Connectivity is a standout feature, with Realtek’s 5Gbps LAN and Intel’s Wi-Fi 7 capabilities, delivering ultra-fast internet speeds up to 5.8Gbps. The motherboard also supports Bluetooth 5.4, ensuring seamless connectivity for wireless peripherals. The layout is user-friendly, featuring multiple USB ports, including Type-C, and a variety of fan headers for efficient cooling. Additionally, it comes equipped with EZ Debug LEDs for troubleshooting, making it easy for users to monitor system performance. Designed in an ATX form factor, the MSI PRO Z890-P is built for durability and expansion, offering three PCI-E x16 slots for graphics cards or other add-in cards. With a comprehensive 3-year warranty, this motherboard is a reliable foundation for high-performance gaming rigs or workstation builds.

MSI PRO Z890-P WIFI LGA 1851 ATX DDR5 Motherboard Features

• Processor Support: Compatible with Intel Core Ultra Processors (Series 2) using the LGA 1851 socket for optimal performance.
• Memory Capacity: Equipped with four DDR5 UDIMM slots, supporting a maximum memory capacity of 256GB. This motherboard supports memory speeds ranging from 6400 MT/s (JEDEC) to over 9200 MT/s (OC).
• Overclocking Capabilities: Offers impressive overclocking features, including: Up to 9200 MT/s for single rank, single DIMM configurations. Supports Intel XMP 3.0 for easy memory overclocking.
• Multiple Graphics Outputs: Provides a variety of display connections, including: 1x HDMI™ 2.1 for up to 4K resolution at 60Hz. 1x DisplayPort 1.4 supporting 4K resolution at 60Hz. 1x Thunderbolt™ 4 port, capable of 4K at 120Hz or 8K at 60Hz via USB Type-C.
• Advanced Audio: Features the Realtek ALC897 Codec, providing high-definition 7.1-channel audio for an immersive sound experience.
• Networking & Connectivity: Includes Realtek 8126 5Gbps LAN for reliable wired connectivity. Built-in Intel Wi-Fi 7 module supports MU-MIMO, offering wireless speeds up to 5.8Gbps across 2.4GHz, 5GHz, and 6GHz bands.
• Versatile I/O Ports: 1x Thunderbolt™ 5 connector for high-speed data transfer. Multiple USB ports, including USB 2.0, 5Gbps Type A, and 20Gbps Type C for versatile connectivity options.
• Slot Configuration: Three PCI-E x16 slots (with one supporting PCIe 5.0) and one PCI-E x1 slot for expandability. Multiple fan headers for enhanced cooling.
• User-Friendly Features: 4x EZ Debug LEDs for easy troubleshooting. Flash BIOS button for convenient BIOS updates.
• Physical Design: ATX form factor (243.84mm x 304.8mm) designed for optimal fit in most cases, ensuring compatibility and expandability.
• Warranty: Comes with a 3-year warranty, reflecting confidence in quality and reliability.
