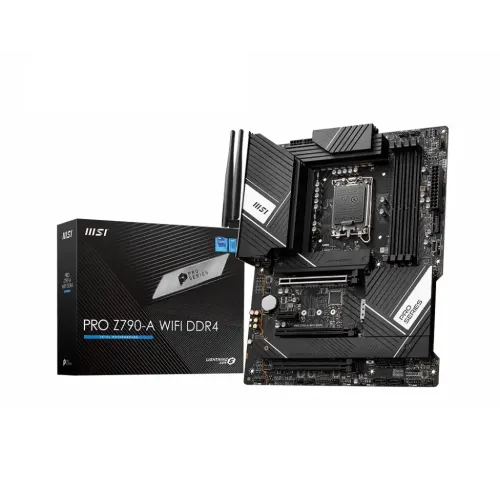

MSI PRO Z790-A WIFI DDR4 ATX Motherboard

MSI PRO Z790-A WIFI DDR4 ATX Motherboard
MSI PRO Z790-A WIFI DDR4 ATX Motherboard
MSI PRO Z790-A WIFI DDR4 ATX Motherboard
MSI PRO Z790-A WIFI DDR4 ATX Motherboard
MSI PRO Z790-A WIFI DDR4 ATX Motherboard
MSI PRO Z790-A WIFI DDR4 ATX Motherboard
MSI PRO Z790-A WIFI DDR4 ATX Motherboard
MSI PRO Z790-A WIFI DDR4 ATX Motherboard
MSI PRO Z790-A WIFI DDR4 ATX Motherboard
MSI PRO Z790-A WIFI DDR4 ATX Motherboard
MSI PRO Z790-A WIFI DDR4 ATX Motherboard
  • Stock: In Stock
  • Model: PRO Z790-A WIFI DDR4
MSI MSI
Based on 0 reviews. - Write a review
31,290৳
EMI starts at 10,972৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
    • Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
    • Supported RAM: 4x DDR4, 5333+MHz (OC), Max 128GB
    • Graphics Output: 1x HDMI, 1x DisplayPort
    • Features: 2.5G LAN with Wi-Fi 6E Solution
View more info...
Specification
General
Type DDR4
Basic Information
Supported CPU Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL Z790
Form Factor ATX
243.84mmx304.8mm
Audio Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Expansion Slots
PCI 3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory Specifications
Memory Size 128GB
Slots 4 x DIMM
Supported Memory Type 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 (By JEDCE & POR)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Intel 2.5Gbps LAN
Wireless Communication module Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 5x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
6x SATA 6G
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Graphics
Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
Warranty Information
Manufacturing Warranty 3 Years
Description

MSI PRO Z790-A WIFI DDR4 ATX Motherboard

MSI PRO Z790-A WIFI DDR4 ATX Motherboard supports LGA 1700 CPUs from the 12th/13th generation Intel Core, Pentium Gold, and Celeron families. This ATX motherboard, which uses the Intel Z790 chipset and the LGA 1700 socket, has four DDR4 RAM slots that allow twin-channel memory and speeds up to 5333 MHz when overclocked. Six SATA III connections and four M.2 interfaces give abundant storage space and enable RAID 0, 1, 5, and 10 through SATA or 0, 1, and 5 via M.2. GPUs and other adaptor cards may be installed through PCIe 5.0 x16, PCIe 4.0 x16, PCIe 3.0 x16, and PCIe 3.0 x1 slots. Benefit from speedy networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; quickly connect to wireless peripherals with Bluetooth 5.2. The Realtek ALC4080 audio codec offers 7.1 channel surround sound, and the rear ports can be used for analog or digital output. Connect connected peripherals through two USB 2.0, two USB 3.2 Gen 1, and three USB 3.2 Gen 2x2 Type-A ports, or a USB 3.2 Gen 2x2 Type-C port. DisplayPort and HDMI are used to output video. A Flash BIOS button is also located on the rear I/O panel, and internal headers support front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connections, chassis intrusion, a TPM module, and other features. The MSI PRO Z790-A WIFI DDR4 13th Gen ATX Motherboard comes with a 03-year warranty.
