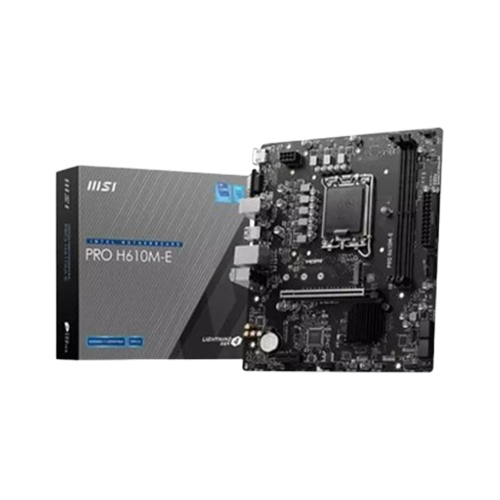

MSI PRO H610M-E DDR5 mATX Motherboard

MSI PRO H610M-E DDR5 mATX Motherboard
MSI PRO H610M-E DDR5 mATX Motherboard
MSI PRO H610M-E DDR5 mATX Motherboard
-7 %
MSI PRO H610M-E DDR5 mATX Motherboard
MSI PRO H610M-E DDR5 mATX Motherboard
MSI PRO H610M-E DDR5 mATX Motherboard
MSI PRO H610M-E DDR5 mATX Motherboard
  • Stock: In Stock
  • Model: PRO H610M-E DDR5
10,200৳
11,000৳
Key Features
    • Supported CPU: Support Intel Core 14th/ 13th/ 12th Gen Processors
    • Form Factor: mATX
    • Memory Type: DDR5
    • Memory Max.: 96 GB
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
Basic Information
Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
Chipset Intel H610 Chipset
Form Factor mATX
200mmx236.16mm
Audio Realtek ALC897 Codec
7.1-Channel High-Definition Audio
Expansion Slots
PCI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Memory Specifications
Memory Type DDR5
Slots 2
Supported Memory Type Memory Support DDR5 5600 MHz (by JEDEC & POR)
Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Max. Memory 96GB

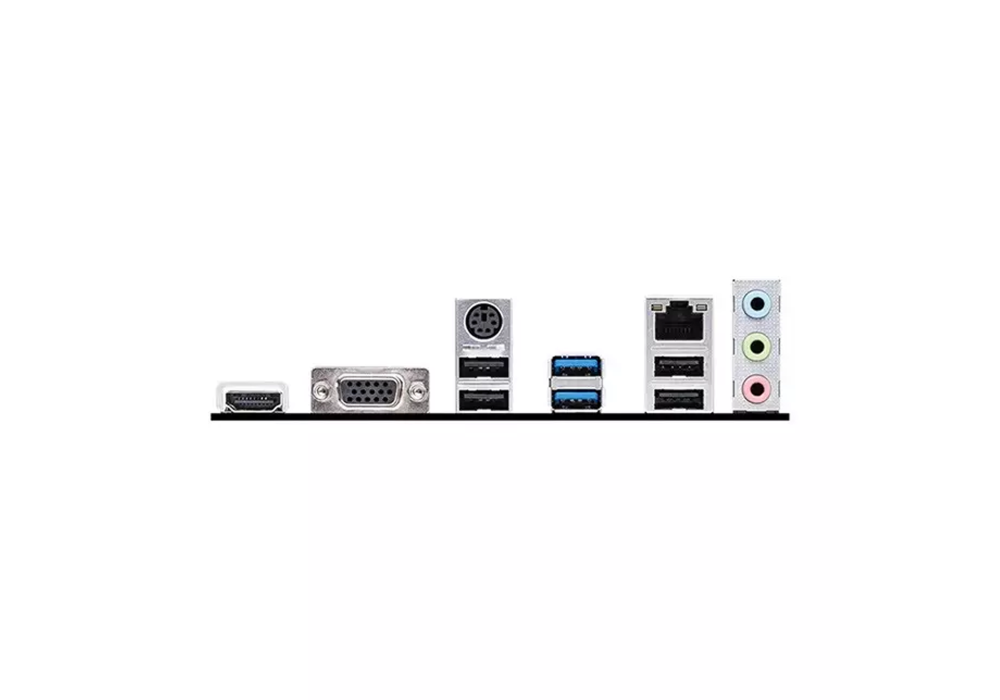

Connector & Ports
HDMI 1x HDMI 1.4 with HDR port
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Realtek RTL8111H Gigabit LAN
Supported Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
Audio 1x Front panel audio connector
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
VGA (s) 1x VGA
Graphics
Graphics Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz<
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Others Information
Special Features 1x 4-pin RGB LED connector
4x EZ Debug LED
Warranty Information
Warranty 3 years
Description

MSI PRO H610M-E DDR5 mATX Motherboard

The MSI PRO H610M-E DDR5 mATX Motherboard is a dependable and budget-friendly solution designed for modern Intel-based PC builds that require stability, efficiency, and next-generation memory support. Built on the Intel H610 chipset, this motherboard supports Intel 12th and 13th Gen Core processors, making it ideal for home users, office systems, and entry-level professional setups. With DDR5 memory compatibility, it offers improved bandwidth, better power efficiency, and smoother multitasking compared to older DDR4 platforms. Its micro-ATX form factor allows easy installation in compact cases while still delivering essential features such as M.2 NVMe SSD support, SATA storage options, PCIe expansion, and multiple USB ports. The MSI PRO series is known for long-term durability and stable operation, ensuring reliable performance for everyday tasks like productivity work, browsing, multimedia, and light content creation. This motherboard is an excellent choice for users looking to build a future-ready PC without unnecessary extras.

Features

• Supports Intel 12th and 13th Gen processors
• DDR5 memory support for faster performance
• Micro-ATX form factor for compact builds
• M.2 NVMe and SATA storage support
• PCIe slot for graphics and expansion cards
• Multiple USB connectivity options
• Stable and durable MSI PRO design

Reliable Platform for Daily Performance

The MSI PRO H610M-E DDR5 ensures consistent performance for office work, online activities, and everyday multitasking. DDR5 memory support enhances overall system responsiveness.

Compact Design with Essential Features

Its mATX layout fits smaller PC cases while still offering modern storage and expansion options, making it suitable for clean and efficient builds.

Why Choose MSI PRO H610M-E DDR5 mATX Motherboard?

Choose this motherboard if you want a reliable, future-ready Intel platform with DDR5 support at an affordable price. It delivers stability, essential features, and long-term usability for daily computing needs.

Benefits of the Product

• Improved performance with DDR5 memory
• Stable support for modern Intel CPUs
• Space-saving micro-ATX design
• Flexible storage upgrade options
• Reliable build quality for long-term use

FAQ

Q1: Does this motherboard support Intel 13th Gen CPUs?
A1:Yes, it supports Intel 12th and 13th Gen processors.
Q2: Can DDR4 RAM be used on this motherboard?
A2:No, it only supports DDR5 memory.
Q3: Is this motherboard suitable for office PCs?
A3:Yes, it is ideal for home and office-based PC builds.
