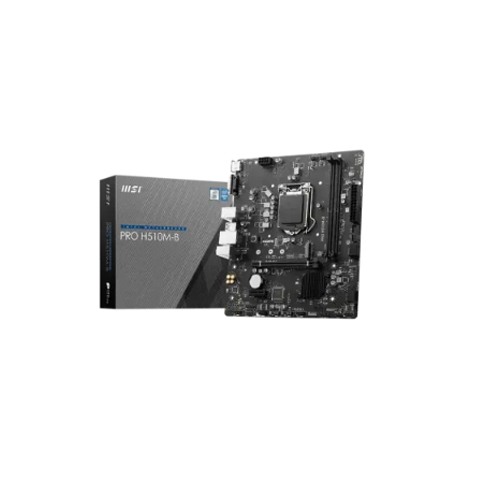

MSI PRO H510M-B 10th Gen Micro-ATX Motherboard

MSI PRO H510M-B 10th Gen Micro-ATX Motherboard
MSI PRO H510M-B 10th Gen Micro-ATX Motherboard
MSI PRO H510M-B 10th Gen Micro-ATX Motherboard
MSI PRO H510M-B 10th Gen Micro-ATX Motherboard
-10 %
MSI PRO H510M-B 10th Gen Micro-ATX Motherboard
MSI PRO H510M-B 10th Gen Micro-ATX Motherboard
MSI PRO H510M-B 10th Gen Micro-ATX Motherboard
MSI PRO H510M-B 10th Gen Micro-ATX Motherboard
MSI PRO H510M-B 10th Gen Micro-ATX Motherboard
  • Stock: In Stock
  • Model: PRO H510M-B
MSI MSI
Based on 0 reviews. - Write a review
8,700৳
9,680৳
EMI starts at 3,051৳/month. View all 25 banks EMI plans >

Available Options

Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
  • Supported CPU: 10th Gen Intel processors for LGA 1200
  • Graphics Output: 1x HDMI, 1x VGA
  • Features: 1x M.2, Realtek 8111H Gigabit LAN
  • Supported RAM: 2x DDR4, Max 64GB up to 2933MHz
View more info...
Specification
Basic Information
Supported CPU Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
Chipset INTEL H470
Form Factor mATX
202mmx236mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots
PCI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory Specifications
Memory Type DDR4
Slots 2
Supported Memory Type Memory Support 2933/ 2666/ 2400/ 2133 MHz
Supports 1R 2133/ 2666/ 2933 MHz for Intel Core i9/ Core i7 CPU
Supports 1R 2133/ 2666 MHz for Intel Core i5/ Core i3/ Pentium Gold and Celeron CPU
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Max. Memory 64GB
Connector & Ports
HDMI 1x HDMI 1.4
Display Port (s) 1x VGA
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Realtek 8111H Gigabit LAN
Supported Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Graphics
Graphics 1x HDMI
Support HDMI 1.4, maximum resolution of 4K 30Hz
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
Others Information
Special Features 4x EZ Debug LED
Warranty Information
Manufacturing Warranty 3 years
Description

MSI PRO H510M-B 10th Gen Micro-ATX Motherboard

The MSI PRO H510M-B 10th Gen Micro-ATX Motherboard is a versatile and reliable motherboard designed to accommodate 10th Gen Intel Core and Pentium Gold/Celeron processors, making it an ideal choice for a wide range of computing needs. With its INTEL H470 chipset, this motherboard ensures stable and efficient performance, providing users with a seamless computing experience.Measuring at a compact mATX form factor of 202mmx236mm, the MSI PRO H510M-B motherboard fits perfectly into smaller PC cases while still offering plenty of connectivity options and expansion capabilities. This makes it suitable for building compact yet powerful PC systems.Equipped with the Realtek ALC897 Codec, the motherboard delivers 7.1-Channel High Definition Audio, ensuring immersive sound quality for an enhanced multimedia experience. Whether you're gaming, watching movies, or listening to music, this motherboard provides exceptional audio output.In terms of expansion slots, the MSI PRO H510M-B motherboard features 1x PCI-E x16 slot and 1x PCI-E x1 slot, offering flexibility for adding expansion cards such as graphics cards or network adapters to enhance your PC's capabilities.With support for DDR4 memory, this motherboard accommodates up to 64GB of RAM across two memory slots. It supports memory speeds of up to 2933/2666/2400/2133 MHz, as well as Intel Extreme Memory Profile (XMP) for easy overclocking and performance optimization.For graphics output, the motherboard provides 1x HDMI port supporting HDMI 1.4 with a maximum resolution of 4K 30Hz, and 1x VGA port with a maximum resolution of 2048x1536 50Hz or 1920x1200 60Hz.In terms of connectivity, the MSI PRO H510M-B motherboard offers various ports including USB 2.0 and USB 3.2 Gen1 Type A ports for connecting peripherals and accessories, as well as Realtek 8111H Gigabit LAN for fast and reliable network connections.Other features include internal I/O ports for connecting components such as fans and front panel connectors, as well as special features like 4x EZ Debug LED for easy troubleshooting.Backed by a 3-year manufacturing warranty, the MSI PRO H510M-B 10th Gen Micro-ATX Motherboard offers reliability, performance, and versatility for building a high-quality PC system.

Features:

  • Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933MHz (MAX)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
