MSI PRO B760M-P DDR5 mATX Motherboard

MSI PRO B760M-P DDR5 mATX Motherboard
MSI PRO B760M-P DDR5 mATX Motherboard
MSI PRO B760M-P DDR5 mATX Motherboard
MSI PRO B760M-P DDR5 mATX Motherboard
MSI PRO B760M-P DDR5 mATX Motherboard
-12 %
MSI PRO B760M-P DDR5 mATX Motherboard
MSI PRO B760M-P DDR5 mATX Motherboard
MSI PRO B760M-P DDR5 mATX Motherboard
MSI PRO B760M-P DDR5 mATX Motherboard
MSI PRO B760M-P DDR5 mATX Motherboard
MSI PRO B760M-P DDR5 mATX Motherboard
  • Stock: In Stock
  • Model: PRO B760M-P
15,300৳
17,380৳
Key Features
    • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
    • Supported RAM: 4x DDR5, Max 192GB 6800+(OC)
    • Graphics Output: 1x HDMI, 1x DisplayPort, 1x VGA
    • Features: 2x M.2 slot, Realtek RTL8111H Gigabit LAN
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
General
Type DDR5
Basic Information
Supported CPU Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL B760
Form Factor mATX
220mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High-Definition Audio
Expansion Slots
PCI 1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
Memory Specifications
Memory Size 192GB
Slots 4 x DIMM
Supported Memory Type Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

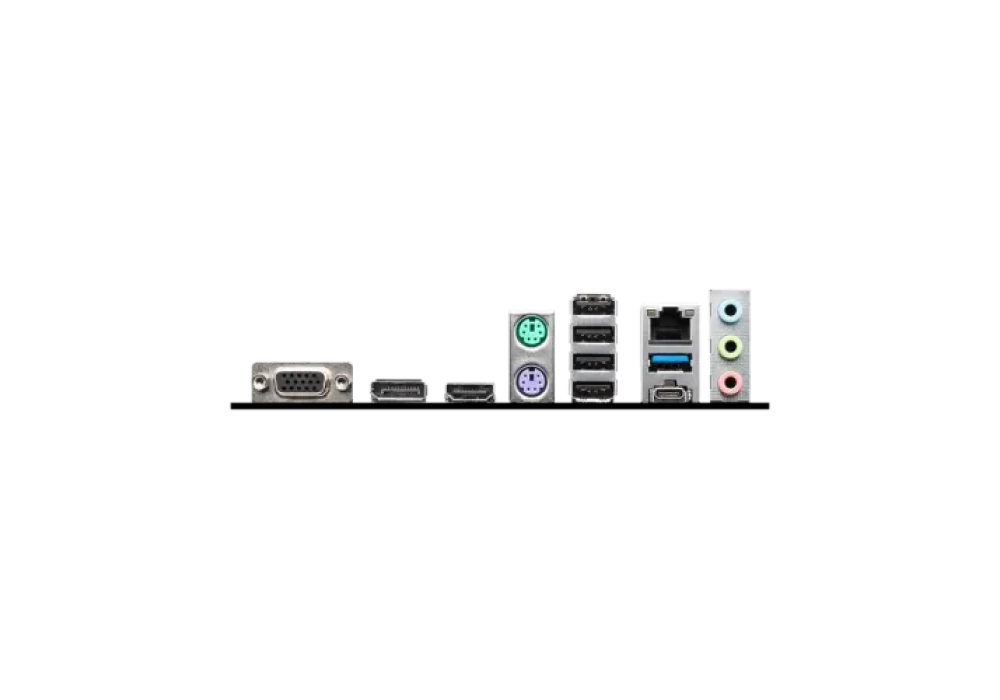

Connector & Ports
HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type C (Rear)
LAN Port (s) Intel 2.5Gbps LAN
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Graphics
Graphics 1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Warranty Information
Manufacturing Warranty 3 Years
Description

MSI PRO B760M-P DDR5 mATX Motherboard

If you are searching for a reliable and high-performance Intel motherboard that supports the latest technologies without breaking the bank, the MSI PRO B760M-P DDR5 Motherboard is one of the best options available in Bangladesh. Many users specifically search for the msi pro b760m-p ddr5 motherboard price in bd when planning a balanced Intel build, and this model stands out because it offers premium features at an excellent value. Specially optimized for 12th, 13th, and 14th Gen Intel processors, this board is designed to deliver outstanding speed, stability, and efficiency for work, gaming, or everyday productivity.

With DDR5 memory support, PCIe 4.0, upgraded VRM design, high-speed storage compatibility, and enhanced cooling features, the MSI PRO B760M-P ensures smoother multitasking, faster responsiveness, and future-ready performance. Whether you’re assembling a workstation, an editing rig, or a mid-range gaming PC, this motherboard gives you long-term reliability along with excellent thermal and power stability. MSI’s PRO series is known for durability and business-class performance, and this B760M-P model continues that tradition. If you are comparing different Intel motherboard options and checking the msi pro b760m-p ddr5 motherboard price in bd to make the right purchase decision, this board is definitely one of the smartest picks for any modern build.

MSI PRO B760M-P DDR5 Motherboard Features

  • Latest Intel CPU Support: Supports 12th, 13th & 14th Gen Intel Core, Pentium, and Celeron processors—ensuring excellent upgrade flexibility. Future-ready design lets users switch to newer Intel CPUs without changing the entire setup, making PC building easier and more cost-efficient.
  • DDR5 Memory for Ultra-Fast Speed: Comes with DDR5 RAM support, delivering higher bandwidth, improved stability, and boosted performance for heavy workloads. This next-gen memory architecture ensures smoother multitasking, faster app response times, and better performance in productivity and gaming.
  • Enhanced PCIe 4.0 Expansion: Perfect for modern GPUs and high-speed storage devices, ensuring better gaming and workflow performance. Its optimized PCIe lanes maximize data throughput, allowing graphics cards and SSDs to operate at peak efficiency.
  • Advanced Cooling Architecture: Equipped with extended heatsinks and optimized airflow design to keep the motherboard cool under high load. This intelligent thermal engineering maintains stable temperatures, ensuring consistent long-term performance even during intense tasks.
  • High-Speed Storage Support: Includes M.2 slots for NVMe SSDs, allowing rapid boot times and fast file transfers. The high-speed storage interface accelerates application loading and reduces system lag, creating a smoother overall user experience.
  • Stable Power Delivery: Robust VRM and power phases ensure stable CPU performance, even during multitasking or rendering. Its enhanced power design prevents voltage drops and maintains reliability, giving the processor consistent power under demanding workloads.

If you're checking alternatives, the MSI B760M BOMBER WIFI mATX Motherboard offers strong connectivity and smooth Intel performance. For more options, explore our Component and Reliable MSI motherboard models collection—featuring durable, high-performance MSI boards ideal for gaming, productivity, and modern PC builds.

Get MSI PRO B760M-P DDR5 Motherboard from Onix BD

Get the latest MSI PRO B760M-P DDR5 Motherboard at Onix BD — trusted for authentic products, fast delivery, and the best shopping experience. Click to explore full specs, updated stock, and exclusive offers. Whether you want the best deal or want to check the msi pro b760m-p ddr5 motherboard price in bd, Onix BD gives you a reliable and convenient purchase experience.
