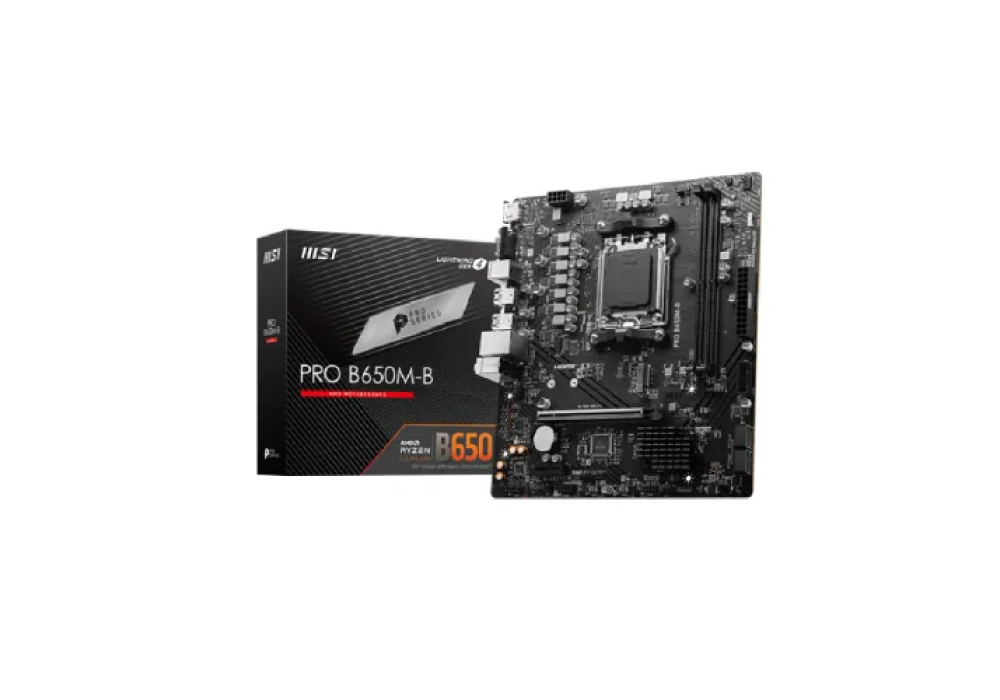

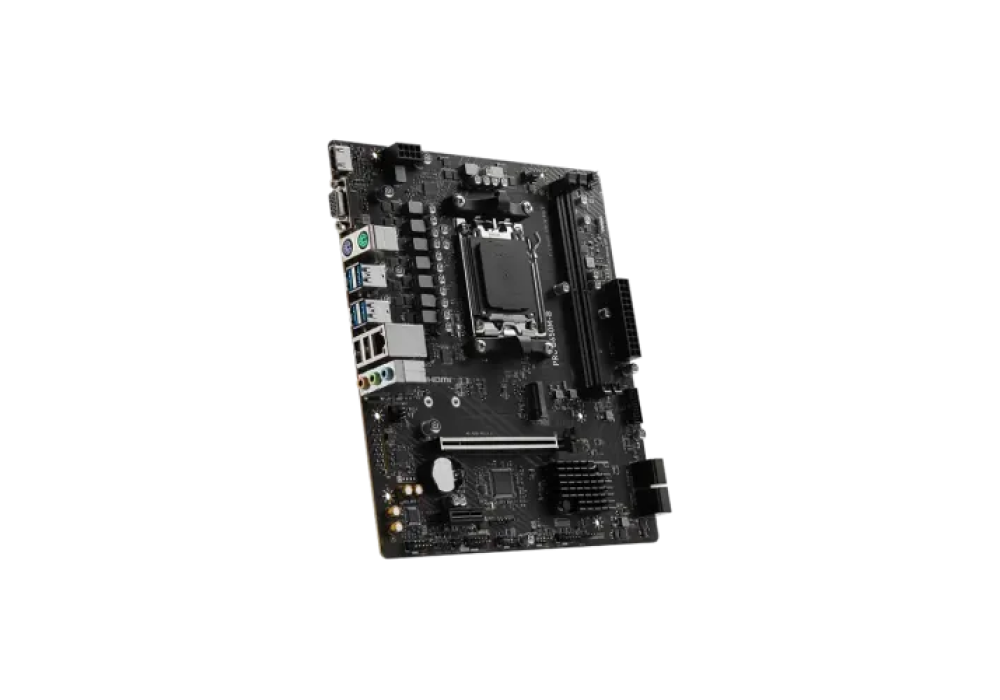

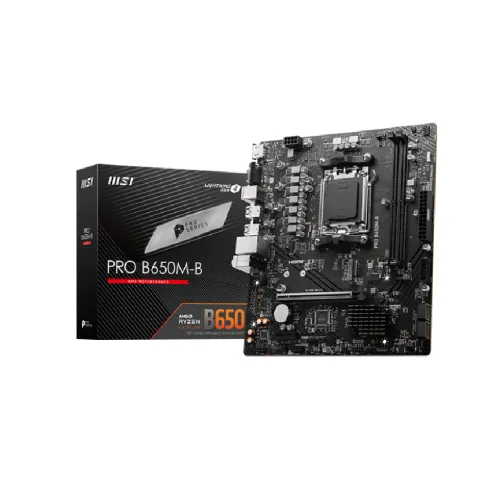

MSI PRO B650M-B DDR5 AMD AM5 mATX Motherboard
MSI PRO B650M-B DDR5 AMD AM5 mATX Motherboard
MSI PRO B650M-B DDR5 AMD AM5 mATX Motherboard
MSI PRO B650M-B DDR5 AMD AM5 mATX Motherboard
MSI PRO B650M-B DDR5 AMD AM5 mATX Motherboard

MSI PRO B650M-B DDR5 AMD AM5 mATX Motherboard

IN STOCK

Model: PRO B650M-B

Key Features
  • Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5
  • Supported RAM: 2x DDR5, up to 6800+(OC) MHz
  • Graphics Output: 1x HDMI, 1x Display Port
  • Features: 2.5G LAN

View More Info...

(0 reviews)

13,400৳ 14,300৳

EMI starts at 439৳/month. View all 28 banks EMI plans >

Chat Through

1
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Specification
General
Type DDR5
Basic Information
Supported CPU Supports AMD Ryzen 8000 & 7000 Series Desktop Processors Socket AM5
Chipset AMD X670
Form Factor ATX, 243.84mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots
PCI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory Specifications
Memory Size 96GB
Slots 2
Supported Memory Type 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort, 1x Type-C DisplayPort
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
LAN Port (s) Realtek RTL8125BG 2.5Gbps LAN
Supported Storage 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
Audio 3 x audio jacks
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Graphics
Graphics 1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Warranty Information
Manufacturing Warranty 3 Years
Description

MSI PRO B650M-B DDR5 AMD AM5 mATX Motherboard

MSI PRO B650M-B DDR5 AMD AM5 m-ATX Motherboard meets the needs of modern computing with cutting-edge technology and adaptability. With its unique design to support the most recent Ryzen 7000 and 8000 Series Processors for Socket AM5, this motherboard guarantees peak performance, which makes it a great option for people doing a variety of computer jobs, such as professional content production or gaming. The motherboard claims compatibility for up to 2x DDR5 RAM modules, allowing users to harness memory speeds of 6800+ MHz (when overclocked). This feature meets the demands of resource-intensive programs, multitasking, and high-performance computing by offering a significant increase in memory bandwidth. With 1x HDMI and 1x Display Port, the MSI PRO B650M-B provides flexible visual connectivity that makes it easy to set up multiple displays and produces high-quality graphics output. For users who need immersive graphics or increased productivity with numerous displays, this function is very helpful. The addition of a 2.5G LAN to the motherboard significantly enhances its networking capabilities and guarantees dependable and quick data transfer. This offers a smooth and responsive online experience, making it especially useful for network-intensive activities like online gaming and multimedia streaming.The MSI PRO B650M-B DDR5 AMD AM5 mATX Motherboard provides a solid base for your system, regardless of your needs as an avid gamer, creative professional, or multitasker. This motherboard meets the needs of the ever-changing computing landscape of today by delivering an improved computing experience with its combination of performance, networking choices, and innovative features.
