- Stock: In Stock
- Model: PRO B650-S WIFI
- Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 7200+(OC) MHz
- Graphics Output: 1x HDMI, 1x Display Port
- Features: 2.5G LAN with Wi-Fi 6E Solution
| General | |
| Type | DDR5 |
| Basic Information | |
| Supported CPU | Supports AMD Ryzen 8000 & 7000 Series Desktop Processors
Socket AM5 |
| Chipset | AMD X670 |
| Form Factor | ATX, 243.84mmx304.8m |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset |
| Memory Specifications | |
| Memory Size | 192GB |
| Slots | 4 DIMMs |
| Supported Memory Type | Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz > Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort, 1x Type-C DisplayPort |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN Port (s) | Realtek RTL8125BG 2.5Gbps LAN |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| Audio | 3 x audio jacks |
| Internal I/O Ports | INTERNAL IO: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 4K 120Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* |
| Others Information | |
| Bundled Software | Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |

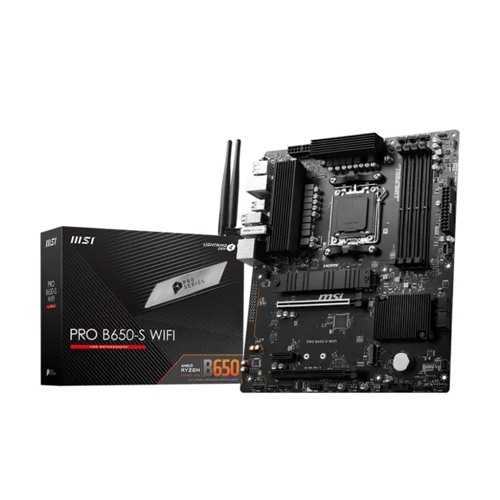

MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard
MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard is a powerhouse built to handle AMD Ryzen 8000 & 7000 Series Desktop Processors, providing compatibility with the most recent and powerful CPUs on the market. DDR5 memory compatibility, providing high-speed data transmission with dual-channel DDR5 7200+MHz (OC), is one of its cutting-edge characteristics. With a 12+2 Duet Rail Power System, two 8-pin CPU power connections, Core Boost, and Memory Boost, the motherboard has an upgraded power architecture that ensures reliable and efficient power supply for best performance. Its premium thermal solution includes 7W/mK MOSFET thermal pads and M.2 Shield Frozr, resulting in a high-performance system with efficient heat dissipation. The motherboard's high-quality 6-layer PCB, constructed of 2oz thicker copper, improves longevity and stability, laying the groundwork for heavy workloads. The MSI PRO B650-S WIFI Motherboard has PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and USB 3.2 Gen 2x2 connections to meet the needs of current gaming and data-intensive applications. The motherboard provides an improved network solution with 2.5G LAN and Wi-Fi 6E, giving a secure, reliable, and fast network connection suited for both professional and multimedia applications. The introduction of AUDIO BOOST offers a greater gaming experience with studio-grade sound quality, boosting total immersion for players. In conclusion, the MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard is a feature-rich option that delivers a strong, dependable foundation for gamers and professionals looking for top-tier performance and functionality.
Quick Compare
Comparison of PRO B650-S WIFI vs B840M DS3H WIFI6 vs B650M-AYW WIFI vs PRO B650M-A WIFI which are most simmiler.
| Product | MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard | Gigabyte B840M DS3H WIFI6 Motherboard | ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard | MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard |
| Image | |
|
|
|
| Price | 20,000৳ | |
|
|
| Model | PRO B650-S WIFI | B840M DS3H WIFI6 | B650M-AYW WIFI | PRO B650M-A WIFI |
| Brand | MSI | Gigabyte | Asus | MSI |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | MSI PRO B650-S WIFI DDR5 AM5 ATX MotherboardMSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard is a powerhouse built to handle AMD Ryzen 8000 & 7000 Series Desktop Processors, providing compatibility with the most recent and powerful CPUs on the market. DDR5 memory compatibility, providing high-speed data transmission with dual-channel DDR5 7200+MHz (OC), is one of its cutting-edge characteristics. With a 12+2 Duet Rail Power System, two 8-pin CPU power connections, Core Boost, and Memory Boost, the motherboard has an upgraded power architecture that ensures reliable and efficient power supply for best performance. Its premium thermal solution includes 7W/mK MOSFET thermal pads and M.2 Shield Frozr, resulting in a high-performance system with efficient heat dissipation. The motherboard's high-quality 6-layer PCB, constructed of 2oz thicker copper, improves longevity and stability, laying the groundwork for heavy workloads. The MSI PRO B650-S WIFI Motherboard has PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and USB 3.2 Gen 2x2 connections to meet the needs of current gaming and data-intensive applications. The motherboard provides an improved network solution with 2.5G LAN and Wi-Fi 6E, giving a secure, reliable, and fast network connection suited for both professional and multimedia applications. The introduction of AUDIO BOOST offers a greater gaming experience with studio-grade sound quality, boosting total immersion for players. In conclusion, the MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard is a feature-rich option that delivers a strong, dependable foundation for gamers and professionals looking for top-tier performance and functionality... | Gigabyte B840M DS3H WIFI6 MotherboardGigabyte B840M DS3H WIFI6 Motherboard Price in bd makes it one of the most reliable and budget-friendly AMD AM5 motherboards for gamers, professionals, and PC builders. Packed with the latest AMD B840 chipset, it delivers outstanding compatibility with AMD Ryzen™ 9000, 8000, and 7000 series processors, making it a future-ready choice. This Micro ATX motherboard is designed for performance, speed, and durability while ensuring seamless multitasking. With DDR5 memory support up to 8200(O.C) MHz and 256GB capacity, users can experience faster data access and smoother workflows. The dual-channel architecture with AMD EXPO™ and XMP profiles makes overclocking memory modules easier than ever. For stunning visuals, the board integrates AMD Radeon™ Graphics support with HDMI 2.1 and DisplayPort 1.4 outputs, enabling resolutions up to 4K@144Hz for triple-display setups. The Gigabyte B840M DS3H also features dual M.2 PCIe 4.0 slots and four SATA 6Gb/s ports, ensuring high-speed NVMe SSD storage with RAID 0/1/5/10 support for maximum data security and performance. Its Realtek® 2.5GbE LAN and Wi-Fi 6 module with Bluetooth 5.3 guarantee ultra-fast networking and stable wireless connectivity, making it ideal for online gaming and content creation. Built with durability in mind, the motherboard comes with enhanced thermal design, RGB lighting headers, and full support for GIGABYTE Control Center (GCC). Users also benefit from Q-Flash Plus and Smart Backup features for easy updates and data protection. For gamers, streamers, and professionals in Bangladesh, this motherboard delivers a perfect balance of performance, connectivity, and affordability.Availability and UsabilityThe Gigabyte B840M DS3H WIFI6 Motherboard is widely available in Bangladesh through authorized retailers like Onix Computer. Built with advanced connectivity, strong durability, and easy compatibility, it supports a wide range of Intel processors and modern hardware. Its usability extends to gaming, content creation, and productivity, making it a reliable choice for diverse computing needs.FeaturesSupports Intel 14th/13th/12th Gen Core processors with LGA1700 socket.Dual-channel DDR4 memory architecture with up to 128GB capacity.Integrated Intel Wi-Fi 6 for faster and stable wireless connectivity.2.5GbE LAN for high-speed and low-latency networking.PCIe 4.0 x16 slot for modern GPU compatibility.Multiple display outputs: HDMI, DisplayPort, and D-Sub.High-quality audio capacitors for crystal-clear sound.Smart Fan 6 technology for optimized cooling performance.Ultra Durable components ensuring long-lasting stability.Advanced BIOS features with easy user interface.Gigabyte B840M DS3H WIFI6 Motherboard Price in BangladeshThe Gigabyte B840M DS3H WIFI6 Motherboard price in Bangladesh offers excellent value for budget and mid-range PC builds. At Onix Computer, this motherboard is competitively priced, making it accessible for gamers, professionals, and home users alike. Customers get the benefit of warranty support, ensuring both affordability and reliability for long-term usage.Infinite Memory PerformanceGIGABYTE UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.802.11ax Wi-Fi 6The Wireless solution 802.11ax Wi-Fi 6enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5.3 provides 4X range over BT 4.2 and with faster transmission.Gigabyte B840M DS3H WIFI6 Motherboard Gaming PerformanceThe Gigabyte B840M DS3H WIFI6 Motherboard delivers solid gaming performance with support for the latest Intel processors and high-speed DDR4 memory. Its PCIe 4.0 x16 slot ensures smooth GPU performance for modern titles, while Wi-Fi 6 and 2.5GbE LAN guarantee stable online gaming. Combined with Smart Fan 6, gamers enjoy cool, lag-free, and immersive experiences without performance bottlenecks.User Experience OF Gigabyte B840M DS3H WIFI6 MotherboardUsers of the Gigabyte B840M DS3H WIFI6 Motherboard benefit from a seamless setup, easy BIOS navigation, and wide hardware compatibility. Its reliable connectivity, stable performance, and durable build enhance daily computing, whether for gaming, streaming, or productivity. The inclusion of Wi-Fi 6 and multiple ports adds convenience, making it an excellent choice for modern PC builds.Why Choose from Onix ComputerOnix Computer is a trusted retailer in Bangladesh, offering genuine Gigabyte B840M DS3H WIFI6 Motherboards at competitive prices. Customers enjoy official warranty, expert guidance, and fast delivery. Onix ensures authentic products with excellent after-sales support, making it the best destination for building a reliable and high-performance PC setup.Frequently Asked QuestionsQ1: Does the Gigabyte B840M DS3H WIFI6 support DDR5 RAM?No, it supports DDR4 memory with up to 128GB capacity.Q2: Can this motherboard handle gaming PCs?Yes, it supports modern Intel CPUs, PCIe 4.0 GPUs, and Wi-Fi 6 for excellent gaming performance.Q3: What warranty is available in Bangladesh?Onix Computer provides official warranty support for this motherboard in Bangladesh... | ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX MotherboardThe ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard is a high-performance motherboard designed for users seeking cutting-edge technology and exceptional reliability for their AMD Ryzen-based systems. This motherboard supports AMD's Socket AM5, making it compatible with the latest Ryzen 9000, 8000, and 7000 series desktop processors, ensuring powerful performance for gaming, content creation, and productivity tasks. With the AMD B650 chipset, this board supports DDR5 memory, offering high-speed memory support of up to 8000+ MT/s (overclocked), with a maximum capacity of 96GB. The motherboard includes four DIMM slots, allowing for dual-channel memory configurations, and supports AMD's EXPO profiles for easy overclocking. In terms of connectivity, the B650M-AYW offers robust options, including WiFi 6 support for fast wireless internet access and a Realtek 2.5Gb Ethernet port for wired networking. The rear I/O is equipped with multiple USB ports, including two 10Gbps Type-A ports and four USB 2.0 ports, along with an HDMI port for video output. It also includes an extensive array of storage options with two M.2 slots (supporting PCIe 4.0/5.0) and four SATA 6Gb/s ports, providing ample space for high-speed storage drives. For superior audio quality, the motherboard features Realtek 7.1 surround sound with premium audio capacitors and dedicated PCB layers. The board also boasts ASUS 5X Protection III, offering overvoltage protection, DIGI+ VRM, and Safeslot Core+ for added durability. The innovative Q-Design features such as M.2 Q-Latch and Q-DIMM make installation easy and convenient. With a 3-year warranty, the ASUS B650M-AYW ensures lasting reliability and performance, making it an excellent choice for building a powerful, modern PC.ASUS B650M-AYW WIFI AMD AM5 Motherboard FeaturesAMD Socket AM5 Support: Compatible with AMD Ryzen 9000, 8000, and 7000 series desktop processors, providing cutting-edge performance for demanding tasks.DDR5 Memory Support: Features 4 DIMM slots supporting DDR5 memory speeds of up to 8000+ MT/s (overclocked), with a maximum capacity of 96GB, and supports AMD EXPO for easy overclocking.PCIe 4.0 x16 Slot: Offers a high-speed PCIe 4.0 x16 slot for enhanced graphics and expansion capabilities, with full x16 mode support for Ryzen 9000 & 7000 series processors.Dual M.2 Slots: Supports two M.2 slots for high-speed storage options, with PCIe 5.0 x4 support for Ryzen 9000 & 7000 series, and PCIe 4.0 x4 for Ryzen 8000 series processors.Wi-Fi 6 & 2.5Gb Ethernet: Built-in Wi-Fi 6 support for fast wireless connections and a Realtek 2.5Gb Ethernet port for high-speed wired networking.Premium Audio: Realtek 7.1 Surround Sound High Definition Audio with features like jack-detection, multi-streaming, and support for up to 24-bit/192 kHz playback, enhanced by premium capacitors and dedicated audio PCB layers.Comprehensive Connectivity: 8 rear USB ports, including 2 x USB 10Gbps, 2 x USB 5Gbps, and 4 x USB 2.0. Also includes a USB 5Gbps Type-C connector and multiple internal USB headers.RAID Support: Includes AMD RAIDXpert2 technology for both PCIe RAID 0/1/10 and SATA RAID 0/1/10 setups for flexible storage configurations.ASUS 5X Protection III: Enhanced durability features including DIGI+ VRM, LANGuard, overvoltage protection, Safeslot Core+, and stainless-steel back I/O for long-lasting protection.Advanced Cooling Solutions: Features M.2 and VRM heatsinks, as well as multiple fan headers to ensure optimal cooling for high-performance builds.Aura Sync: Addressable Gen 2 headers for customizable RGB lighting integration, allowing for personalized aesthetics.3-Year Warranty: Backed by a 3-year manufacturing warranty for reliability and peace of mind... | MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX MotherboardThe MSI PRO B650M-A WIFI Motherboard supports AMD's Ryzen 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a Maximum Memory Capacity of up to 128GB and a bus speed of up to 6400+(OC) MHz. It features a Core Boost technology that combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supports multi-core CPUs, but also creates the perfect conditions for your CPU overclocking. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and a Double-sided M.2 Shield Frozr built for a high-performance system and a non-stop gaming experience. The motherboard is made of a 6-layer PCB made of 2oz thickened copper and server-grade level material. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI PRO B650M-A WIFI offers Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. The MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C... |
