- Stock: In Stock
- Model: PRO A620M-E
- Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5
- Supported RAM: 2x DDR5, Max 96GB 6000+MHz (OC)
- Graphics Output: 1x HDM, 1x VGA
- Features: 1x M.2, RTL8111H Gigabit LAN
| General | |
| Type | DDR5 |
| Basic Information | |
| Supported CPU | Supports AMD Ryzen 8000 & 7000 Series Desktop Processors
Socket AM5 |
| Chipset | AMD A620 |
| Form Factor | ATX, 211mmx243.84mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Memory Specifications | |
| Memory Size | 96GB |
| Slots | 2 |
| Supported Memory Type | Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort, 1x Type-C DisplayPort |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) |
| LAN Port (s) | Realtek RTL8125BG 2.5Gbps LAN |
| Supported Storage | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Graphics | |
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |

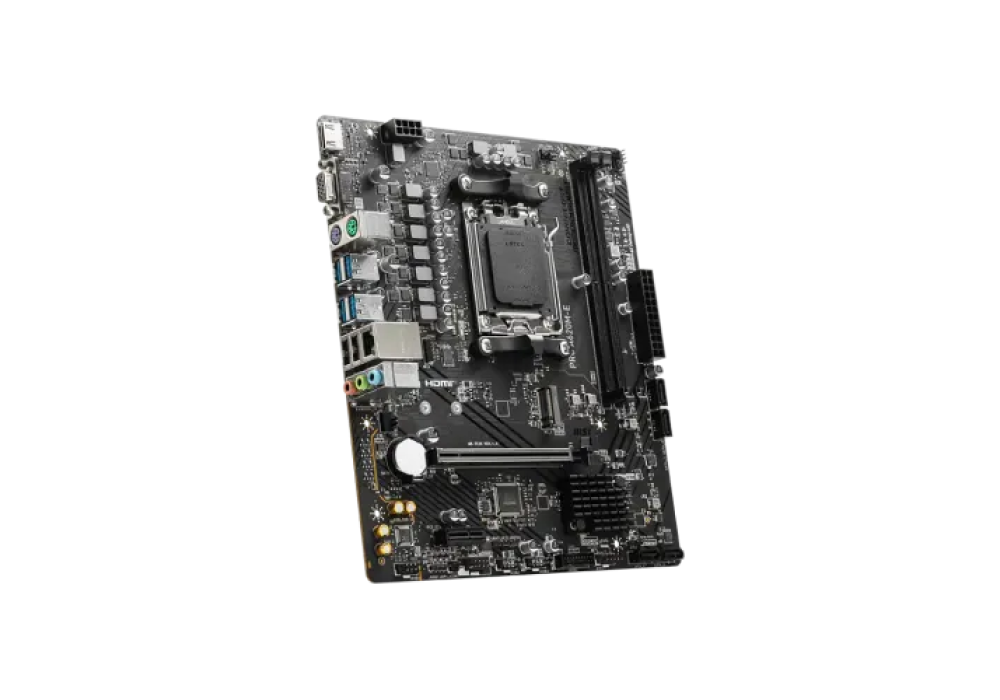

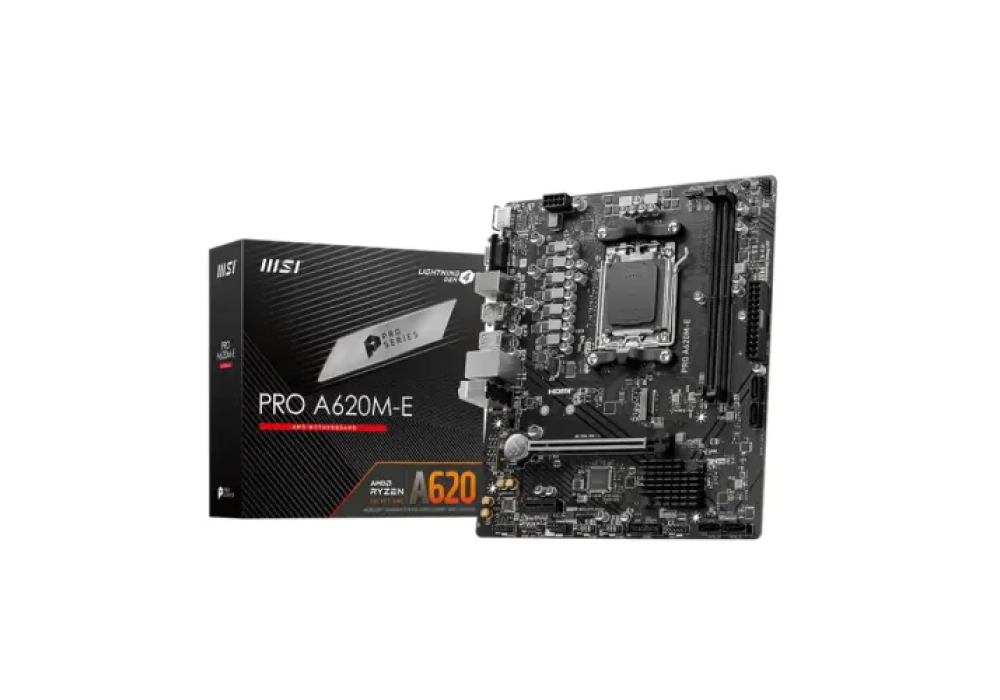

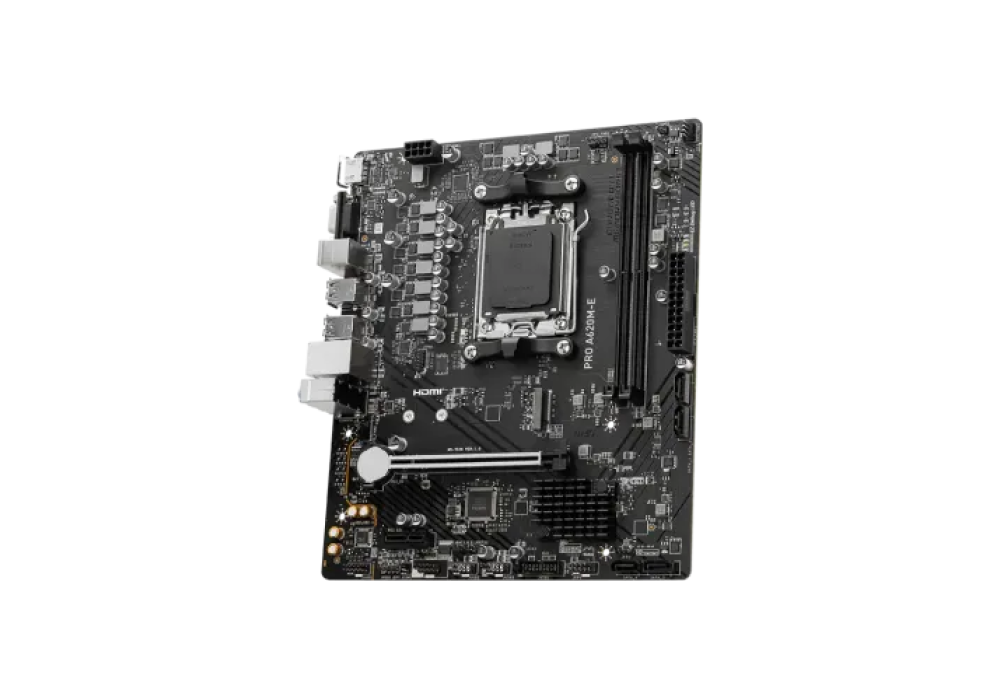

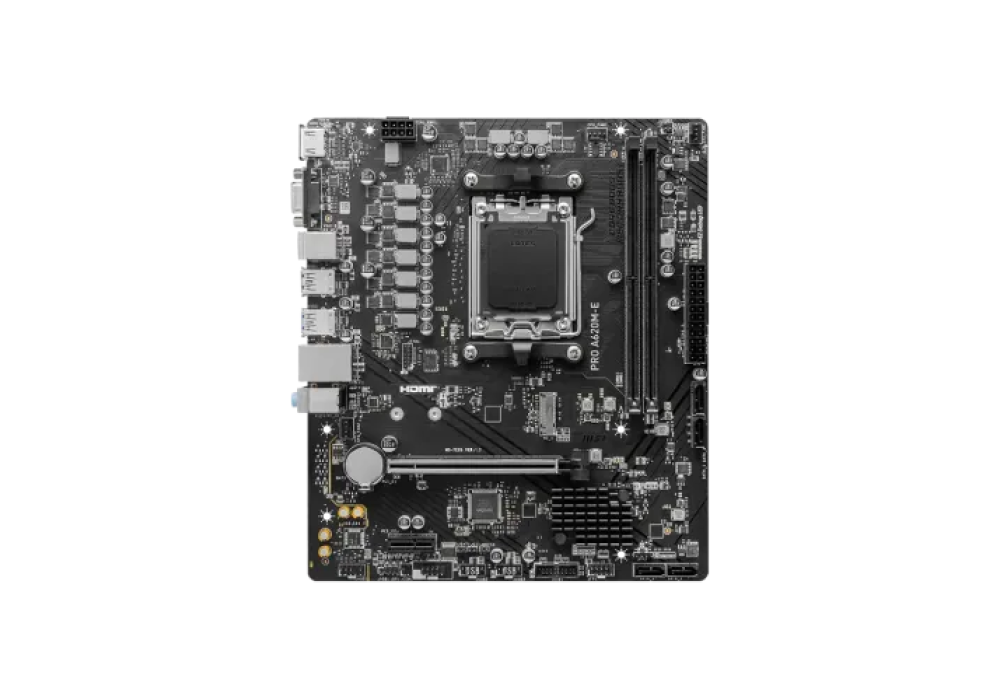

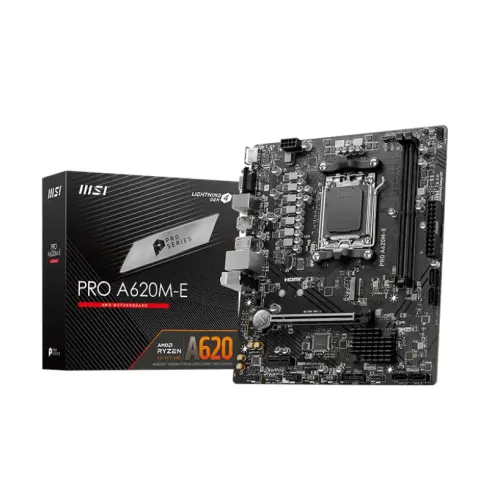

MSI PRO A620M-E DDR5 AMD AM5 mATX Motherboard
MSI PRO A620M-E AMD AM5 mATX motherboard is compatible with the latest AMD Ryzen 7000 Series desktop processors. With support for DDR5 Memory and Dual Channel DDR5 6000+MHz (OC), the motherboard offers lightning-fast memory speeds and enhanced performance. The Core Boost technology, combined with premium layout and digital power design, ensures optimal power delivery to support more cores and provide better overall performance. The Memory Boost feature delivers pure data signals using cutting-edge technology to ensure the best performance, stability, and compatibility. The Lightning Gen 4 x4 M.2 support and PCIe 4.0 slot, which enable quicker data transfer and shorter loading times, will delight gamers with a lightning-fast gaming experience. The MSI PRO A620M-E Motherboard has Audio Boost, which provides studio-quality sound for a realistic gaming experience. The MSI PRO A620M-E provides better performance, stability, and strength thanks to Steel Armor, which shields VGA cards from bending and EMI interference. This makes it a great option for putting together a powerful gaming setup.
Quick Compare
Comparison of PRO A620M-E vs PRIME A520M-A II vs A620M H vs B550M-A PRO which are most simmiler.
| Product | MSI PRO A620M-E DDR5 AMD AM5 mATX Motherboard | Asus PRIME A520M-A II AM4 micro ATX Motherboard | GIGABYTE A620M H AM5 Micro-ATX Motherboard | MSI B550M-A PRO AM4 Micro ATX AMD Motherboard |
| Image | |
|
|
|
| Price | |
|
|
|
| Model | PRO A620M-E | PRIME A520M-A II | A620M H | B550M-A PRO |
| Brand | MSI | Asus | Gigabyte | MSI |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | MSI PRO A620M-E DDR5 AMD AM5 mATX MotherboardMSI PRO A620M-E AMD AM5 mATX motherboard is compatible with the latest AMD Ryzen 7000 Series desktop processors. With support for DDR5 Memory and Dual Channel DDR5 6000+MHz (OC), the motherboard offers lightning-fast memory speeds and enhanced performance. The Core Boost technology, combined with premium layout and digital power design, ensures optimal power delivery to support more cores and provide better overall performance. The Memory Boost feature delivers pure data signals using cutting-edge technology to ensure the best performance, stability, and compatibility. The Lightning Gen 4 x4 M.2 support and PCIe 4.0 slot, which enable quicker data transfer and shorter loading times, will delight gamers with a lightning-fast gaming experience. The MSI PRO A620M-E Motherboard has Audio Boost, which provides studio-quality sound for a realistic gaming experience. The MSI PRO A620M-E provides better performance, stability, and strength thanks to Steel Armor, which shields VGA cards from bending and EMI interference. This makes it a great option for putting together a powerful gaming setup... | Asus PRIME A520M-A II AM4 micro ATX MotherboardAsus PRIME A520M-A II is a micro ATX motherboard designed for the AMD A520 chipset, specifically for Ryzen AM4 processors. It features a range of connectivity options and support for various components to meet the needs of both daily users and DIY PC builders. The motherboard supports AMD AM4 socket processors, including the Ryzen 5000 Series, 4000 G-Series, and 3000 Series desktop processors. This provides users with a wide range of options when it comes to choosing a compatible CPU. To ensure stable performance and prevent overheating, the Asus PRIME A520M-A II incorporates comprehensive cooling features. These include a VRM heatsink, PCH heatsink, and Fan Xpert 2+ technology, which helps to optimize fan speeds and keep the system cool during intense usage. The motherboard offers an M.2 slot, which supports high-speed NVMe storage for faster data transfer. It also includes 1 Gb Ethernet for reliable network connectivity and USB 3.2 Gen 1 Type-A ports for fast data transfer with compatible devices. The Asus PRIME A520M-A II is its supports for Aura Sync RGB lighting. The motherboard includes onboard RGB headers and addressable Gen 2 headers, allowing users to connect RGB LED strips and synchronize the lighting effects with other Aura Sync-capable hardware. The Asus PRIME A520M-A II is a well-engineered motherboard that provides a solid foundation for building a Ryzen-based system. With its power design, cooling solutions, and performance tuning options, it offers a range of features to enhance the overall computing experience... | Gigabyte A620M H AM5 Motherboard – Best Performance DDR5 Motherboard in BangladeshThe Gigabyte A620M H AM5 Motherboard is a high-performance, feature-rich motherboard designed for AMD Ryzen 7000, 8000, and 9000 series processors. With the AM5 socket and Micro-ATX form factor (23.0cm x 22.5cm), it offers compact yet powerful performance, making it ideal for gamers, content creators, and professionals seeking stability and efficiency. This motherboard supports DDR5 memory with up to 96GB capacity across 2 DIMM slots, including AMD EXPO™ and XMP memory modules for seamless overclocking and dual-channel performance. Equipped with a robust chipset and BIOS, the A620M H uses a licensed AMI UEFI BIOS with PnP 1.0a, DMI 2.7, and ACPI 5.0, ensuring smooth system operations and enhanced compatibility. Its expansion slots include one PCI Express x16 slot supporting PCIe 4.0 for Ryzen 7000 series and multiple PCIe 3.0 slots for additional cards. Storage options include 1 M.2 Socket 3 connector for high-speed NVMe SSDs and 4 SATA 6Gb/s connectors, providing flexible storage configurations. The motherboard delivers rich connectivity with USB 3.2 Gen 1 and USB 2.0 ports, HDMI 2.1, DisplayPort 1.4, and Realtek GbE LAN, ensuring fast data transfer, high-quality visuals, and stable network performance. Audio enthusiasts benefit from Realtek high-definition audio supporting 2/4/5.1/7.1-channel setups. Additional internal connectors include RGB headers, multiple fan headers, and a front panel header for full customization. Special features like GIGABYTE Control Center (GCC), Q-Flash, and Q-Flash Plus make BIOS management, firmware updates, and system monitoring simple. Bundled software includes Norton Internet Security OEM version and LAN bandwidth management software. Backed by a 3-year manufacturing warranty, the Gigabyte A620M H AM5 ensures reliable, long-term performance for all PC builds in Bangladesh.Key Features of Gigabyte A620M H AM5 MotherboardAM5 Socket & CPU Support: Compatible with AMD Ryzen 7000, 8000, and 9000 series processors, providing robust performance for gaming, content creation, and professional applications.High-Speed DDR5 Memory: Supports up to 96GB DDR5 RAM across 2 DIMM slots, featuring AMD EXPO™ and XMP profiles for overclocking and dual-channel memory architecture.Advanced Expansion Options: Equipped with 1 PCIe x16 slot for graphics cards or NVMe SSDs and 1 PCIe x1 slot for additional expansion, supporting PCIe 4.0 and 3.0 standards.Flexible Storage Connectivity: Includes 1 M.2 Socket 3 connector and 4 SATA 6Gb/s ports, enabling high-speed NVMe SSDs and multiple SATA storage devices.Rich Connectivity & Ports: Features HDMI 2.1, DisplayPort 1.4, multiple USB 3.2/2.0 ports, PS/2 port, and Realtek GbE LAN for fast networking and high-resolution display support.Premium Audio & Graphics: Realtek high-definition audio supports 2/4/5.1/7.1-channel setups, while graphics support up to 4096x2160@60Hz via HDMI and 3840x2160@144Hz via DisplayPort.Gigabyte A620M H Price in BangladeshUpgrade your PC with the Gigabyte A620M H AM5 Micro-ATX Motherboard, now available at 11,400৳ from Onix BD. Designed for AMD Ryzen 7000, 8000, and 9000 series processors, it supports DDR5 memory up to 96GB with AMD EXPO™ and XMP profiles for high-speed performance. Features include 1 PCIe x16 slot for graphics or NVMe SSD, 1 M.2 connector, 4 SATA 6Gb/s ports, HDMI 2.1, DisplayPort 1.4, multiple USB 3.2/2.0 ports, Realtek high-definition audio, and Realtek GbE LAN. Special tools like GIGABYTE Control Center, Q-Flash, and Q-Flash Plus ensure easy BIOS updates and system management.Which processors are compatible with the Gigabyte A620M H?This motherboard supports AMD Ryzen 7000, 8000, and 9000 series processors with the AM5 socket, making it suitable for high-performance gaming and productivity builds.What type and capacity of memory does it support?The A620M H supports DDR5 memory up to 96GB across 2 DIMM slots, including AMD EXPO™ and XMP profiles for overclocking and dual-channel performance.What storage options are available on this motherboard?It features 1 M.2 Socket 3 connector for NVMe SSDs and 4 SATA 6Gb/s ports for traditional storage drives, offering flexible and high-speed storage solutions.Does it support high-resolution displays and modern graphics?Yes, it supports HDMI 2.1 up to 4096x2160@60Hz and DisplayPort 1.4 up to 3840x2160@144Hz, along with PCIe 4.0 for modern graphics cards and NVMe SSDs... | MSI B550M-A PRO AM4 Micro ATX AMD MotherboardMSI B550M A PRO AM4 Micro ATX AMD Motherboard Supports AMD Ryzen 5000 3000 Series desktop processors not compatible with AMD Ryzen 5 3400G Ryzen 3 3200G and AMD Ryzen 4000 G Series desktop processors Supports DDR4 Memory up to 4600 OC MHz It has a premium layout and digital power design to support more cores and provide better performance Made with 2oz Thickened Copper PCB An enhanced PCB design improves heat dissipation and performance reliability For the superior sound quality it has studio-grade sound quality All new dragon center software which integrates all MSI exclusive tools with the user-friendly user interface... |
