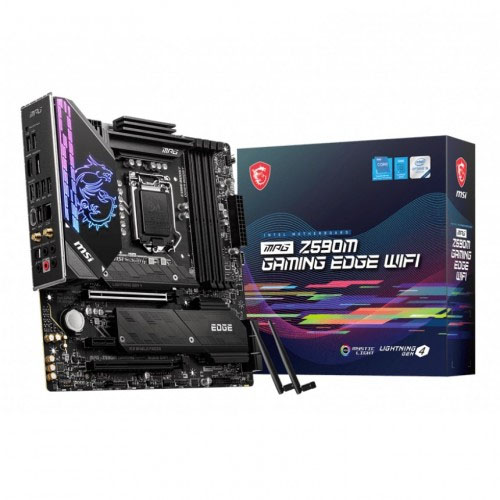

MSI MPG Z590M GAMING EDGE WIFI 10th and 11th Gen M-ATX Motherboard

Save1200 ৳

MSI MPG Z590M GAMING EDGE WIFI 10th and 11th Gen M-ATX Motherboard

Special Price: 26,700৳
Price: 27,900৳
Stock: In Stock
Brand: MSI
Model: MPG Z590M GAMING EDGE WIFI
Product ID: 4414

Based on 0 reviews. - Write a review

26,700৳

27,900৳

EMI starts at 9,363৳/month. View all 25 banks EMI plans >

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Key Features

- Supports 10th and 11th Gen Intel processors for LGA 1200 socket
- Lightning Fast Game experience
- 8+4 pin CPU power connectors
- 2.5G LAN & Intel Wi-Fi 6E Solution

অর্ডার করার আগে স্টক এবং দাম সম্পর্কে নিশ্চিত হয়ে নিন : 01885938356

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200
Chipset	Intel Z590 Chipset
Form Factor	Micro-ATX Form Factor
Audio	Realtek ALC4080 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	2x PCIe x16 slots Support x16/x4 PCI_E1 (From CPU) Supports up to PCIe 4.0 for 11th Gen Intel CPU Supports up to PCIe 3.0 for 10th Gen Intel CPU PCI_E3(From Z590 Chipset) Support up to PCIe 3.0 1x PCIe 3.0 x1 slots (From Z590 Chipset)
M.2 Socket	2x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From Z590 Chipset) Support up to PCIe 3.0 x4 Support up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane Memory Ready
Memory Specifications
Type	DDR4
Slots	4x DDR4 memory slots
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC mode, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Max. Memory	Up to 128GB
Connector & Ports
HDMI	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Display Port (s)	1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
USB (s)	Intel Z590 Chipset 1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel) 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 2 ports are available through the internal connectors) 2x USB 2.0 ports on the back panel Hub-GL850G 4x USB 2.0 ports are available through the internal connectors
LAN Port (s)	1x Intel I225V 2.5Gbps LAN controller
Wireless Communication module	Intel Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2z, FIPS, FISMA
Supported Storage	6x SATA 6Gb/s ports (From Z590 Chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From Z590 Chipset) Support up to PCIe 3.0 x4 Support up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2-pin system fan connectors 1x Front panel audio connectors 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Tuning Controller connector 1x TBT connector (supports RTD3)
TPM (Trusted Platform Module )	1x TPM module connector
Graphics
Graphics	1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology
Warranty Information
Manufacturing Warranty	03 years warranty

MSI MPG Z590M GAMING EDGE WIFI 10th and 11th Gen M-ATX Motherboard

MSI MPG Z590M GAMING EDGE WIFI 10th and 11th Gen M-ATX Motherboard support 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket. It supports DDR4 Memory, up to 5333(OC) MHz. It offers Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. It comes with Enhanced Power Design, a 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost. Enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and 2x M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. it features MYSTIC LIGHT, 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip. It comes with 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. It includes AUDIO BOOST 5, Reward your ears with the studio-grade sound quality for the most immersive gaming experience. It is built with a High-Quality PCB. 6-layer PCB made by 2oz thickened copper and server grade level material. It comes with pre-installed I/O Shield: Better EMI protection and more convenience for installation.
