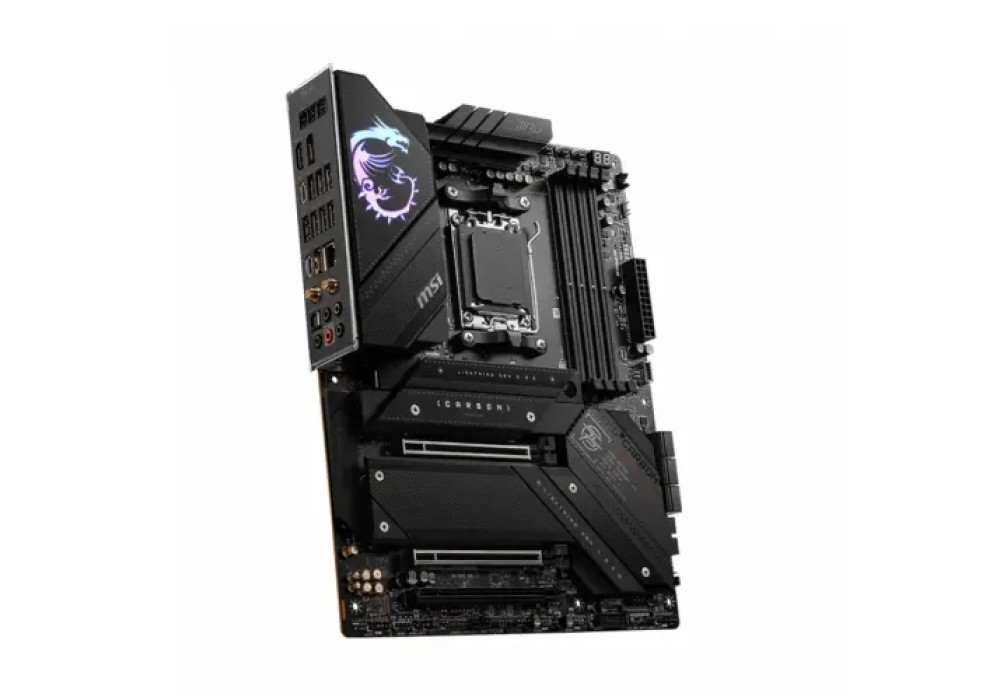

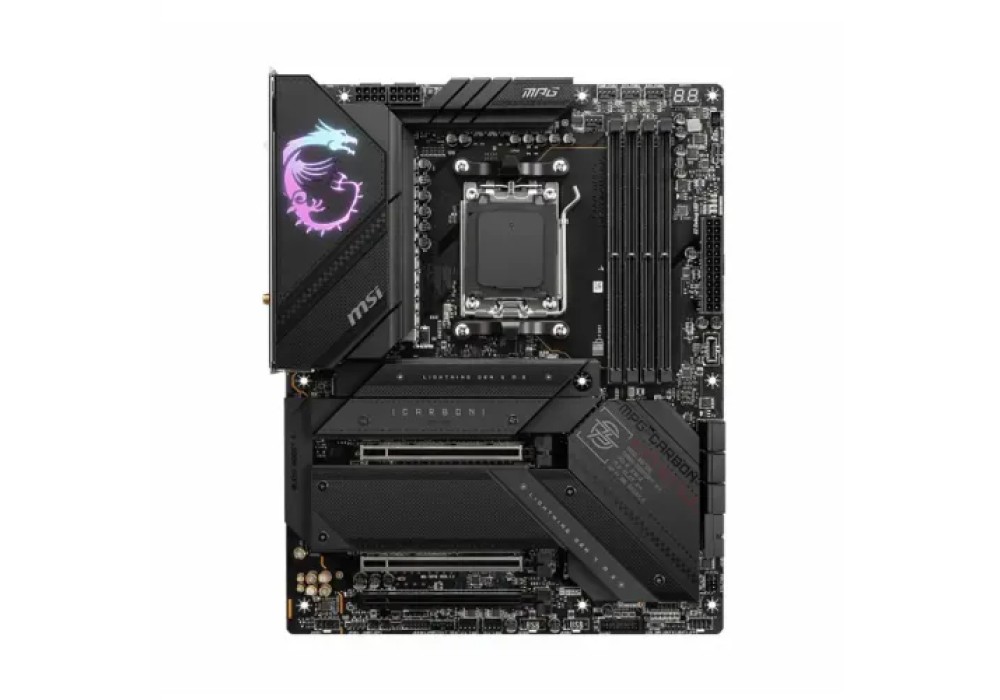

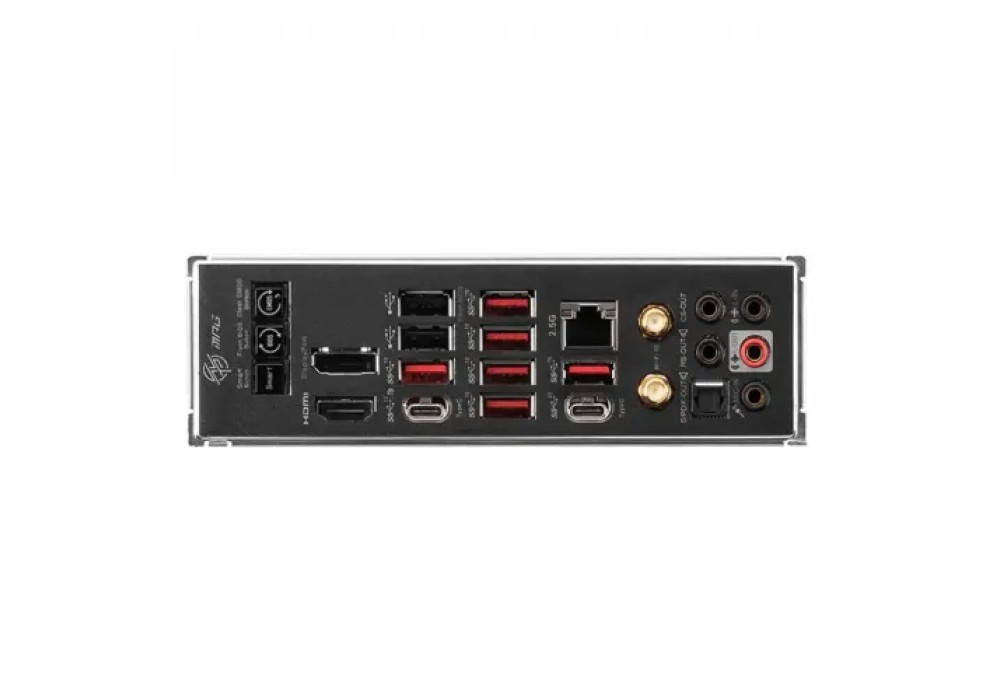

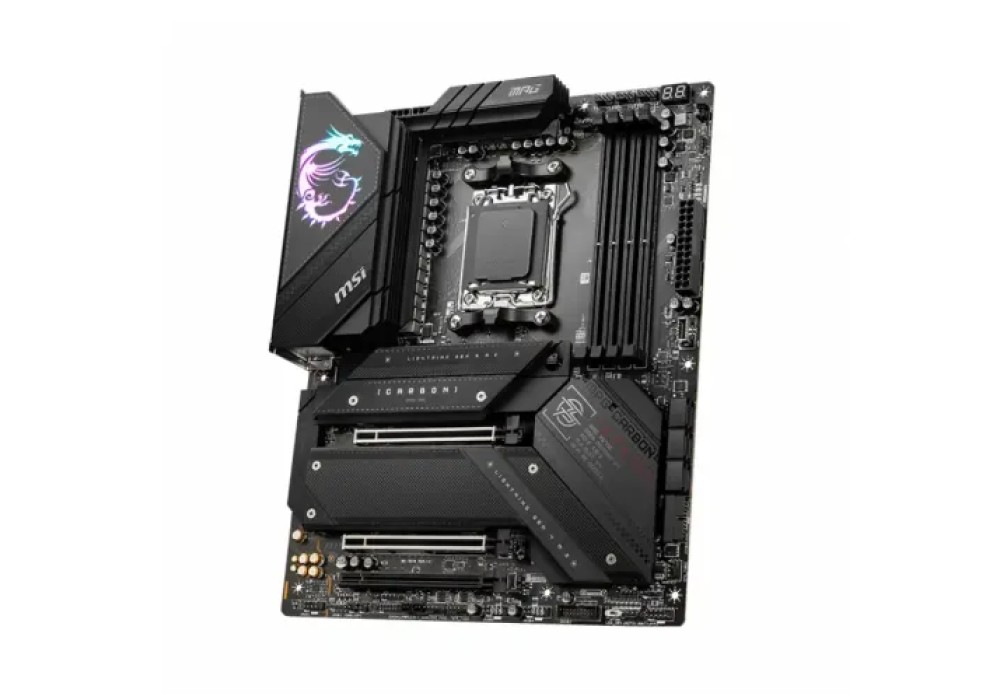

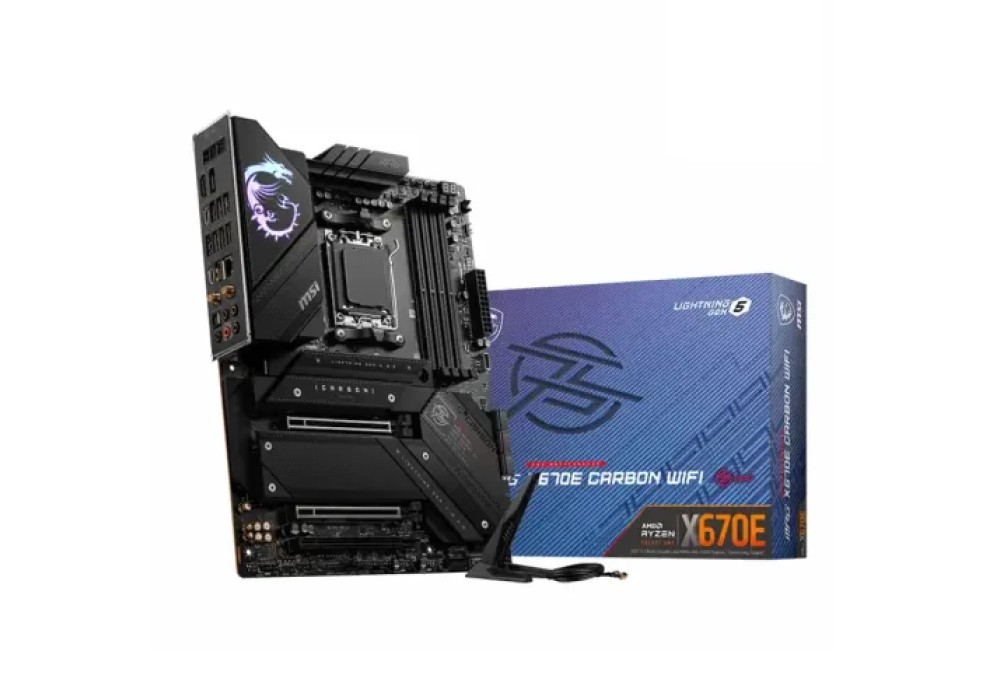

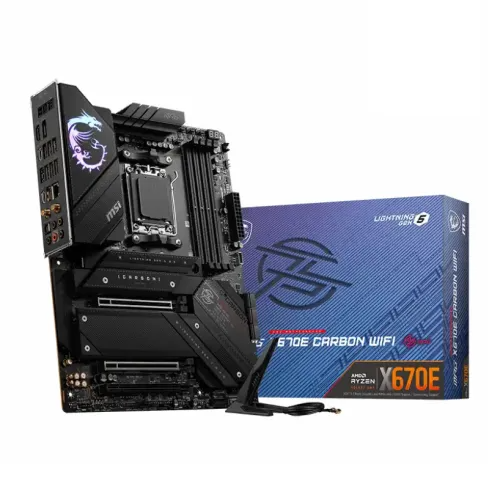

- MSI MPG X670E CARBON WIFI DDR5 AMD AM5 ATX Motherboard
- Stock: In Stock
- Model: MPG X670E CARBON WIFI
EMI starts at 19,462৳/month.
- Supported CPU Ryzen 7000 Series Processors for Socket AM5
- Supported RAM 4x DDR5, Max 128GB
- Graphics Output 1x HDM 1x Display Port 1x Type-C Display port
- Features 2.5G LAN and Wi-Fi 6E Solution
| Basic Information | |
| Supported CPU | Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD X670 |
| Form Factor | ATX 304.8mmx243.84mm |
| Audio | Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Expansion Slots | |
| PCI | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2 3x PCIe 3.0 x1 slots |
| Memory Specifications | |
| Memory Type | DDR4 |
| Slots | 4 DIMMs |
| Supported Memory Type | Dual Channel DDR5 |
| Max. Memory | 128GB |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x Display Port |
| USB (s) | 2x USB 2.0 ports (Rear) 4x USB 2.0 ports (Front) 4x USB 3.2 Gen1 Type A ports (Front) 6x USB 3.2 Gen2 Type A ports (Rear) 1x USB 3.2 Gen2 Type C ports (Rear) 1x USB 3.2 Gen2 Type C ports (Front) 1x USB 3.2 Gen2x2 Type C ports (Rear) |
| LAN Port (s) | Realtek RTL8125BG 2.5Gbps LAN |
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
| Supported Storage | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Graphics | |
| Graphics | 1x HDMI Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz 1x Display Port Support DP 1.4, maximum resolution of 4K 60Hz 1x Type-C Display port Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz Supports AMD MULTI-GPU |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
MSI MPG X670E CARBON WIFI DDR5 AMD AM5 ATX Motherboard
The MSI MPG X670E CARBON WIFI Motherboard supports AMD Ryzen 7000 Series Desktop Processors. The latest MSI MPG X670E CARBON WIFI supports DDR5 Memory, Maximum Memory Capacity of up to 128GB. It features an 18+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, and Memory Boost. It has an extended Heatsink with a Direct Touched Heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and a Double-sided M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. The motherboard is made of an 8-layer PCB made of 2oz thickened copper and server-grade level material. The MSI MPG X670E CARBON WIFI offer PCIe Gen 5 transfers from both the primary GPU slot and the primary M.2 slot and DisplayPort 2.0-out from the rear USB Type-C. It also supports ARGB Gen2 for connecting various RGB lighting peripherals. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MPG X670E CARBON WIFI Motherboard offers 2x PCIe Gen 5 x16 slots and 4x M.2 slots. There's an 18+2 90A VRM power phase system, which is cooled by an extended heatsink. The MEG series offers a stacked fin array heatsink and a heatpipe along with a MOSFET baseplate for effective heat dissipation from the VRMs. Four onboard M.2 slots are available including one PCIe Gen 5 slot. MSI additionally offers an M.2 Xpander-Z add-on card in the box that provides for two additional PCIe Gen 5 x4 M.2 slots.
Quick Compare
Comparison of MPG X670E CARBON WIFI vs X870E Nova WiFi vs X870E AORUS PRO ICE vs TUF GAMING X870-PLUS WIFI which are most simmiler.
| Product | MSI MPG X670E CARBON WIFI DDR5 AMD AM5 ATX Motherboard | ASRock X870E Nova WiFi AM5 DDR5 ATX Motherboard | Gigabyte X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard | Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard |
| Image | |
|
|
|
| Price | 55,500৳ | |
|
|
| Model | MPG X670E CARBON WIFI | X870E Nova WiFi | X870E AORUS PRO ICE | TUF GAMING X870-PLUS WIFI |
| Brand | MSI | ASRock | Gigabyte | Asus |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 1 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | MSI MPG X670E CARBON WIFI DDR5 AMD AM5 ATX MotherboardThe MSI MPG X670E CARBON WIFI Motherboard supports AMD Ryzen 7000 Series Desktop Processors. The latest MSI MPG X670E CARBON WIFI supports DDR5 Memory, Maximum Memory Capacity of up to 128GB. It features an 18+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, and Memory Boost. It has an extended Heatsink with a Direct Touched Heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and a Double-sided M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. The motherboard is made of an 8-layer PCB made of 2oz thickened copper and server-grade level material. The MSI MPG X670E CARBON WIFI offer PCIe Gen 5 transfers from both the primary GPU slot and the primary M.2 slot and DisplayPort 2.0-out from the rear USB Type-C. It also supports ARGB Gen2 for connecting various RGB lighting peripherals. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MPG X670E CARBON WIFI Motherboard offers 2x PCIe Gen 5 x16 slots and 4x M.2 slots. There's an 18+2 90A VRM power phase system, which is cooled by an extended heatsink. The MEG series offers a stacked fin array heatsink and a heatpipe along with a MOSFET baseplate for effective heat dissipation from the VRMs. Four onboard M.2 slots are available including one PCIe Gen 5 slot. MSI additionally offers an M.2 Xpander-Z add-on card in the box that provides for two additional PCIe Gen 5 x4 M.2 slots... | ASRock X870E Nova WiFi AM5 DDR5 ATX Motherboard – Premium Platform for Next-Gen Ryzen Builds The ASRock X870E Nova WiFi AM5 DDR5 ATX Motherboard is a top-tier foundation for high-performance AMD Ryzen 7000 and future-generation systems. Built with the AM5 socket and support for DDR5 memory, this motherboard delivers exceptional bandwidth, responsiveness, and stability for demanding gaming, content creation, and productivity workloads. Integrated WiFi ensures fast and reliable wireless connectivity right out of the box, while the ATX form factor provides ample space for expansion and cooling solutions. With advanced power delivery, robust thermal design, and versatile connectivity options including PCIe 5.0, USB 3.2 Gen 2×2, and multiple M.2 slots, the X870E Nova is ideal for enthusiasts and professionals seeking cutting-edge performance and future-proof features. Features of ASRock X870E Nova WiFi AM5 DDR5 ATX Motherboard AM5 socket supporting AMD Ryzen 7000 and newer processors DDR5 memory support for high-speed performance Built-in WiFi for seamless wireless networking ATX form factor with strong expandability PCIe 5.0 slots for next-gen graphics and storage Multiple M.2 NVMe SSD slots and USB 3.2 Gen 2×2 ports Next-Gen Performance with DDR5 & PCIe 5.0 The ASRock X870E Nova combines DDR5 memory support with PCIe 5.0 readiness to provide the fastest possible data pathways for memory, graphics, and storage, ensuring high-end performance for gaming, content creation, and professional applications. Built-In WiFi & Modern Connectivity With integrated WiFi, high-speed LAN, and abundant USB connectivity, this motherboard delivers versatile networking and peripheral support without needing additional expansion cards. Multiple M.2 slots also allow lightning-fast NVMe storage configurations. Why Choose ASRock X870E Nova WiFi AM5 DDR5 ATX Motherboard? Choose the ASRock X870E Nova for a premium AMD platform that combines future-ready technology, robust build quality, and comprehensive connectivity. It’s an excellent choice for gamers, creators, and power users building high-end AMD PCs. Benefits of ASRock X870E Nova WiFi AM5 DDR5 ATX Motherboard Support for the latest Ryzen processors and DDR5 memory Built-in WiFi for fast wireless connectivity Next-gen PCIe 5.0 support for graphics and SSDs Flexible storage and expansion options Excellent build quality and stability Frequently Asked Questions (FAQ) Q1: Does this motherboard support AMD Ryzen 7000 series CPUs?A1:Yes, it supports AMD Ryzen 7000 series and future AM5 processors. Q2: Does it include built-in WiFi?A2:Yes, the ASRock X870E Nova comes with integrated WiFi for wireless networking. Q3: What memory type does this motherboard support?A3:It supports high-speed DDR5 memory modules... | Gigabyte X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard Step into the next era of computing with the Gigabyte X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard, a powerhouse designed for gamers, content creators, and performance enthusiasts alike. Built on the advanced AM5 platform and supporting DDR5 memory, this motherboard ensures lightning-fast data transfer, ultra-responsive multitasking, and seamless gaming experiences. Its robust ATX design comes with premium components, enhanced cooling solutions, and superior power delivery, allowing your CPU to perform at its peak under heavy workloads. Featuring the latest connectivity standards, including PCIe 5.0, high-speed USB ports, and next-gen networking capabilities, it provides the ultimate foundation for high-end builds. Whether you’re pushing the limits of gaming, rendering, or streaming, the X870E AORUS PRO ICE delivers unmatched stability, speed, and reliability. Elevate your PC setup with a motherboard engineered for future-ready performance and uncompromising quality. Key Features of Gigabyte X870E AORUS PRO ICE DDR5 ATX Motherboard AM5 Platform & DDR5 Support: Future-proof motherboard supporting the latest AMD CPUs and ultra-fast DDR5 memory for exceptional performance. Experience lightning-fast data transfer speeds and improved multitasking, making it ideal for gaming, streaming, and content creation. Advanced Thermal Design: Equipped with high-quality heatsinks and efficient cooling solutions to maintain stable performance under heavy workloads. The optimized airflow and thermal guards help prevent overheating, ensuring consistent performance during intense gaming or demanding applications. PCIe 5.0 & High-Speed Connectivity: Supports next-gen graphics cards and NVMe SSDs for maximum bandwidth and low-latency performance. With multiple high-speed ports, you can connect the latest peripherals and storage devices without compromise. Robust Power Delivery: Premium components and enhanced VRM design ensure stable and reliable power for overclocking and demanding tasks. This guarantees your CPU and GPU perform at their peak without instability, even under heavy loads. Next-Gen Networking: Integrated high-speed Ethernet and Wi-Fi solutions provide seamless online gaming, streaming, and data transfers. Enjoy low latency connections and consistent network stability for professional or leisure use. Customizable RGB & AORUS Software: Fully customizable lighting and performance tuning software allow you to personalize your PC build. Sync RGB with other AORUS components and fine-tune system performance effortlessly for a visually stunning setup. Build PC with Gigabyte X870E AORUS PRO ICE DDR5 ATX Motherboard Looking for a high-performance motherboard? The GIGABYTE AMD X870E AORUS PRO Motherboard from Onix BD delivers unmatched speed, stability, and reliability for modern builds. Perfect for all Motherboard enthusiasts and AMD Ryzen Motherboard users, it supports DDR5 memory, PCIe 5.0 graphics, and advanced cooling for seamless gaming and multitasking. With robust power delivery and customizable RGB lighting, this motherboard ensures your PC performs at its peak. Upgrade your system today with Onix BD’s premium solution designed for gamers and creators alike... | Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX MotherboardThe ASUS TUF GAMING X870-PLUS WIFI DDR5 is a cutting-edge ATX motherboard designed to support the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors on the AM5 socket. Powered by the robust AMD X870 chipset, this board delivers exceptional performance, next-gen connectivity, and unmatched durability, making it ideal for gamers, content creators, and PC enthusiasts. With support for DDR5 memory up to 8000+ MT/s (OC) and a max capacity of 192GB, this board ensures high-speed multitasking and future-ready computing. It features four M.2 slots (including PCIe 5.0 x4 for ultra-fast NVMe SSDs) and 2x SATA 6Gb/s ports, offering flexible storage expansion and RAID configurations via AMD RAIDXpert2 Technology. Graphics and display outputs are powered by 1x HDMI port and 2x USB4 Type-C ports, supporting up to 4K displays, perfect for high-definition gaming and productivity. The board also boasts Wi-Fi 7 (802.11be), Bluetooth 5.4, and Intel 2.5Gb Ethernet with TUF LANGuard for top-tier network performance. It includes extensive USB connectivity with 2x USB4 (40Gbps) ports, USB 20Gbps with up to 30W fast charging, and multiple USB 10Gbps/5Gbps/2.0 ports. The premium audio experience is ensured by the Realtek ALC1220P 7.1 codec, featuring studio-grade sound and headphone amplification. ASUS enhances the build experience with Q-Design features like PCIe Q-Release, M.2 Q-Latch, and a pre-mounted I/O shield, while TUF Protection and a comprehensive thermal solution provide long-term reliability. Bundled software includes Armoury Crate, Fan Xpert 4 (AI Cooling II), USB Wattage Watcher, and more. The ASUS TUF GAMING X870-PLUS WIFI DDR5 is the perfect foundation for a powerful, reliable, and future-proof AMD desktop build... |
