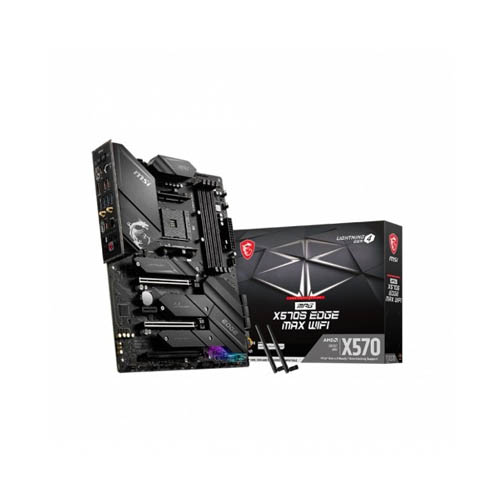

Model: MPG X570S EDGE MAX WIFI
View More Info...
Chat Through
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports Socket AM4 |
| Chipset | AMD X570 Chipset |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Audio | Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Memory Type | DDR4 |
| Slots | 4x DDR4 memory slots |
| Supported Memory Type | Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Max frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5300 MHz 1DPC 2R Max speed up to 4266 MHz 2DPC 1R Max speed up to 4400 MHz 2DPC 2R Max speed up to 3600 MHz For Ryzen 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Max. Memory | 128GB |
| HDMI | 1x HDMI 2.1 with HDR port |
| USB (s) | AMD X570 Chipset 1x USB 3.2 Gen 2 10Gbps Type-C internal connector 4x USB 3.2 Gen 1 5Gbps ports are available through internal USB connectors 2x USB 2.0 ports on the back panel Asmedia® 1074 Chipset 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel GL850G Hub 4x USB 2.0 ports are available through the internal USB connectors AMD Processor 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports and 1 Type-C port on the back panel) |
| LAN Port (s) | 1x Realtek RTL8125B 2.5 Gbps LAN controller |
| Supported Storage | 6x SATA 6Gb/s ports (From X570 chipset) 3x M.2 slots (Key M) Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors Support SATA 6Gbps M2_1 (From processor) Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 (From X570 chipset) Supports 2242/ 2260/ 2280 storage devices M2_3 (From X570 chipset) Supports 2242/ 2260/ 2280 storage devices |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 2x USB 2.0 connectors (support additional 4 USB ports) 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB ports) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 2-pin Thermal sensors connector 1x Tuning Controller connector |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology |
| Warranty | 03 years warranty |
The MPG X570S EDGE MAX WiFi has a powerful VRM platform for the AMD X570 chipset (AM4, Ryzen 5000 series ready) with a 12 Duet Rail Power System 75 A PLC (8-pin and 4-pin connector)
VRM heat dissipation pads (7 W/mK) direct heat to aluminium heat sinks, which work together via a two-sided heat pipe to regulate peak temperatures. Comes with Mystic light effects and Frozr AI heat detection
Two PCIe 4.0 x16 slots support 2-way AMD CrossFire technology. Four DIMMs with DDR4-boost architecture enable faster SDRAM for overclocking (5300+MHz/OC)
The memory includes 3 x M.2 Gen4 x4 64-GB/s slots with Shield Frozr to prevent thermal throttling during ultra-fast SSD access
Equipped with WiFi 6E AX210 (ultra-low latency, high bandwidth) and Bluetooth 5.2 technology. USB 3.2 Gen 2 Type-C (10Gb/s) connection, 4 K/60 Hz HDMI 2.1 display, 2.5G LAN and 7.1 HD Audio with Audio Boost 5
Supports AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, 3000, 3000 G Series, 2000 and 2000 G-Series processors (AM4)
12 Duet Rail Power System with 75 A PLCs
