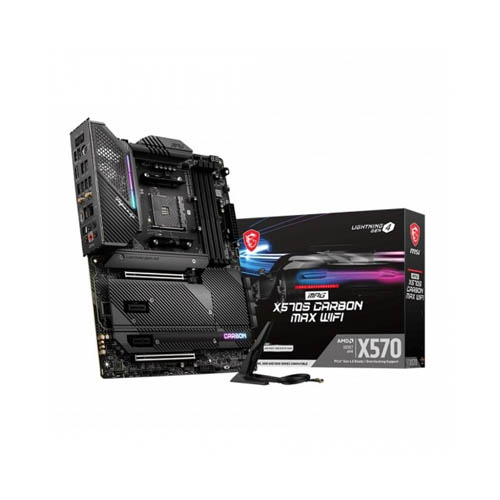

Model: MPG X570S CARBON MAX WIFI
View More Info...
Chat Through
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports Socket AM4 |
| Chipset | AMD X570 Chipset |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Audio | Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Memory Type | DDR4 |
| Slots | 4x DDR4 memory slots |
| Supported Memory Type | Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Max frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5300 MHz 1DPC 2R Max speed up to 4266 MHz 2DPC 1R Max speed up to 4400 MHz 2DPC 2R Max speed up to 3600 MHz For Ryzen 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Max. Memory | 128GB |
| HDMI | 1x HDMI 2.1 with HDR port |
| USB (s) | AMD X570 Chipset 1x USB 3.2 Gen 2 10Gbps Type-C internal connector 4x USB 3.2 Gen 1 5Gbps ports are available through internal USB connectors 2x USB 2.0 ports on the back panel Asmedia® 1074 Chipset 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel GL850G Hub 4x USB 2.0 ports are available through the internal USB connectors AMD Processor 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports and 1 Type-C port on the back panel) |
| LAN Port (s) | 1x Realtek RTL8125B 2.5 Gbps LAN controller |
| Supported Storage | 8x SATA 6Gb/s ports (From X570 chipset) 4x M.2 slots (Key M) Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors M2_1 (From processor) Supports 2242/ 2260/2280/22110 storage devices Supports up to SATA 6Gb/s M2_2, M2_31 and M2_4 slots (from AMD X570 Chipset) M2_2 & M2_4 slots support 2242/ 2260/ 2280 storage devices M2_3 slot supports 2242/ 2260/2280/22110 storage devices M2_2 & M2_3 slots support up to SATA 6Gb/s Supports RAID 0, RAID 1 and RAID 10 |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 8x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 2-pin Thermal sensor connector 1x Clear CMOS jumper |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology |
| Warranty | 03 years warranty |
Supports AMD Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series and 2000 G-series desktop processors
Supports DDR4 Memory, up to 5300+(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
Enhanced Power Design: 14+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost
Premium Thermal Solution: Aluminum cover, heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation
