- Stock: In Stock
- Model: MPG B650 EDGE WIFI
- Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 6600+(OC) MHz
- Graphics Output: 1x HDMI, 1x Display Port
- Features: 2.5G LAN and AMD Wi-Fi 6E Solution
| General | |
| Type | DDR5 |
| Basic Information | |
| Supported CPU | Supports AMD Ryzen 8000 & 7000 Series Desktop Processors
Socket AM5 |
| Chipset | AMD X670 |
| Form Factor | ATX, 243.84mmx304.8mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x2 (From Chipset) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset) |
| Memory Specifications | |
| Memory Size | 128GB |
| Slots | 4 DIMMs |
| Supported Memory Type | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort, 1x Type-C DisplayPort |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN Port (s) | Realtek RTL8125BG 2.5Gbps LAN |
| Supported Storage | 3x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 4K 120Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* |
| Others Information | |
| Bundled Software | Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |

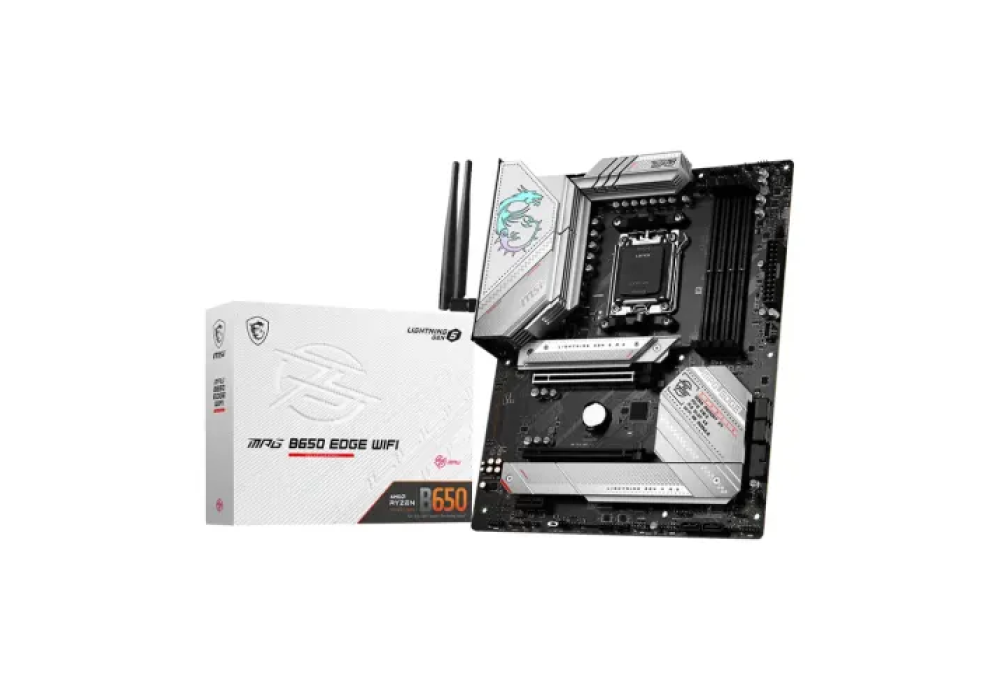

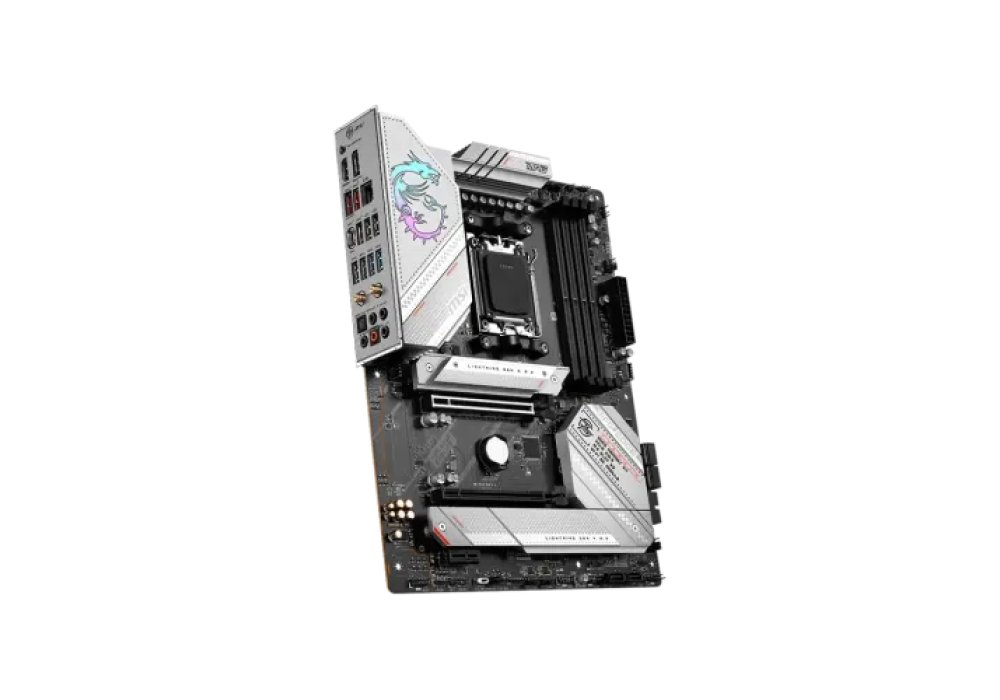

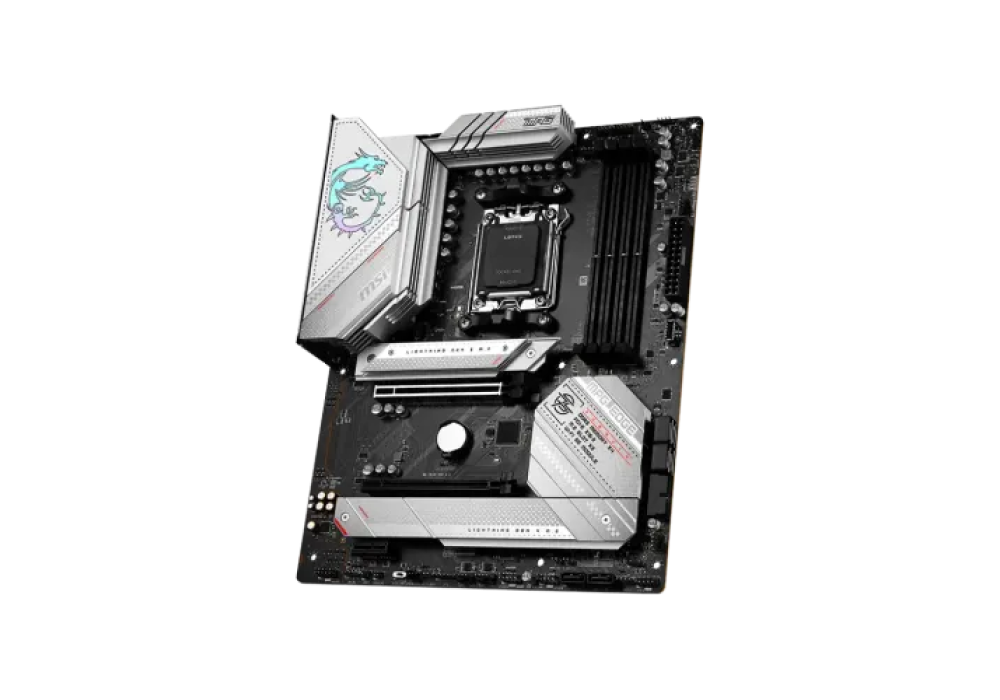

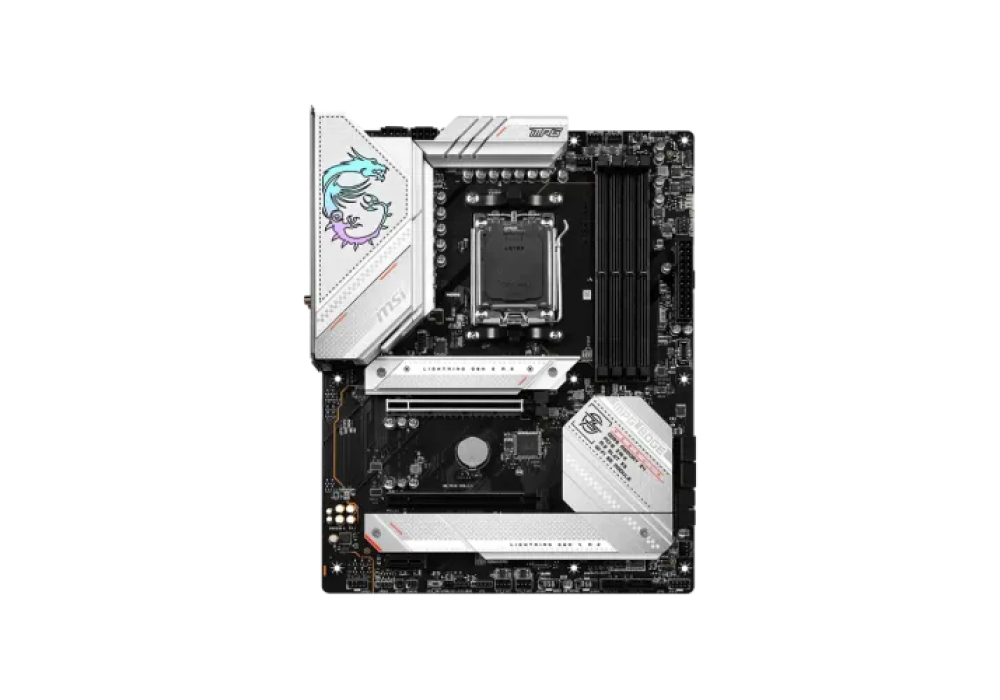

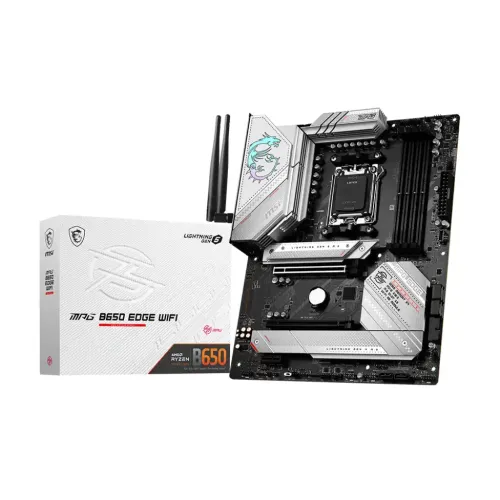

MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard
MSI MPG B650 EDGE WIFI Motherboard supports AMD's Ryzen 8000 & 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a maximum memory capacity of up to 128GB and a bus speed of up to 6600+ (OC) MHz. It features Core Boost technology that combines MSI's premium layout and optimized power design, which allows for faster and undistorted current delivery to the CPU at pin-point precision. It not only supports multi-core CPUs, but also creates the perfect conditions for CPU overclocking. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and a Double-sided M.2 Shield Frozr built for a high-performance system and a non-stop gaming experience. The motherboard is made of a 6-layer PCB made of 2 ounces of thickened copper and server-grade material. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MPG B650 EDGE WIFI offers you ample connectivity options, giving you seven USB-A 3.2 Gen 1 and 2 ports with data transfer speeds up to 5 and 10 Gb/s, respectively, suitable for a wide range of peripherals such as capture cards, microphones, and more. A single USB-C 3.2 Gen 2x2 port offers up to 20 Gb/s speeds, suitable for audio arrays. The MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20 GB/s when connecting the rear USB Type-C. The MSI MPG B650 EDGE WIFI comes with a 3-year warranty.
Quick Compare
Comparison of MPG B650 EDGE WIFI vs B850M Aorus Elite WF6E ICE vs X870 Pro RS WiFi vs B850M GAMING X WIFI6E which are most simmiler.
| Product | MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard | Gigabyte B850M Aorus Elite WF6E ICE Micro ATX AMD Motherboard | ASRock X870 Pro RS WiFi AM5 DDR5 ATX Motherboard | GIGABYTE B850M GAMING X WIFI6E AMD DDR5 Micro ATX Motherboard |
| Image | |
|
|
|
| Price | |
|
|
|
| Model | MPG B650 EDGE WIFI | B850M Aorus Elite WF6E ICE | X870 Pro RS WiFi | B850M GAMING X WIFI6E |
| Brand | MSI | Gigabyte | ASRock | Gigabyte |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 2 reviews. |
Based on 0 reviews. |
| Summary | MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX MotherboardMSI MPG B650 EDGE WIFI Motherboard supports AMD's Ryzen 8000 & 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a maximum memory capacity of up to 128GB and a bus speed of up to 6600+ (OC) MHz. It features Core Boost technology that combines MSI's premium layout and optimized power design, which allows for faster and undistorted current delivery to the CPU at pin-point precision. It not only supports multi-core CPUs, but also creates the perfect conditions for CPU overclocking. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and a Double-sided M.2 Shield Frozr built for a high-performance system and a non-stop gaming experience. The motherboard is made of a 6-layer PCB made of 2 ounces of thickened copper and server-grade material. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MPG B650 EDGE WIFI offers you ample connectivity options, giving you seven USB-A 3.2 Gen 1 and 2 ports with data transfer speeds up to 5 and 10 Gb/s, respectively, suitable for a wide range of peripherals such as capture cards, microphones, and more. A single USB-C 3.2 Gen 2x2 port offers up to 20 Gb/s speeds, suitable for audio arrays. The MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20 GB/s when connecting the rear USB Type-C. The MSI MPG B650 EDGE WIFI comes with a 3-year warranty... | Gigabyte B850M Aorus Elite WF6E ICE Micro ATX AMD MotherboardGigabyte X870M AORUS ELITE (Wi-Fi 7) Gigabyte B850M Aorus Elite WF6E ICE Micro ATX AMD Motherboard Price in BD offers exceptional performance, connectivity, and durability for modern gaming and productivity systems. Powered by the AMD B850 chipset, this motherboard supports AMD Ryzen™ 9000, 8000, and 7000 Series processors, ensuring next-gen processing speed and multitasking power. With four DDR5 DIMM slots supporting up to 256GB memory, it delivers ultra-fast data transfer and optimized system performance for demanding workloads. Designed for gamers and creators, the Gigabyte B850M Aorus Elite WF6E ICE includes PCIe 5.0 and PCIe 4.0 expansion options for the latest GPUs and NVMe SSDs, ensuring smooth graphics rendering and lightning-fast storage access. The motherboard also features Wi-Fi 6E and 2.5GbE LAN for stable, high-speed internet connectivity, perfect for online gaming and streaming. Its integrated AMD Radeon™ Graphics supports DisplayPort 1.4 and HDMI 1.4, providing 4K visual output for an immersive display experience. The Realtek® ALC1220 audio codec enhances sound clarity, ideal for gamers and professionals who value superior sound. Additionally, the board includes multiple USB 3.2 Gen 2 and USB Type-C® ports, RGB lighting headers, and Q-Flash Plus for easy BIOS updates. With durable construction, smart cooling options, and full compatibility with Windows 11, the Gigabyte B850M Aorus Elite WF6E ICE Micro ATX motherboard delivers an unbeatable balance of performance, reliability, and future-ready features — making it an excellent choice for high-performance PC builds in Bangladesh.Availability and UsabilityThe Gigabyte B850M Aorus Elite WF6E ICE Micro ATX Motherboard is now available at Onix Computer across Bangladesh. Its compact Micro ATX design ensures easy installation in most PC cases, offering wide compatibility and excellent upgrade flexibility for gamers, creators, and professionals seeking a reliable and performance-driven system foundation.FeaturesX3D Turbo Mode : Unleash new era gaming performanceDDR5 OC up to 8200MT/sAMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series ProcessorsDigital twin 12+2+2 phases VRM solutionDual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module SupportWIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installationEZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless DesignEZ-Latch Click : M.2 heatsinks with screwless designSensor Panel Link : Onboard video port for hassle-free in-chassis panel setupFriendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antennaExtended Connectivity : HDMI,DisplayportPCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effectGigabyte B850M Aorus Elite Motherboard Price in BangladeshThe Gigabyte B850M Aorus Elite WF6E ICE Micro ATX Motherboard Price in Bangladesh is set competitively at Onix Computer, making it an ideal choice for gamers and PC builders seeking premium performance at an affordable rate. Customers can purchase online or in-store and enjoy official warranty and after-sales support for complete peace of mind.Gigabyte B850M Aorus Elite Motherboard Gaming PerformanceEquipped with PCIe 5.0 support, high-speed DDR5 memory, and a reliable VRM design, this motherboard ensures stable gaming sessions and faster load times. With integrated Wi-Fi 6E, 2.5GbE LAN, and superior cooling architecture, gamers can experience smooth, uninterrupted gameplay with lower latency and consistent frame rates — ideal for AAA titles and competitive eSports gaming in 2025.User Experience OF Gigabyte B850M Aorus Elite MotherboardUsers enjoy a seamless setup process, user-friendly BIOS interface, and reliable system control through Gigabyte Control Center (GCC). The inclusion of Q-Flash Plus and Smart Fan 6 enhances customization and system stability, providing a hassle-free experience for both new builders and advanced users.Why Choose this Product from Onix Computer:Onix Computer ensures authentic Gigabyte products with full warranty, best pricing, and expert technical support. Buying from Onix guarantees reliable after-sales service, fast delivery, and genuine components — making it the trusted destination for high-performance PC parts like the Gigabyte B850M Aorus Elite WF6E ICE Motherboard in Bangladesh.Frequently Asked Questions (FAQ):Q1: Does the Gigabyte B850M Aorus Elite WF6E ICE support DDR5 RAM?A1: Yes, it supports up to 256GB of DDR5 memory across four DIMM slots.Q2: Does this motherboard include built-in Wi-Fi?A2: Yes, it features integrated Wi-Fi 6E and Bluetooth 5.3 for high-speed wireless connectivity.Q3: Is it compatible with Ryzen 9000 Series processors?A3: Absolutely. It supports AMD Ryzen™ 9000, 8000, and 7000 Series processors with AM5 socket... | ASRock X870 Pro RS WiFi AM5 DDR5 ATX Motherboard – Robust & Future-Ready AMD Platform The ASRock X870 Pro RS WiFi AM5 DDR5 ATX Motherboard is a high-performance foundation designed for modern AMD Ryzen systems. Featuring the AM5 socket, it supports Ryzen 7000 series and future processors while harnessing the power of DDR5 memory for blazing-fast performance in gaming, content creation, and multitasking. With built-in WiFi, advanced connectivity, and comprehensive expansion options, this ATX motherboard is ideal for users building a cutting-edge PC with premium stability and rich features. Its robust power delivery, multiple M.2 slots, and PCIe 5.0 support make it a great choice for enthusiasts and mainstream builders alike. Key Features of ASRock X870 Pro RS WiFi AM5 DDR5 ATX Motherboard Built-in WiFi for fast wireless networking DDR5 memory support for high bandwidth PCIe 5.0 ready for next-gen graphics and SSDs Multiple M.2 slots for ultra-fast storage Next-Gen DDR5 & PCIe 5.0 Performance The X870 Pro RS harnesses DDR5 memory and PCIe 5.0 technology to deliver faster data pathways for GPU and high-speed SSD storage, ensuring overall system responsiveness and future-proof capabilities. Comprehensive Connectivity & Built-In WiFi With integrated WiFi and a suite of USB 3.2 Gen ports, this motherboard offers strong connectivity for peripherals, high-speed networking, and external devices without requiring extra expansion cards. Why Choose ASRock X870 Pro RS WiFi AM5 DDR5 ATX Motherboard? Choose this motherboard for a balanced combination of performance, modern features, and stable operation. It’s suitable for gamers, professionals, and mainstream users who want future-ready technology and reliable performance in their AMD build. Benefits of ASRock X870 Pro RS WiFi AM5 DDR5 ATX Motherboard Support for cutting-edge Ryzen processors Enhanced performance with DDR5 memory Built-in WiFi for wireless internet access Plenty of expansion for storage and graphics Excellent option for high-end AMD builds Frequently Asked Questions (FAQ) Q1: Does this motherboard support AMD Ryzen 7000 series CPUs?A1:Yes, it supports AMD Ryzen 7000 series and compatible AM5 processors. Q2: Does it include built-in WiFi?A2:Yes, it comes with integrated WiFi for wireless connectivity. Q3: What memory type does this motherboard support?A3:It supports high-speed DDR5 memory modules... | GIGABYTE B850M GAMING X WIFI6E AMD DDR5 Micro ATX MotherboardThe GIGABYTE B850M GAMING X WIFI6E is a high-performance Micro ATX motherboard engineered for the latest generation of AMD processors. Built on the powerful AMD B650 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series Processors using the AM5 socket, ensuring future-ready compatibility and impressive processing capabilities. Despite its compact 24.4cm x 24.4cm Micro ATX form factor, this board offers an extensive feature set designed to meet the needs of gamers, creators, and PC enthusiasts. Equipped with 4 DDR5 DIMM slots, this motherboard supports memory speeds up to DDR5 8200 MHz (OC) and a total capacity of 256 GB, allowing for blazing-fast multitasking and system performance. It supports AMD EXPO™ and Intel XMP profiles for easy memory overclocking, giving users a performance edge in intensive tasks and games. For storage, the B850M GAMING X WIFI6E features two M.2 slots (one supporting PCIe 5.0 x4) and four SATA 6Gb/s connectors, enabling high-speed storage setups. RAID 0, 1, 5, and 10 support for NVMe SSDs ensures both speed and data redundancy. Graphics output includes 1 HDMI 2.1 and 2 DisplayPort 1.4 ports, supporting up to triple-display output at 4K resolution, ideal for workstations or immersive setups.The motherboard boasts next-gen wireless connectivity with Realtek Wi-Fi 6E (supporting 2.4GHz, 5GHz, and 6GHz bands) and Bluetooth 5.3, alongside a high-speed 2.5GbE LAN port for fast and stable wired networking. A variety of USB options are available, including USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2 Type-A, and multiple USB 2.0/3.2 Gen 1 ports for both rear and front panel access. For audio, it features Realtek® high-definition audio with support for 7.1-channel output, customizable via bundled software. Additional features include ARGB/RGB headers, Q-Flash Plus, Smart Backup, and support for GIGABYTE Control Center (GCC) for system monitoring and control. With a robust power delivery system, PCIe 5.0 support, compact build, and rich connectivity, the GIGABYTE B850M GAMING X WIFI6E is a versatile and reliable choice for users building a modern, high-speed, and space-efficient AMD-powered PC. It comes backed by a 3-year manufacturing warranty for added peace of mind... |
Questions
Have question about this product? Get specific details about this product from expert.No questions have been asked about this product.
