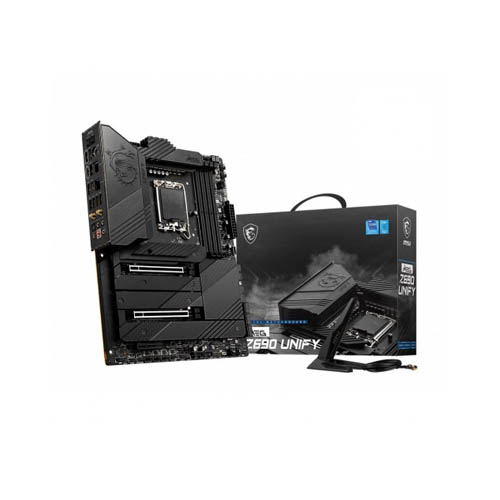

MSI MEG Z690 UNIFY 12th Gen ATX Motherboard

Save2400 ৳

MSI MEG Z690 UNIFY 12th Gen ATX Motherboard

Special Price: 57,600৳
Price: 60,000৳
Stock: In Stock
Brand: MSI
Model: MEG Z690 UNIFY
Product ID: 1753

Based on 0 reviews. - Write a review

57,600৳

60,000৳

EMI starts at 20,198৳/month. View all 25 banks EMI plans >

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Key Features

- Processor socket LGA1700
- Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- 4x DDR5 memory slots, supporting up to 128GB 1
- supporting up to 128GB

অর্ডার করার আগে স্টক এবং দাম সম্পর্কে নিশ্চিত হয়ে নিন : 01885938356

Basic Information
Supported CPU	Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Chipset	Processor socket LGA1700
BIOS	Flash BIOS Button
Form Factor	E-ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 27.7 cm)
Expansion Slots
PCI	3x PCIe x16 slots Supports x16/x0/x4, x8/x8/x4 PCI_E1 & PCI_E2 slots (From CPU) PCI_E1 supports up to PCIe 5.0 x16 PCI_E2 supports up to PCIe 5.0 x8 PCI_E3 1 (From Z690 chipset) Supports up to PCIe 4.0 x4
M.2 Socket	5x M.2 slots (M-Key)
Memory Specifications
Type	DDR5 Supports 1R 4800 MHz (by JEDEC & POR)
Slots	4x DDR5 memory slots, supporting up to 128GB 1
Supported Memory	Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 5600+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Max. Memory	supporting up to 128GB
Connector & Ports
HDMI	1x HDMI 2.1
Display Port (s)	1x Type-C Display port, supporting a maximum resolution of 4K 60Hz
USB (s)	Intel Z690 Chipset 2x USB3.2 Gen2x2 20Gbps ports (2 Type-C internal connectors) 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C port on the back panel, 3 Type-A ports on the back panel) Hub-GL3590 4x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel ASM1074 4x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector Hub-GL850G 4x USB 2.0 Type-A ports available through the internal connectors
LAN Port (s)	2x Intel I225V 2.5Gbps LAN controllers
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 2, FIPS, FISMA
Supported Storage	6x SATA 6Gb/s ports (From Z690 chipset) SATA5~8 (From Z690 chipset) SATAA~B (From ASM1061) 5x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slots (From Z690 chipset) M2_2 slot supports up to PCIe 4.0 x4 M2_3 slot supports up to PCIe 3.0 x4 Supports 2260/ 2280 storage devices M2_4 & M2_5 1 slots (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s M2_4 slot supports 2280/ 22110 storage devices M2_5 slot supports 2260/ 2280 storage devices M2_2~5 slots support Intel Optane Memory Supports Intel Smart Response Technology for Intel Core processors
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x USB 3.2 Gen 2x2 20Gbps Type-C ports 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 2x System panel connectors 1x Chassis Intrusion connector 1x 3-pin Water Flow connector 2x 2-pin Thermal sensor connectors 1x Tuning Controller connector
TPM (Trusted Platform Module )	1x TPM module connector
Graphics
Graphics	1x Type-C Display port, supporting a maximum resolution of 4K 60Hz
Warranty Information
Warranty	3 years

MSI MEG Z690 UNIFY 12th Gen ATX Motherboard

The MSI MEG Z690 UNIFY motherboard Supports with 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket and DDR5 Memory, Dual Channel DDR5-6666+MHz(OC). It is combines with dedicated SMT welding process and MSI Memory Boost technology, MEG Z690 UNIFY is ready to deliver the world class memory performance. This motherboard featured with Genuine 24K Gold, Premium aesthetics with its dark black finish and genuine 24K-gold foil heatsink perfectly show off the concept of beauty. the MSI Motherboard has Dual Thunderbolt 4 ports, these are Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience. In this motherboard, it comes with Quintuple M.2 Connectors. This connectors are Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. The MSI MEG Z690 UNIFY designed with Double-sided Shield Frozr, which keeps M.2 SSDs safe while preventing throttling, making them run faster. This motherboard also has Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz. The motherboard has Outstanding Cooling Solution, which designed with Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp. The new MSI MEG Z690 UNIFY designed with 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise. Here, The Ultimate audio solution comes with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
