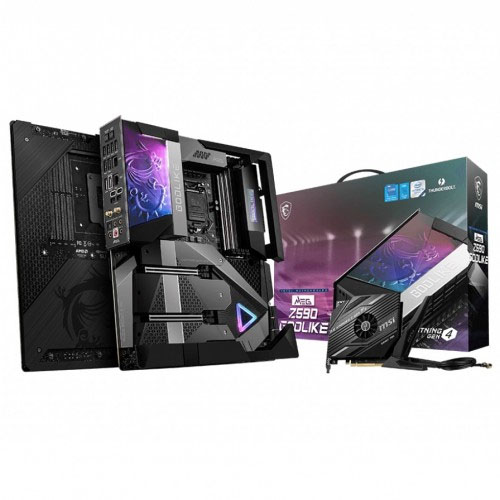

MSI MEG Z590 GODLIKE Intel 11th Gen E-ATX Gaming Motherboard

Save5100 ৳

MSI MEG Z590 GODLIKE Intel 11th Gen E-ATX Gaming Motherboard

Special Price: 97,900৳
Price: 103,000৳
Stock: In Stock
Brand: MSI
Model: MEG Z590 GODLIKE
Product ID: 4427

Based on 0 reviews. - Write a review

97,900৳

103,000৳

EMI starts at 34,330৳/month. View all 25 banks EMI plans >

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Key Features

- Supports 10th and 11th Gen Intel Processors
- Quadruple M.2 Connectors
- Premium Thermal Module
- Dynamic Dashboard II

অর্ডার করার আগে স্টক এবং দাম সম্পর্কে নিশ্চিত হয়ে নিন : 01885938356

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron processors Processor socket LGA1200
Chipset	Intel Z590 Chipset
Form Factor	12 in. x 10.9 in. (30.5 cm x 27.7 cm) E-ATX Form Factor
Expansion Slots
PCI	3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, x8+x8/x0/x4, x8+(x4+x4)/x0/x4 PCI_E1 & PCI_E2 slots (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU PCI_E3 slot (From Z590 chipset) Supports up to PCIe 3.0
M.2 Socket	4x M.2 slots (Key M) M2_1 (from CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2, M2_3 & M2_4 slots (from Z590 chipset) M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready
Memory Specifications
Type	DDR4
Slots	4x memory slots
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC mode, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Max. Memory	128GB
Connector & Ports
HDMI	1x HDMI 2.1
Display Port (s)	1x Type-C Display port, supporting a maximum resolution of 4K 60Hz
USB (s)	Intel® JHL8540 Thunderbolt™ 4 Controller 2x Thunderbolt™ 4 (Type-C) ports on the back panel Support up to 40 Gbps transfer rate with Thunderbolt devices Support up to 20 Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A , 15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display Intel Z590 Chipset: 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel and 1 Type-C internal connector) 2x USB 2.0 ports are available through the internal USB 2.0 connector Hub GL850G: 2x USB 2.0 ports are available through the internal USB 2.0 connector Asmedia 1074 Chipset: 10x USB 3.2 Gen 1 5Gbps ports (6 Type-A ports on the back panel, 4 ports are available through the internal USB 3.2 Gen 1 connectors)
LAN Port (s)	1x Aquantia AQC107 10Gbps LAN controller 1x Intel I225-V 2.5Gbps LAN controller
Supported Storage	6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_1 (from CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2, M2_3 & M2_4 slots (from Z590 chipset) M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Audio	Realtek ALC4082 Codec + ESS ES9218PQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 8x 4-pin system fan connectors 1x 3-pin Water Flow connector 1x Front panel audio connector 2x System panel connectors 1x Chassis intrusion connector 2x 2-pin Thermal sensors connectors 1x Tuning controller connector
TPM (Trusted Platform Module )	1x TPM module connector
Graphics
Graphics	Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology
Others Information
Special Features	Intel WiFi-6E AX210: The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 , FIPS, FISMA
Warranty Information
Manufacturing Warranty	3 years

MSI MEG Z590 GODLIKE Intel 11th Gen E-ATX Gaming Motherboard

Compare with traditional fin-array, the exclusive wavy fin design enlarges up to 50% heat dissipation, also enhances the airflow efficiency, increases the thermal performance significantly. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. Utilizing 11th Gen Intel processors, MSI Z590 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. This PCI-Express card offers two extra M.2 slots with smart fan cooling solution to increase your storage capacity at maximum speed, features auto detect function for the M.2 access and the M.2 temperature for easy checking. PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel Optane Memory device. Intel Optane technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance. Looking to go all out in terms of raw data speed and put multiple SSDs in RAID 0? Setting this up can prove to be quite the challenge. Thatâ€™s why we created M.2 Genie, a brilliant feature to make setting up RAID 0 for M.2 and U.2 much easier and less time consuming. MEG Z590 GODLIKE features high-bandwidth and low-latency onboard 10G Super LAN plus Intel 2.5G LAN for power users, provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency. The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

Quick Compare

Product Details
Product	MSI MEG Z590 GODLIKE Intel 11th Gen E-ATX Gaming Motherboard	MSI MEG Z690 ACE 12th Gen E-ATX Motherboard	GIGABYTE Z790 AORUS MASTER 13TH and 12TH GEN DDR5 ATX MOTHERBOARD	MSI MEG Z690 UNIFY 12th Gen ATX Motherboard
Price	~~103,000৳~~ 97,900৳	~~82,400৳~~ 78,100৳	~~65,500৳~~ 62,500৳	~~60,000৳~~ 57,600৳
Model	MEG Z590 GODLIKE	MEG Z690 ACE	Z790 Aorus master	MEG Z690 UNIFY
Brand	MSI	MSI	Gigabyte	MSI
Availability	In Stock	In Stock	In Stock	In Stock
Rating	Based on 0 reviews.	Based on 0 reviews.	Based on 1 reviews.	Based on 0 reviews.
Summary	MSI MEG Z590 GODLIKE Intel 11th Gen E-ATX Gaming MotherboardCompare with traditional fin-array, the exclusive wavy fin design enlarges up to 50% heat dissipation, also enhances the airflow efficiency, increases the thermal performance significantly. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. Utilizing 11th Gen Intel processors, MSI Z590 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. This PCI-Express card offers two extra M.2 slots with smart fan cooling solution to increase your storage capacity at maximum speed, features auto detect function for the M.2 access and the M.2 temperature for easy checking. PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel Optane Memory device. Intel Optane technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance. Looking to go all out in terms of raw data speed and put multiple SSDs in RAID 0? Setting this up can prove to be quite the challenge. Thatâ€™s why we created M.2 Genie, a brilliant feature to make setting up RAID 0 for M.2 and U.2 much easier and less time consuming. MEG Z590 GODLIKE features high-bandwidth and low-latency onboard 10G Super LAN plus Intel 2.5G LAN for power users, provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency. The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency...	MSI MEG Z690 ACE 12th Gen E-ATX MotherboardMSI MEG Z690 ACE Motherboard Supports with 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket and DDR5 Memory, Dual Channel DDR5-6666+MHz(OC). It is combined with a dedicated SMT welding process and MSI Memory Boost technology, MEG Z690 ACE is ready to deliver world-class memory performance. This motherboard featured with Genuine 24K Gold, Premium aesthetics with its dark black finish, and genuine 24K-gold foil heatsink perfectly show off the concept of beauty. the MSI Motherboard has Dual Thunderbolt 4 ports, these are Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience. This motherboard comes with Quintuple M.2 Connectors. These connectors are Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. The MEG Z690 ACE is designed with Double-sided Shield Frozr, which keeps M.2 SSDs safe while preventing throttling, making them run faster. This motherboard also has an Onboard dual 2.5G LAN with LAN manager and the latest Wi-Fi 6E solution which supports 6GHz. The motherboard has an Outstanding Cooling Solution, which is designed with Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr, and Aluminum Backplate to ensure extreme performance with low temp. The new MEG Z690 ACE designed with 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise. Here, The Ultimate audio solution comes with the latest premium ALC4082 audio processor combining ESS audio DAC and amplifier delivers a breathtaking experience...	GIGABYTE Z790 AORUS MASTER 13TH and 12TH GEN DDR5 ATX MOTHERBOARD Overview The Gigabyte Z790 AORUS MASTER motherboard stands out as a powerhouse for both 13th and 12th Gen Intel processors, supporting a multitude of advanced features in a Micro ATX form factor. It harnesses the Intel Z790 Express Chipset, catering to a high-performance computing experience. This motherboard revolutionizes memory capabilities with support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules, offering a staggering 128GB maximum capacity across 4 DDR5 DIMM sockets. Connectivity is exceptional, featuring an array of USB ports: 3 x USB Type-C ports (with 2x2 USB 3.2 Gen 2 support), 8 x USB 3.2 Gen 2 Type-A ports, and multiple USB 2.0/3.2 Gen 1 headers for seamless peripheral integration. Networking prowess is highlighted by the Marvell AQtion AQC113C 10GbE LAN chip, delivering high-speed connectivity options (up to 10Gbps). Audio capabilities are top-notch with the Realtek ALC1220-VB CODEC, ESS ES9118 DAC chip, and support for DTS: X Ultra, ensuring immersive, high-definition sound experiences. The internal I/O ports are abundant, including multiple fan headers, M.2 connectors, SATA connectors, USB headers, and addressable/RBG LED strip headers. Additionally, it features Thunderbolt™ add-in card connectors, voltage measurement points, noise detection headers, and more, catering to advanced users and enthusiasts. This motherboard's robust design, paired with comprehensive software support for Windows 11 and Windows 10 64-bit, positions it as a highly capable and adaptable foundation for high-end gaming rigs, content creation workstations, or demanding computing environments. Its versatility and cutting-edge features make it a standout choice for enthusiasts seeking performance, expandability, and future-proofing in their builds. Performance The GIGABYTE Z790 AORUS MASTER motherboard stands out for its exceptional performance, designed to meet the demands of both casual users and hardcore gamers. Equipped with the latest 13th and 12th Generation Intel Core processors, Pentium Gold, and Celeron Processors, this motherboard ensures seamless multitasking and smooth performance even during the most resource-intensive tasks. Memory Technology Featuring cutting-edge DDR5 memory technology, the Z790 AORUS MASTER motherboard delivers blazing-fast data transfer speeds and enhanced responsiveness. With support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules, users can experience unparalleled performance and responsiveness for gaming, content creation, and more. Connectivity The GIGABYTE Z790 AORUS MASTER motherboard offers extensive connectivity options to cater to various user needs. With multiple USB ports, including USB Type-C® ports with USB 3.2 Gen 2x2 support, users can effortlessly connect their peripherals and external devices for fast data transfer and charging. Additionally, the motherboard features high-speed LAN ports, ensuring smooth and lag-free online gaming and streaming experiences. Form Factor Built on a Micro ATX Form Factor, the Z790 AORUS MASTER motherboard strikes the perfect balance between performance and compactness. Its solid capacitor design ensures stability and durability, making it an ideal choice for both gaming rigs and workstation setups. Seamless Gaming For gamers, the GIGABYTE Z790 AORUS MASTER motherboard offers a seamless gaming experience with its advanced features and technologies. With support for the latest Intel processors and DDR5 memory, gamers can enjoy smooth gameplay, reduced latency, and faster load times, giving them a competitive edge in their favorite titles. Supported Processor The Z790 AORUS MASTER motherboard supports a wide range of processors, including the 13th and 12th Generation Intel® Core™ processors, Pentium® Gold, and Celeron® Processors. This versatility allows users to choose the processor that best suits their needs and budget, ensuring compatibility and future-proofing their system. FAQs Q: What makes the GIGABYTE Z790 AORUS MASTER motherboard stand out?A: The Z790 AORUS MASTER motherboard stands out for its exceptional performance, advanced features, and extensive connectivity options, making it a top choice for gamers and enthusiasts alike.Q: Does the motherboard support DDR5 memory?A: Yes, the Z790 AORUS MASTER motherboard supports DDR5 memory technology, offering blazing-fast data transfer speeds and enhanced responsiveness for gaming and multitasking.Q: What processors are compatible with the Z790 AORUS MASTER motherboard?A: The motherboard supports the 13th and 12th Generation Intel® Core™ processors, Pentium® Gold, and Celeron® Processors, providing users with a wide range of options to choose from.Q: What form factor is the Z790 AORUS MASTER motherboard?A: The motherboard is built on a Micro ATX Form Factor, offering a balance between performance and compactness, making it suitable for various PC builds.Q: What connectivity options does the Z790 AORUS MASTER motherboard offer?A: The motherboard features multiple USB ports, LAN ports, and other connectivity options, ensuring seamless connectivity for peripherals, external devices, and networking...	MSI MEG Z690 UNIFY 12th Gen ATX MotherboardThe MSI MEG Z690 UNIFY motherboard Supports with 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket and DDR5 Memory, Dual Channel DDR5-6666+MHz(OC). It is combines with dedicated SMT welding process and MSI Memory Boost technology, MEG Z690 UNIFY is ready to deliver the world class memory performance. This motherboard featured with Genuine 24K Gold, Premium aesthetics with its dark black finish and genuine 24K-gold foil heatsink perfectly show off the concept of beauty. the MSI Motherboard has Dual Thunderbolt 4 ports, these are Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience. In this motherboard, it comes with Quintuple M.2 Connectors. This connectors are Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. The MSI MEG Z690 UNIFY designed with Double-sided Shield Frozr, which keeps M.2 SSDs safe while preventing throttling, making them run faster. This motherboard also has Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz. The motherboard has Outstanding Cooling Solution, which designed with Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp. The new MSI MEG Z690 UNIFY designed with 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise. Here, The Ultimate audio solution comes with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience...
