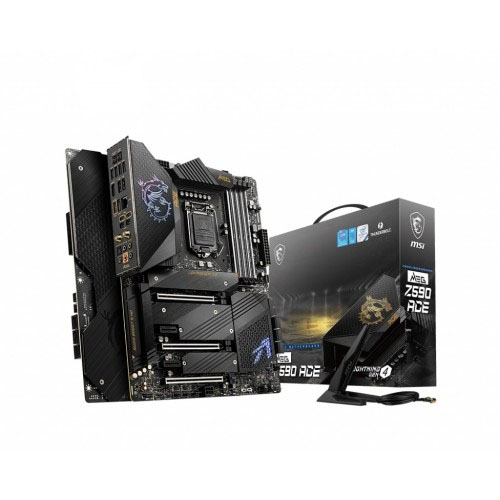

Model: MEG Z590 ACE Gaming
View More Info...
Chat Through
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron® Processors1 Processor socket LGA1200 |
| Chipset | Intel Z590 Chipset |
| Form Factor | ATX Form Factor |
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF output |
| PCI | 3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4 PCI_E1 & PCI_E3 slots (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU PCI_E5 slot (From Z590 chipset) Supports up to PCIe 3.0 2x PCIe 3.0 x1 slots (From Z590 chipset) |
| M.2 Socket | 4x M.2 slots (Key M) |
| Memory Type | DDR4 |
| Slots | 4x DDR4 memory slots |
| Supported Memory Type | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1 Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Max. Memory | support up to 128GB |
| USB (s) | 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector) 2x USB 2.0 Type-A ports on the back panel Hub-GL850G 4x USB 2.0 ports through internal USB connectors |
| LAN Port (s) | 1x Intel I225V 2.5Gbps LAN controller |
| Supported Storage | 6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_2, M2_3, M2_4 slots (from Z590 chipset) |
| Audio | 1x Front panel audio connector |
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Tuning Controller connector |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1 |
| Special Features | Intel Wi-Fi 6E AX210 |
| Warranty | 3 years |
MSI MEG Z590 ACE Gaming Motherboard Supports 11th and 10th Gen Intel Core Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5600(OC) MHz, The motherboard has Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience. The Motherboard comes with Extreme Power Design, that INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors. The Motherboard has Outstanding Cooling Solution, that Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp. It has 2.5G LAN with latest Wi-Fi 6E Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience. The Motherboard has One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click. It is also featured with 8 Layer PCB with 2oz Thickened Copper, that Provides higher performance and long-lasting system stability without any compromise. Here, the Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
