Model: MEG X670E GODLIKE
View More Info...
Chat Through
| Supported CPU | Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD X670 |
| Form Factor | E-ATX 288mmx304.8mm |
| Audio | Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| PCI | 3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 5.0 supports up to x4 (From CPU) |
| Memory Type | DDR5 |
| Slots | 4 DIMMs |
| Supported Memory Type | Dual Channel DDR5 |
| Max. Memory | 128GB |

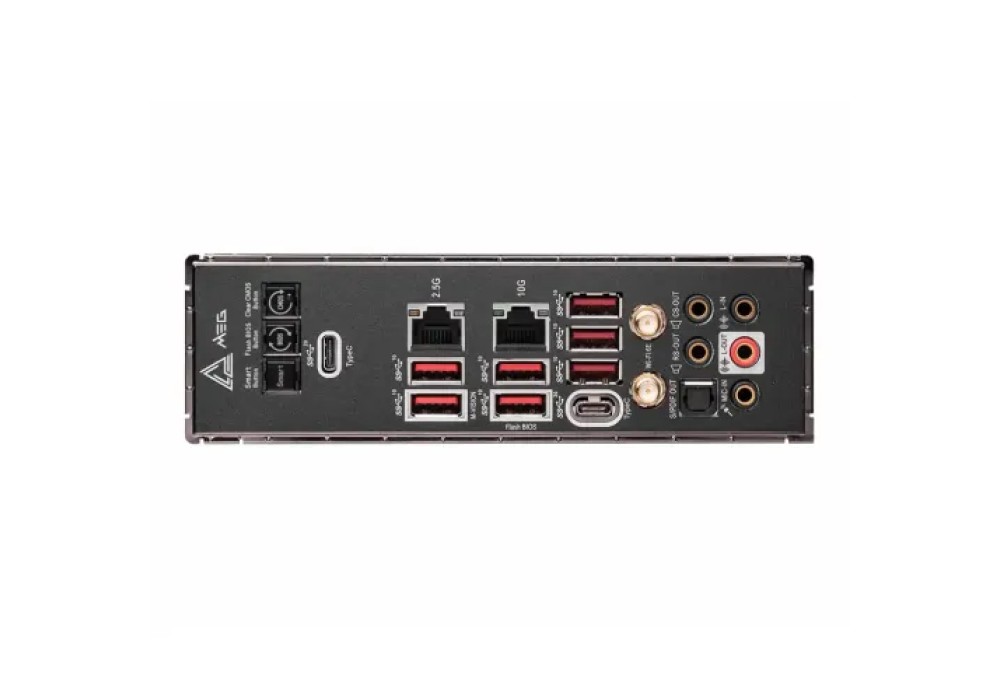

| USB (s) | 4x USB 2.0 ports (Front) 4x USB 3.2 Gen1 Type A ports (Front) 7x USB 3.2 Gen2 Type A ports (Rear) 1x USB 3.2 Gen2 Type C ports (Front) 2x USB 3.2 Gen2x2 Type C ports (Rear) 1x USB 3.2 Gen2x2 Type C ports (Front) |
| LAN Port (s) | Marvell AQC113-B1-C 10Gbps LAN Intel I225V 2.5Gbps LAN |
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
| Supported Storage | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 8x SATA 6G port |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 4pin or 6 pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB 3.2 Gen 2x2 Type C ports V-check point |
| Graphics | Supports NVIDIA SLI Technology Supports AMD MULTI-GPU |
| Manufacturing Warranty | 3 Years |

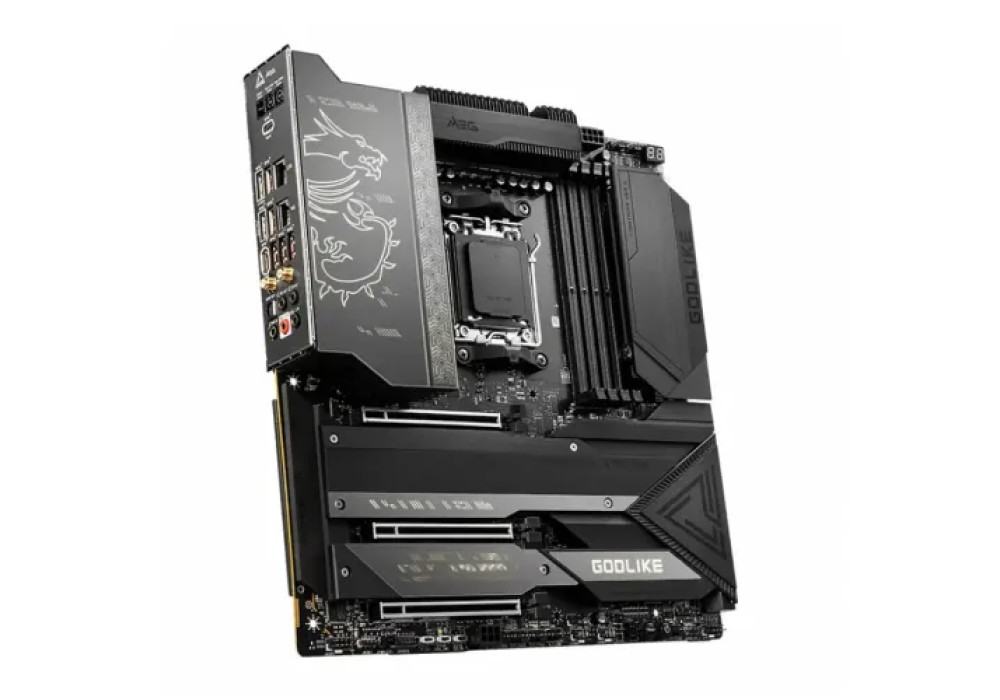

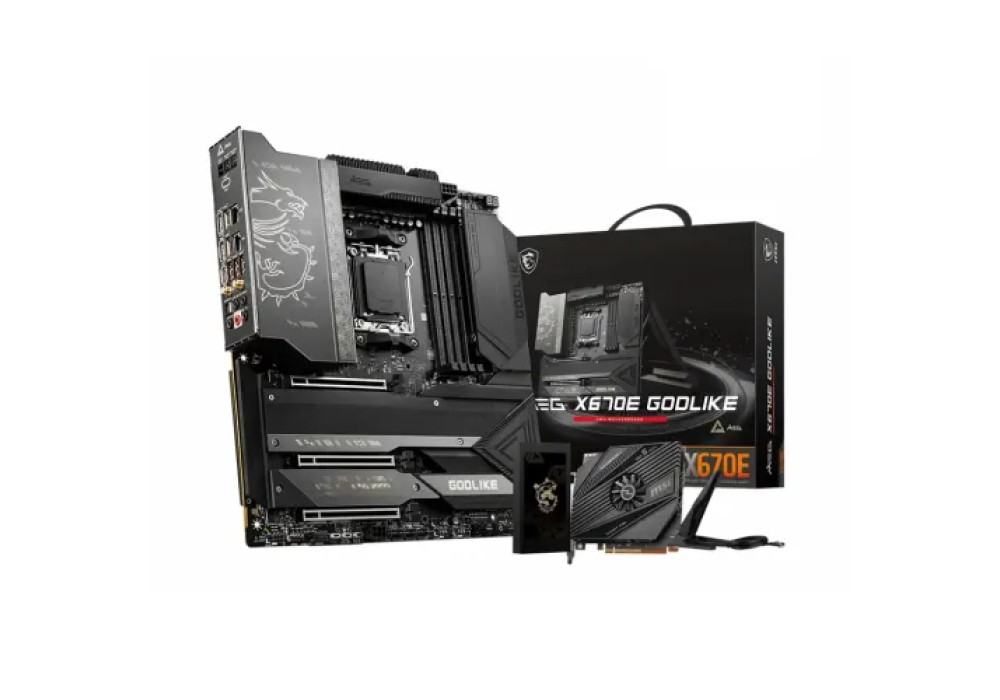

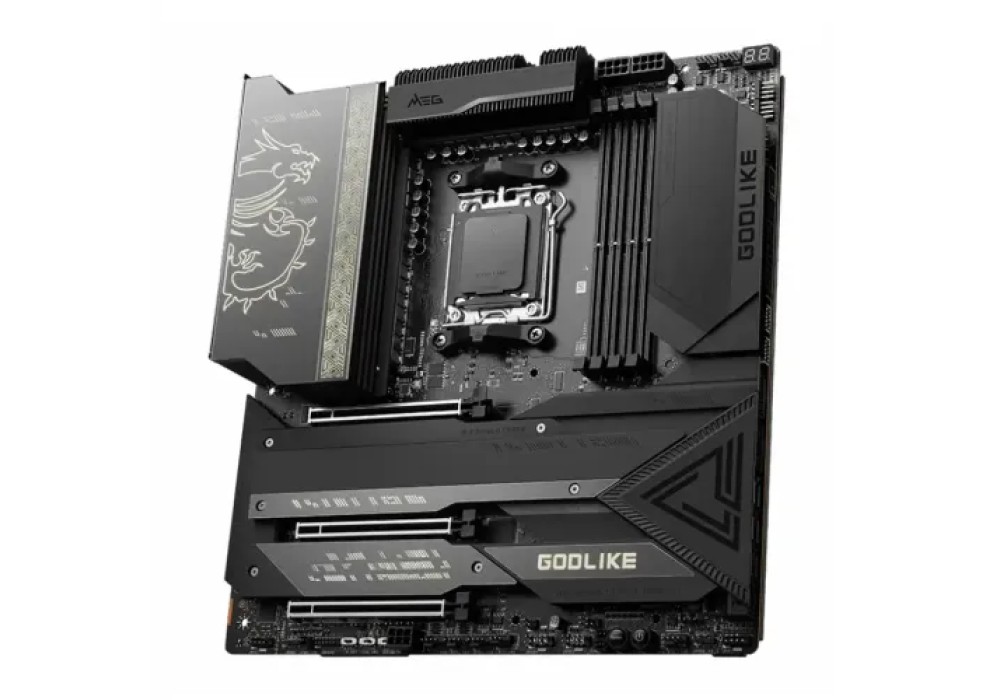

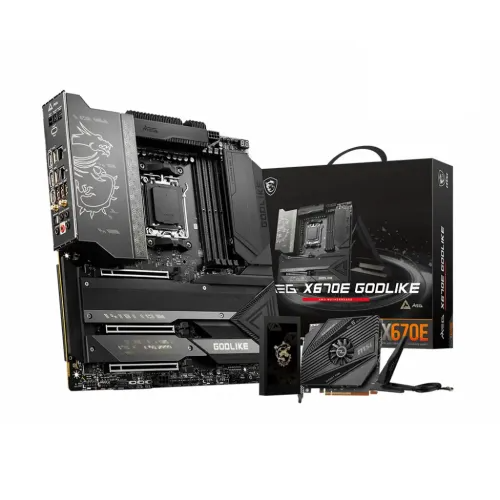

The MSI MEG X670E GODLIKE Motherboard supports AMD's Ryzen 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a maximum Memory Capacity of up to 128GB. The MEG X670E GODLIKE is designed with a black and heavy heatsink which comes with a dark mirror and time carving design in pale gold illuminating that symbolizes the timeless form and function as well as representing perfection in its purest form. Featuring the latest technology, high-speed transmission, ultra-performance, and Industry's first M-Vision Dashboard. The Touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function but also allows system operation and customization with touch control. MSI MEG X670E GODLIKE features a 24+2+1 phases power design with 105A Smart Power Stage and dual CPU power connectors that are ready to unleash the maximum performance. It has a wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr, and Frozr AI software to ensure the utmost performance with low temperature. The motherboard is made of a 10 Layer PCB with 2oz Thickened Copper that Provides higher performance and long-lasting system stability without any compromise The MSI MEG X670E GODLIKE Motherboard offers onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for maximum storage performance. It can deliver a lightning-fast game experience with PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2x2 20G with 60W USB Power Delivery. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MEG X670E GODLIKE offers an onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card that offer totally sextuple M.2 connectors for maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
