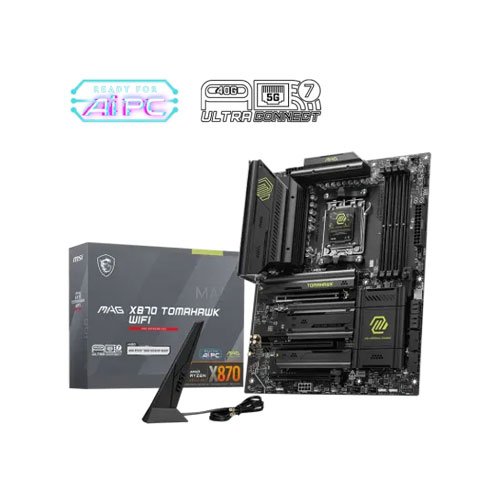

Model: MAG X870 TOMAHAWK WIFI
View More Info...
Chat Through
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD X870 |
| Form Factor | ATX 304.8mmx243.84mm |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-bit/384kHz playback on the front panel Supports S/PDIF output |
| PCI | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Memory Type | DDR5 |
| Slots | 4x UDIMM |
| Supported Memory Type | Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency:V • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Max. Memory | 256GB |
| Special Features | 4x EZ Debug LED 1x EZ Digit Debug LED |
| HDMI | 1x HDMI |
| Display Port (s) | 2x Type-C DisplayPort |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) |
| LAN Port (s) | Realtek 8126-CG 5G LAN |
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Graphics | 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz |
| Manufacturing Warranty | 3 Years |
The MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard is a powerhouse designed to deliver exceptional performance and versatility for the latest AMD Ryzen processors. This ATX motherboard supports the AMD Ryzen 9000, 8000, and 7000 series processors, making it ideal for gamers, content creators, and professionals who demand top-tier processing power and cutting-edge technology. Built on the AMD X870 chipset, this motherboard offers a robust platform for high-performance desktop builds. One of the standout features of the MSI MAG X870 TOMAHAWK is its support for DDR5 memory, which allows for impressive memory speeds of up to 8400+ MT/s (overclocked). With four UDIMM slots, this motherboard supports up to 256GB of memory, ensuring smooth multitasking and rapid data processing, even in the most demanding applications. It also supports AMD EXPO for easy memory overclocking, making it perfect for enthusiasts looking to push their system's limits. In terms of expansion capabilities, the MSI MAG X870 TOMAHAWK comes equipped with three PCI-E x16 slots. The PCI_E1 slot supports PCIe 5.0 x16, which provides lightning-fast speeds and future-proofing for high-end graphics cards, especially when paired with Ryzen 9000 or 7000 series processors. Additionally, the motherboard features PCIe 3.0 and PCIe 4.0 slots, providing plenty of options for installing expansion cards or additional hardware like capture cards, storage controllers, or high-speed networking cards. Storage options are also a major strength of this motherboard. It offers four M.2 slots, with M.2_1 and M.2_2 supporting PCIe 5.0 x4, ensuring that your NVMe SSDs deliver blazing-fast read and write speeds. This is particularly beneficial for users who need rapid access to large amounts of data, such as video editors, graphic designers, and game developers. Additionally, the motherboard supports RAID 0, 1, and 10 for M.2 NVMe storage devices, providing excellent data redundancy and performance optimization. The MSI MAG X870 TOMAHAWK is also equipped with impressive connectivity options, making it future-proof and versatile. It features Wi-Fi 7 for ultra-fast wireless connectivity, with speeds up to 5.8Gbps, and Bluetooth 5.4, providing a seamless connection to wireless devices. For wired networking, the motherboard includes a Realtek 8126-CG 5G LAN port, ensuring high-speed, stable internet connectivity, whether you’re gaming, streaming, or working on large file transfers. On the back panel, the motherboard offers a variety of USB ports, including two USB 40Gbps Type-C ports, multiple USB 10Gbps and USB 5Gbps Type-A ports, and additional USB 2.0 ports, ensuring that you have plenty of connectivity options for peripherals, external storage devices, and accessories. It also includes an HDMI 2.1 port with support for 8K resolution at 60Hz and DisplayPort 1.4 over USB Type-C, making it compatible with high-resolution monitors and displays for stunning visuals. Audio enthusiasts will appreciate the Realtek ALC4080 Codec, which provides 7.1-channel high-performance audio with up to 32-bit/384kHz playback on the front panel, delivering crystal-clear sound quality for immersive gaming and entertainment experiences. The board also supports S/PDIF output, making it a great choice for home theater setups or professional audio applications. The MSI MAG X870 TOMAHAWK is built for durability and ease of use. It features MSI’s EZ Debug LED and EZ Digit Debug LED to help users troubleshoot any issues quickly. The board is also equipped with addressable RGB headers and standard RGB headers, allowing for customizable lighting setups that sync with other components in your build, adding a personalized touch to your system. the MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard is a top-tier option for users seeking cutting-edge technology, robust performance, and expansive connectivity. Whether you're building a high-end gaming PC, a content creation workstation, or a future-proof desktop, this motherboard has everything you need to achieve outstanding performance and flexibility.
