Model: MAG X670E TOMAHAWK WIFI
View More Info...
Chat Through
| Type | DDR5 |
| Supported CPU | Supports AMD Ryzen 8000 & 7000 Series Desktop Processors
Socket AM5 |
| Chipset | AMD X670 |
| Form Factor | ATX, 243.84mmx304.8mm |
| Audio | Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| PCI | 3x PCI-E x16 slot Supports x16/x4/x2 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset) |
| Memory Size | 192GB |
| Slots | 4 DIMMs |
| Supported Memory Type | Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort, 1x Type-C DisplayPort |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN Port (s) | Realtek RTL8125BG 2.5Gbps LAN |
| Supported Storage | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 6x SATA 6G port |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Graphics | 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 4K 120Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz |
| Bundled Software | Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility |
| Manufacturing Warranty | 3 Years |

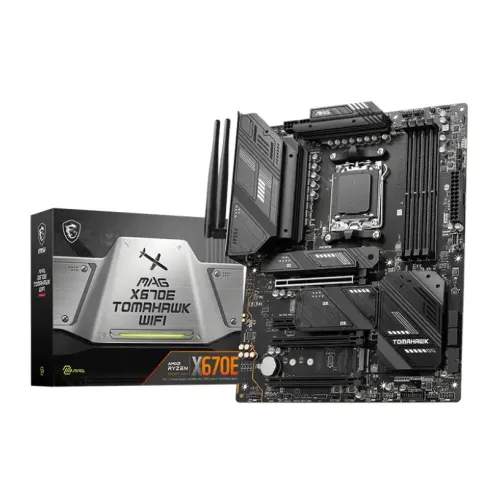

MSI MAG X670E TOMAHAWK WIFI AMD AM5 ATX motherboard supports the latest AMD Ryzen 8000 & 7000 Series desktop processors, providing powerful computing capabilities for demanding tasks and gaming. With support for DDR5 memory, up to 6000+(OC) MHz, the motherboard delivers blazing-fast memory speeds for smooth multitasking and efficient data handling. The enhanced power design includes a 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost, ensuring stable power delivery and optimal performance. MSI MAG X670E TOMAHAWK WIFI Motherboard offers a lightning-fast game experience with a PCIe 5.0 slot, Lightning Gen5 M.2, and USB 3.2 Gen 2x2 ports. The premium thermal solution, including an extended heatsink design and M.2 Shield Frozr, helps keep the system cool during intense gaming sessions or heavy workloads. MSI MAG X670E TOMAHAWK WIFI Motherboard features Audio Boost technology, delivering studio-grade sound quality for an immersive gaming experience. It comes with a high-quality PCB featuring an 8-layer design made with 2oz thickened copper and server-grade level material.
